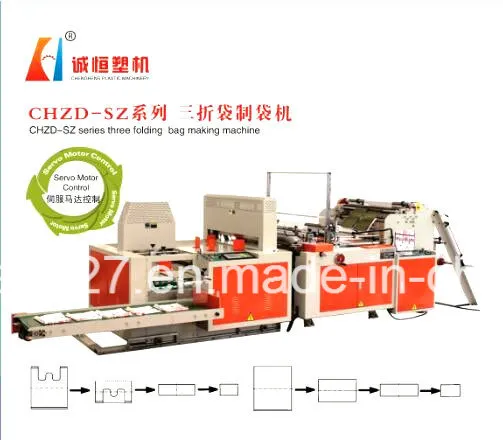

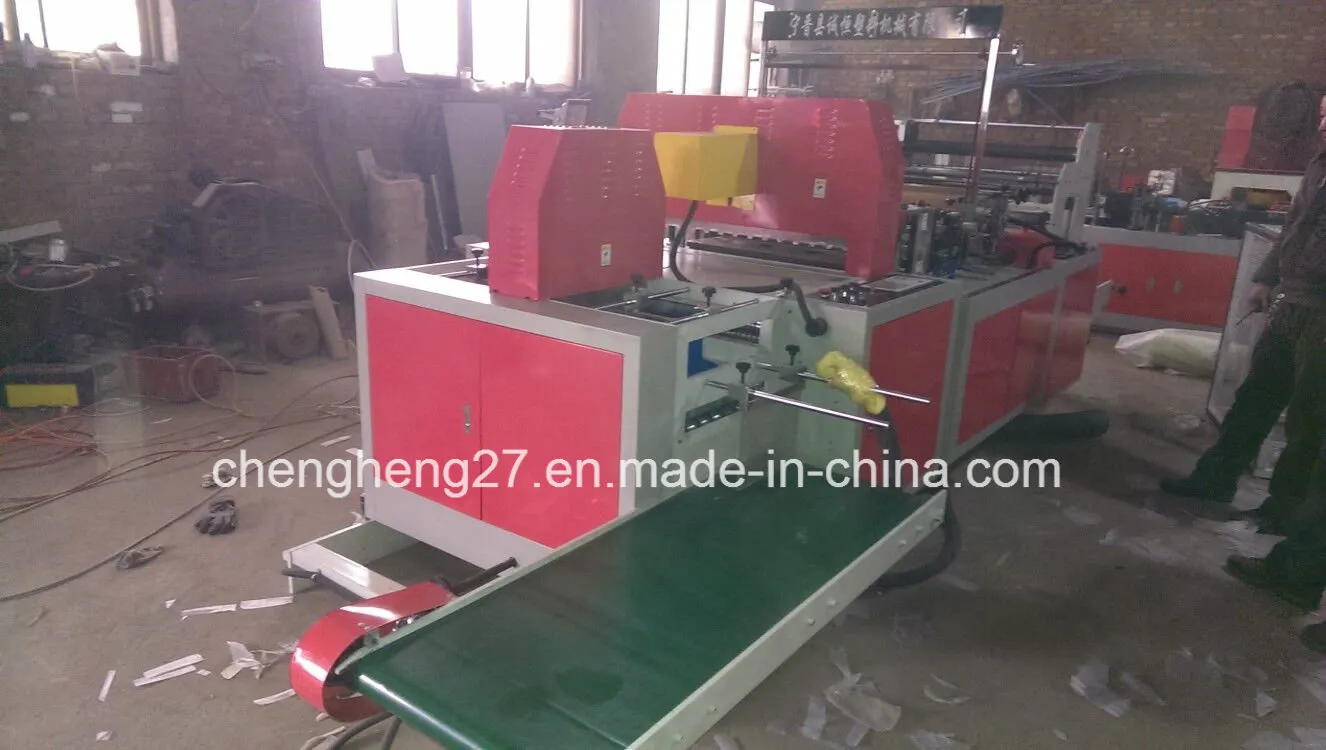

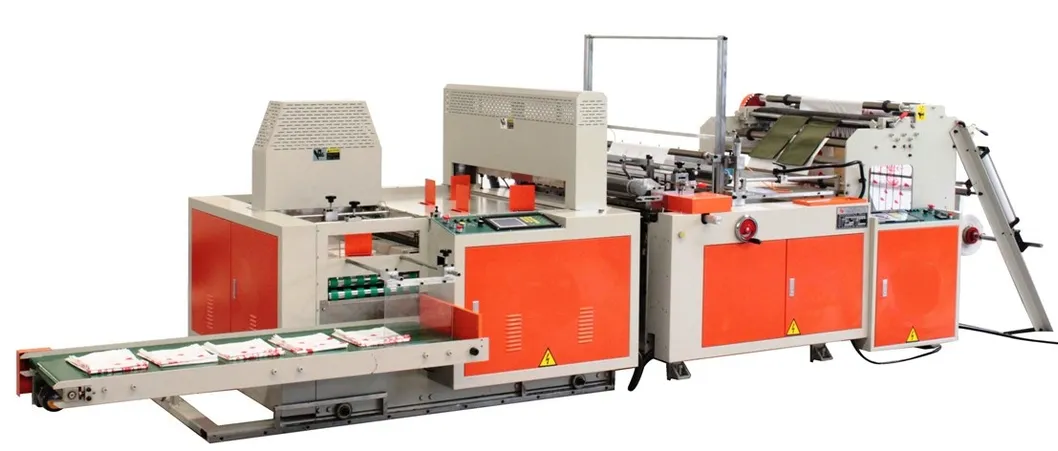

Automatic Folding Garbage Bag Making Machine for Japan Market

Product Description

Introduction:

The garbage bag makingmachine is suitable to process cannular HDPE,LDPE or colorful flat bags,foldingto the general bag size.
The garbage making bagmachine adopts Stepper motor(or servo motor),Taiwanoriginal controller, stableprocess,convenient operation.
It is highly accurate tofold the bag and control the filling,no manual sorting.Folding the flatbag to three folds(big bag turns to small bag)
This making garbage bag machine absorbs the advantage of foreign machine,offering the coldcutting bag production progress.This kind of bag making machine is the domesticleading machine

Application:

Model	CHZD-S800	CHZD-S900	CHZD-S1000
Film width	≤700mm	≤800mm	≤900mm
Film length	650-1000mm	650-1000mm	650-1000mm
Film thickness (mm)	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Making bag speed	40-60pcs/min	40-60pcs/min	40-60pcs/min
Power supply	220V50HZ	220V50HZ	220V50HZ
Main motor power(KW)	3.8kw	3.8kw	4.2kw
Main motor heating power(KW)	2kw	2kw	2.2kw
Overall dimension	4200X1500X1600mm	4200X1500X1600mm	4200X1600X1600mm
Weight	1900kg	1900kg	2100kg

.Feature:
The garbage making bag machine adopts Stepper motor(or servo motor),Taiwan original controller, stable process,convenient operation.
It is highly accurate to fold the bag and control the filling,no manual sorting.

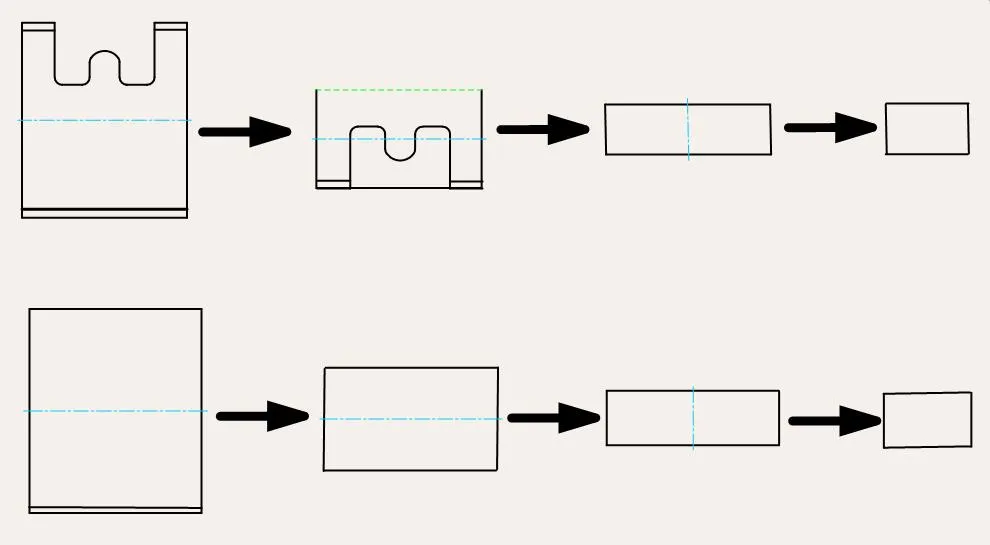

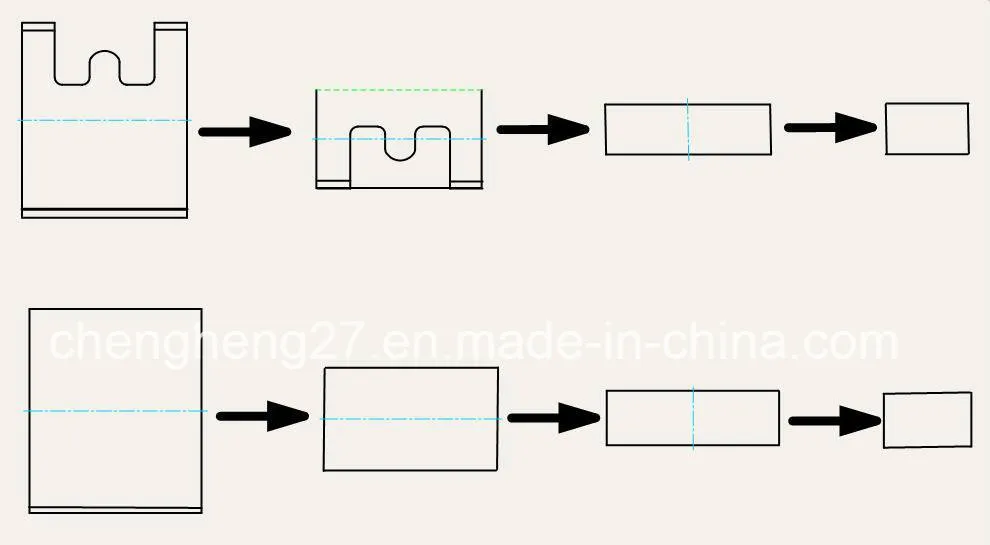

Folding the flat bag to three folds(big bag turns to small bag)

Service:
1.Free installation and ajustment.(for consumers purchase more than $100000 only)
2.One year free after-sales service(No charge for changing parts) and mechanical parts lifetime warranty.
3.We will offer you the professional answers about the relating machines in 24 hours.
