Product Description
1. production overview
AROJET X6 high-speed variable data UV digital printing machine, is suitable for roll to roll printing and printing of flexible packaging. Its nozzle frequency is 50KHZ with printing speed up to 300m/min. The printing qualified rate can be up to 99.9% with high definition and high precision.
The patented-designed printing data algorithm improves the nozzle efficiency. The ink data optimization algorithm can reduce the ink loss, save production costs. Precise and seamless printing stitching makes printing effect more perfect. Integrated board and modular structure designs make modules expanding more convenient and maintenance simpler.
2.Product Features
High-speed printing with printing speed up to 300m/min.
Keeping printing blackness.
Resolution:600x300dpi,speed:300m/min.
Resolution:600x400dpi,speed:240m/min.
Resolution:600x600dpi,speed:200m/min.
Resolution:600x800dpi,speed:160m/min.
Resolution:600x1200dpi,speed:100m/min.
The nozzle has high utilization rate and low ink loss.
High printing definition and precision, perfect printing effect
Gigabit network data transmission. Transmission efficiency is high and more stable.
High-intensity heating of UV-LED lamp makes the ink fast curing and drying.
Negative pressure for ink control and positive pressure for nozzle cleaning, make the ink jetting smoothly, the ink road unblock and easy to clean.
Integrated modular board and structure designs for convenient module expansion and simple maintenance.
3.Product Specifications
| Model: | X6 | Printing software: | MagicData variable data-editing software |
| Print head type: | Industrial piezoelectric print head (RICOH) | SDK: | Provide interface to support second development |
| Print head life: | 100 billion actuations per print head | Ink control: | Negative pressure for ink control, positive pressure for nozzle cleaning |
| Print head material: | Stainless steel, Nickel alloys & Epoxy adhesive | Ink type: | High-quality Eco-friendly UV ink |
| Print head width: | 54mm (single print head) | Ink color | Single color |
| Nozzle rows: | 4 rows | Curing type: | UV-LED curing |
| Printing modules: | 8 groups | Printing speed: | 0-300m/min. (Affected by material, resolution, environment, platform etc. factors) |
| Max. width of printing: | 432mm | Lengthways printing precision: | 600dpi |
| Distance from print head to material: | 0.5mm-2mm | Crosswise printing precision: | 200dpi-1200dpi adjustable |
| Material feeding way: | Single sheet, roll to roll | Weight: | 270KG |
| Power supply: | AC 100V-240V, 50Hz-60Hz, 3.0KW | Size: | 1.39m*0.83m*1.50m (print head case+curing case) |
| Interface type: | USB 3.0 and optical fiber data transmission | Working temperature: | 5°C-40°C |
| Environment humidity: | 20%-65% RH |

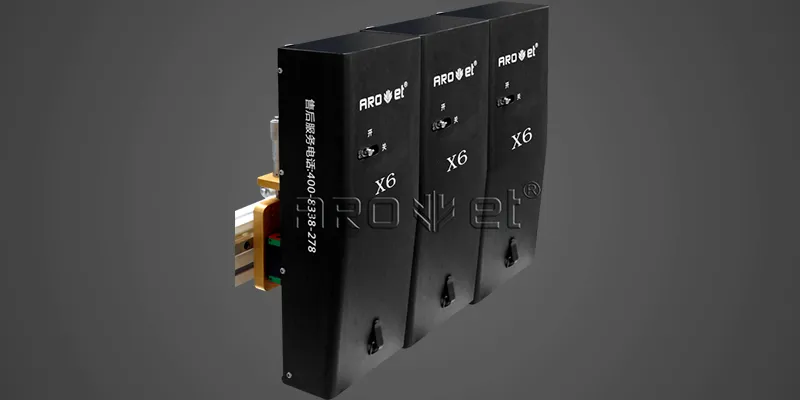

4.Print Head
X6 high-speed industrial digital inkjet printer, is equipped with high-quality piezoelectric print head using Japan RICOH print head which has long service life. It has stable printing effect with high precision and high definition.
X6 features high-speed printing with printing speed up to 300m/min. At 600*600dpi high resolution the printing speed can reach 200m/min. It uses negative pressure for ink control which ensure the nozzle unblocked. The positive pressure cleaning makes the daily maintenance much easier.
X6 patent-designed print head has higher utilization rate and lower ink loss. It can satisfy customers for high-quality and high-efficiency production requirements.
5.Printing Software
AROJET patent-designed MagicData printing software is applied to model X6 high-speed single-color variable data inkjet printing. It supports a lot of content formats, such as variable data graphics BMP format, barcode, QR code text format (Chinese characters, English characters, numbers, special symbols), regulatory code, anti-counterfeit code, graphical text, etc. MagicData's features include template management, layout design,parameter adjustment, data merging and splitting, output preview, record queries, template modification, etc.
MagicData software for X6 simplifies and streamlines a wide range of printing applications, such as label, flexible packaging, plastic, film, QR code, barcode, etc. It can satisfy different customers with different requirements.
6.Printing Ink
AROJET inkjet printing machines use greens environmental-protective UV ink, which do not contain VOC (volatile organic compounds)substances, The UV ink which printed on the materials can achieve fast drying through AROJET patent-designed UV-LED curing water cooling system, which makes the printing high-adhesive, anti-scratching, friction-resistant and alcohol-resistant. It is widely used in variable inkjet coding on different materials of different thickness.

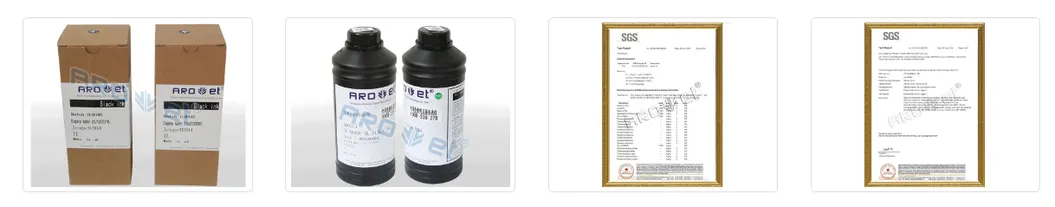

Model X6 adopts single-color UV ink for printing. Thanks to the stable inkjet quality and outstanding inkjet printing effect, it has been highly praised by many of our customers. We regularly update ink SGS reports and review the MSDS reports of the ink material.
Greens and environmental-protective
Quick drying and high adhesion
