Product Description
Industrial Automatic Inkjet Printing Machine for Wood
Product Specification:

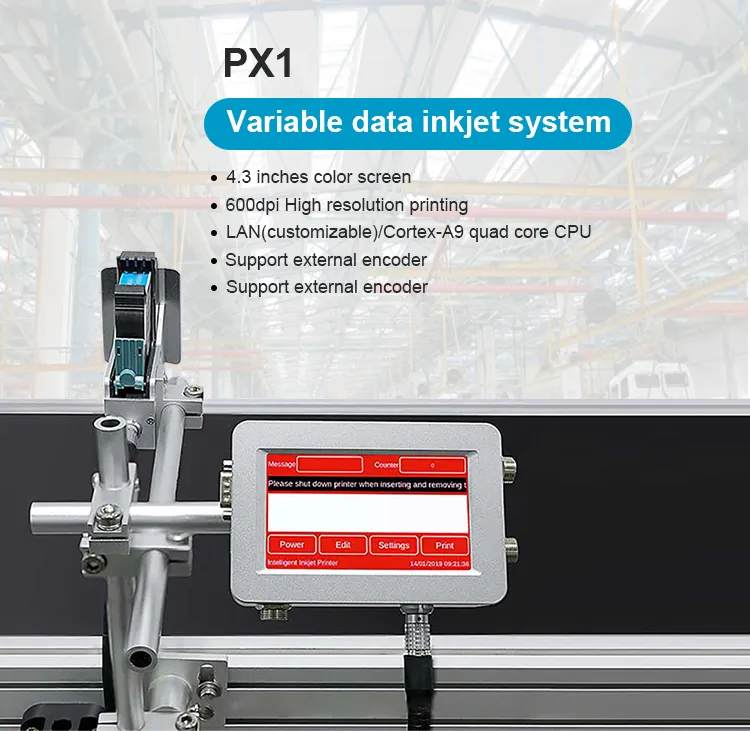

| Model | PX1 | ||||
| Shape features | Aluminium | ||||
| Weight | 1.5kg | ||||

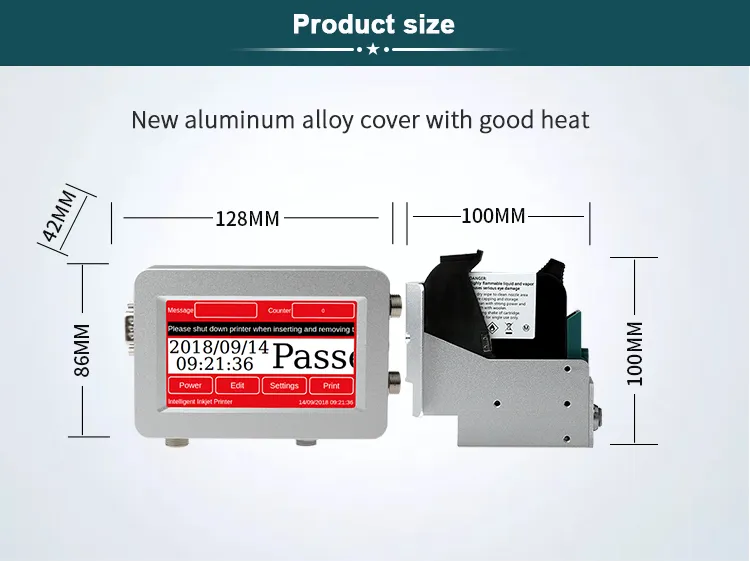

| Dimension | 128*90*45mm | ||||
| CPU | Quard core 1.4 GHz | ||||
| Definition | 600 dpi | ||||
| Spray nozzle | Thermal foaming inkjet 2.5 | ||||
| Printing direction | Adjustable with 360 degree, meet all kinds of production needs | ||||
| Printing line | 1-8 lines (adjustable) | ||||
| Printing height | 1.2mm-12.7mm | ||||
| Printing distance | 1-10mm Mechanical Adjustment (the best distance between the nozzle and printed object is 2-5mm) | ||||
| Printing content | Chinese, English, number, date, time, QR code, bar code, picture | ||||
| Application | Board, carton, stone, pipe, cable, metal, plastic, electronics, automotive parts | ||||
| Printing length | 2000characters for each message, no limitation on length | ||||
| Printing speed | 70m/min | ||||
| Ink type | Quick-dry environmental ink, water-based ink and oily ink | ||||
| Ink color | black, white, red, blue, yellow, green, invisible | ||||
| Ink volume | 42ml(usually can print 800,000 characters) | ||||
| Interface | USB, RS232, DB15, Photoelectric interface, Bluetooth 4.0, Wi-Fi | ||||
| Voltage | DC16.8 lithium battery | ||||

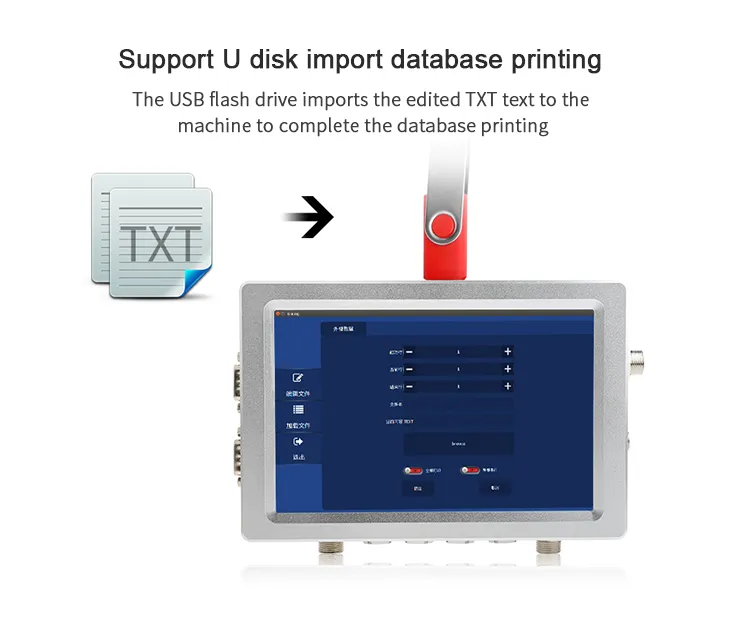

| Storage | the system can store more than 1000 mass (external USB make the information transfer in a free way) | ||||
| Working condition | Temperature:0 - 45 degree; Humidity: 10% - 80% |

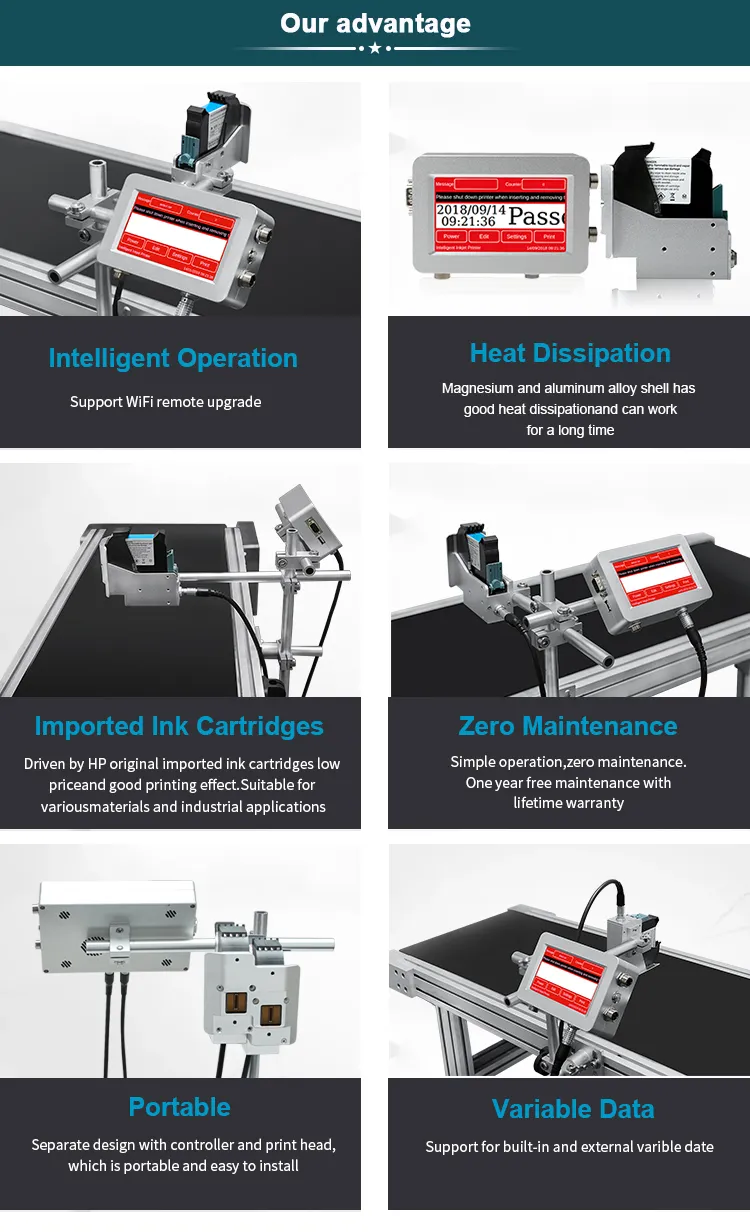

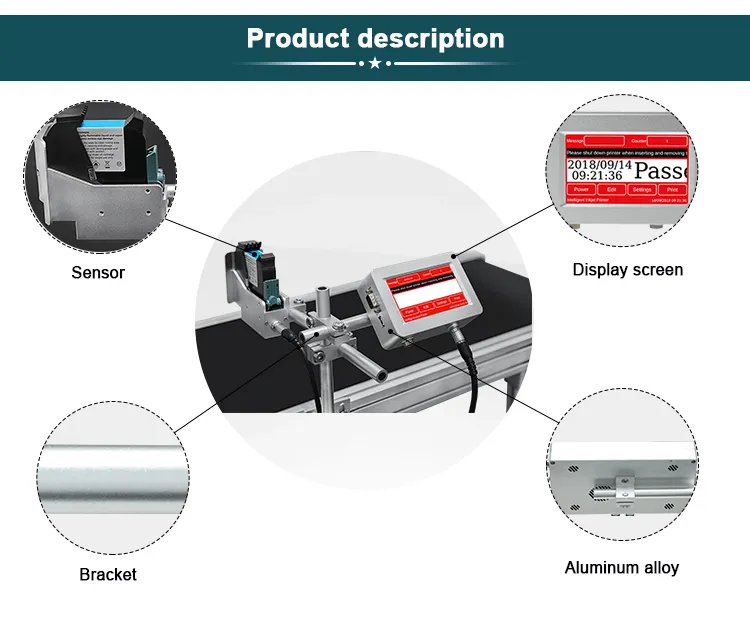

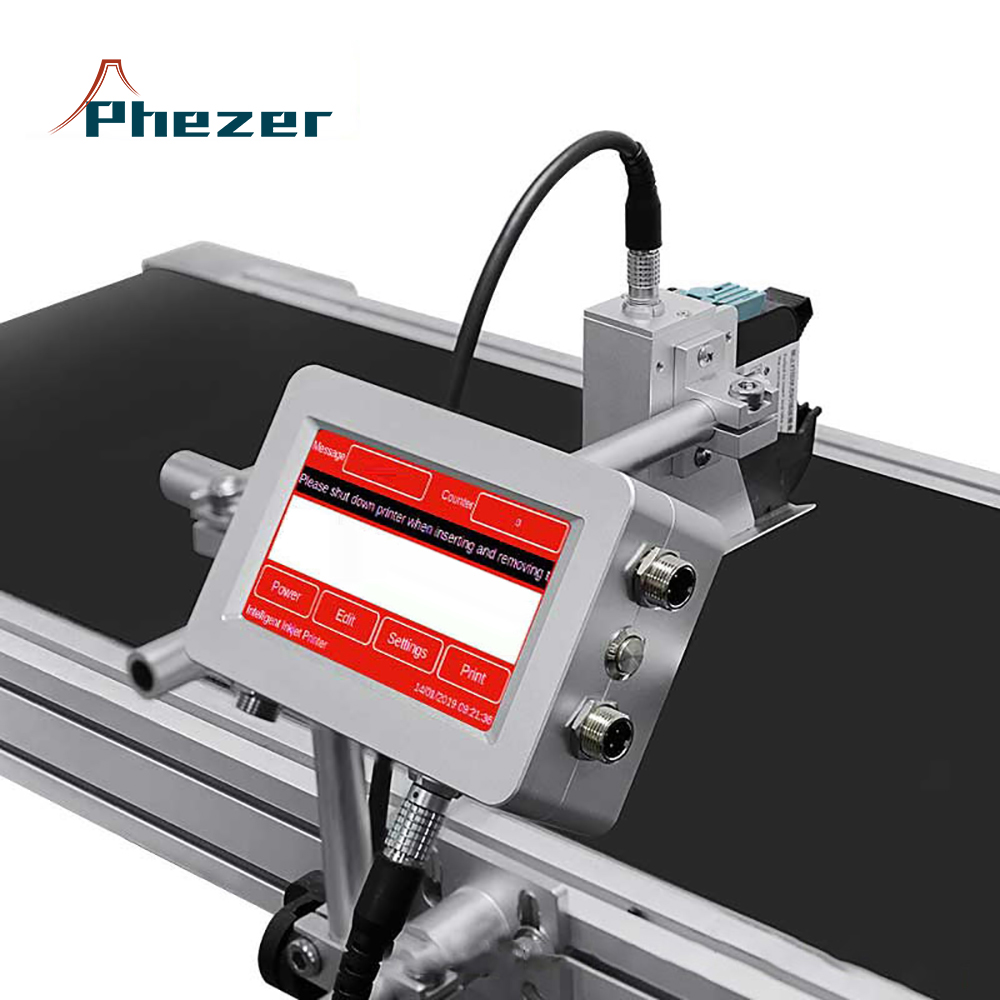

Detail Photos:
Packing Details:
| PX1 Packing List | |||
| Machine | Simple Stand Bracket | ||
| Control Panel | 1pc | Diameter 16 mm steel pipe * 4 | 30cm * 3pcs + 15cm * 1pc |
| Spray nozzle | 1pc | Bearing support * 3pcs, Nozzle fixture * 2pcs, Conveyor connector * 1pc | |
| Adapter | 1pc | Sensor stand | 1pc |
| AC power cord | 1pc | M8 Hexagon screw | 12pcs |
| DB 15 cord | 1pc | M4 round head screw | 8pcs |
| sensor | 1pc | M8 Hexagon spanner | 1pc |
| USB disk and touch pen | 1pc | Normally paper box packing, support customized packing | |
Applicable Materials:
Applicable Materials
It can print on the surface of boards, carton, stone, pipe, cable, metal, galss, plastic, electronics, automatic parts,the fiber board, light steel keel, aluminum foil, etc.
Applicable Industry:
The inkjet printer can apply to many industries with package progress, such as food industry, drink industry, drug industry, chemical industry, etc.
It can print Chinese/English, numbers, QR code, bar code, pictures, date and so on.
