V580 Arabic System Food Packages Inkjet Coding Machine
V580 Arabic System Food Packages Inkjet Coding MachineSpecifications Print Lines1-4 lines (5*7 dots) Dot Matrixfigure and letter 5 x 5, 5 x 7, 8 x 10, 8 x 12, 12 x 16, 16 x 16, 24 x 24, 32*32 Memory1000 message, 1000 graphics Print Speed280m/min (5 x 5 dots) Letter Height 1.5-20mm Operating Interfac......
Send Inquiry
Product Description

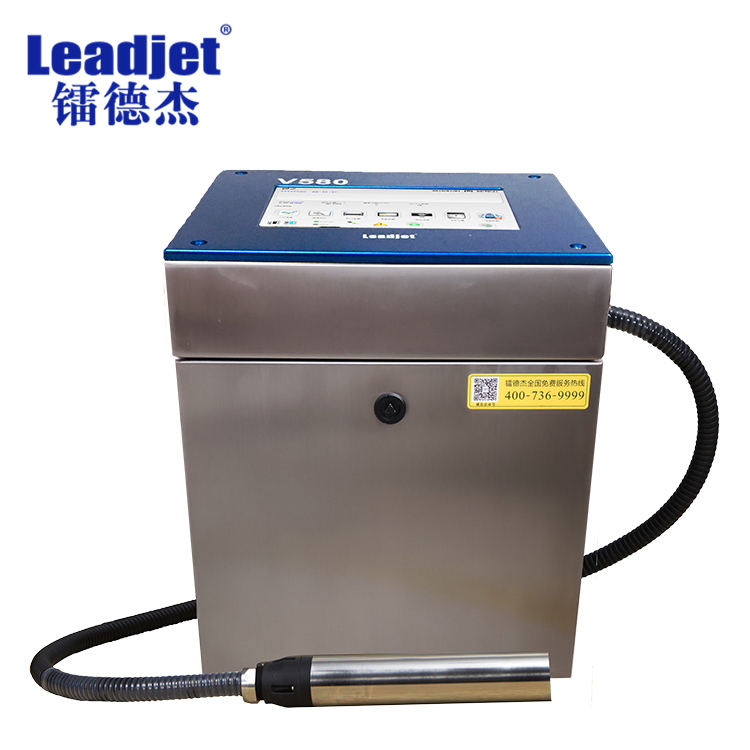

V580 Arabic System Food Packages Inkjet Coding Machine
Specifications
Print Lines | 1-4 lines (5*7 dots) |
Dot Matrix | figure and letter 5 x 5, 5 x 7, 8 x 10, 8 x 12, 12 x 16, 16 x 16, 24 x 24, 32*32 |
Memory | 1000 message, 1000 graphics |
Print Speed | 280m/min (5 x 5 dots) |
Letter Height | 1.5-20mm |
Operating Interface | Multi-Languages, Chinese, English, Arabic, Spanish, etc. |
Print Objects | English character, Arabic number, date, time, batch numbers and logo, trademark, text |
Material | metal, plastic, glass, wood, tubing, electrical wire, cable etc |
Font Width | up to 9 times |
Conduit Umbilical | 2.7M |
Ink Color | black, blue, red, yellow etc |
Consumption of Ink | 70 million characters per litre |
Operating Environment | 5-45 degree centigrade, below 90%(humidity) |
Power Source | AC220V / 380V 50HZ 100AV |
Feature
The quick-dry black ink used industrial non-contact small character inkjet printers
Print consistently high-quality images even on structured and uneven surfaces
Print features include TEXT, DATE, TIME, BATCH NUMBER, LOGO AND TRADEMARK

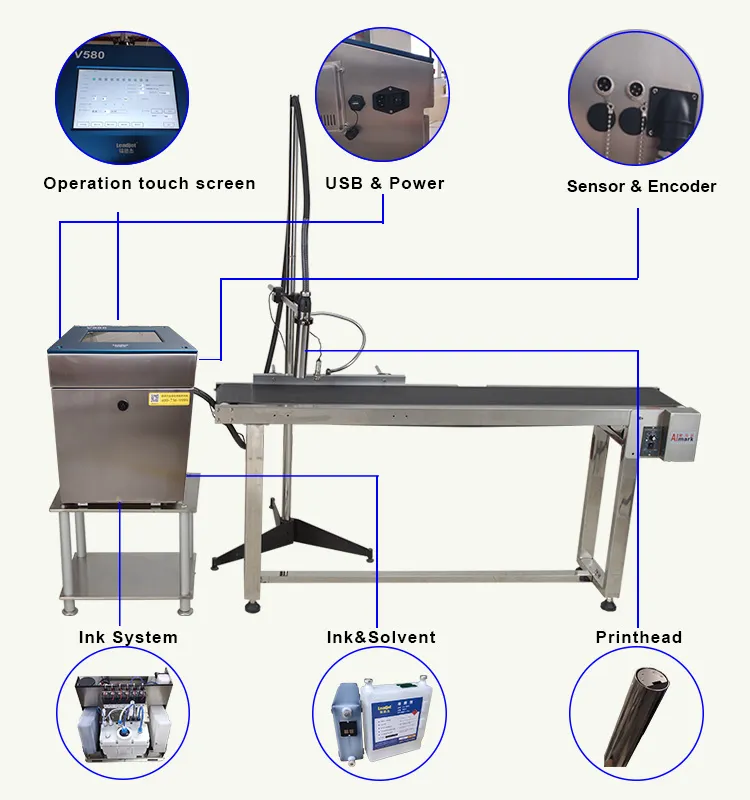

Easy to be integrated at any position of the production line
User-friendly interface and most reliable ink system
Large memory, and the 8.4'' TFT bright clear touch screen
Multitask system, printing and editing at the same time

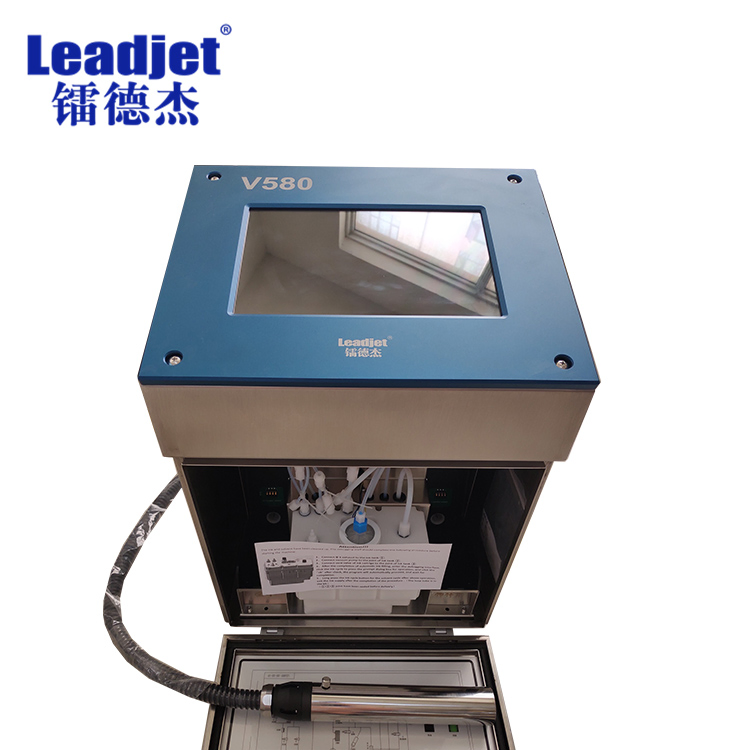

Hydraulic system
Full automatic viscosity control and pressure control
Diaphragm pumps with reliability, longer life, low maintenance cost than a gear pump
The electronic control system completely separated design from the hydraulic system

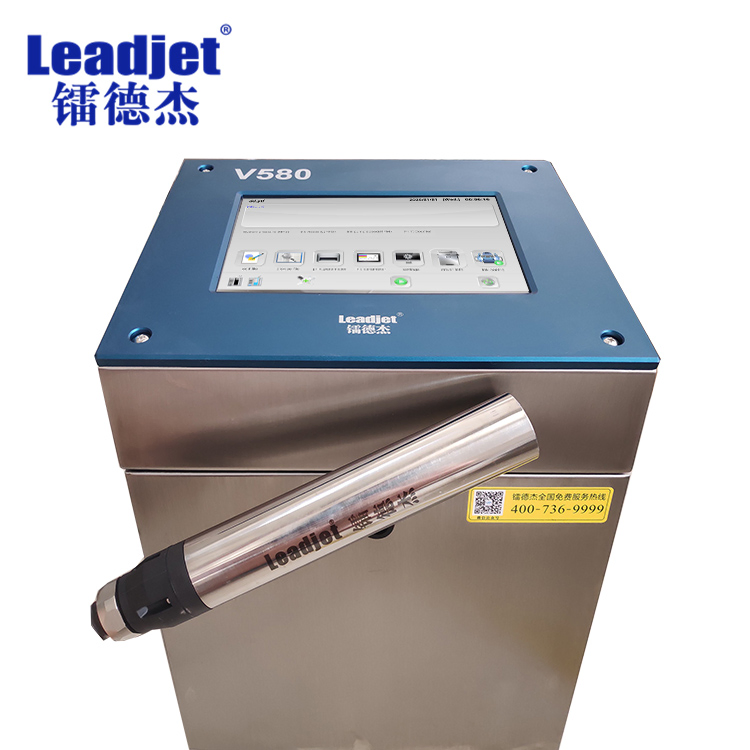

Print Head
Compatible design, maintenance-friendly
Automatic ink stream on when start-up and ink stream suck back when turning off
Nozzle size: 62 μm standard, 52 to 70 μm optional
Easily accessible and can be installed in any position
Distance from the print head to print surface 1mm~30mm
FAQ
Q: Are you a factory or trading company?
A: Founded in 1997, located in Wuhan, Leadjet is an integrated industrial and trade enterprise that has 31 branches and offices all over
China. We sincerely invite you to visit our enterprise!
Q: Is your machine available for my product?
A: Show us your product and the content you want to print on, we can print on the sample and send the video to you. And you can also
deliver your sample to us, we print on the sample and deliver it back to you. The freight shall be borne by the buyer.
Q: I have never operated an inkjet printer before, is it easy to operate on?
A: We will provide English Service Manual and you can also view our Youtube about the operating video, there is no problem for you
even if you didn't know it before.
Q: What if the machine is broken?
A: We will solve your problem in three steps:
1, Please take a video of the problem to us.
2, Our professional after-sales engineer will test the problem and provide you with a solution.
3, It's available to free-replace spare parts within a guarantee period, and we can also provide you related videos of replacement.
The freight of spare parts shall be borne by the buyer.
