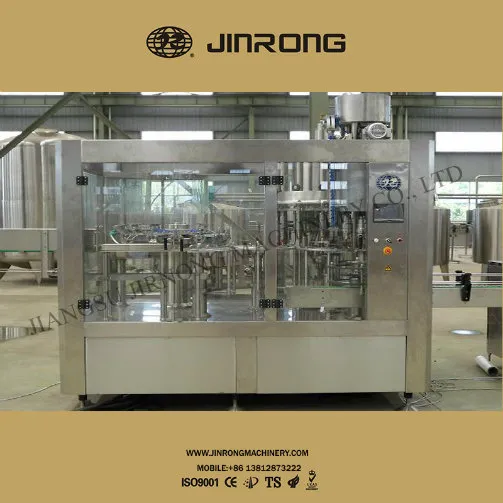

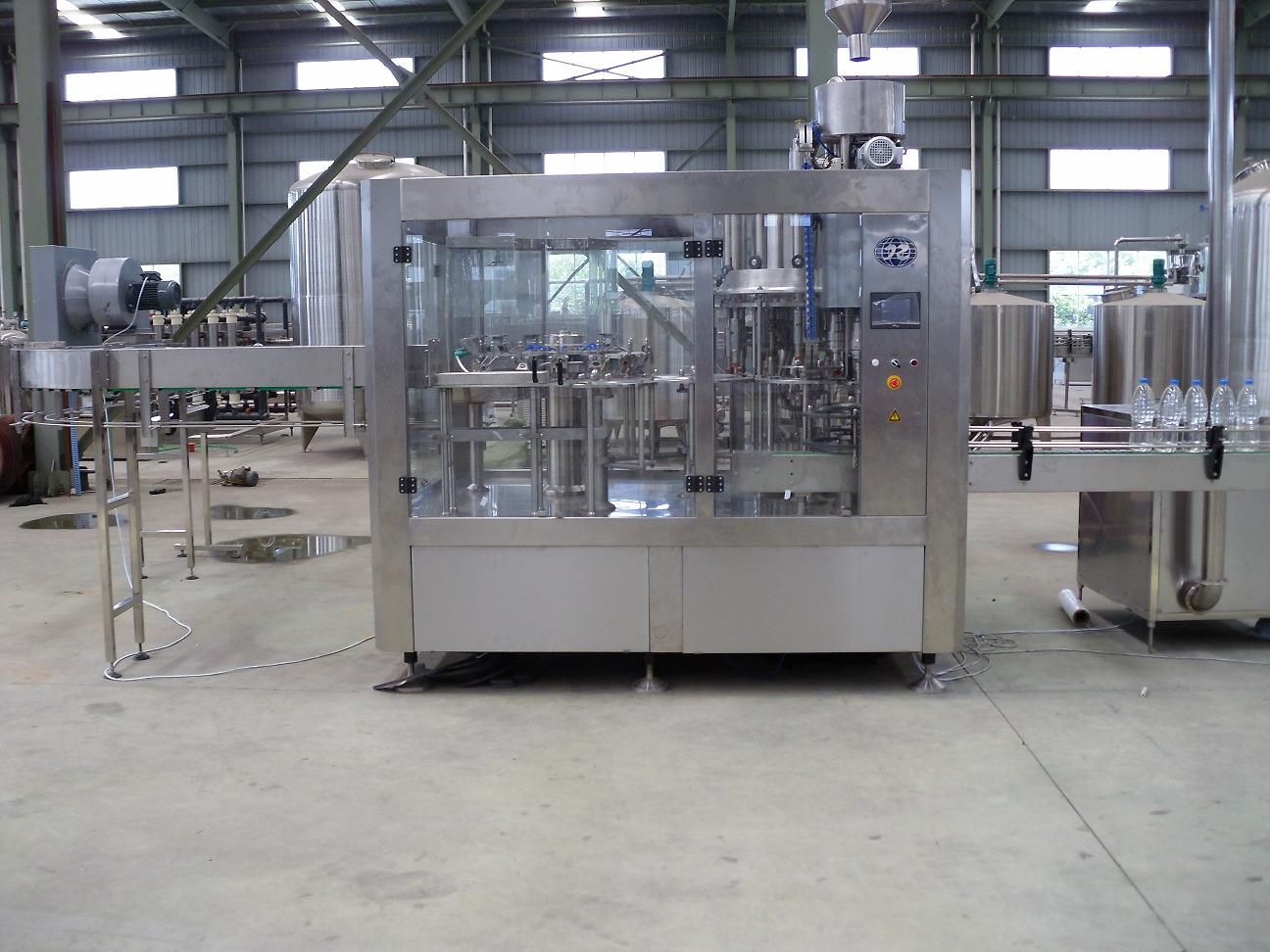

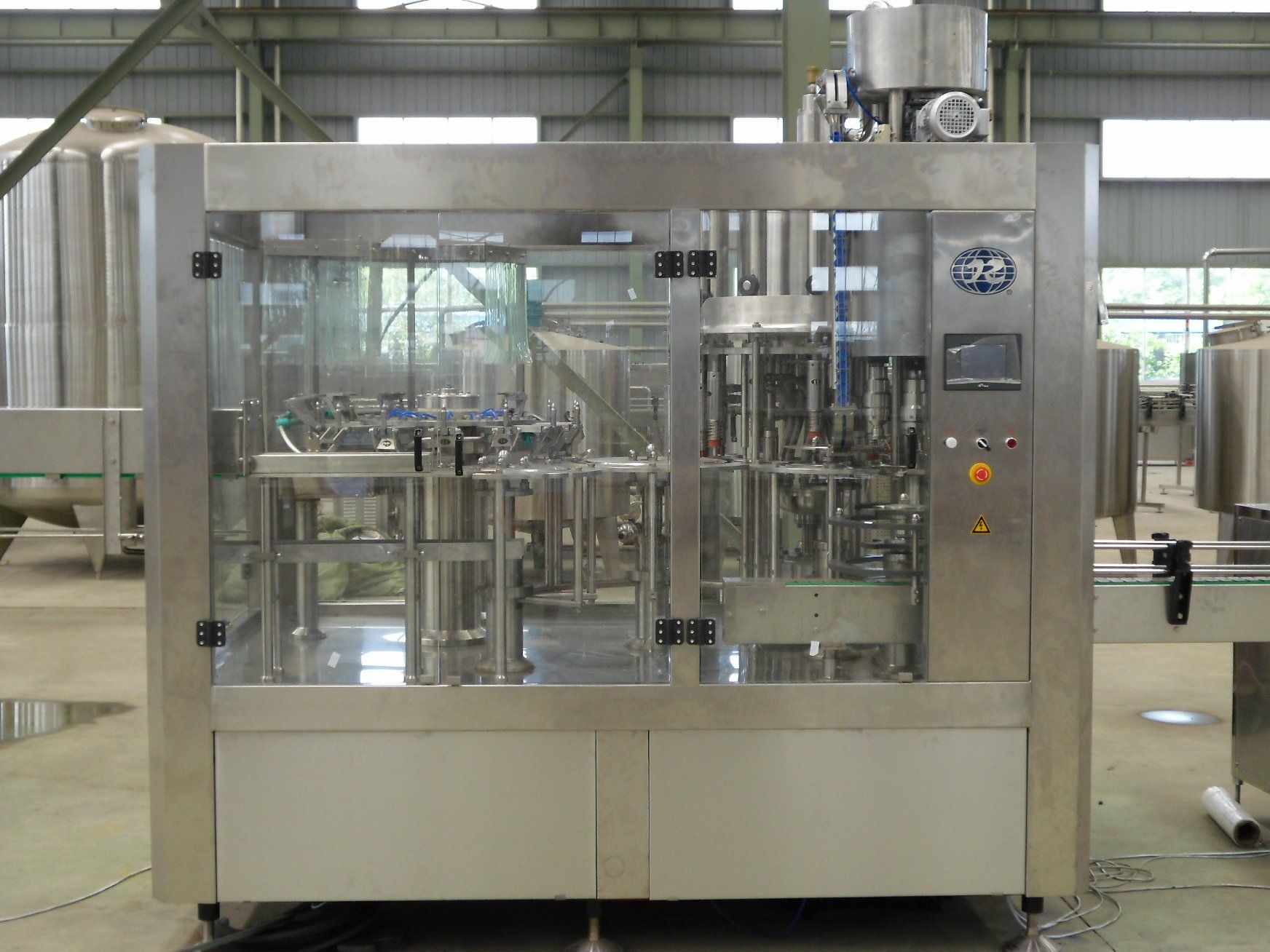

2000B /H Juice Washing Filling Capping 3 in 1 Machine
The machine is mainly used for filling juice or tea drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The micro-negative pressure filling technology is adopted enabling it to fill more efficiently and more stably with more output than......
Send Inquiry
Product Description
The machine is mainly used for filling juice or tea drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The micro-negative pressure filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
Besides using photo-electronic detectors to detect the running of every important sub-process, it employs PLC from OMRON for automatic control of the whole process and new type air-channel for bottle-loading featuring speediness and damage-free of bottle. The handing-over of bottles between two linking structures is fulfilled by applying clamping-bottle-neck method. For bottle of different shape only a few parts need to be changed and the substituting is simple, which shows the machine is of good adaptability.
High automation and easy operation make it an ideal option for beverage companies.
Besides using photo-electronic detectors to detect the running of every important sub-process, it employs PLC from OMRON for automatic control of the whole process and new type air-channel for bottle-loading featuring speediness and damage-free of bottle. The handing-over of bottles between two linking structures is fulfilled by applying clamping-bottle-neck method. For bottle of different shape only a few parts need to be changed and the substituting is simple, which shows the machine is of good adaptability.
High automation and easy operation make it an ideal option for beverage companies.
| Serial No. | Code name | Name of parts | Model-specification | Brand |
| 1 | CPM1A | Programmed controller | CPM1A---30CDR-A | OMRON |
| 2 | QF | Low-pressure breaker | 3VU1340---, 1MN00 | Siemens |
| 3 | FU | Fuse | RT18---32-2A | Japan |
| 4 | KM1-5 | AC electromagnetic contractor | 3TB40 10-0X-AC220V | Siemens |
| 5 | KM0 | AC electromagnetic contractor | 3TB42 22-0X-AC380V | Siemens |
| 6 | KR | Heat-break device | 3UA50 40-1D | Siemens |
| 7 | KR | Multi-continuous electrical device | 3UA50 40-1A | Siemens |
| 8 | XS | Touch screen | ETM2A-4 1/2 | Taiwan |
| 9 | HL7-8 | Indicator light | XDE-Y-24V | Hangzhou |
| 10 | HL9 | Cue light | XDE-R-AC220V | Hangzhou |
| 11 | KA | Middle-continuous electrical device | JTX-53P | Japan |
| 12 | SC | On-off changing | PBC22-D*10 | Hangzhou |
| 13 | SA | Key on-off | PBC22-B*10 | Hangzhou |
| 14 | SB | Button with light | PBC22-EG10-24V | Hangzhou |
| 15 | JT | Emergency button | PBC22-CR01 | Hangzhou |
| 16 | HA | Alarm | SLC22-MR-24V | Hangzhou |
| 17 | SP1 | Inducing on-off | PR12-4DN | AUTONICS |
| 18 | SP3 | Fiber optic on-off | BF3RX | AUTONICS |
| 19 | TD1 | Inverter | TD1000-4T0037G | Mitsubishi |
