2021 Auto Fruit Juice Tea Hot Filling Line No Carbonated Soft Drinks Glass Bottle Filling Machine for NFC Juice Fresh Juice Filling Machine 100 Percent Juicer
Product DescriptionThe filling machine is mainly designed for filling hot temperature liquid into glass bottle; For example juice, tea drinks etc which are made of concentrate juice. The final filling temperature will be around 85-90 degree centigrade; Once the thermal meter in juice filling machine......
Send Inquiry
Product Description
Product Description
The filling machine is mainly designed for filling hot temperature liquid into glass bottle; For example juice, tea drinks etc which are made of concentrate juice. The final filling temperature will be around 85-90 degree centigrade; Once the thermal meter in juice filling machine is lower than the temperature, juice will be return to sterilizing machine again through return system.
Glass bottle juice filling machine is different from plastic bottle. It will be optional and suggested to apply 4 in 1 filling machine, one more washing system is adopted to warm up the glass bottle in advance.
Applicable bottle type
The machine is a dual-purpose machine, which can be used for filling plastic bottles or glass bottles, and different capping machines can be selected according to the different types of bottles.
Filling Method
304/316 Stainless steel high precision filling nozzle
Filling volume adjustable in fine rank, same liquid level after filling
All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
304/316 stainless steel filling pump

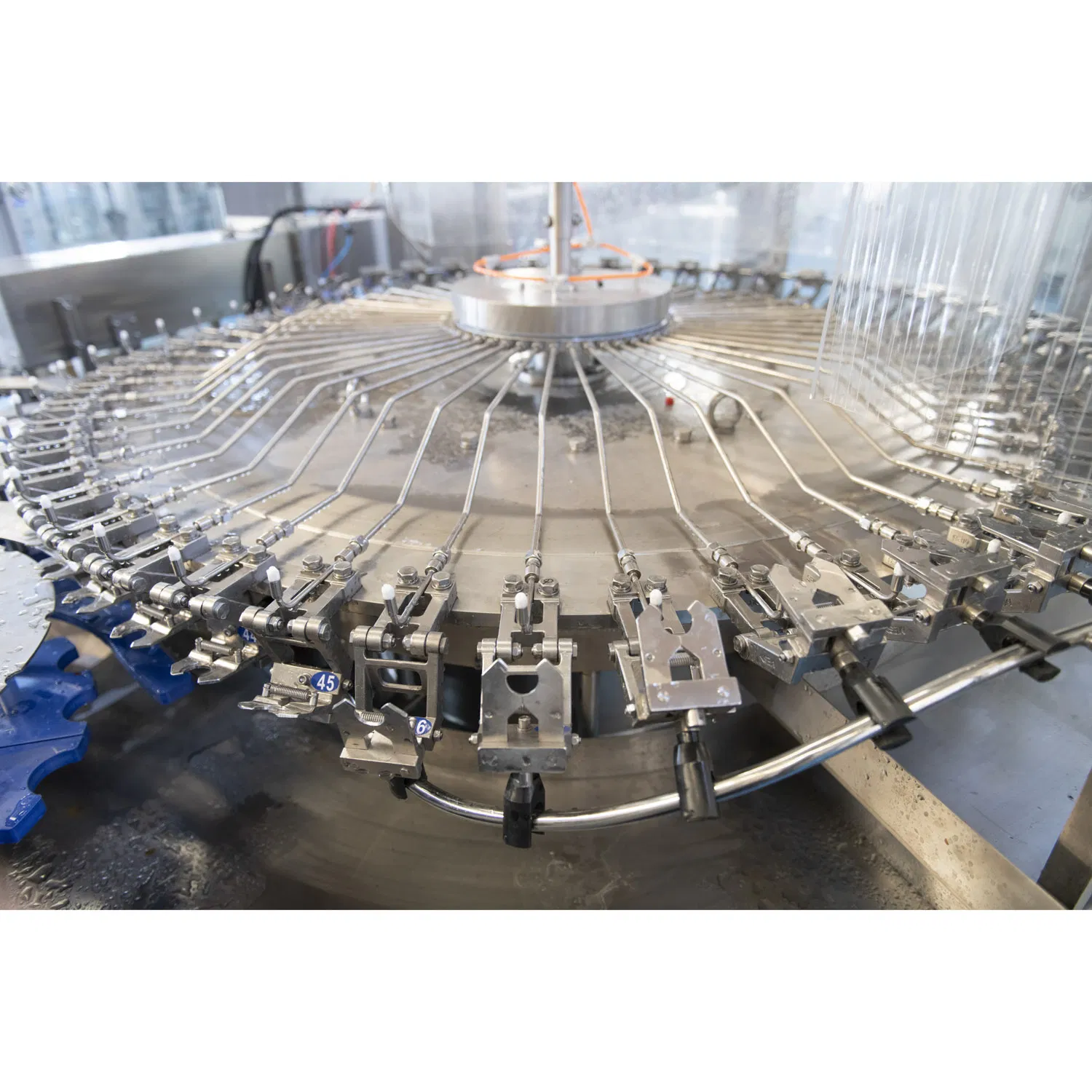

Efficient spray nozzle rinse thoroughly and save water for flushing
Hot Filling Machine
1)CE certificate
2)ISO9000: 2000 Certificate
3)Volume: 0.25-2.5L
4)PET bottle, Glass Bottle, Can Bottle
5)Automatic system
6)High efficiency, easy maintenance

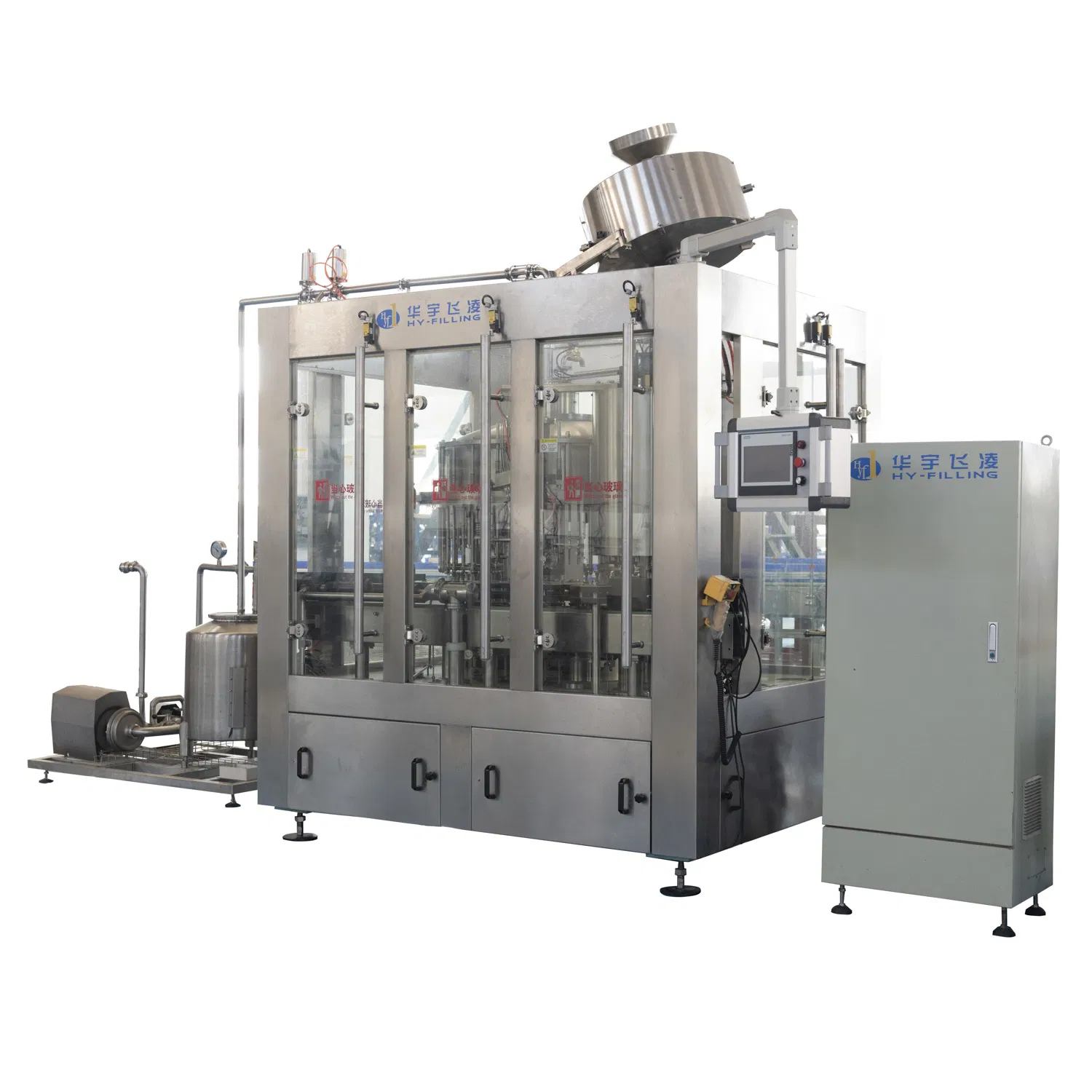

RCGN series hot filling machine
Hot 3-in-1 filling machine, combined with rinsing, filling and capping. It is innovated and designed in the requirement of non-carbonated energy drinks, juice, tea, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.

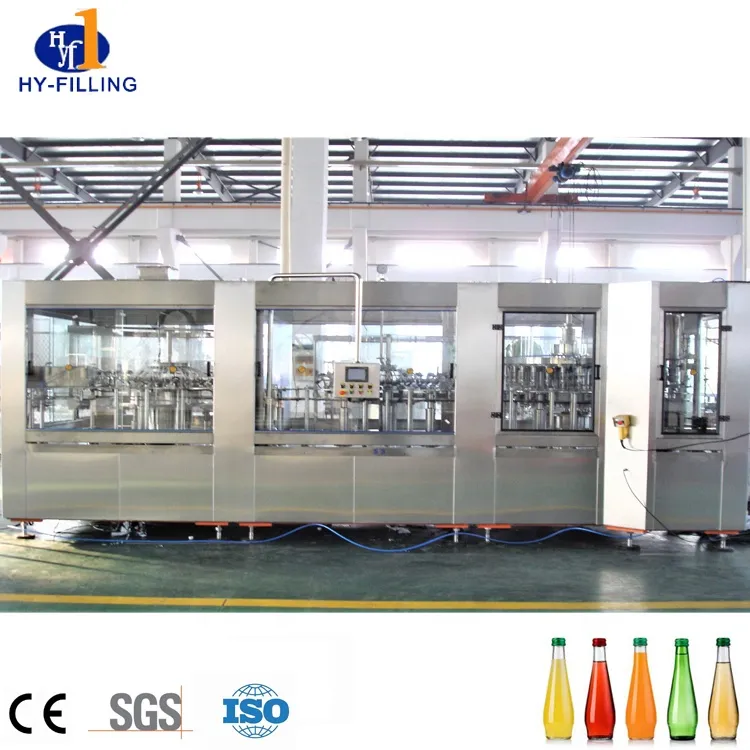

Glass Bottle Juice Hot Filling Machine
He machine is designed by our company with stable characteristic, Advanced technology, nice appearance and complete function.
The machine is mainly used for washing/filling/capping Glass bottle juice, Tea drinks and all kinds of energy drink for hot filling.
Only need to change a few spare parts, that can suitable for filling pure water and mineral water.
The material contact part adopts the stainless steel which matches the food sanitary requirement.

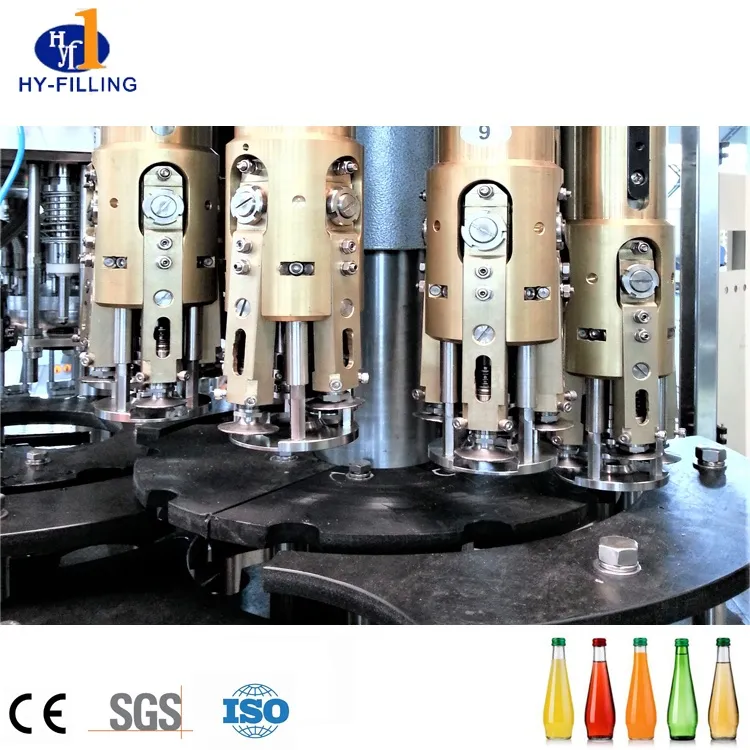

Filing valve is one of the key parts; Plunger volumetric valve is specialized for the viscous material filling. The valve is fixed on the filling tank trough the valve plate and pin; The valve has two working position: One is valve shut -liquid in, control shaft drives valves, the plunger moves under the elevation roller, the material is absorbed to the valve cavity through the hole between control loop and tank.
The other is valve open-liquid in, the control shaft drives the control loop under the valve roller, the hole between control loop and tank shut, the liquid d in the plunger cavity is pressed out and is transported to the container below the valve.
The filling volume is adjusted through the elevation roller, the range is 0-100ml.
The material contact part adopts the food sanitary material. While the equipment is non contact filling.
Technical parameters
Mode
L(RCGN) 16-12-6 18-18-6 24-24-8 32-32-10 40-40-12 50-50-15 60-60-15 72-72-18 80-80-20
Production capacity (600ml)
(B/H) 3000 6000 10000 14000 16000 21000 24000 30000 36000
Filling accuracy ≤ ± 5mm
Filling the back flow ≤ 8%
PET bottle size (mm) Bottle diameter φ 50-φ 92 Height 150-320
Cap
Shape Plastic cap
Rinsing with water pressure (Mpa) 0.2-0.25
Wash bottles water consumption (kg/h) 800 1600 2500 3500 4000 4500 5000 6500 7000
Air pressure (Mpa) 0.6
Air consumption (m3/min) 0.2 0.2 0.25 0.3 0.3 0.3 0.4 0.5 0.5
Motor power (kw) 4.82 6.68 7.67 10.37 11.37 14 17.57 22.57 22.57
Weight (kg) 4000 5000 6500 7500 8500 10000 1350 1600 1700
Dimension (L*W*H)
(mm) 2200*16000*2700 2500*2000*2700 2800*2300*2700 4000*24500*2850 4400*2800*2850 5350*3400*2850 5350*3400*2850 7100*62500*3000 7700*6750*3000
Main composition
Description Supplier
PLC Mitsubishi, Siemens
Touch screen Mitsubishi, Siemens, PROFACE
Frequency converter Mitsubishi, Siemens, Danfoss
Air switch Schneider
Breaker Siemens
Contactor Siemens
Photoelectric switch Omron, Keyence, P+F
Approach switch Truck
Main bearing NTN
Lubrication bearing IGUS
Sealings Sealtech
Pneumatic components Camozzi
Packing&packaing
Certification
Company Profile
Zhangjiagang Hy-Filling Co.,Ltd is located in Zhangjiagang,2 hours away from Shanghai by car.Established in 1998,Hy-Filling has developed itself to be one of the first class equipment manufacturer and tatal solution provider for both beverage and wine industry.Now,Hy-Filling has 150 employees,including 30 experienced engineers,around 30,000 m2 workshops and a total fixed assets of RMB 50 Million
FAQ
Q1: Are you a trading company or a manufactory?
A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The delivet time is based on the exact machine you confirmed.
Q4: How can I install my machine when it arrives?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q5: How about the spare parts?
A5: After we deal down all the things , we will offer you a spare parts list for your reference.
The filling machine is mainly designed for filling hot temperature liquid into glass bottle; For example juice, tea drinks etc which are made of concentrate juice. The final filling temperature will be around 85-90 degree centigrade; Once the thermal meter in juice filling machine is lower than the temperature, juice will be return to sterilizing machine again through return system.
Glass bottle juice filling machine is different from plastic bottle. It will be optional and suggested to apply 4 in 1 filling machine, one more washing system is adopted to warm up the glass bottle in advance.
Applicable bottle type
The machine is a dual-purpose machine, which can be used for filling plastic bottles or glass bottles, and different capping machines can be selected according to the different types of bottles.
Filling Method
304/316 Stainless steel high precision filling nozzle
Filling volume adjustable in fine rank, same liquid level after filling
All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
304/316 stainless steel filling pump
Efficient spray nozzle rinse thoroughly and save water for flushing
Hot Filling Machine
1)CE certificate
2)ISO9000: 2000 Certificate
3)Volume: 0.25-2.5L
4)PET bottle, Glass Bottle, Can Bottle
5)Automatic system
6)High efficiency, easy maintenance
RCGN series hot filling machine
Hot 3-in-1 filling machine, combined with rinsing, filling and capping. It is innovated and designed in the requirement of non-carbonated energy drinks, juice, tea, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Glass Bottle Juice Hot Filling Machine
He machine is designed by our company with stable characteristic, Advanced technology, nice appearance and complete function.
The machine is mainly used for washing/filling/capping Glass bottle juice, Tea drinks and all kinds of energy drink for hot filling.
Only need to change a few spare parts, that can suitable for filling pure water and mineral water.
The material contact part adopts the stainless steel which matches the food sanitary requirement.
Filing valve is one of the key parts; Plunger volumetric valve is specialized for the viscous material filling. The valve is fixed on the filling tank trough the valve plate and pin; The valve has two working position: One is valve shut -liquid in, control shaft drives valves, the plunger moves under the elevation roller, the material is absorbed to the valve cavity through the hole between control loop and tank.
The other is valve open-liquid in, the control shaft drives the control loop under the valve roller, the hole between control loop and tank shut, the liquid d in the plunger cavity is pressed out and is transported to the container below the valve.
The filling volume is adjusted through the elevation roller, the range is 0-100ml.
The material contact part adopts the food sanitary material. While the equipment is non contact filling.
Technical parameters
Mode
L(RCGN) 16-12-6 18-18-6 24-24-8 32-32-10 40-40-12 50-50-15 60-60-15 72-72-18 80-80-20
Production capacity (600ml)
(B/H) 3000 6000 10000 14000 16000 21000 24000 30000 36000
Filling accuracy ≤ ± 5mm
Filling the back flow ≤ 8%
PET bottle size (mm) Bottle diameter φ 50-φ 92 Height 150-320
Cap
Shape Plastic cap
Rinsing with water pressure (Mpa) 0.2-0.25
Wash bottles water consumption (kg/h) 800 1600 2500 3500 4000 4500 5000 6500 7000
Air pressure (Mpa) 0.6
Air consumption (m3/min) 0.2 0.2 0.25 0.3 0.3 0.3 0.4 0.5 0.5
Motor power (kw) 4.82 6.68 7.67 10.37 11.37 14 17.57 22.57 22.57
Weight (kg) 4000 5000 6500 7500 8500 10000 1350 1600 1700
Dimension (L*W*H)
(mm) 2200*16000*2700 2500*2000*2700 2800*2300*2700 4000*24500*2850 4400*2800*2850 5350*3400*2850 5350*3400*2850 7100*62500*3000 7700*6750*3000
Main composition
Description Supplier
PLC Mitsubishi, Siemens
Touch screen Mitsubishi, Siemens, PROFACE
Frequency converter Mitsubishi, Siemens, Danfoss
Air switch Schneider
Breaker Siemens
Contactor Siemens
Photoelectric switch Omron, Keyence, P+F
Approach switch Truck
Main bearing NTN
Lubrication bearing IGUS
Sealings Sealtech
Pneumatic components Camozzi
| PRICE TERM | FOB Shanghai |
| STANDARD PACKING | Export package suitable for long distance transport by sea & truck |
| DELIVERY | 80 days since receipt of order |
| PAYMENT TERMS | 30% T/T as down-payment |
| 70% T/T before shipment | |
| OFFER VALIDITY | 60 days from the date of the offer |
| GUARANTEE | 12 months after installation & commissioning, or 15 month after delivery date |

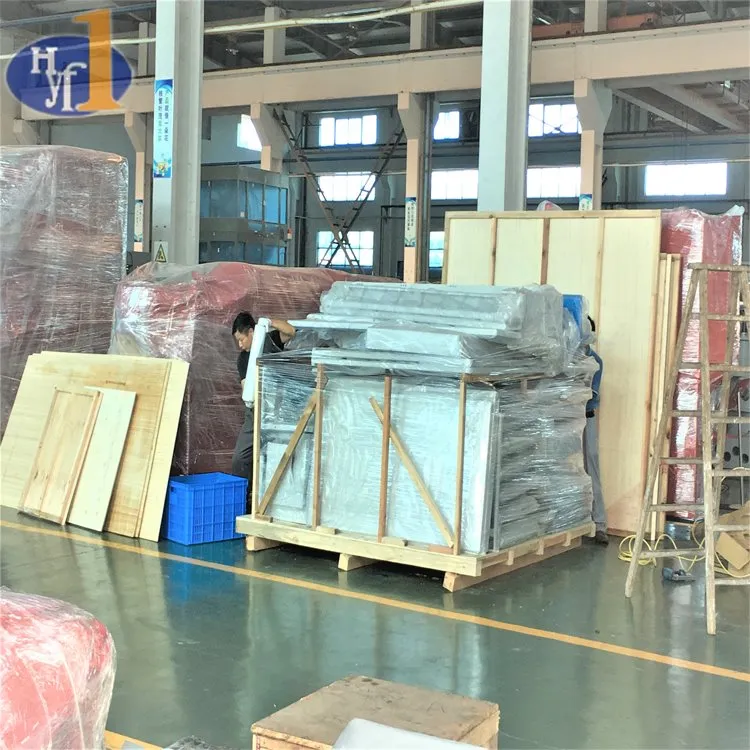

Packing&packaing
Certification

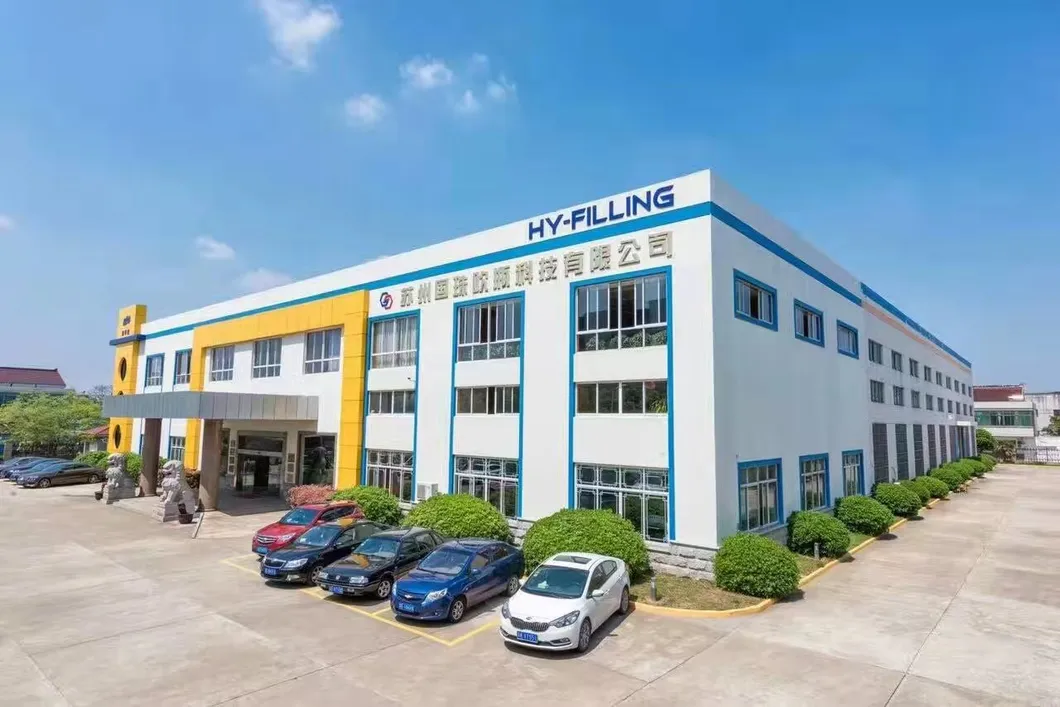

Company Profile
Zhangjiagang Hy-Filling Co.,Ltd is located in Zhangjiagang,2 hours away from Shanghai by car.Established in 1998,Hy-Filling has developed itself to be one of the first class equipment manufacturer and tatal solution provider for both beverage and wine industry.Now,Hy-Filling has 150 employees,including 30 experienced engineers,around 30,000 m2 workshops and a total fixed assets of RMB 50 Million
FAQ
Q1: Are you a trading company or a manufactory?
A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The delivet time is based on the exact machine you confirmed.
Q4: How can I install my machine when it arrives?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q5: How about the spare parts?
A5: After we deal down all the things , we will offer you a spare parts list for your reference.
