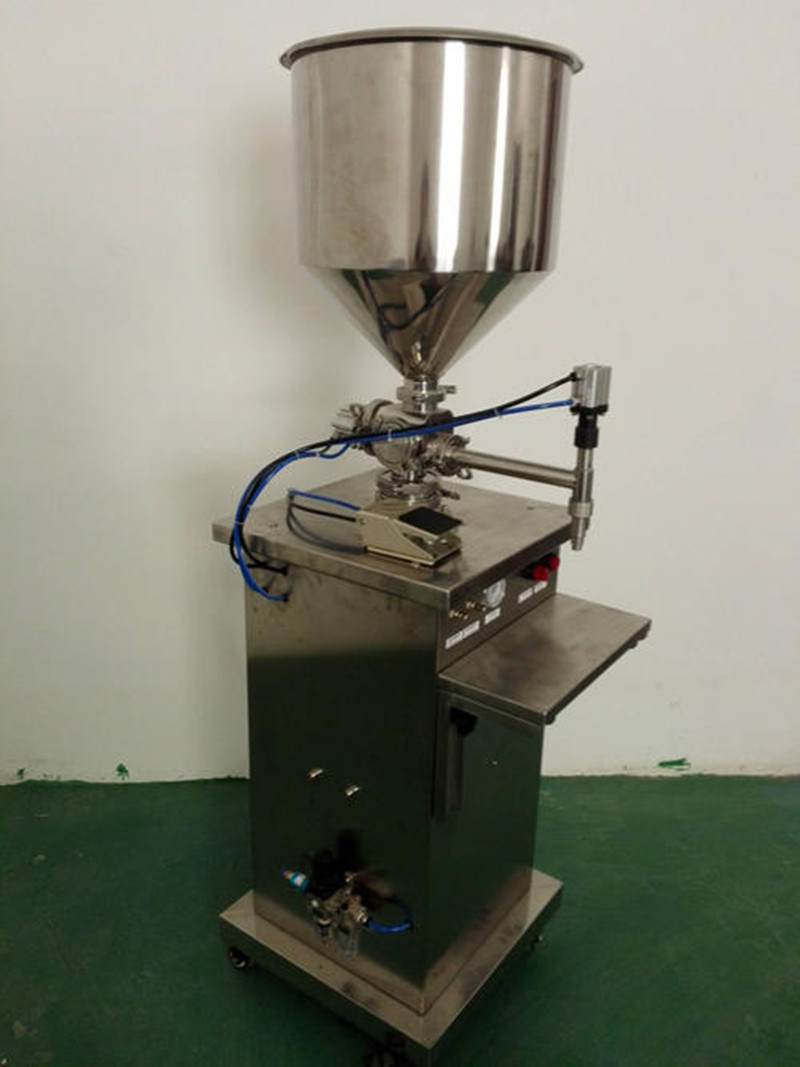

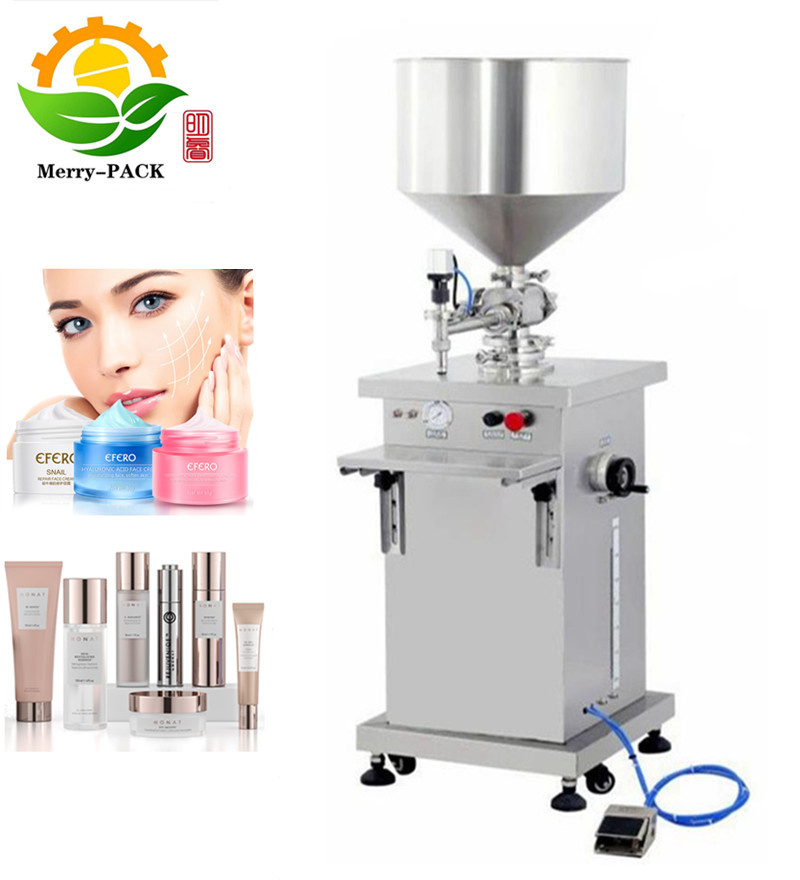

50-500ml Cream Jam Filling Machine Sauce Filling of Bottle Filling Semi-automatic cream filling machine is pneumatic and controlled by pedal switch, can setting automatic filling also, it is suitable for fill semi-liquid product and viscosity product such as cream, ointment, lotion, paste, etc. new ......
Send Inquiry
Product Description
1, Simple structure, convenient maintenance, reliable drive.
2, Import cylinder and pneumatic components, guarantee the reliability of the machine.
3, High measurement accuracy, no drip phenomenon.
4, Filling speed, can automatic uninterrupted filling.
5, Adopt imported 316L stainless steel materials, inside and outside polishing, conforming to GMP standards.
6, Feeding style: Normal gravity type.
7, Control mode: Full pneumatic control.
2, Due to the startup control, adopting mechanical positioning, can be different filling cream liquid products precision is ±1%
3, Using lead screw, counter, Make filling quantity adjustment accurate, And can directly see the number of the filling quantity.
4, If need stop urgently, just press the abrupt stop switch, The piston automatically retreat back to initial bits, filling stop.
5, According to the requirements, can adjust it between "manual" and "automatic" filling state.
6, Equipment failure rate is extremely low.
| Machine name: | Cream Filling Machine |
| Filling product: | Cream/ointment/lotion/paste/semi-liquid product |
| Filling volume: | 10-100ml; 25-250ml; 50-500ml, 100-1000ml. |
| Capacity: | 0-35Pcs/Min |
| Tube material: | Jar, bottle, bag, tube etc. |
| Filling nozzle: | Leakage-proof |
| Working accuracy: | ±1% |
| Air pressure: | 0.4-0.8Mpa |
| Air Consumption: | 0.05m³/min |
| Machine dimension: | 500*500*1500mm L*W*H |
| Net Weight | 35kg |
2) Reply and find out solution within the shortest time according to customer's requirement.
3) Provide on call service to help customer solve problems.
4) Provide free of machine installation as well as commissioning, and inform customer how to do the machine maintenance.
5) Prepare customer's feedback tracking within one week after machine installation until meet customer's satisfaction.
6) Provide one year guaranty and lifetime maintenance.
1. Q: How is the after sales service?
A:We provide 1 year cream filling machine guaranty and technical support lifetime for Tube filling and sealing machine. All machine's parts can be replaced for free within 1 year if broken (excluding error operation).
2. Q: Is it difficult to install the machine?
A: The work shop should prepare full facility such as power and air compressor. For the first installation, engineer will be sent to set machine and do the machine training as long as manual instruction. For the further problems come out, we can provide video instruction as well.
3. Q: What's the cream filling machine lead time?
A: For the standard machines, we can delivery within 7 days. If it is customized by customer(OEM), the lead time is 10-25 days.
