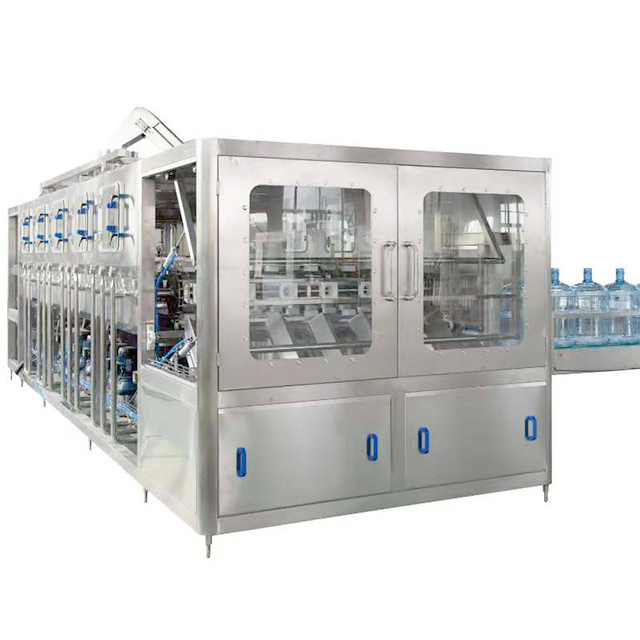

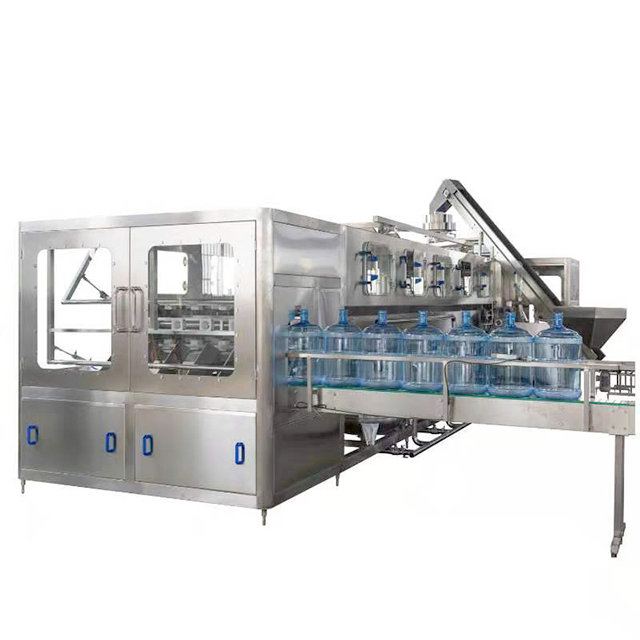

Auto 5 Gallon 18.9L 20L Bottle Barrel Pure Drinking Water Purified Water and Distilled Water Barreled Line Qgf -150 for 3-5 Gallon Bottle Filling Machine
5 gallons bottle water filling machineMain Features.QGF type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent......
Send Inquiry
Product Description
5 gallons bottle water filling machine
Main Features.
QGF type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products with brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.
Installation service
When you finish the Preparation conditions,our professional after sales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide 12 months Quality warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
7 .12 Months Quality guarantee and life-long technical support.
8. Good after-sale service offered, please get back to us if you got any questions.
Quality Control
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
Main Features.
QGF type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products with brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.
| Containers and Specifications | |||

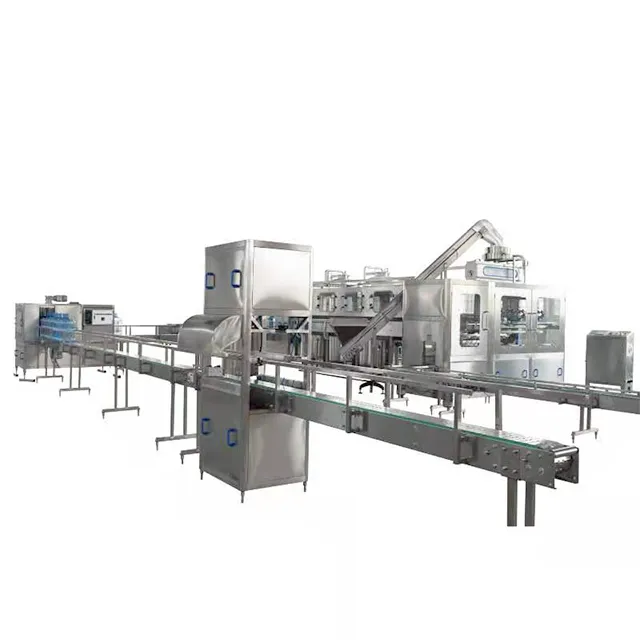

| Project Name: Full Automatic Complete 60-1200BPH 3-5 Gallon Barrel Filling Production Line | Mineral Water / Pure Water | ||
| Material | Shape | Filling volume | Filling Type |
| PC / PET | Round or Square | 3 - 5 Gallon | Gravity filling Normal temperature |
| Adjustable Specifications of Bottle Type | Size of Barrel : ф276×490mm | ||
| Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added. | |||
| Container Label | Sticker Label / Shrink Wrap Label / Prinetr Label | ||
| User Ambient Conditions | Temperature:10~40ºC;Humidity:No dew | ||
| User Electrical Supply Specification | Voltage:380V±5%, 3phase; Frequency:50HZ±1% | ||

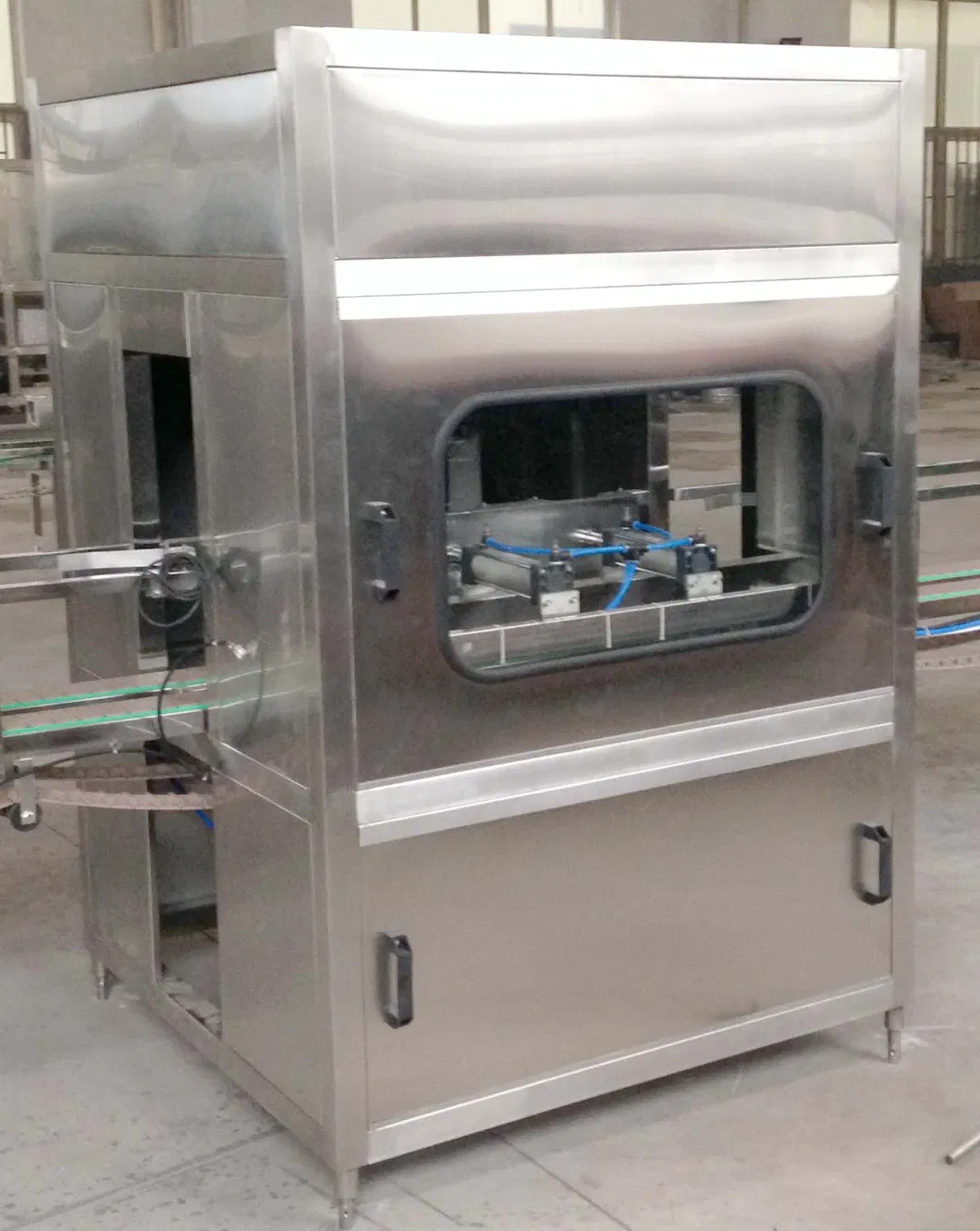

| Outside washing machine Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC. |  |
 | Main Machine Features. 1/Shape structure adopted concave and convex shape, perfect appearance also reduces the leakage. 2/The thickness of the stainless steel plate which used for 600bph is 3mm. 3/Tank and the heating pipe in tank are removable which become more clean sanitation. |

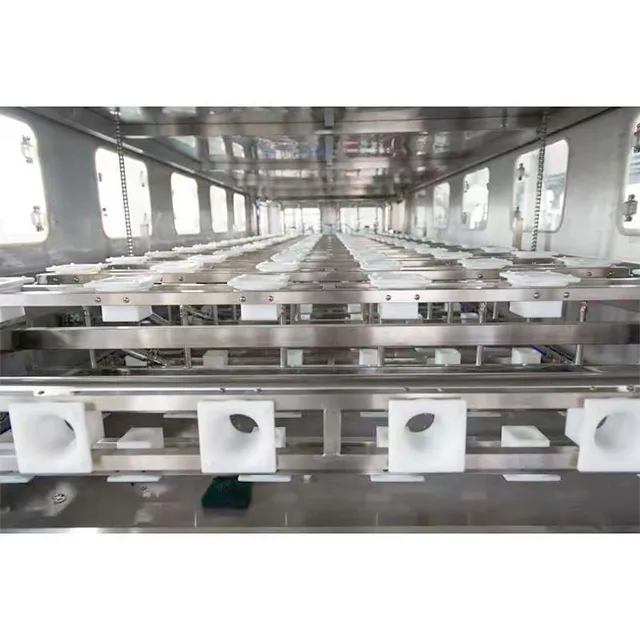

| Filling Part Features. 1/Uploading and dropping barrels changed from 45 degree to translatory which is more stable. 2/Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid. |  |
| Capping Parts. 1/Liquid level difference is controlled in 1cm. 2/Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water. 3/Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, Air TAC pneumatic component. | |

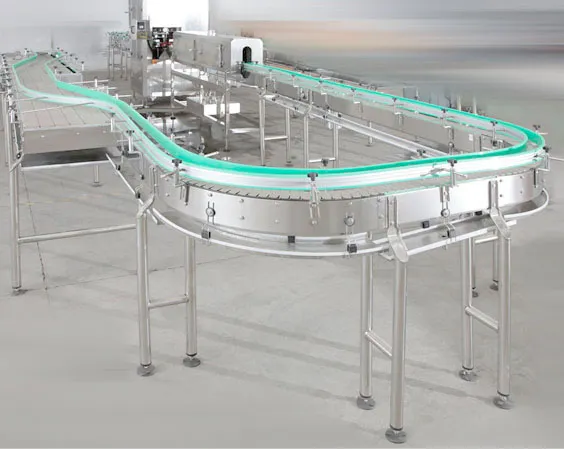

Flat Conveyor.The chain board on conveyor is made with stainless steel. The appearance of foot stand is perfect, and the height can be adjusted. |  |
Installation service
When you finish the Preparation conditions,our professional after sales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide 12 months Quality warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
7 .12 Months Quality guarantee and life-long technical support.
8. Good after-sale service offered, please get back to us if you got any questions.
Quality Control
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
