Automatic 25 Kg Air Bag Cement Powder Granule Filling Packing Machine
Product DescriptionChina Valve Bag Pneumatic Fully Automatic Filling Machine is suitable for Powders,Sands, Cement, Tile adhesives, Plastics, Renders and Granulated Rubber. A Fully Automatic Packing System includes1, PVPE main machine with bag kicker2, Arm loader3, Bag magazine 4, Belt conveyePack......
Send Inquiry
Product Description
Product Description
China Valve Bag Pneumatic Fully Automatic Filling Machine is suitable for Powders,Sands, Cement, Tile adhesives, Plastics, Renders and Granulated Rubber.

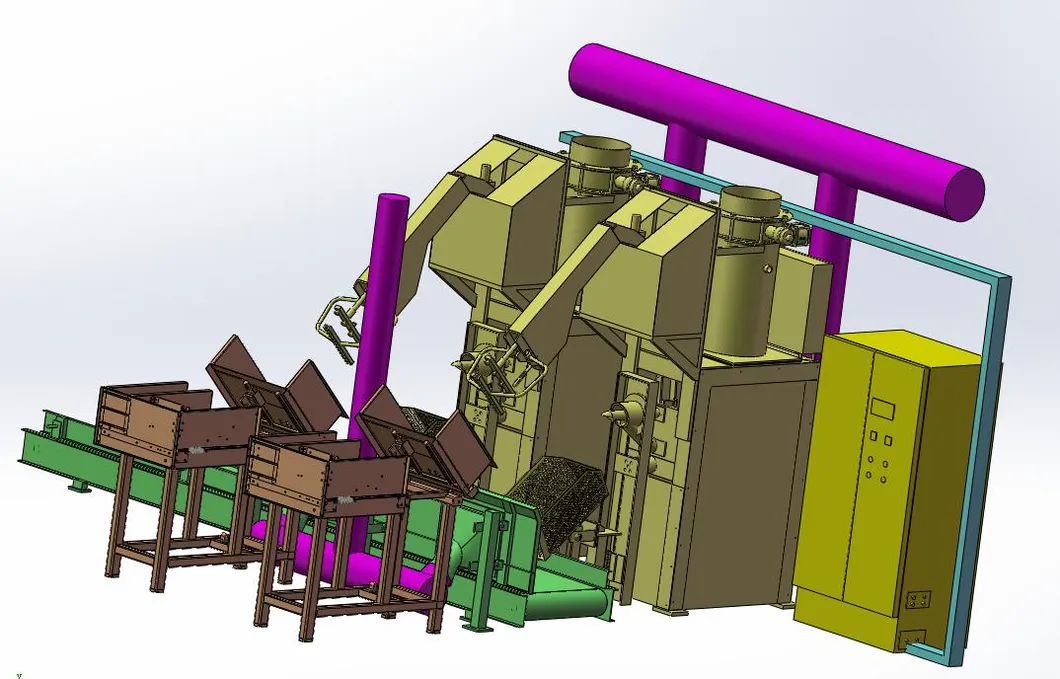

A Fully Automatic Packing System includes
1, PVPE main machine with bag kicker
2, Arm loader
3, Bag magazine
4, Belt conveye
Packing Materials
Notes: Not Limited(Suitable for powders and granulates within 7mm)
Technical Specifications
| Bag Size | Valve Size | Valve Length | Bag Width | Bag Height |
| 50mm(2'') | 90-165mm | 90-180mm | 300-900mm | |
| Packing Scope | 5-50 Kg | |||
| Filling Speed | 5-8 bags per minute,depending on product density,valve size,bag weight,quality of bag, accuracy required and product flow characteristics. | |||
| Accuracy | ±1% depending on filling speed,product bulk,flow characteristics,particle size,infeed system and bag size.(Typically ±200g @6bags/min@20Kg) | |||
| Air System Compressed Air | 34CMH@800Kpa(8.0bar),Clean Dry Air | |||
| Pressure Range | 500Kpa(5 bar)-1000Kpa(10 bar) | |||
| Control Air | 1CMH @800Kpa(8bar),Clean Dry Air | |||
| Size Footprint | 800mm(W)×1600mm(D)×2350mm(H) | |||

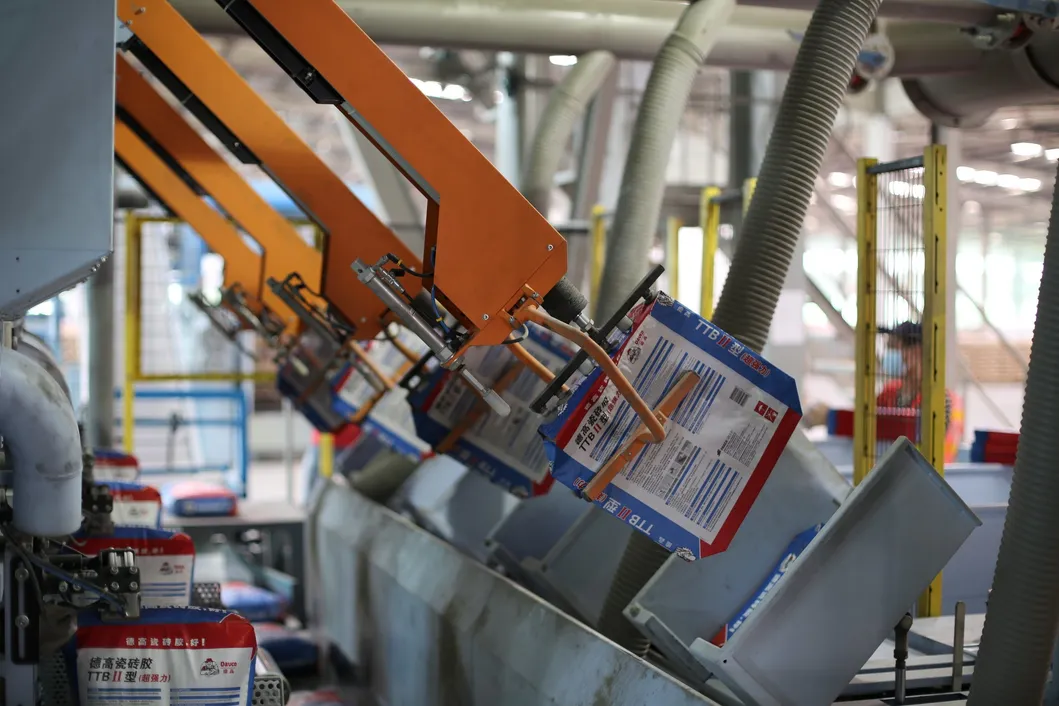

Working Spot
Partner
Certificates
Advantages
- Constructed from Mild Steel And powered Coated, so it's built to last and makes cleaning a breeze
- High accuracy via patented load cell technology
- Easy clean out and changeover of new products without contamination via submarine style rear hatch
- After Bradwood Packaging installs your China Valve Bag Pneumatic Fully Automatic Filling Machine you get hands on training and documentation, to maximise your ROI
- The air flow feed system is capable of high production rates while maintaining good accuracies.
- Operator friendly easy set and forget controls
- Universal and industrial components give the machinery extra long life cycles the way machinery should be built
- Manufactured to comply above and beyond Australian standards
- Pneumatic and electrical control equipment housed in positive pressure enclosure , ensuring dust free environment.
- Built from structural steel giving maximum strength with minimal dimensions
- Additional second stage filling hand wheel for adjusting slow speed flow of product
- Industrial high strength anti- wearing butterfly valve specifically designed for abrasive products
- Variable body height to suit your bag sizes and product line
- The heart of Pneumatic 10 kg Valve Bag Powder Packing Machineis your PLC controller interface, it's simple to operate Your operators will have it all at the tip of their fingers.
- Don't worry about security, because you can add password protected operator access levels
- The flexible and modular Packaging System can be interfaced with all filling systems and check weighers, so the same control panel operate all packers and weighers.
FAQ
Why don't you answer the follwing questions for us to help you find what you want ?
1, the material you want to pack and its size(μm, mm), bulk density(kg/m3)
2, packing weight (kg/bag), capacity (t/day)
3, detailed description of production line
Why don't you answer the follwing questions for us to help you find what you want ?
1, the material you want to pack and its size(μm, mm), bulk density(kg/m3)
2, packing weight (kg/bag), capacity (t/day)
3, detailed description of production line
