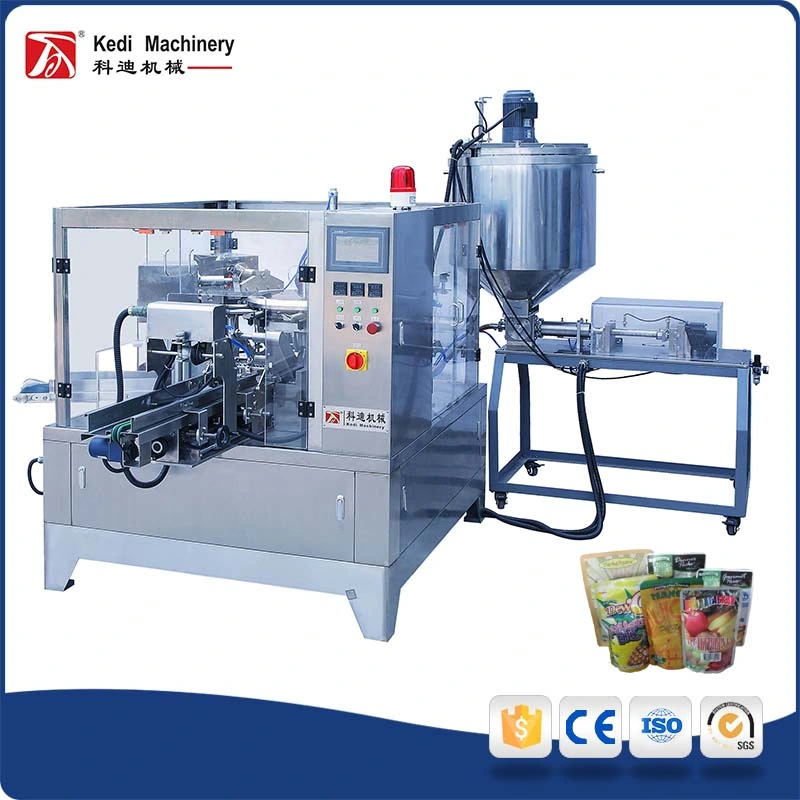

Automatic Bag- Given Mask Filling Packing Machine (GD8-200A + YJL-500B)

Automatic Bag-Given Mask Filling Packing Machine

Function and Characteristics

1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.

2. Automatic checking, no pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.

3. Safety device, Machine stop at abnormal air pressure, heater disconnection alarm.

4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of all clips, easily operate, and raw materials.

5. With liquid mixing device to prevent the micro-particle deposition of materials.

6. With liquid level control device.

7. The part where touch to the material is made of stainless steel

Main technical parameters

Pouch material
Laminated film\PE\PP etc.

Pouch pattern
Stand-up, stand-up & zipper, spout, flat

Pouch size
W, 100-210mm L, 100-350mm

(could be customized to your measure)

Filling range
10-1000ml (to be customized 3000ml)

Weigher accuracy
± 1%

Speed
≤ 50pouches/min(The speed depends on the product status and filling weight))

Total Power
3KW

Voltage
380V 3phase 50Hz/60Hz

Compress air
0.6m3/min ( Supplied by user)

Notice Based on parameters such as bag type, bag sizes to choose different types of packaging machine.

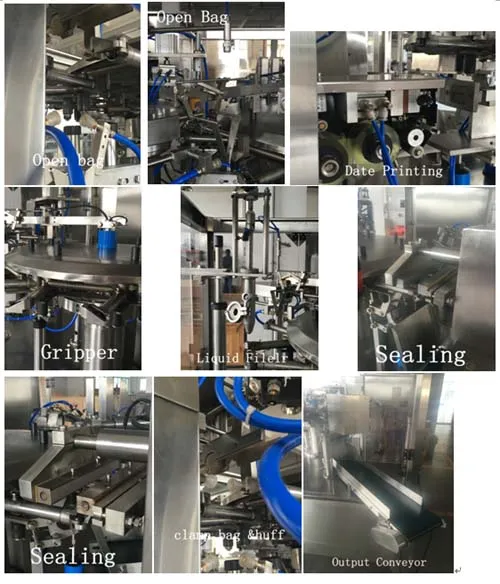

Product Process

1, Giving pouch

2, Coding date

3, Open pouch

4, Filling

5, Sealing

6, Neaten and output packages
