Hot Sale CGF Series Purified / Spring Water 200-2000ml Bottle Filling MachineThe machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices......
Send Inquiry
Product Description

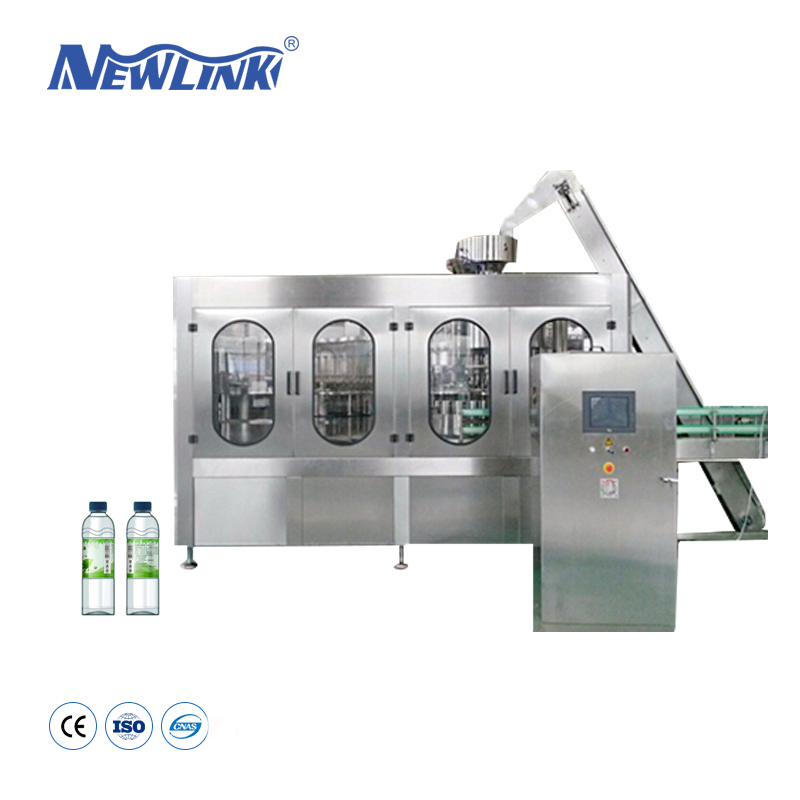

Hot Sale CGF Series Purified / Spring Water 200-2000ml Bottle Filling Machine
The machine is mainly used in the beverage filling operations. The three functions
of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
| Model | CGF8-8-3 | CGF 12-12-6 | CGF 18-18-6 | CGF 24-24-8 | CGF 32-32-10 | CGF 40-40-12 | CGF 50-50-12 |
| Washing No | 8 | 12 | 18 | 24 | 32 | 40 | 50 |
| Filling No | 8 | 12 | 18 | 24 | 32 | 40 | 50 |
| Capping No | 3 | 6 | 6 | 8 | 10 | 12 | 12 |
| Capacity(500ml)BPH | 2000 | 4000 | 7000-8000 | 10000-12000 | 12000-15000 | 15000-18000 | 20000-25000 |
| Power(KW) | 2 | 3.5 | 4 | 4.8 | 7.6 | 8.3 | 9.5 |
| User Ambient Conditions | Temperature:10~40ºC;Humidity:No dew | ||||||
| User Electrical Supply Specification | Voltage:220V,380V,3phase;Frequency:50HZ/60HZ or your requirement | ||||||
| Polyester bottle standard(mm) | bottle diameter φ50-110 ; bottle height 150-340mm | ||||||
| Suitable cap shape | Plastic screw cap | ||||||

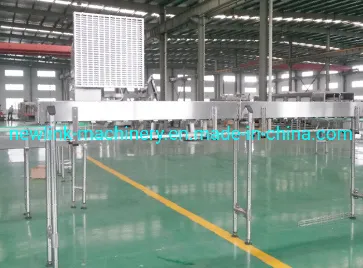

| Air conveyor: Air conveyor is fixed on the floor, with fan installed on the top. Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are held on the neck in the conveyor and transported into filling machine by blowing power. All parts are made of stainless steel SUS304, except the horses with plastic and nylon. |  |
 | Bottle washing parts Bottle neck lock part features:bottle locking steady and low bottle neck damage Water jetting nozzle features: high-efficiency bottle washing and low water consumption Bottle conveying star wheel features: high-speed bottle conveying and low bottle neck |

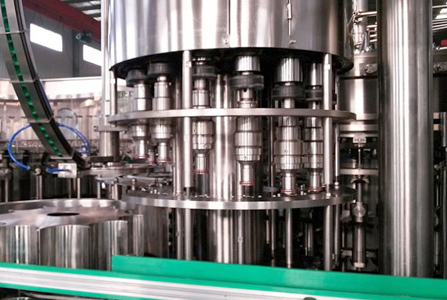

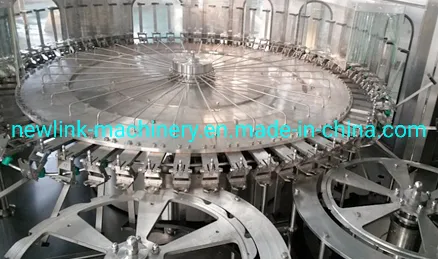

| Bottle filling parts Material: 304/316 Stainless steel Liquid tank features: Inside and outside of liquid tank is polished Filling valves features: Flow rate can be adjusted and controlled accurately |  |
 | Bottle capping parts Material: 304 Stainless steel Capping positions features: cap sealing movement accurately with lower cap damage |

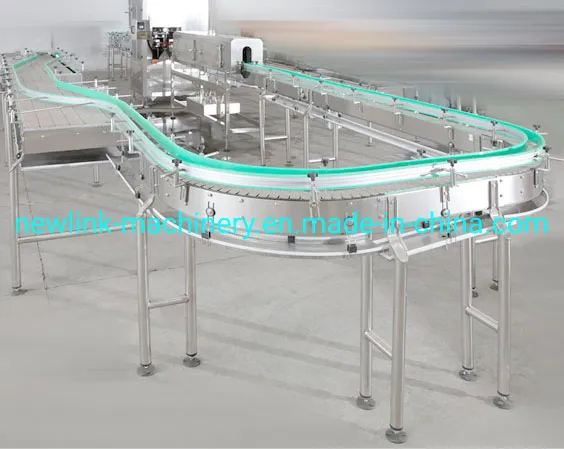

| Conveyor belt it used for conveying the bottles out to the labeling machine and packaging machine |  |

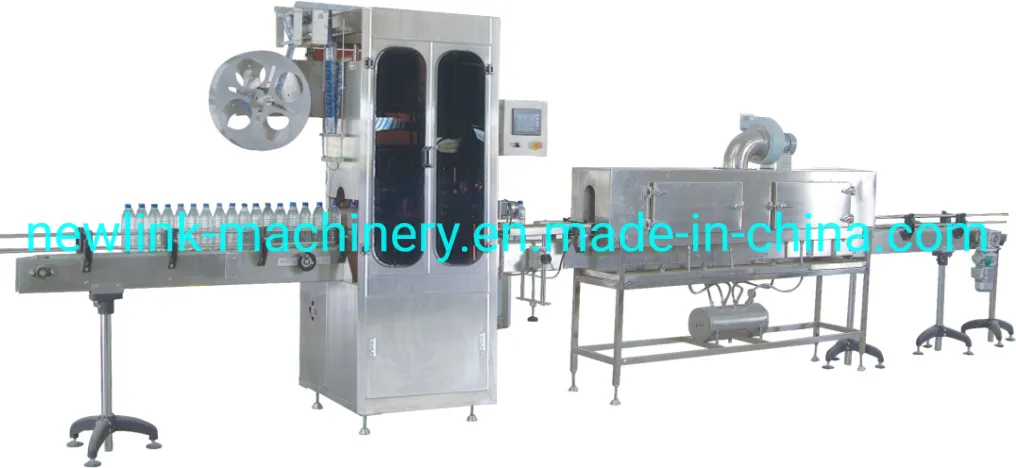

Automatic Bottle Sleeve labeling machine
1.Application
Suitable for various kinds of bottle type of fruit juice, tea beverage, dairy products, pure water, condiment, beer, sports drinks such as food and beverage.

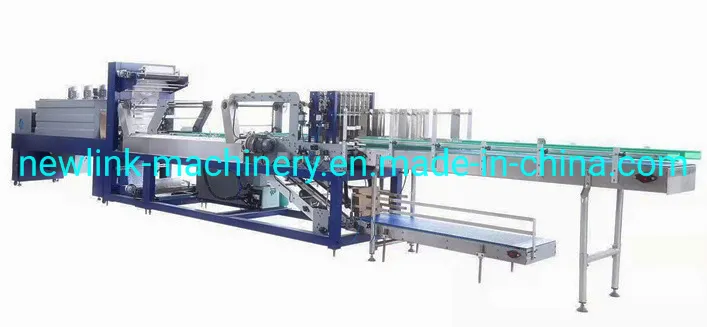

Automatic Bottle Shrink Wrapping Machine
Automatic packaging machine is a product with heat shrinkable film wrappin package again after the heat, the film shrink wrapped products after the machine. The shrinkage process, do not affect packaging quality and can contracte rapid perfection, packing product can be sealed, moistureproof, impact resistance, heat shrinkable machine is suitable for many goods tight packaging and pallet packaging.
Installation service
When you finish the Preparation conditions,our professional after sales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide 12 months Quality warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
7 .12 Months Quality guarantee and life-long technical support.
8. Good after-sale service offered, please get back to us if you got any questions.
Quality Control
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
For more information about it,please feel free to send inqui
