Automatic Coffee Milk Spice Canned Powder Filling Machine

Product Description

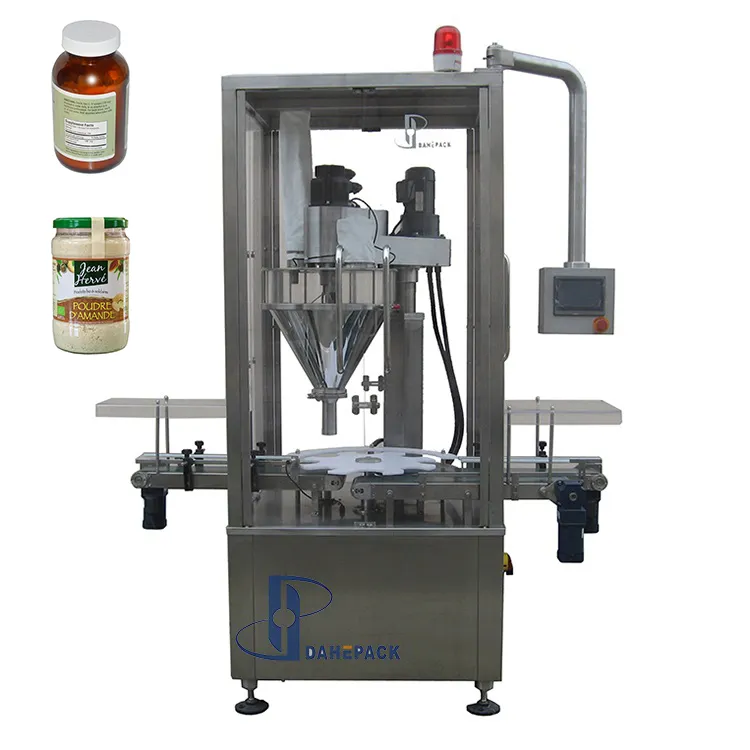

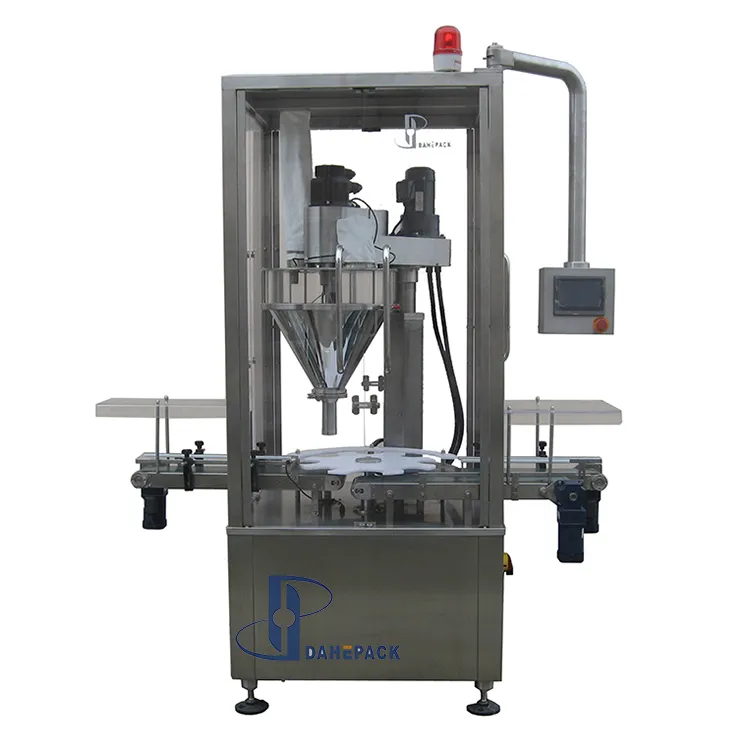

automatic coffee milk spice canned powder filling machine

Introductions:

automatic coffee milk spice canned powder filling machine is a compact model used for filling all kinds of powder into bottles/cans/jars/Tins etc

The machine is suitable for dry syrup, talcum, spices powder, flour Free Flowing
Powders Chemicals, Pharmaceutical Powers, Food & Beverages, Cosmetics powder,
Pesticides Powder,etc

Specifications:

Model	DCS-2A-2	DCS-2B-2
Work Mode	Volumetric Filling-Weighing-Reject/Accept	Volumetric Filling-Weighing-Reject/Accept
Container Size	φ20-85mm H 10-150mm	φ30-130mm H50-260mm
Filling Weight	1-500g(With different auger tooling)	10-5000g(With different auger tooling)
Filling Accuracy	≤ 100g,≤±2%;100 - 500g,≤±1%	≤ 500g, ≤±1%; >500g, ≤±0.5%
Filling Output	20 - 50 Units/min	20 - 50 Units/min
Power Supply	3P AC208-415V 50/60Hz	3P AC208-415V 50/60Hz
Air Supply	6 kg/cm2 0.05m3/min	6 kg/cm2 0.05m3/min
Total Power	1.8KW	2.3Kw
Total Weight	250kg	350kg
Over Size	1000×720×1800mm	1600×1000×2000mm
Hopper Volume	35L	50L

Main Features:

1:Total compact design model.
2: All parts and assemblies coming in contact with powder are made of S.S.304 and
easily removable for maintenance changeover.
3:NO BOTTLE, NO FILL" System eliminates wastage of costly powder.
4: Filling controlled by servo system with adjustable speed and high accuracy
outcome.
5: With inline filled cans check weigher and reject conveyor to assure high accuracy output.
6: Different size star wheel to accommodate different container size ,featured with
easy maintenance and changeover .

CE certificate:

Our factory:
