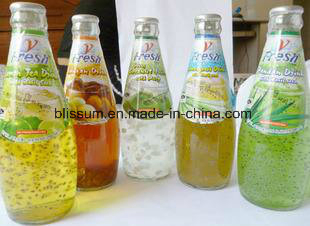

Automatic Not From Concentrate Basil Seed Jucie Bottling Machine
Professional Manufacturer Fresh Juice Packing Bottling MachineBlissum's RFC-H series filling machines are designed especially for bottling synthetic juices (RTS) or HOT filled juices, tea (filled at up to 98 centigrade degrees), with optional capacity ranging from 1000BPH to 32000BPH, it adopts ......
Send Inquiry
Product Description

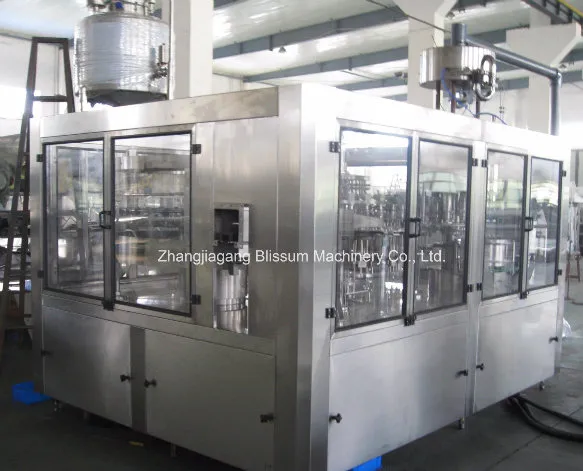

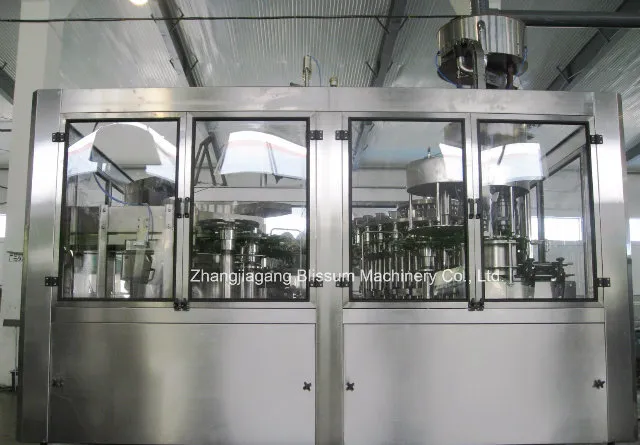

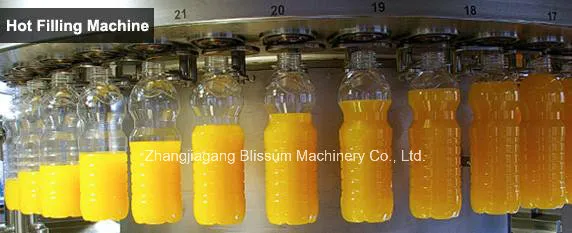

Blissum's RFC-H series filling machines are designed especially for bottling synthetic juices (RTS) or HOT filled juices, tea (filled at up to 98 centigrade degrees), with optional capacity ranging from 1000BPH to 32000BPH, it adopts the pressure & rotative filling style.
1. Centre filling valves used which are designed for maximum flow rate and minimum bottle distortion during HOT filling.
2. Inbuilt CIP arrangement provided on the machine for fill tank and fill valve sanitation.
3. Dummy caps provided fitting on all filling valves during CIP.
4. Automatic PLC controlled valve washing cycle before commencement of every production cycle for overall hygiene.
5. Unique filling cam designs which prevents filling up to the bottle collar without spillage.
6. Bypass line provided for flushing the product fill tank after completion of CIP
7. Supper heavy stainless steel juice tank build in
Technical Parameter of Juice bottling machine/production line:
Model(RFC-H) | 14-12-5 | 16-16-5 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-15 |
washing,filling,sealing(No.) | 14-12-5 | 16-16-5 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-15 |
Production capacity(bottle/hour) (500ml) | 3000-5000 | 5000-8000 | 8000-10,000 | 12,000 | 15000 | 18000-20000 |
Suitable bottle height (mm) | H=160-310 φ=50-110 | |||||
Total Power (kw) | 2.42 | 3.12 | 3.92 | 3.92 | 5.87 | 7.87 |
Overall dimension(L×W×H) (mm) | 2360x1770x2700 | 2760x2060x2700 | 2800x2230x2700 | 3550x2650x2700 | 4700x3320x2700 | 5900x4150x2700 |
Weight (kg) | 3500 | 4000 | 4800 | 6800 | 8500 | 1000 Why Choose Us |
Technical Parameter of Juice bottling machine/production line:
Model(RFC-H) | 14-12-5 | 16-16-5 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-15 |
washing,filling,sealing(No.) | 14-12-5 | 16-16-5 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-15 |
Production capacity(bottle/hour) (500ml) | 3000-5000 | 5000-8000 | 8000-10,000 | 12,000 | 15000 | 18000-20000 |
Suitable bottle height (mm) | H=160-310 φ=50-110 | |||||
Total Power (kw) | 2.42 | 3.12 | 3.92 | 3.92 | 5.87 | 7.87 |
Overall dimension(L×W×H) (mm) | 2360x1770x2700 | 2760x2060x2700 | 2800x2230x2700 | 3550x2650x2700 | 4700x3320x2700 | 5900x4150x2700 |
Weight (kg) | 3500 | 4000 | 4800 | 6800 | 8500 | 1000 |
1) Material of filling valve: Stainless steel SUS304
2) Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304
3) Main motor: Chinese Manufacturer
4) Sliding bearing: NSK (JAPAN)
5) Frequency inverter: MITSUBISHI. (JAPAN)
6)Touch screen :Taiwan Manufacturer.
7) PLC: MITSUBISHI (JAPAN)
8) Photocell switch and proximity switch: OMRON (JAPAN)
Why Choose Us:
1. Each water filling machine element tha contacts with the liquid is made of high quality Stainless steel 304, if needed, SS 316 is also available.
2. The water filling machine adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping.
3. Most elements of the electrical system use famous international brand, such as Mitsubish, Omron brand.
4. The water filling machine obtain the advantages of good abrasive resistance,high stability,low failure rate, etc. The
quality of the equipments reaches the international advanced level.
5. Advanced technologies, human-machine interface touch screen and PLC program control are adopted in this machine.
6. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
7. Easy to operate, save the cost of workers.
FAQ:
1.Which countries or areas have your products been exported to?
We've exported more then 40 counties all over the world.
2.How about your MOQ?
At least 1 set.
3.How about your product's quanlity?
Our products are certificated by CE, ISO ,SGS,,we provide 1 year warranty.
4.Which currencies are acceptable to you?
USD
5. How to buy from you?
First, customers make an purchase order.
Then, we will send a PI to cutomers and a countersigned PI is required as an official comfirmation.
After that, customers shall finish with the advanced payment, production will start as soon as advanced patment received.
During the production, we will update the production status to customers. And after production finished we'll offer pics or shipping samples for customers' reference if they need.
Finally, after shipment, customers should arrange the balance upon the receipt of B/L copy,then we'll send original documents to customers for their custom clearence.
During shipping, we will still have an eye on the goods, and keep in touch with customers.
1 year quality warranty and supply spare parts at low cost for life span after sale. We keep the original
drawings of spare parts, so it can match with the rest part of machine.
2. 24 hours/365 days online technical service.
3. Training offered
