Automatic Powder Rotary Packaging Machine Rotary Pouch Filling Machine Packing Machine
Automatic powder rotary packaging machine rotary pouch filling machine packing machine 1.This maca powder rotary packaging machinery can be used to pack various fine powders, like spice , chili powder, herb powder, detergent powder, milk powder, flour, coffee powder,soybean powder, medicine pow......
Send Inquiry
Product Description
Automatic powder rotary packaging machine rotary pouch filling machine packing machine
1.This maca powder rotary packaging machinery can be used to pack various fine powders, like spice , chili powder, herb powder, detergent powder, milk powder, flour, coffee powder,soybean powder, medicine powder, cosmetic powder, facial mask powder, starch etc.
2.This maca powder rotary packaging machinery conforms to the food processing machinery's sanitation standard. On the machine, the spare part which contacts the material and pouch conforms to the standard of food sanitation request on material processing, food health and security guarantee.
3.It's fully automated operation, is improved and the production of a kind of high quality, high performance automatic packaging machine, complete automatic feeding, measuring, bag-making, deviation, filling, sealing, date printing and finished product output and a series of automatic functions.
Kinds of Premade Pouches
Stand up pouches, doypack with zipper, 3 side seal bags, 4 side seal bags, flat bags, pouch with hole, spout pouch etc
Main Features
1. It uses stainless steel 304 shell for food grade required.
2. Automatic detection. No pouch or pouch is not opened completely, no filling, no sealing.
3. Horizontal Infeed conveyor or magazine cabinet suits for bags with zipper, max. put 300pcs each time.
4. Zipper Openner System: Servo motor (Panasonic / Japan) controlled.
5. Independent temperature control system (Omron/Japan).
6. PLC adjust bag width clamping: Only needs 2mins by auto PLC for adjust different bag width sizes.
7. It includes ribbon type date code: 3 lines * 17 characters.
8. Guarding: Glass Door Alarm (option) / Air Pressure Abnormal
9. Internal grooved cam design: The technology with high precision, suits for max. packing speed: 50 cycles/min with stable running.
10. Use free oil vacuum pump, avoid polluting the environment in the production.
Main Technical Parameter
| Model | HT-8F/H |
| Packing Range(bag size) | Width 80-200mm, Length 80-400mm |
| Packing Weight | 20-1500g(Depend on The Filling Products) |
| Capacity | 20-50 bag/min (speed depends on filling product & weight) |
| Packing Precision | error<±1% |
| Pouch Type | Stand-up bag, spout bag, Flat bag, paper bag, laminated material etc. |
| Total Power | 5 kw |
| Compressed Air Consumption | 0.6 m3/min |
| Voltage | 3 Phase 380V 50HZ/60HZ |
| Machine Dimensions | (L)2605*(W)1890*(H)1620mm |
| Machine Weight | 2000 kg |
| Note: | 1. According to the customer request, provides the special design. 2. The machine disposition may make the choice. |
Product Details

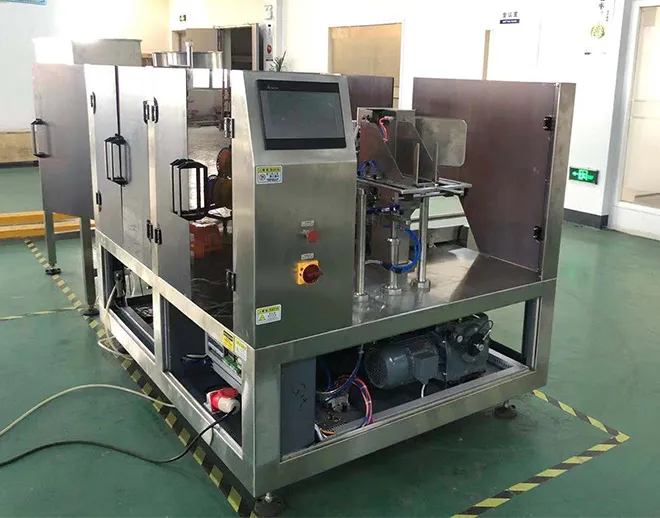

1.Rotary Filling Sealing Packing Machine Machine body full of 304 stainless steel. Main Electrical Components: * SIEMENS PLC * SIEMENS HMI * OMRON * SCHNEIDER |
1. 1 stations 1.Pouch Supplying --> 2. Coding Date + --> 3. Zip Opening (if need)--> 4. Pouch Opening ---> 4. Filling + Vibrating (if need)---> 5. Option functions (Nitrogen flushing/2nd fillings ) --> 7. Sealing 1st ---> 8. Sealing 2nd + Output |
1.2 Ribbon Coding Printer Ribbon Coding Printer (print max. 4 lines, each line has 16 characters) (If not specified, it print max. 2 lines, each line has 12 characters) |

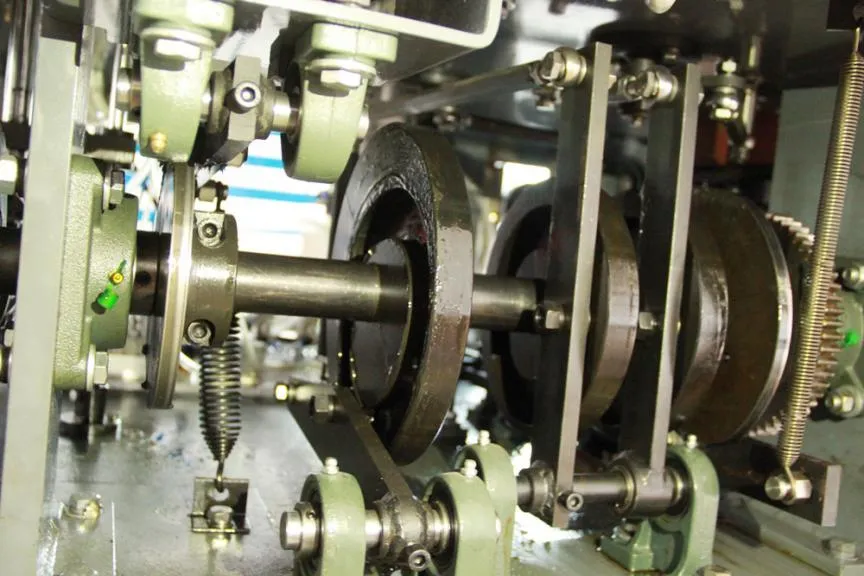

1.3 Internal grooved cam design Internal grooved cam design: The technology with high precision, suits for max. packing speed: 50 cycles/min with stable running. |
2.Auger Weigher The machine is specialized design for powder, ultra-fine powder packing. It can automatically finish the sequence of weighing - filling material. Equipped with packing machine form a set, used for weigh and filling the powder material. |
About us

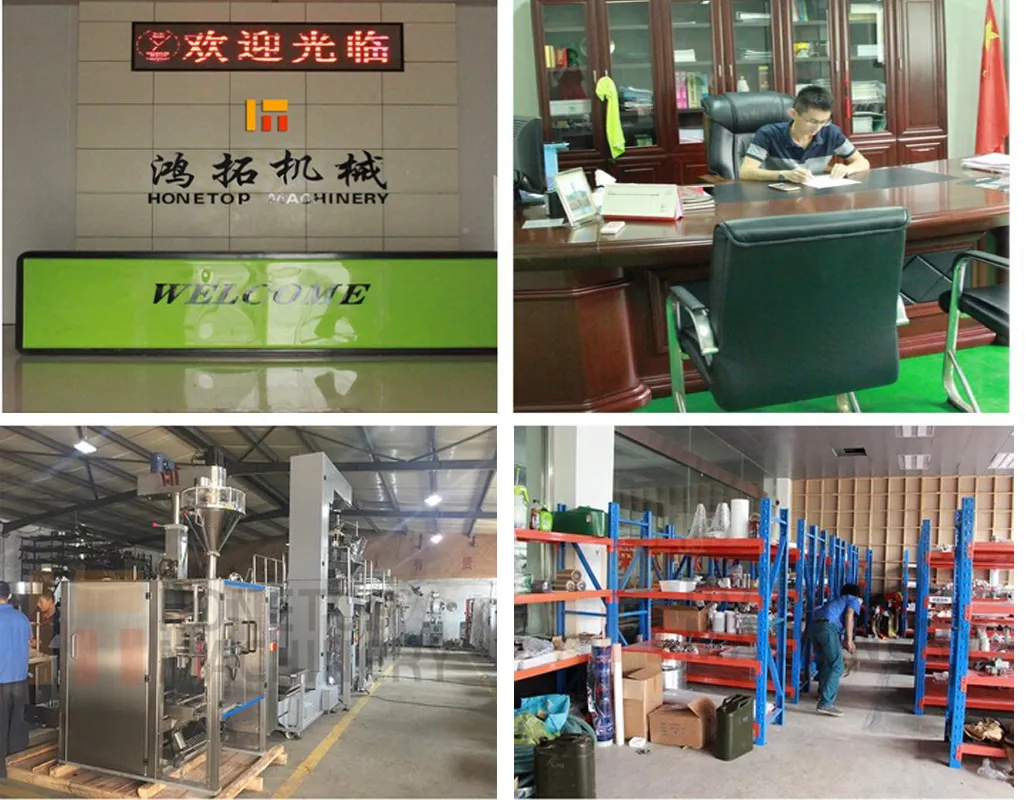

1.Our company
Ruian Honetop Machinery Co., Ltd.
HONETOP COMPANY specializes in producing packaging machines since 2002 year. Until September 2020, our machines have been exported over 70 countries, our main markets are in North and South America and Africa, have local engineers team in these market (USA , Peru and Ghana), can support local after-sales service (for machines installation, debugging and training) directly.
2.Our Clients
3.Our service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, how to use the machine.
* Engineers available to service machinery overseas.

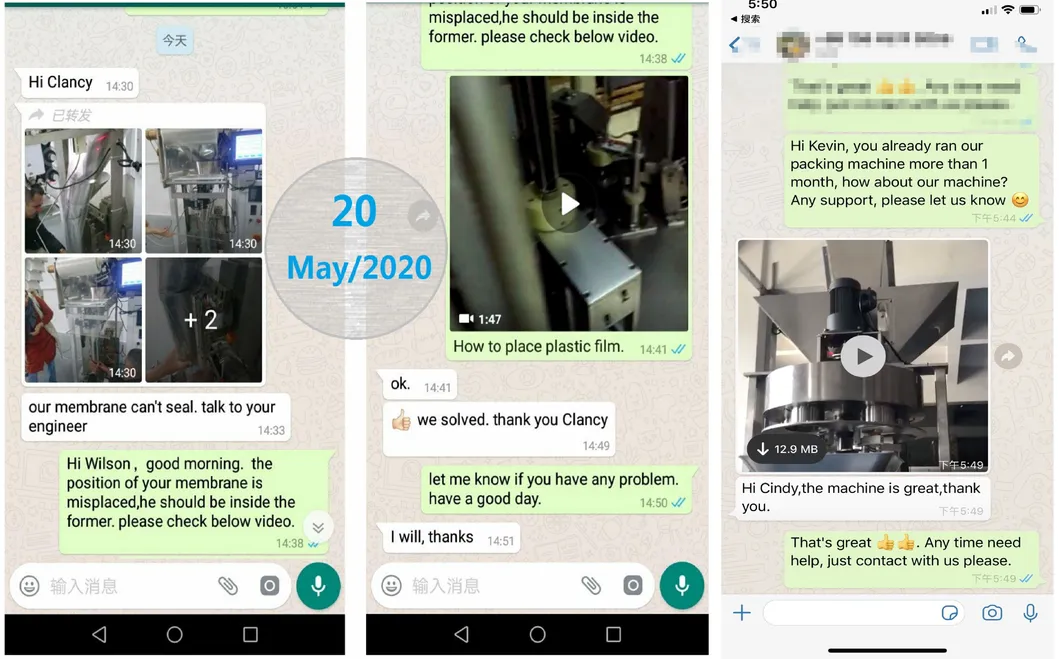

Customer reviews:

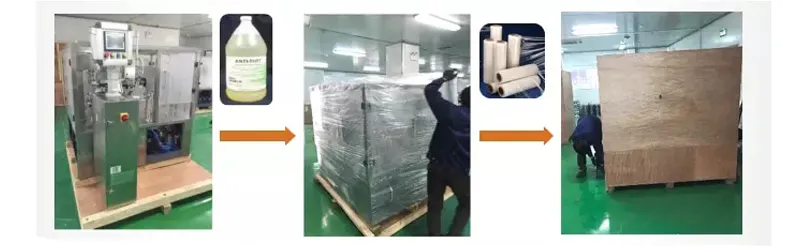

Packaging & Shipping:
