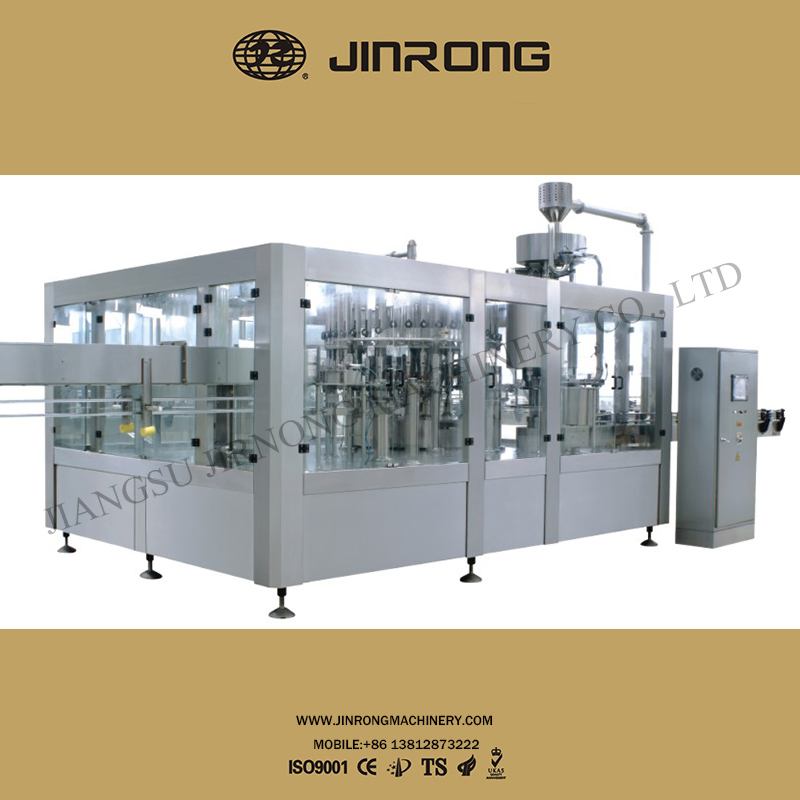

Big Discount Still Water Filling Machine in Pet Juice Bottles

The machine is mainly applied for the filling of beverage. Integrating with washing, filling and sealing, it realizes full automation in the whole process, suitable for polyester bottle and plastic bottle filling of mineral water and purified water. The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adopts new isobaric pressure filling, stable and reliable. Compared with the machines of the same specification, the productivity and benefit of this machine is larger.
The machine adopts advanced OMRON programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectrical inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.


Function: rinsing filling and capping integrated in one monoblock
Model: RFC40-40-10
Production capacity:  18000BPH (500ml PET bottle)
Working heads: washing 40, filling 40, capping 10
Filling material: water, non-pressure beverage
Filling temperature: normal pressure filling or gravity filling
Main motor: 7.5 kW
Convey type: air conveyor bottle feeding, bottle neck suspension type operation, actual bottle conveying (German Krones technology)
Rinsing type: new type bottle block rinsing (German Krones technology)
Filling type: normal pressure filling (German Krones technology)
Capping type: magnetism capping (German Krones technology)
Transducer: Mitsubishi
Main electronic: Siemens Suzhou Branch
PLC: Mitsubishi
Touch screen: Taiwan Kinco
Approach switch: Korea AUTONICS
Electronic switch: Korea AUTONICS
Reducer: TianYu from Hangzhou
Main motor: Tekong from Nanjing
Pneumatic element: Taiwan Airtac
External size: 4250×3250×2900 mm
Weight: 9500kg
