Product Description

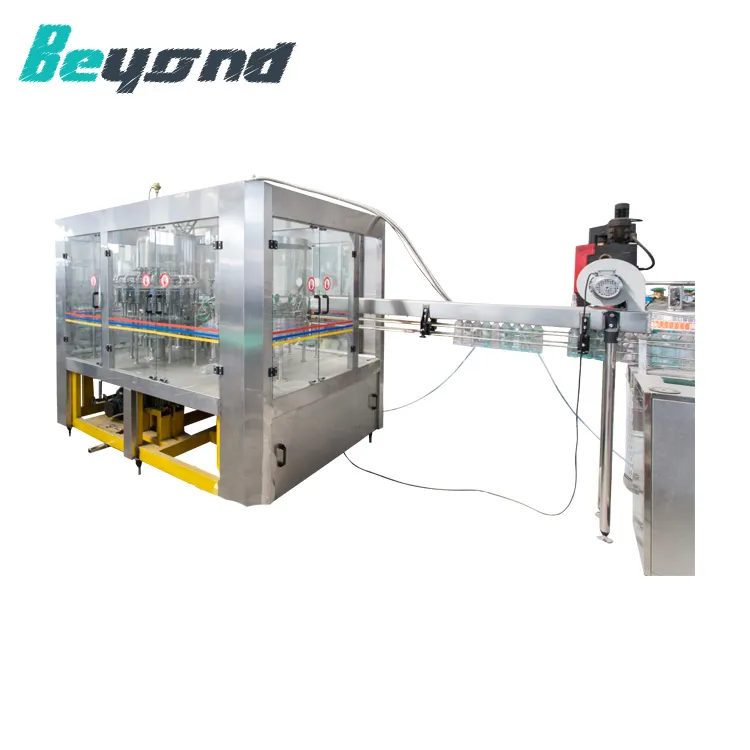

Canned Drinks Manufacturing Line,Machine,Equipment
Automatic, rotary, rinser-filler-capper monobloc, for carbonated drink into 350ml to 1500ml. Round, PET bottles. Using standard prethreaded plastic closures.
1. The filling machine is a full automatic multiple-function joint unit, integrating washing, filling and capping into one unit.
2. It applies to washing, filling and sealing different kinds of non-carbonated drinks such as fruit juice, oil, vinegar, wine, fruit wine, mineral water, and pure water.
3. This filling machine has features of unique design, novel style, complete functions, multi-purpose, strong adaptable, easy in operation, high automaticity. It is the ideal filling equipment in China.
Carbonated Beverage Filling machine is mainly used in the beverage filling operations.
4. The product line is mainly used in washing, filling and sealing carbonated beverage such as carbonated drinks, cola, iced tea and carbonated mineral water and so on.
5. The construction is advanced, . The performance is stable. The operation and maintain are easy. And the speed can be adjusted infinitively and accords with the standards. It is an ideal choice for small and middle scale drink factories.
6. All the line is composed by rotary washer, balanced pressure filler, screw type sealer and conveying sysytem. The capcity is from 3000b/h to 40000b/h
Specification
1. The filling machine is a full automatic multiple-function joint unit, integrating washing, filling and capping into one unit.
2. It applies to washing, filling and sealing different kinds of non-carbonated drinks such as fruit juice, oil, vinegar, wine, fruit wine, mineral water, and pure water.
3. This filling machine has features of unique design, novel style, complete functions, multi-purpose, strong adaptable, easy in operation, high automaticity. It is the ideal filling equipment in China.
Carbonated Beverage Filling machine is mainly used in the beverage filling operations.
4. The product line is mainly used in washing, filling and sealing carbonated beverage such as carbonated drinks, cola, iced tea and carbonated mineral water and so on.
5. The construction is advanced, . The performance is stable. The operation and maintain are easy. And the speed can be adjusted infinitively and accords with the standards. It is an ideal choice for small and middle scale drink factories.
6. All the line is composed by rotary washer, balanced pressure filler, screw type sealer and conveying sysytem. The capcity is from 3000b/h to 40000b/h
Specification
Model | CGF16126 | CGF18186 | CGF24248 | CGF323210 | CGF404012 | CGF505015 | CGF606015 | CGF808020 |
| Heads of washing, filling, sealing | 16-12-6 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-15 | 60-60-15 | 80-80-20 |
| Production Capability(b/h)600ml | 2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 | 35000-40000 |
| Applicable Bottle Type(mm) | φ=50-100 H=170 330-1500ml | |||||||
| Spraying Pressure(kg/cm2) | 2~3 | |||||||
| Motor Power(kw) | Main motor 1.5 | Main motor 2.2 | Main motor 3 | Main motor 5.5 | Main motor 7.5 | Main motor 11 | Main motor 15 | Main motor 19 |
| Dimension (LxWxH)(mm) | 2100x1400x2500 | 2460x1720x2650 | 3100x2100x2650 | 3500x2500x2650 | 4600x1800x2650 | 5400x3300x2900 | 6500x4500x2900 | 76800x66400x2850 |
| Total Weight(kg) | 2500 | 3500 | 4200 | 6500 | 8500 | 9800 | 12800 | 15000 |
