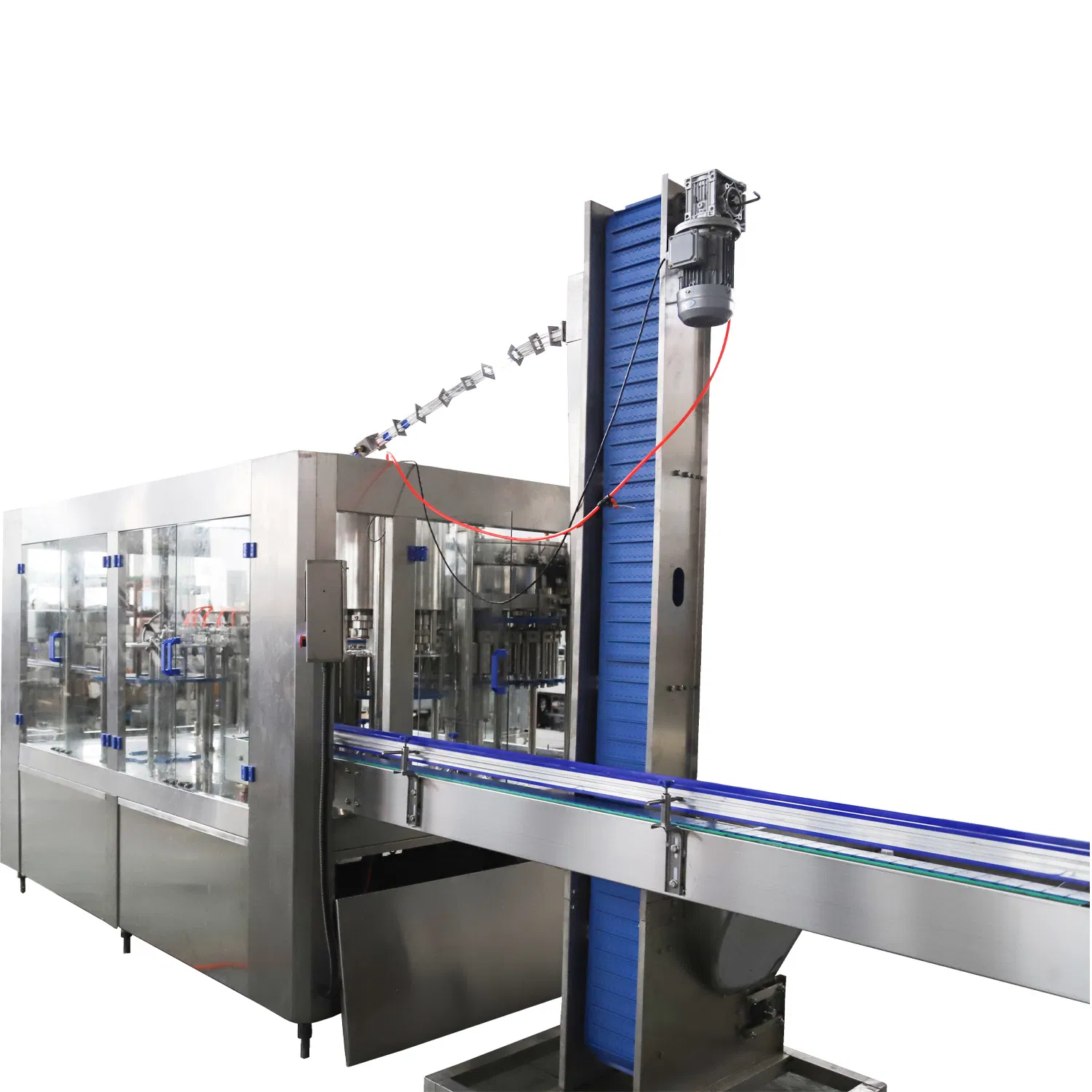

Carbonated Beverage Filling Machine ( DCGF24 -24-8)
Carbonated Beverage Filling MachineModel: DCGF24-24-8Washing heads: 24Filling heads: 24Capping heads: 8Technical Specifications:Model:DGCF16/12/6DGCF18/18/6DGCF24/24/8DGCF32/32/10DGCF40/40/12Production Capacity:500ml(b/h)2000-30004000-50006000-7000 9000-1000014000-15000Filling precision≤5mm ......
Send Inquiry
Product Description
Carbonated Beverage Filling Machine
Model: DCGF24-24-8
Washing heads: 24
Filling heads: 24
Capping heads: 8
Technical Specifications:
Production capacity: 6, 000-7, 000B/H(500ml)
Suitable bottle size: H=170-320mm; Φ =50-100mm; (volume: 330-2500ml)
Spraying pressure (Mpa): 0.18-0.25
Power supply (Kw): 6
Overall dimension(L× W× H) mm: 2750× 2180× 2200
Weight (kg): 4000

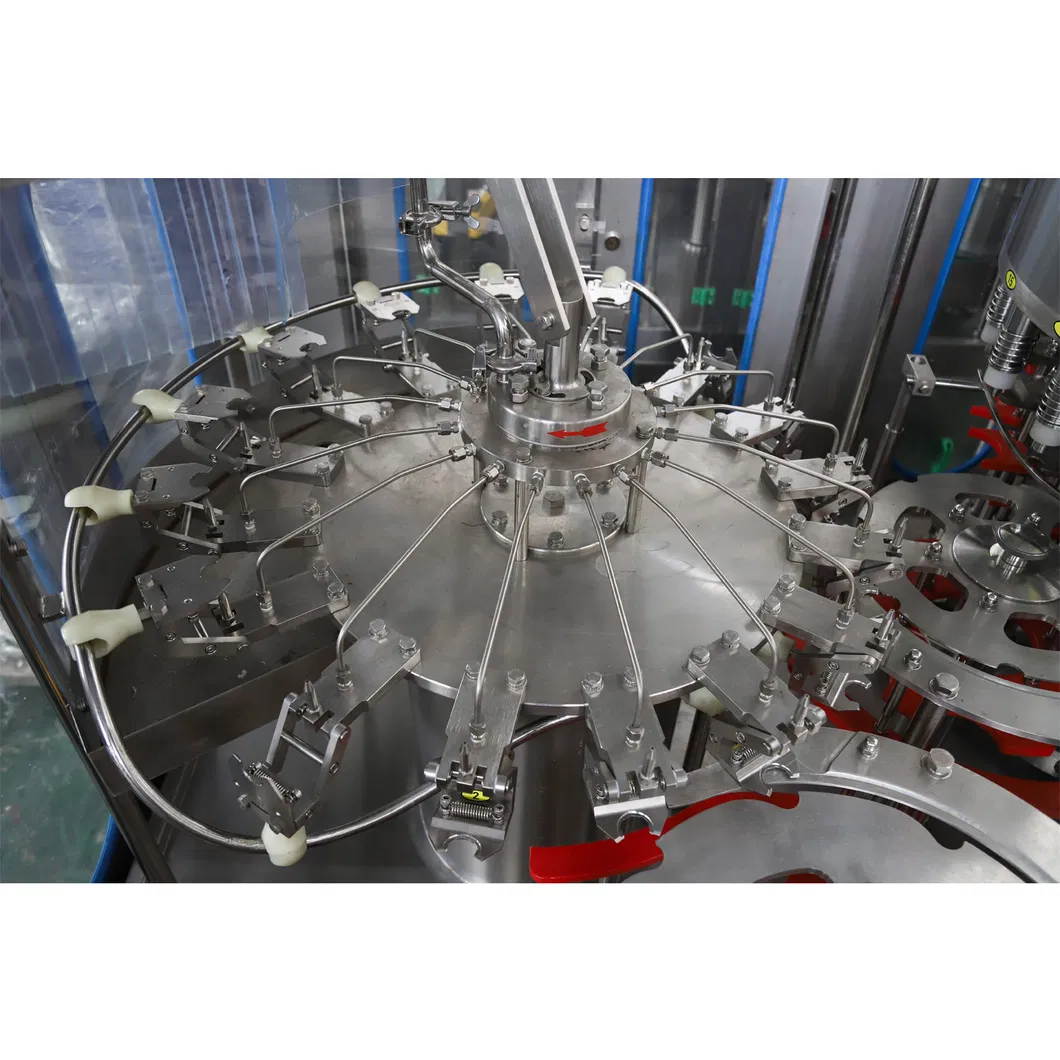

Washing Part

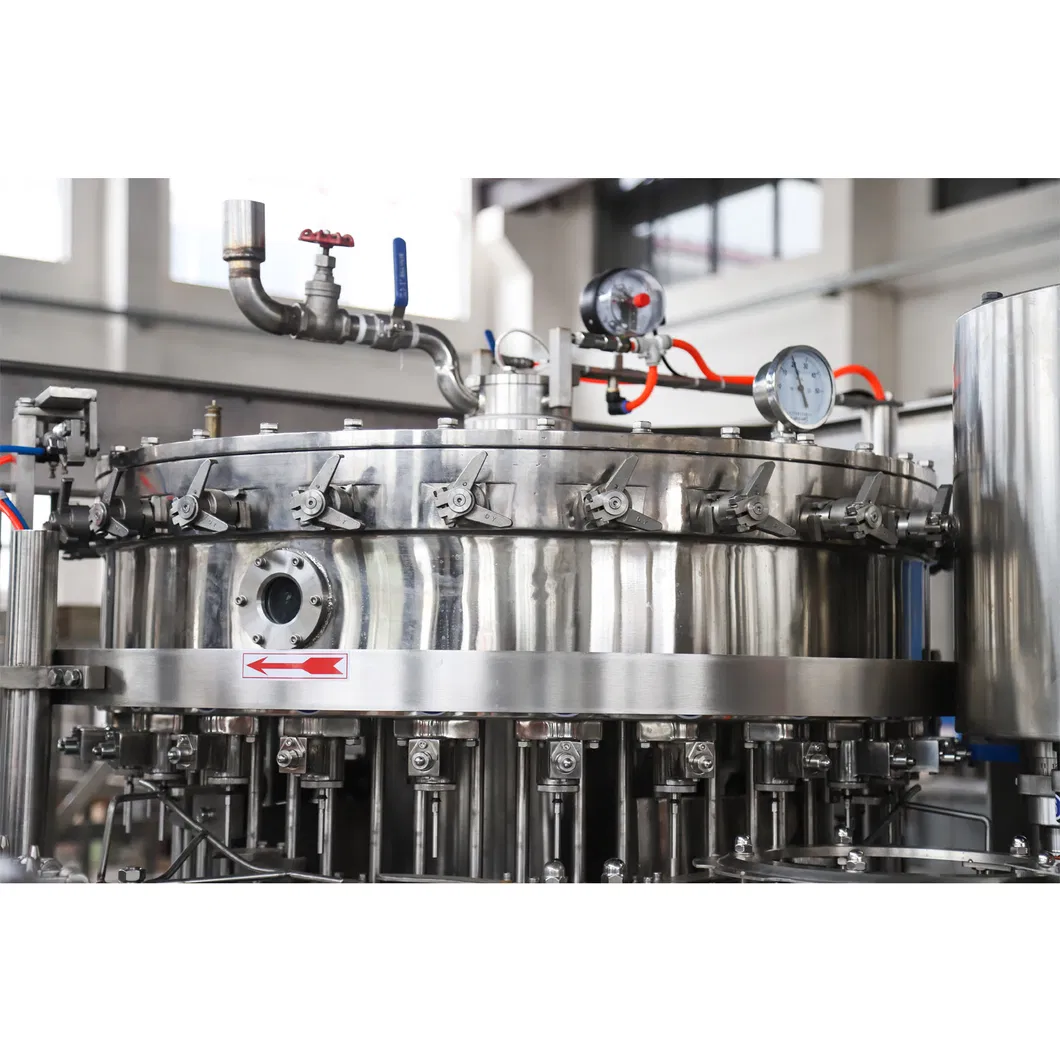

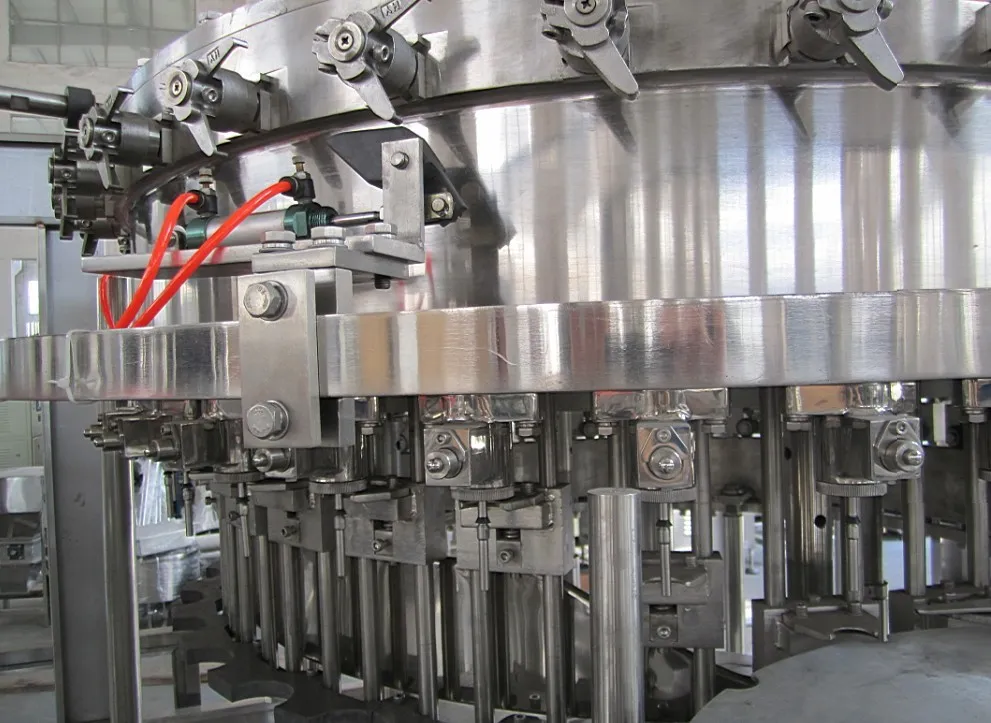

Filling Part

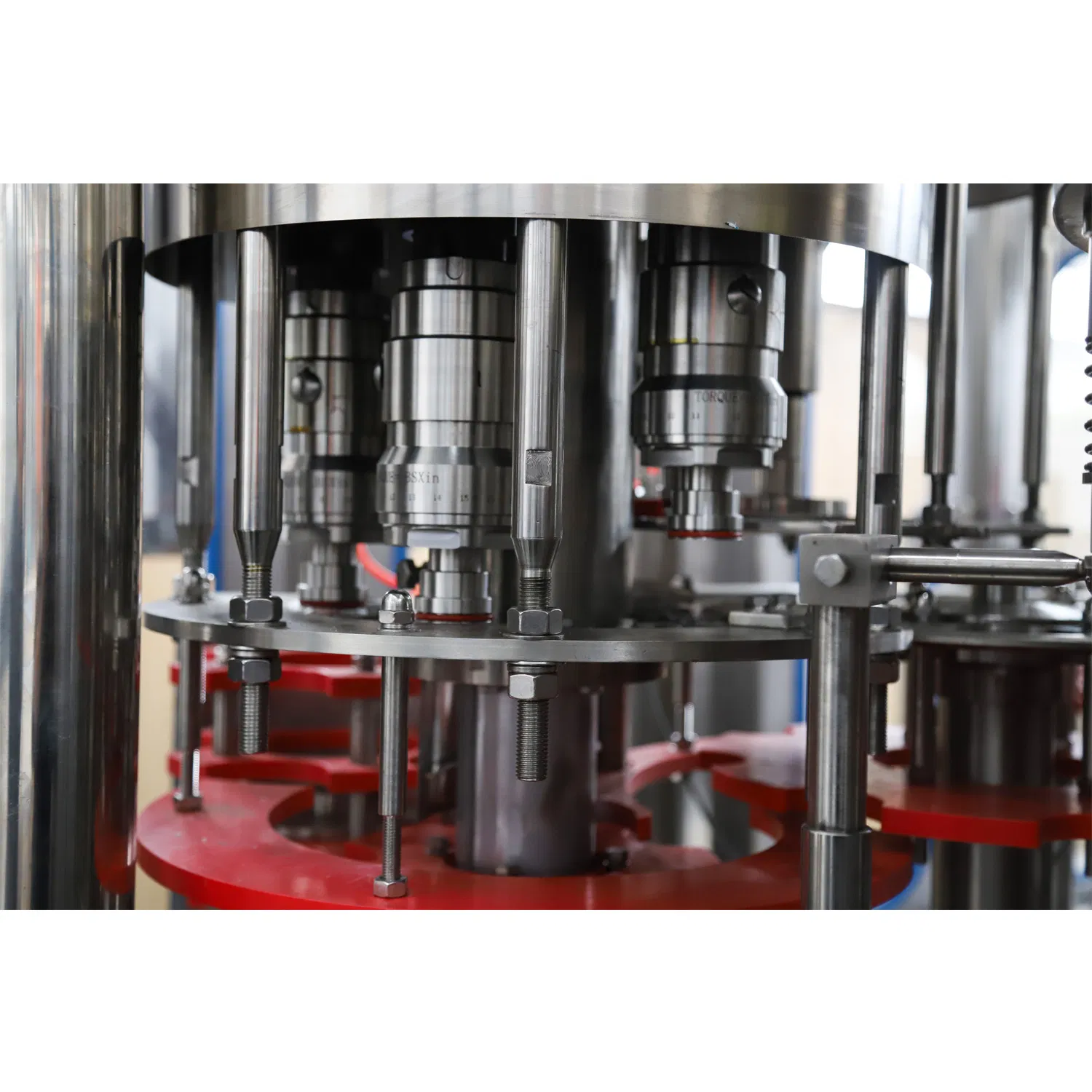

Capping Part
Model: DCGF24-24-8
Washing heads: 24
Filling heads: 24
Capping heads: 8
Technical Specifications:
| Model: | DGCF16/12/6 | DGCF18/18/6 | DGCF24/24/8 | DGCF32/32/10 | DGCF40/40/12 | |
| Production Capacity:500ml(b/h) | 2000-3000 | 4000-5000 | 6000-7000 | 9000-10000 | 14000-15000 | |
| Filling precision | ≤5mm (liquid level) | |||||
| Filling pressure(Mpa) | <0.4 | |||||
| Suitable bottle standard:(mm) | Bottle diameter: φ40-φ80, bottle height: 130-280mm | Bottle diameter: φ50-φ100 bottle height: 150-320mm | ||||
| Suitable cap standard:(mm) | Plastic screw cap, φ50-φ110 | |||||
| Pressure for washing bottle(Mpa) | 0.18-0.25 | |||||
| Water consumption for washing bottle(Kg/h) | 1300 | 2000 | 2500 | 3000 | 3600 | |
| Spraying position | 5 | 5 | 6 | 12 | 15 | |
| Dripping bottle position | 2.5 | 3.0 | 3.5 | 7 | 9 | |
| Gas source pressure(Mpa) | 0.4 | |||||
| Gas consumption(m3/min) | 0.3 | 0.4 | 0.4 | 0.5 | 0.6 | |
| Total power(Kw) | 5.03 | 5.03 | 6.57 | 8.07 | 10.07 | |
| Overall Dimension (L×W×H, mm) | 2100×1500×2200 | 2450×1800×2200 | 2750×2180×2200 | 3600×2200×2600 | 4300×2300×2750 | |
| Total Weight:(kg) | 2000 | 3500 | 5500 | 8000 | 9500 | |
Suitable bottle size: H=170-320mm; Φ =50-100mm; (volume: 330-2500ml)
Spraying pressure (Mpa): 0.18-0.25
Power supply (Kw): 6
Overall dimension(L× W× H) mm: 2750× 2180× 2200
Weight (kg): 4000
Washing Part
Filling Part
Capping Part
