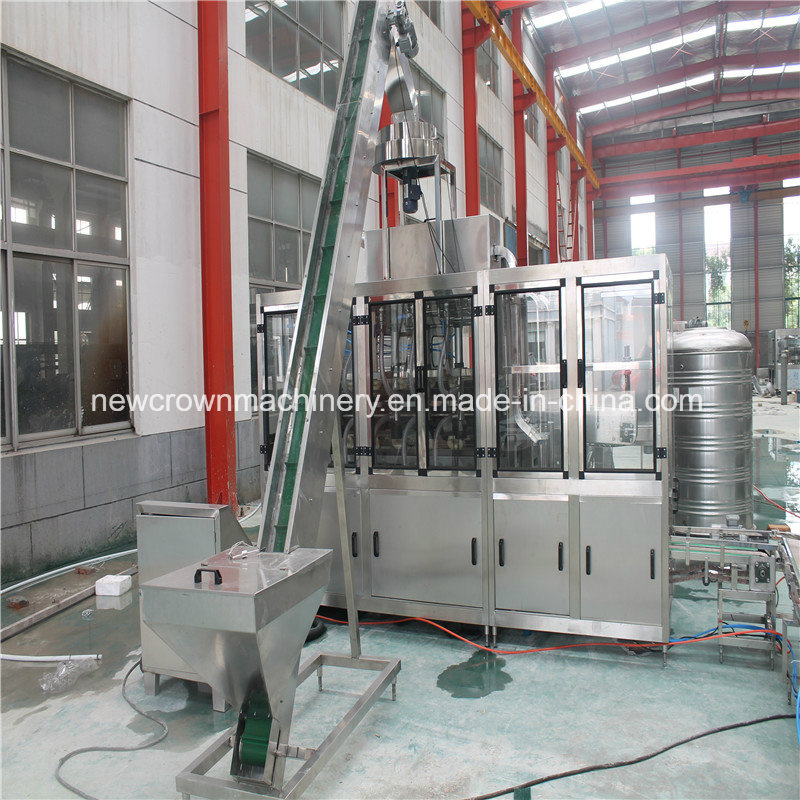

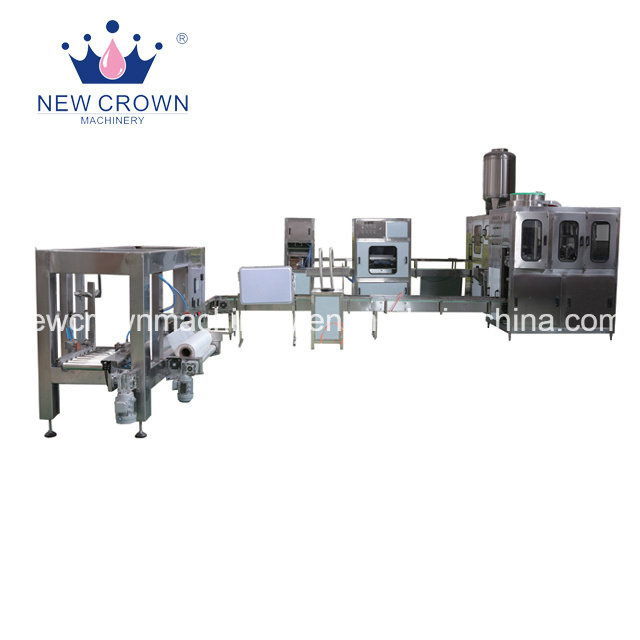

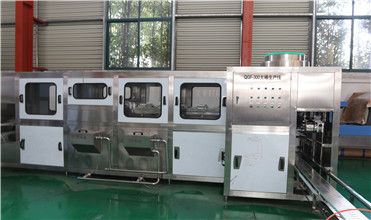

Ce Automatic 450bph 5 Gallon Water Filling Machine/Water Bottling Plant

1. Production description


(1) This filling line specially produces 3&5 gallons barreled drinking water.
(2)This series barreled filling production line integrates bottle washer, filler and sealer into one unit.
(3) In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
(4) This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.
(5) This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.
(6) It has features of complete functional, novel design, and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.

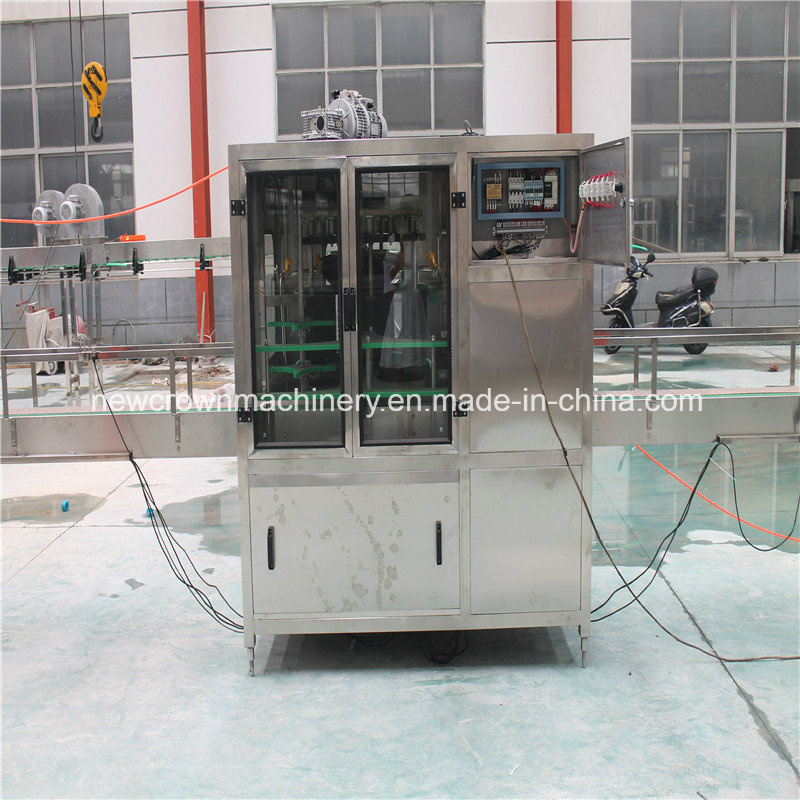

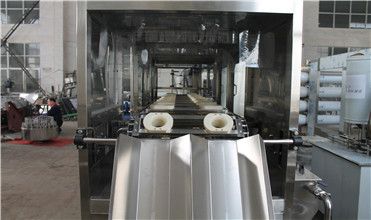

Rinsing part

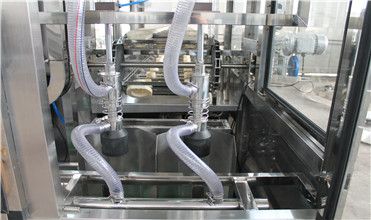

Filling part

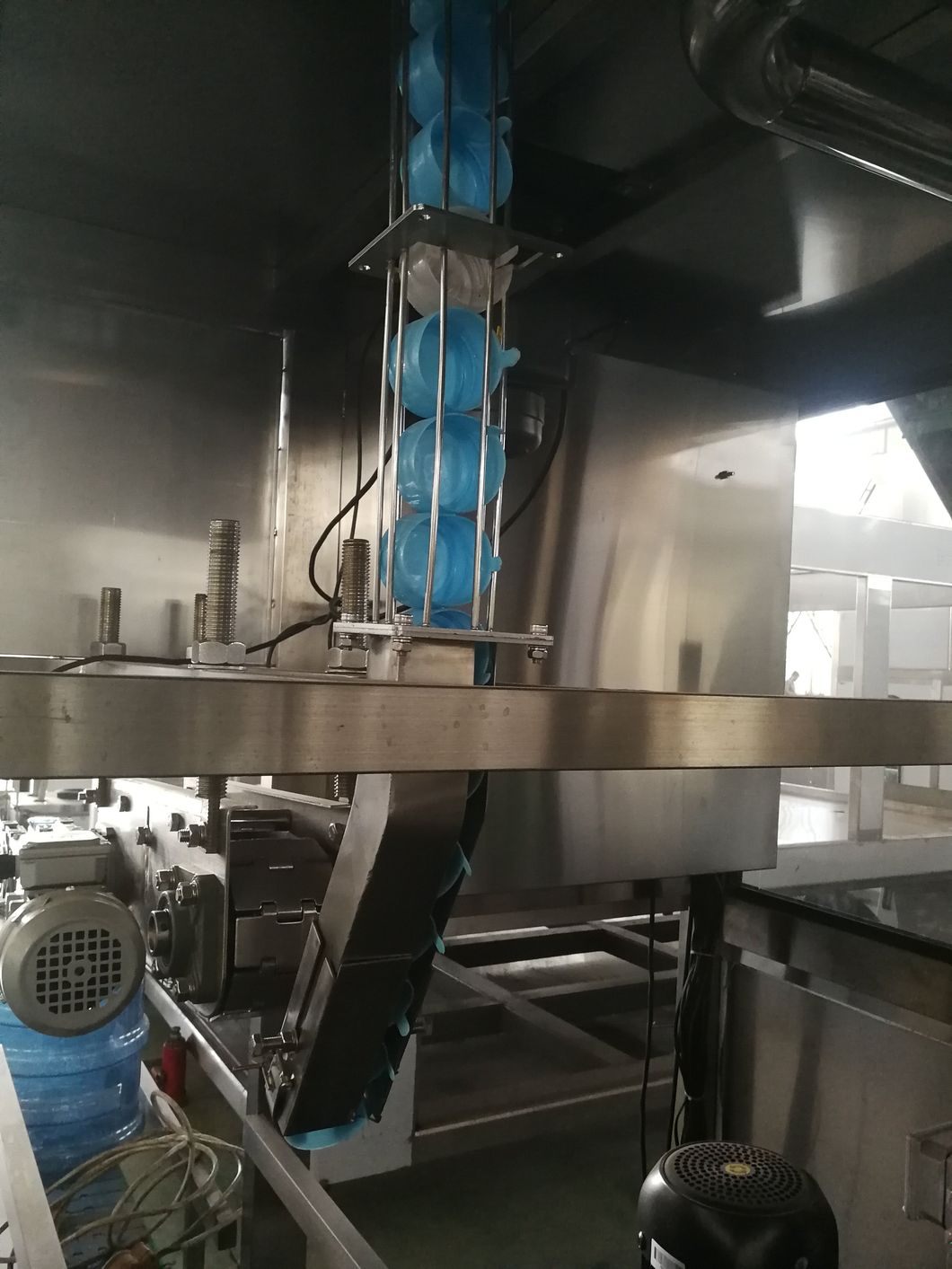

Capping part


2.Technical parameter:

3.Characteristics:
----QGF type auto barreled water production line is specially used in 3 gallon5 gallon barreled water producing.
----The complete line has washer\filler\capper three function in one body, it is the ideal equipment for pure water, mineral water.
----Total line is made by SUS304.
----The main electric parts use Japanese Mitsubishi, Omron and so on.
----The air pressure system adopts Taiwan Airtac brand product.
----This machine has features as compact structure, low floor area, high efficiency.

4.Package and shipment
Package: wooden case packing
Shipment: 30 days for 5 gallon water filling machine

5.Service
(1)We can send you the video of the running machine.
(2)You are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
(3)If we get the permission of the customer who has brought the machines from us,we can tell you our customers' contact imformation,you can go to vist their factory.
(4)We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

     "Honsty,Sincerity and good faith"is our spirit while "High technology ,high quality and high level"is what we aim.We try our best to satisfy our customers with our good after sale service.We would like to welcome all our society to cooperate and develop together.

If any doubt ,pls feel free to contact us.
