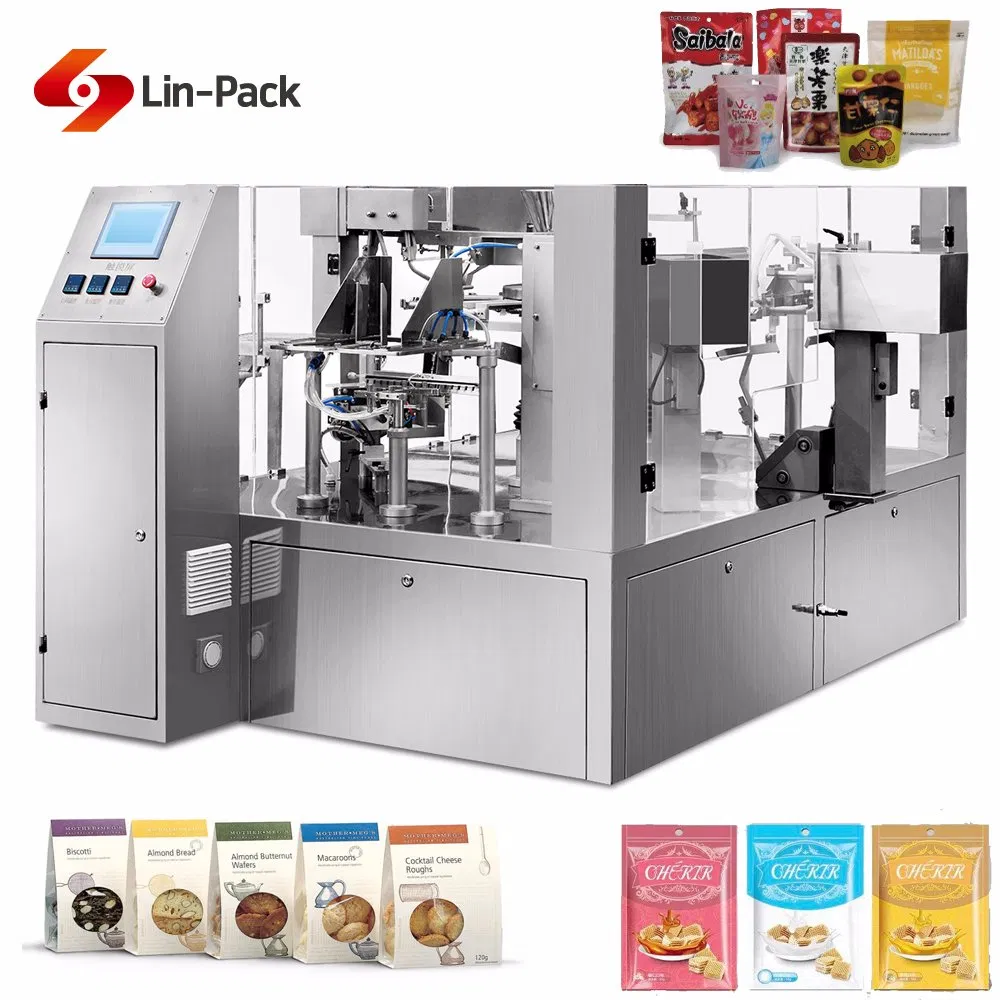

Chololate Big Pouch Rotary and Automatic Packing Machine Mr8 -300r

Product Description

FEATURES&CHARACTERISTICS

* Automatic adjustment of pouch width

* Stable performance, Longer life, Lower rate of defective products

* Sanitation requirements for food hygiene and safety

* Lower waste of materials

* Easy to operate

* Wide application with kinds of materials

* Consituting packing line available

APPLICATION

* Block: chocolate, candies, cereal, biscuits, cakes, puffed food, etc

* Granule: nuts, capsules, seeds, feeds, pesticides, fertilizers, etc

* Powder: seasoning, milk powder, washing powder, fine sugar,etc

* Liquid/paste: detergent, juice, beverage, ketchup, jam,etc

* Pickles: carrots, etc.

SPECIFICATION
* Pouch type	Four(Three)-side sealed pouch,Stand-up(Doy pack) pouch,Spout pouch, Zipper pouch, Paper bags etc.
* Pouch Size	Width: 200-300mm Length: 100-350mm
* Filling Volume	10-2500g (depending on type of products)
* Capacity	30-40pouches/min (depending on actually condition)
* Package Error	≤±1
* Total power	2.5kw(220v/380v,3PH, 50HZ)
* Dimension	2460×1830×1460(LWH)
* Weight	1480KG
* Compress air condition	≥0.8m3/min supply by user

SUPPLEMENT
* Standard equipment parts	1.date printer; 2.PLC control system; 3.pouch opening devices; 4.vibrating devices; 5.cylinder; 6.magnetic valve;
	7.temperature controller; 8.vacuum pump; 9.frequency converter;
	10.output system
* Optional configuration	1.material weighing and filling machines
	2.work platform
	3.check weigher
	4.material elevator
	5.finished product conveyor
	6.metal detector

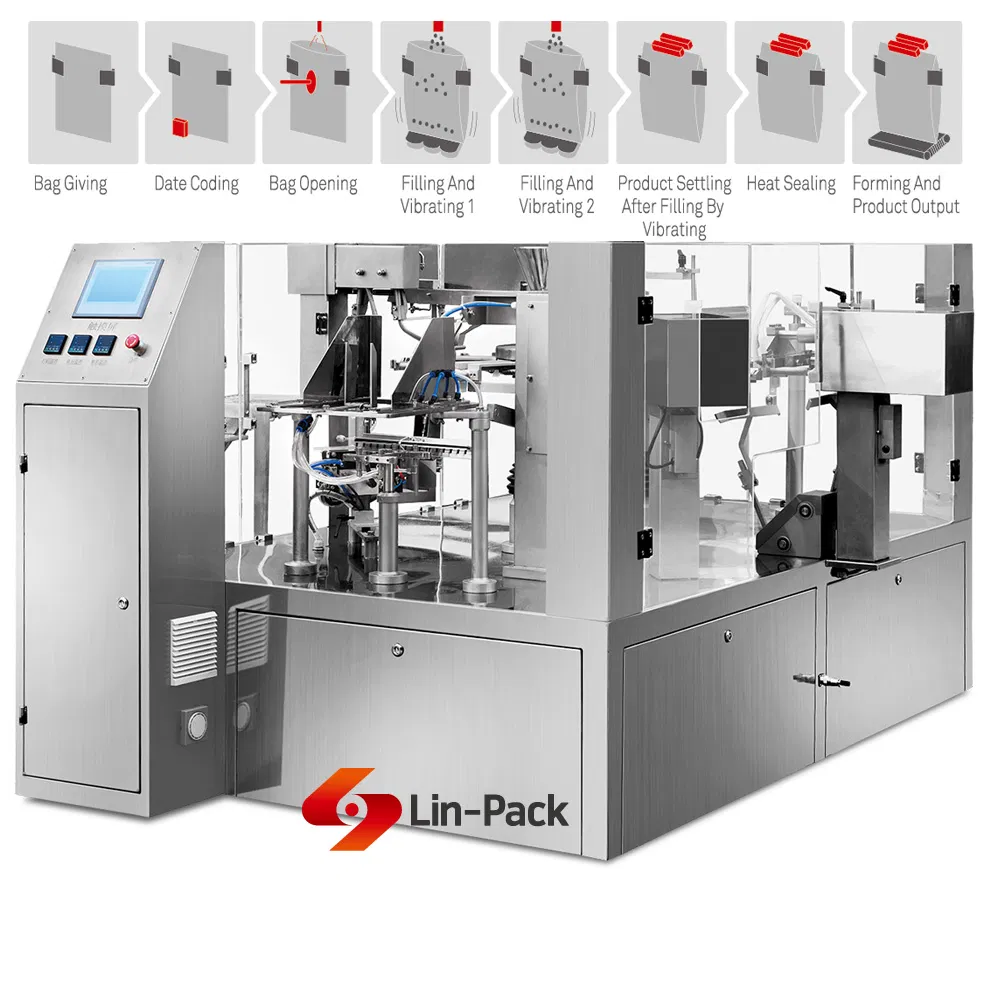

* Work process	bag loading → date coding → bag opening → filling and vibrating 1 → filling and vibrating 2 → product setting → heat sealing → forming and product output
