Full Automatic Plastic Pet Bottle Beverage Liquid Drinking Mineral Pure Water Washing Filling Bottling Packing Machine
Full Automatic Plastic Pet Bottle Beverage Liquid Drinking Mineral Pure Water Washing Filling Bottling Packing Machine Borun Machinery could supply complete bottling plant for drinking water, which includes water treatment system / Bottle Unscrambler / Washing filling capping 3 in 1 machine / Bottle......
Send Inquiry
Product Description
Full Automatic Plastic Pet Bottle Beverage Liquid Drinking Mineral Pure Water Washing Filling Bottling Packing Machine
Technical Parameters for Drinking Water filling machine:
Different filling capacities for choice:
PART I: Water Treatment Plant
Advanced technology/High quality 304/Easy operation
According to customer's water source analysis report and final water standard requirement, we will recommend suitable water treatment plants.
The water treatment system includes silica sand filter, active carbon filter, sodium ion exchanger, precision filter, reverse osmosis system / hollow fiber ultra-filter, uv sterilizer, ozone sterilizer, etc.
PART II: Water Washing Filling Capping Machine
Famous components/High quality 304/High filling accuracy
This machine is mainly used for water and non-carbonated drinks water filling capping. The machine is 3 in 1 mono block composed of washing, filling, capping, cap unscrambler in one unit. The rinser adopts overturning device, and filling system is gravity filling type, it's more stable and reliable. The capping head we adopt Italy technology.
Features:
Main Electrical components list for water filling machine:
PART III: Labeling & Packing System
According to customer's request and market demand, we have various types of labeling machine for option:
Automatic sleeve shrinks labeling machine of PVC / PET sleeve shrink label; Automatic BOPP hot glue labeling machine for BOPP labels.
Adhesive labeling machine for adhesive stick label and also wet glue labeling machine.
Plastic film packing machine can apply to the full automatic packaging production line of pure water, beer, beverage liquid, fruit juice, dairy product, etc.
PART IV: Conveying System
We could design the layout drawing according to customer's factory size and bottling capacity, such as non-power conveyors, multi-rows conveyors, air conveyors and filled bottles conveyor and conveyor bends. We use high quality motors and automatic lubricant system for the conveyors.
PART V: PET Bottle Blowing System
We have semi-automatic and full automatic PET bottle blowing machine, easy operation and high performance.
It's an ideal machine widely used in food, beverages, cosmetics, pharmaceutical industry.
Our Factory:
BORUN MACHINERY produces various kinds of liquid filling and packing production line, including drinking water filling line, juice filling machine, carbonated drinks filling machine, alcohol drinks filling machine, beverage canning machine, beer filling machine, chemical and oil filling packing machine, etc.
Contact Us:
Mr. Xavier Guo
Tel: +86-512-58682331
Fax: +86-512-58682331
Mobile: +86-13405609100
borunmachinery.en.made-in-china.com
Borun Machinery could supply complete bottling plant for drinking water, which includes water treatment system / Bottle Unscrambler / Washing filling capping 3 in 1 machine / Bottle Dryer / Ink jet printer (Laser Printer) / Automatic labeling Machine / Film Shrink Wrapping Packing Machine / Automatic Palletizer system
Technical Parameters for Drinking Water filling machine:
| Model | CGF8-8-3 | CGF14-12-5 | CGF18-18-6 | CGF24-24-8 | CGF32-32-8 | CGF40-40-10 | CGF50-50-12 | CGF60-60-15 | |||||||
| Rinsing heads | 8 | 14 | 18 | 24 | 32 | 40 | 50 | 60 | |||||||
| Filling heads | 8 | 12 | 18 | 24 | 32 | 40 | 50 | 60 | |||||||
| Capping heads | 3 | 5 | 6 | 8 | 8 | 10 | 12 | 15 | |||||||
| Capacity for 500ml PET bottle | 2000 bph | 4000 bph | 8000 bph | 12000 bph | 15000 bph | 18000 bph | 22000 bph | 25000 bph | |||||||
| Suitable bottle shape | PET bottles with different volume and shapes | ||||||||||||||
| Suitable bottle diameter | ∅ 50-∅115 | ||||||||||||||
| Suitable bottle height | 160-320mm | ||||||||||||||
| Compressed air pressure | 0.3-0.7MPa | ||||||||||||||
| Washing water pressure | >0.06MPa, ≤0.2MPa | ||||||||||||||
| Motor power (KW) | 1.5 | 2.2 | 3.5 | 4.5 | 6.0 | 7.5 | 9.5 | 11 | |||||||
| Dimension (m) | 2.3*1.5*2.5 | 2.4*1.65*2.5 | 2.6*1.92*2.55 | 3.1*2.3*2.8 | 3.8*2.8*2.9 | 4.6*2.8*2.9 | 5.45*3.3*2.9 | 6.5*4.5*2.9 | |||||||
| Weight (kg) | 2200 | 2500 | 3500 | 4500 | 5600 | 8500 | 9800 | 12800 | |||||||
Different filling capacities for choice:
8-8-3 PET Bottle Water Filling Line Capacity:1000-2000 bottles per hour.
14-12-5 PET Bottle Water Filling Line Capacity:2000-3000 bottles per hour.
18-18-6 PET Bottle Water Filling Line Capacity:6000-8000 bottles per hour.
24-24-8 PET Bottle Water Filling Line Capacity:10000-12000 bottles per hour.
32-32-8 PET Bottle Water Filling Line Capacity:12000-15000 bottles per hour.
40-40-10 PET Bottle Water Filling Line Capacity:16000-18000 bottles per hour
50-50-12 PET Bottle Water Filling Line Capacity:20000-22000 bottles per hour
60-60-15 PET Bottle Water Filling Line Capacity:22000-24000 bottles per hour

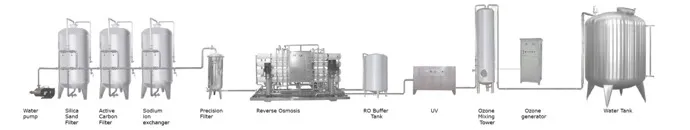

PART I: Water Treatment Plant
Advanced technology/High quality 304/Easy operation
According to customer's water source analysis report and final water standard requirement, we will recommend suitable water treatment plants.
The water treatment system includes silica sand filter, active carbon filter, sodium ion exchanger, precision filter, reverse osmosis system / hollow fiber ultra-filter, uv sterilizer, ozone sterilizer, etc.

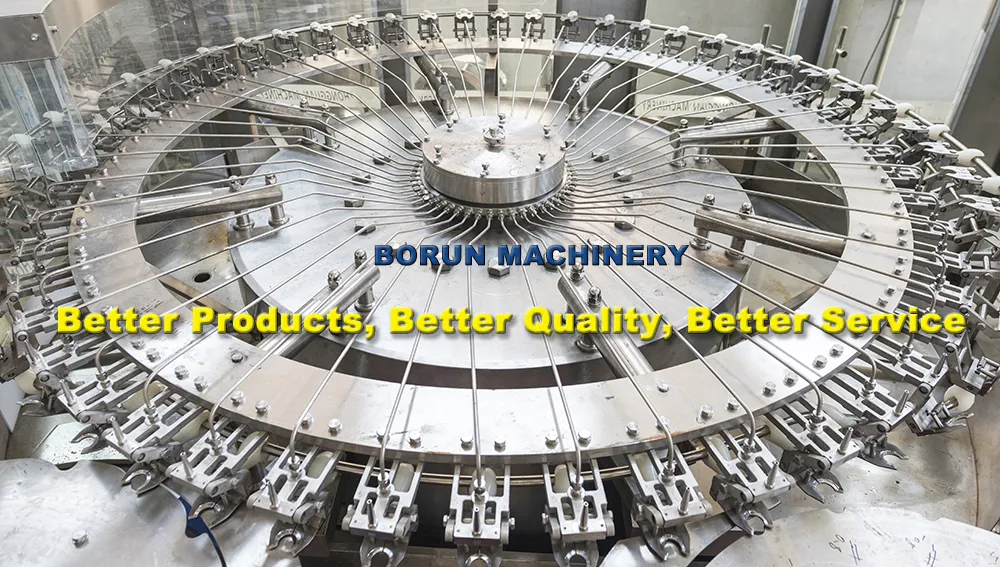

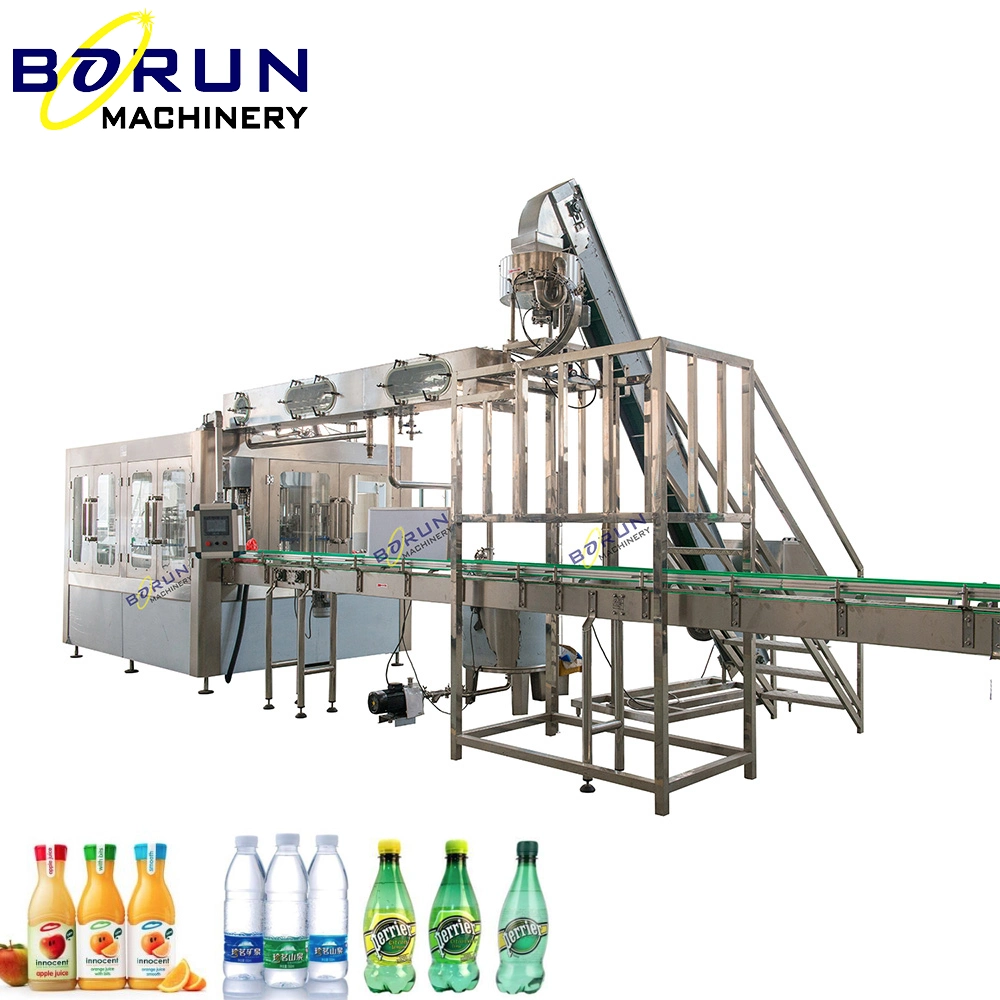

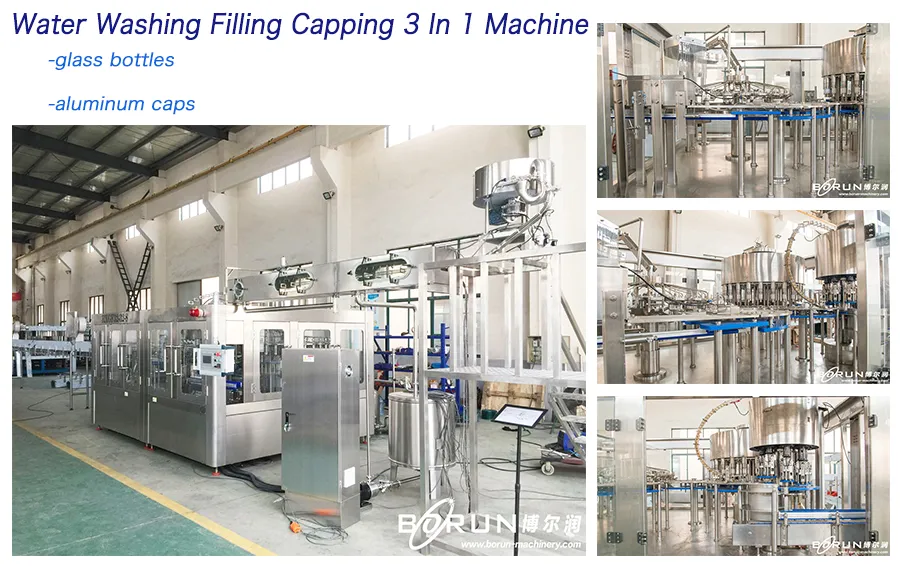

PART II: Water Washing Filling Capping Machine
Famous components/High quality 304/High filling accuracy

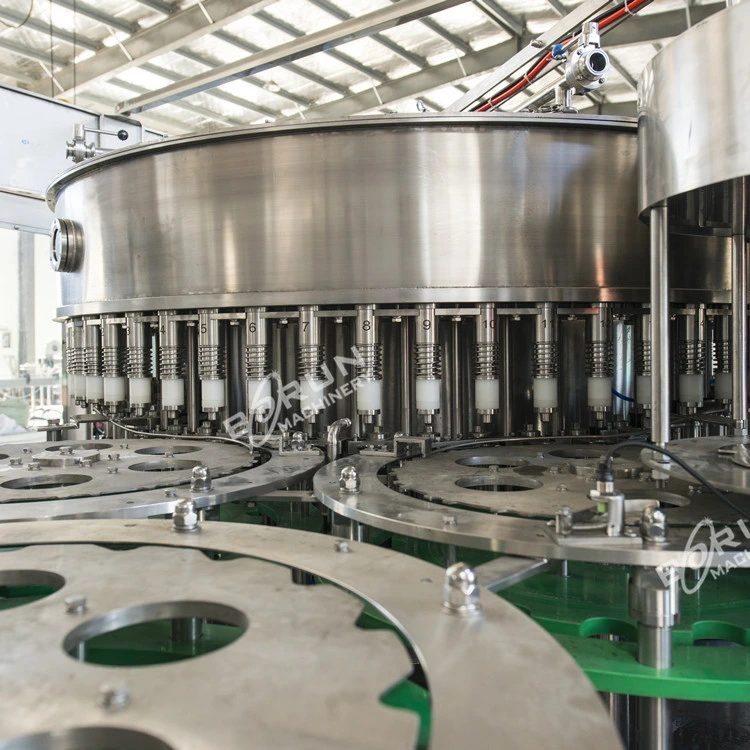

This machine is mainly used for water and non-carbonated drinks water filling capping. The machine is 3 in 1 mono block composed of washing, filling, capping, cap unscrambler in one unit. The rinser adopts overturning device, and filling system is gravity filling type, it's more stable and reliable. The capping head we adopt Italy technology.
Features:
- Air hanging type bottle conveying system makes changing spare parts more convenient.
- Famous SIEMENS brand PLC, and all the other electrical and pneumatic parts are world famous brand.
- Special designed stainless-steel bottle gripper does not contact bottle neck thread parts, avoiding second contamination.
- Mass flow filling valve ensures high filling speed and exact filing level.
- Italy technology capping heads ensure high capping speed and capping precision.
Main Electrical components list for water filling machine:
| No. | Name | Brand |
| 1 | Main motor | ABB |
| 2 | Rinsing pump | CNP |
| 3 | Magnetic valve | AIRTAC |
| 4 | cylinder | AIRTAC |
| 5 | Pneumatic triple piece | AIRTAC |
| 6 | Pressure regulating valve | AIRTAC |
| 7 | Inverter | Mitsubishi |
| 8 | Power supply | Meanwell/Taiwan |
| 9 | Contactor | Schneider |
| 10 | Intermediate relay | Schneider |
| 11 | Photoelectricity power | Banner/Germany |
| 12 | Proximity switch | TURCK |
| 13 | PLC | Mitsubishi |
| 14 | Touch screen | Mitsubishi |
| 15 | Pneumatic parts | AIRTAC |
| 16 | AC contactor | Schneider |
| 17 | Micro relay | Schneider |

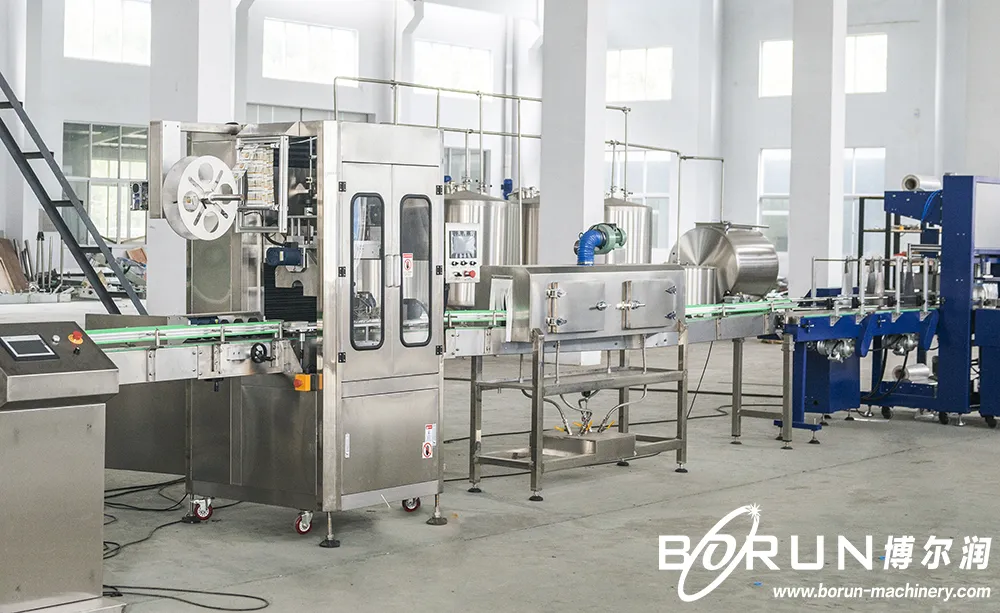

PART III: Labeling & Packing System
According to customer's request and market demand, we have various types of labeling machine for option:
Automatic sleeve shrinks labeling machine of PVC / PET sleeve shrink label; Automatic BOPP hot glue labeling machine for BOPP labels.
Adhesive labeling machine for adhesive stick label and also wet glue labeling machine.
Plastic film packing machine can apply to the full automatic packaging production line of pure water, beer, beverage liquid, fruit juice, dairy product, etc.

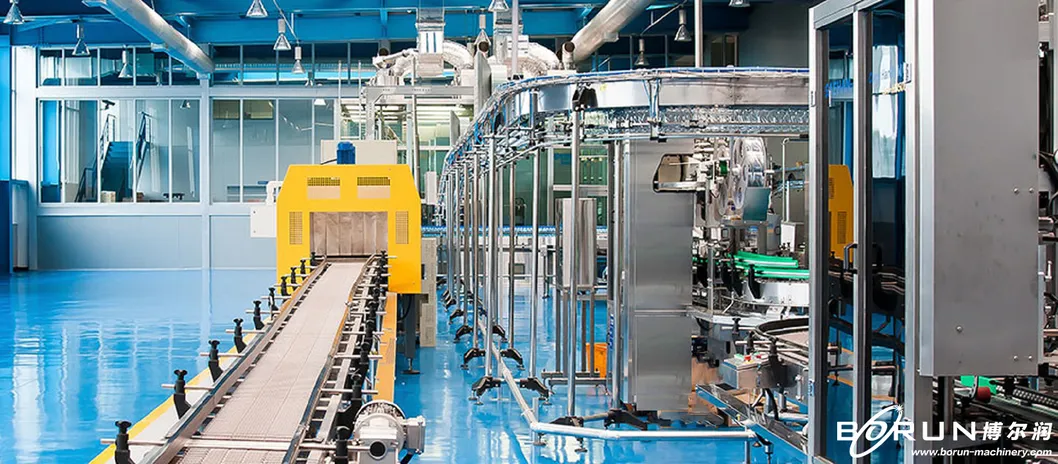

PART IV: Conveying System
We could design the layout drawing according to customer's factory size and bottling capacity, such as non-power conveyors, multi-rows conveyors, air conveyors and filled bottles conveyor and conveyor bends. We use high quality motors and automatic lubricant system for the conveyors.

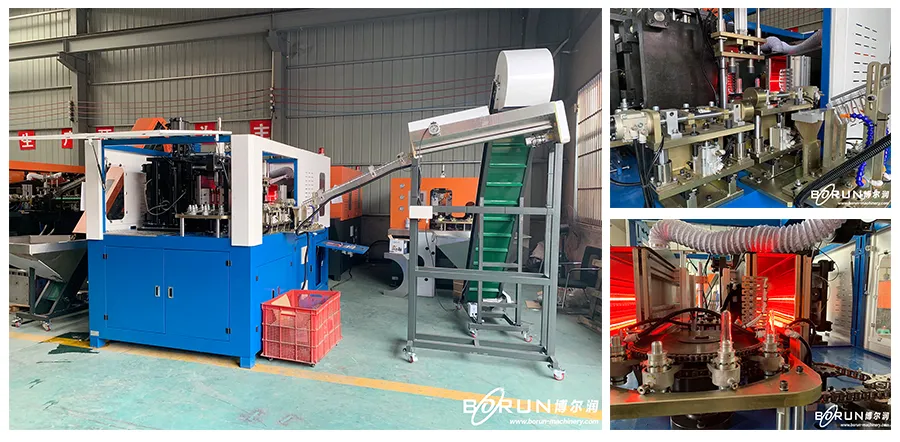

PART V: PET Bottle Blowing System
We have semi-automatic and full automatic PET bottle blowing machine, easy operation and high performance.
It's an ideal machine widely used in food, beverages, cosmetics, pharmaceutical industry.
Our Factory:
BORUN MACHINERY produces various kinds of liquid filling and packing production line, including drinking water filling line, juice filling machine, carbonated drinks filling machine, alcohol drinks filling machine, beverage canning machine, beer filling machine, chemical and oil filling packing machine, etc.
