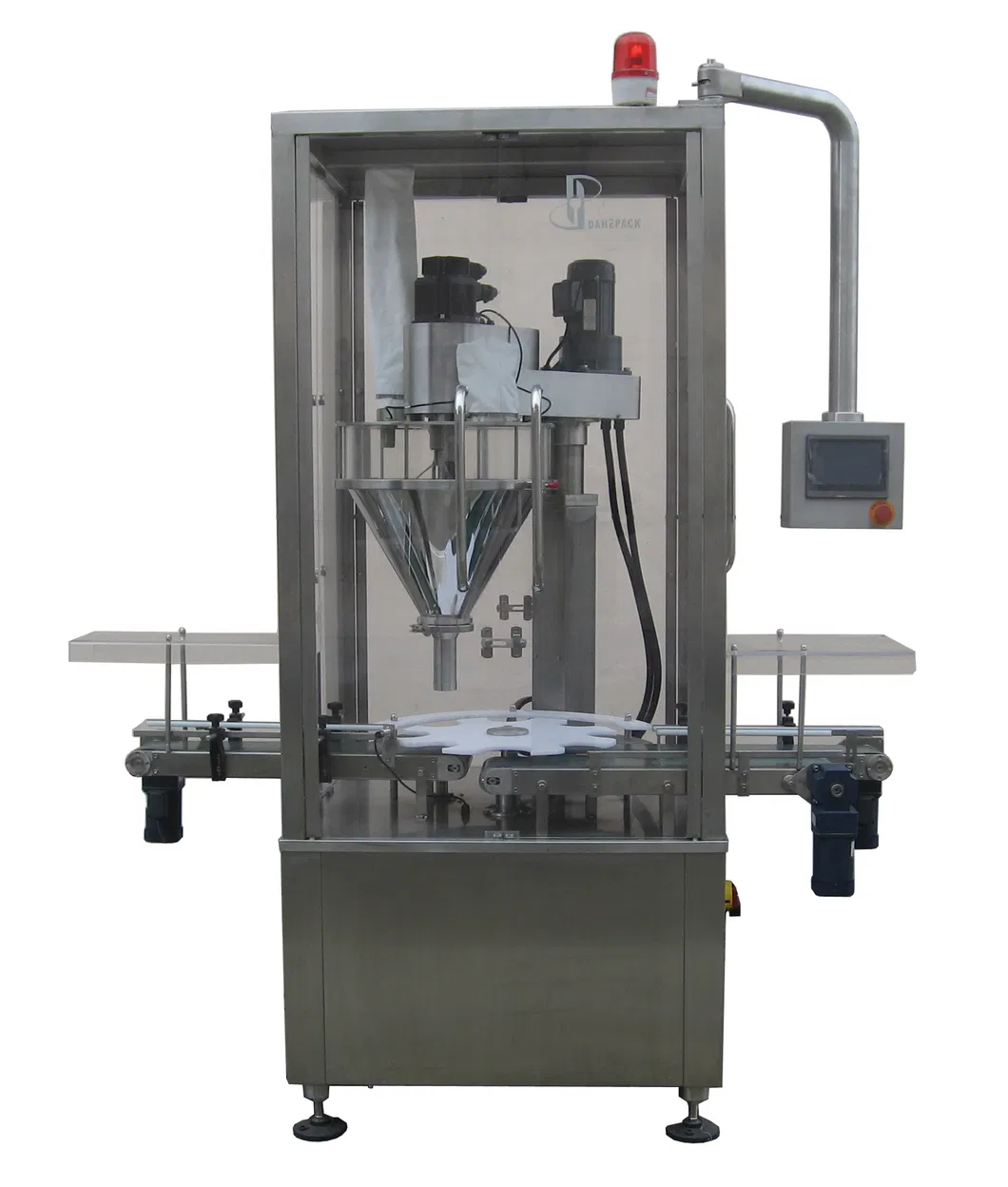

Kava Jaggery Chrominum Pill Powder Filling Machine
The machine detail discription:Themachne is a new designed that we make it According to the old turnplate feeding one one side . This Auger filling within double lines has main and assist fillers . The orginanated feeding system can keep the high Proecision and Avoid the cleaning of the turntable. i......
Send Inquiry
Product Description
The machine detail discription:
Themachne is a new designed that we make it According to the old turnplate feeding one one side . This Auger filling within double lines has main and assist fillers . The orginanated feeding system can keep the high Proecision and Avoid the cleaning of the turntable. it can do the accurate weighting and filling work, and also could conbined with other machines to buildup a whole can -packing production line. This machine ould be used in filling mold powder ,albumne powder, condiment,dextrose,rice flour,cocoa powder,solid drink and so on.
The working steps :
Containerin--Container go up-Vibration-Filling-Vibration-Vibration-Weight response-second filling-weight checking and working-Container Out
This Powder Filling Machine is a compact model used for filling all kinds of powder into bottles/cans/jars/Tins etc
The machine is suitable for dry syrup, talcum, spices powder, flour Free Flowing Powders Chemicals, Pharmaceutical Powers, Food & Beverages, Cosmetics powder, Pesticides Powder,Cocoa Powder packing, Protein powder packing
etc
1 Servo MFeature:
2 Single otor and Air Control Can's transmit
4 Suction system Machine to make the equipment Clean
5 Rejection device for the Jar or Bottle(Weight deviation)
6 Filling Height adjustable
7 Split Hopper
8 PLC and Contact Screen Control
9 The machine Enclosed By stainless steel

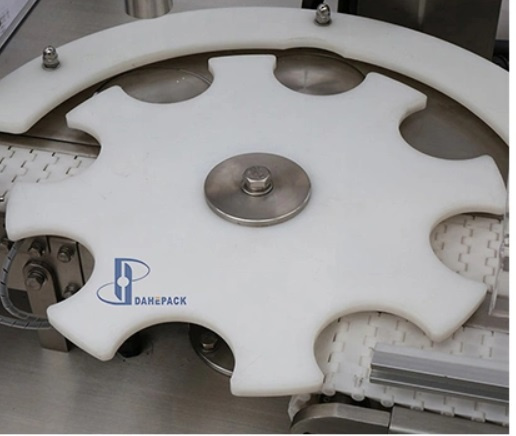

10 Container transmit by rotary
11 Speical Device for stop Leaky
Model | DH-Q2-100
| DH-Q2-160 |
Container size | 20-100mm; H 15-50mm | 30-160mm;H 50-260mm |
filling weight | 1-500g | 10-5000g |
Filling speed | 20-50 bottles /min | 20-40 bottles per min |
filling accuracy | less than 100g 2% Between 100-500g, 1% | less than 500g, 1% More than 500g 0.5% |
power supply | 3P AV 208-415V 50/60HZ | 3P AV 208-415V 50/60HZ
|
Air supply | 6kg/cm2 0.05m3/min | 6kg/cm2 0.05m3/min
|
Total power | 2.04kw | 2.51kw |
OVerall size | 1800*830*2080mm | 2000*1070*2420mm |
Hopper Volume | 35L | 50L |
1. Are you factory or trading company?
We are factory with 20 years experience. Rich experience in the powder filling machine field.
2. Can i visit your factory and send team for learing and inspect?
Yes, sure. Welcome to visit us!
3. What's your warranty and after-sale service?
One year warranty and lifelong after-sale service via skype/email/mobile/whatsapp.
4. What is the payment term?
30% T/T deposit and 70% T/T balance payment before shipping.
5. How long is the delivery time?
About 20- 40 working days.
