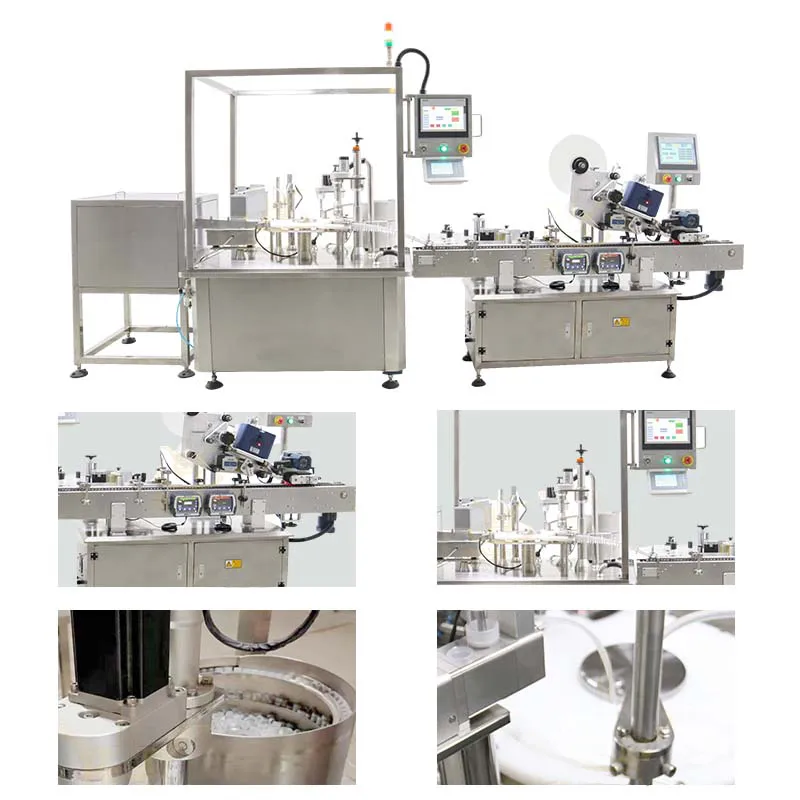

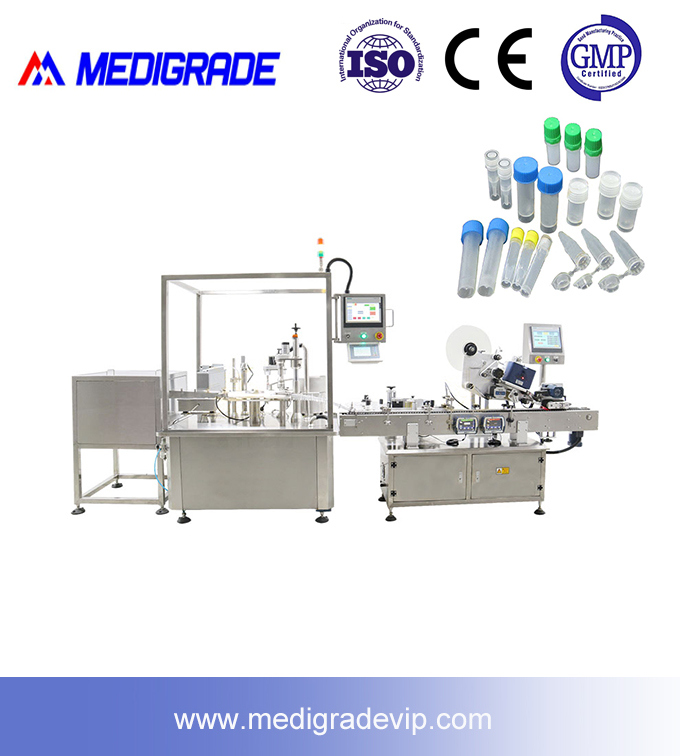

Nucleic Acid Diagnostic Preserve Fluid Tube Filling Capping and Labeling Machine
Nucleic acid diagnostic preserve fluid tube filling capping and labeling machineAutomatic reagent filling and capping machineEquipment features:1. Adopt high-precision peristaltic pump for filling, with high precision and no cross contamination of materials; The structure of the pump adopts quick-co......
Send Inquiry
Product Description
Nucleic acid diagnostic preserve fluid tube filling capping and labeling machine
Automatic reagent filling and capping machine
Equipment features:
1. Adopt high-precision peristaltic pump for filling, with high precision and no cross contamination of materials; The structure of the pump adopts quick-connection disassembly mechanism, which is easy to clean and disinfect.
2. Mitsubishi PLC control system, color touch screen display
3. The filling nozzle is equipped with anti-dripping device.
4. The machine has the function of no bottle no filling and automatic counting.
5. When filling, the filling nozzle dives into the bottom of the bottle and rises slowly which can effectively prevent bubbles.

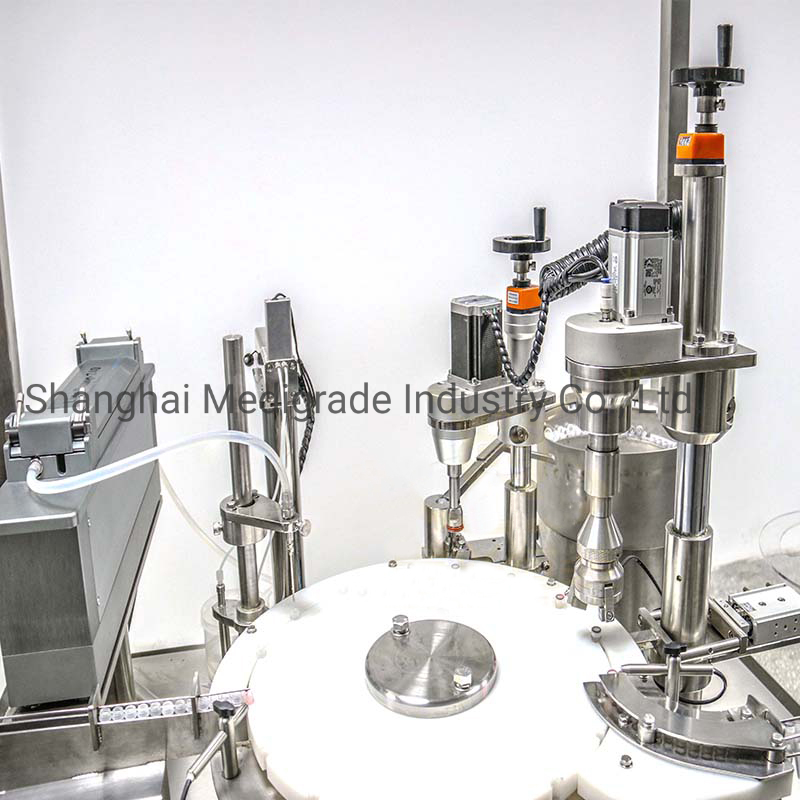

6. Adopt magnetic torque capping head, capping moment is stepless and adjustable, with constant torque capping function, correct inclined cap, do not damage the cap, sealing is tight and reliable;
7. The material contact part is made of SUS316L stainless steel, the appearance of the machine is SUS304 stainless steel, fully in line with GMP requirements.
8. The machine can be equipped with dust cover and laminar flow cover (FFU structure, can achieve local 100 level environment to complete filling and capping.
Main technical parameters:
The loading range is 1-10ml
Applicable specifications of reagent bottle volume error ≤±1%
Filling heads number is double
Screwing head number single head
Qualified rate of screw (rolling) capping ≥99%
Production capacity is 30-60BPM
Peristaltic pump flow type filling
Power supply: 220 V/ 50HZ
Power: 1.8 KW
Net weight of machine: 450kg
Overall size: 1200*1050*1600mm
Automatic reagent filling and capping machine
Equipment features:
1. Adopt high-precision peristaltic pump for filling, with high precision and no cross contamination of materials; The structure of the pump adopts quick-connection disassembly mechanism, which is easy to clean and disinfect.
2. Mitsubishi PLC control system, color touch screen display
3. The filling nozzle is equipped with anti-dripping device.
4. The machine has the function of no bottle no filling and automatic counting.
5. When filling, the filling nozzle dives into the bottom of the bottle and rises slowly which can effectively prevent bubbles.
6. Adopt magnetic torque capping head, capping moment is stepless and adjustable, with constant torque capping function, correct inclined cap, do not damage the cap, sealing is tight and reliable;
7. The material contact part is made of SUS316L stainless steel, the appearance of the machine is SUS304 stainless steel, fully in line with GMP requirements.
8. The machine can be equipped with dust cover and laminar flow cover (FFU structure, can achieve local 100 level environment to complete filling and capping.
Main technical parameters:
The loading range is 1-10ml
Applicable specifications of reagent bottle volume error ≤±1%
Filling heads number is double
Screwing head number single head
Qualified rate of screw (rolling) capping ≥99%
Production capacity is 30-60BPM
Peristaltic pump flow type filling
Power supply: 220 V/ 50HZ
Power: 1.8 KW
Net weight of machine: 450kg
Overall size: 1200*1050*1600mm
