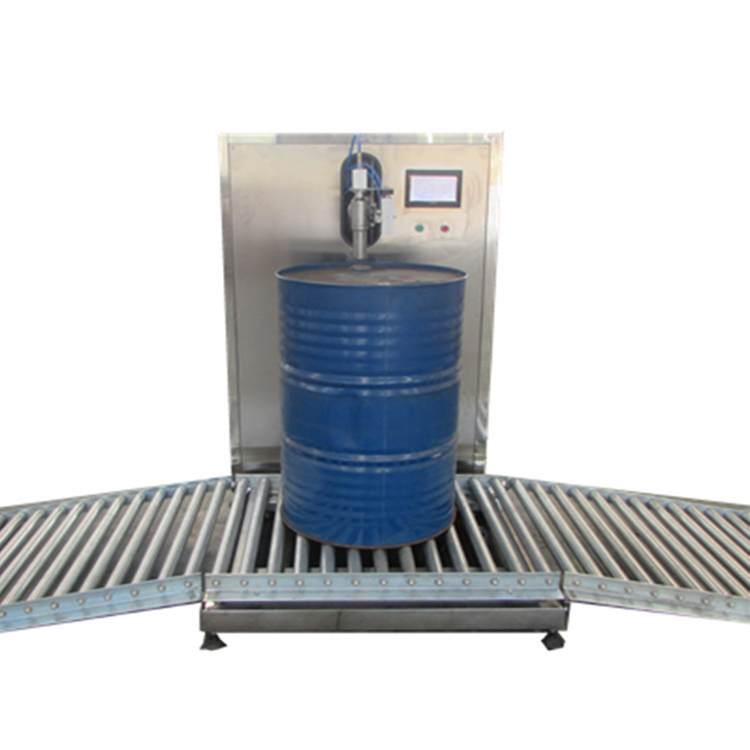

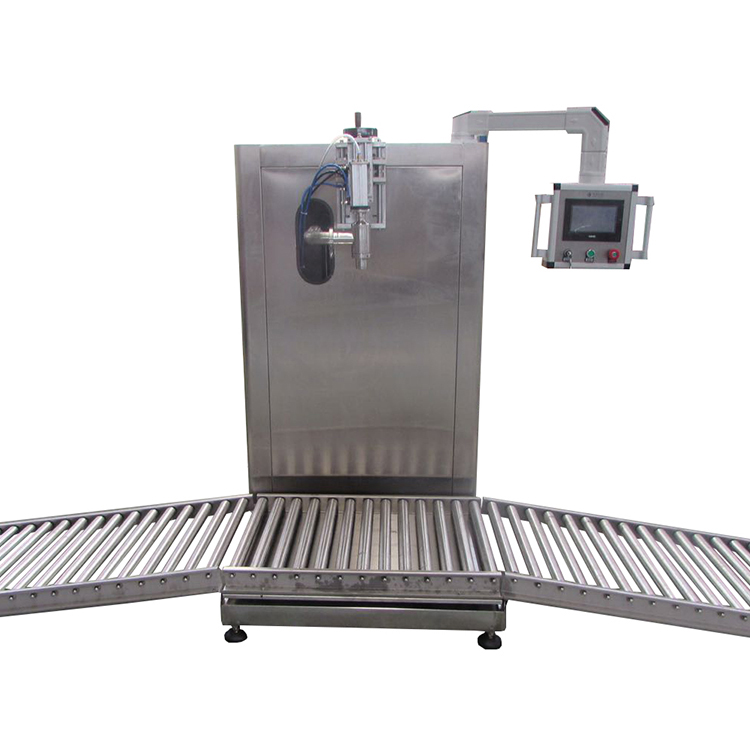

Oil Drum Bucket Filling Machine Weighting Machine with Roller Conveyor
Oil Drum Bucket Filling Machine Weighting Machine with Roller ConveyorProduct DescriptionWorking principle:The computer quantitative filling machine is composed of feeding system, weighing system, frame, pneumatic control system, control system, non power raceway, etc. Feeding mode: continuous and s......
Send Inquiry
Product Description
Oil Drum Bucket Filling Machine Weighting Machine with Roller Conveyor
Working principle:
The computer quantitative filling machine is composed of feeding system, weighing system, frame, pneumatic control system, control system, non power raceway, etc. Feeding mode: continuous and stable feeding is required (pressurized feeding by feeding pump or hopper) The feeding mechanism is respectively operated by the solenoid valve through the cylinder for fast and slow feeding. Filling method: General conventional filling and lifting and diving filling (to be selected when ordering according to needs) The weighing system consists of weighing bracket, sensor and weighing platform equipped with unpowered roller and frame support and filling system. Pneumatic control system: control fast and slow feeding valves. During use, the weighing platform is not allowed to be subjected to additional external forces.
Main Features
1.It adopts electrical and pneumatic components of world famous brands, with low failure rate, stable and reliable performance and long service life; 2.Contact with materials are made of stainless steel, easy to disassemble and clean, in line with the health requirements; 3.Simple adjustment of filling quantity and filling speed, no bottle filling function, automatic level control feeding, beautiful appearance; 4.It can quickly adjust and change bottles of different shapes and specifications without changing parts, which has strong applicability; 5.The filling nozzle is equipped with a drip proof device to ensure that there is no drawing and drip during filling. 6.The filling head can be changed into the down - going filling, which can effectively prevent the filling material from foaming or splashing.
Model | CDCZ-B1-200 |
Filling range | 120-200kg |
Acceptable container height | Could customize |
Acceptable container diameter | Not limited |
Filling accuracy | ≤1.0% |
Filling capacity | 10-15 barrels/hour |
Power | 2.2kw |
Machine parameter | 1200*500*800mm |
Machine weight | 200kg |
1.Delivery of the machine as soon as possible according to your requirement within 45 days;
2.Send rich practiced experience engineers to you to install and test the machine and train your worker ;
3.Give you one year guarantee time after the machine can run well;
4.After one year,we can guide and help you to maintain the machines;
5.send you spare part in lower price.
Q1: What is the Warranty for the machine?
A1: For the machine,we have 1 year warranty.If any quality problems occurred under normal condition in this period ,we will take on the cost of maintenance and replacement and other related cost.
Q2: How to operate and maintain the machine?
A2: First, we will provide a professional and detailed USER GUIDE or VEDIOS to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide technical training service abroad.
Q3: How to get raw material or auxiliary material for the machine?
A3: Our company has more than 20 years experience in this industry, we can help to supply you raw material and give you best solution for your production configuration.
