Sales for The World Drinking Minearl Water Bottling Machine in China
Sales For The World Drinking Minearl Water Bottling Machine In ChinaDescription 1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier. 2. Bottles transmission adopt clip bot......
Send Inquiry
Product Description

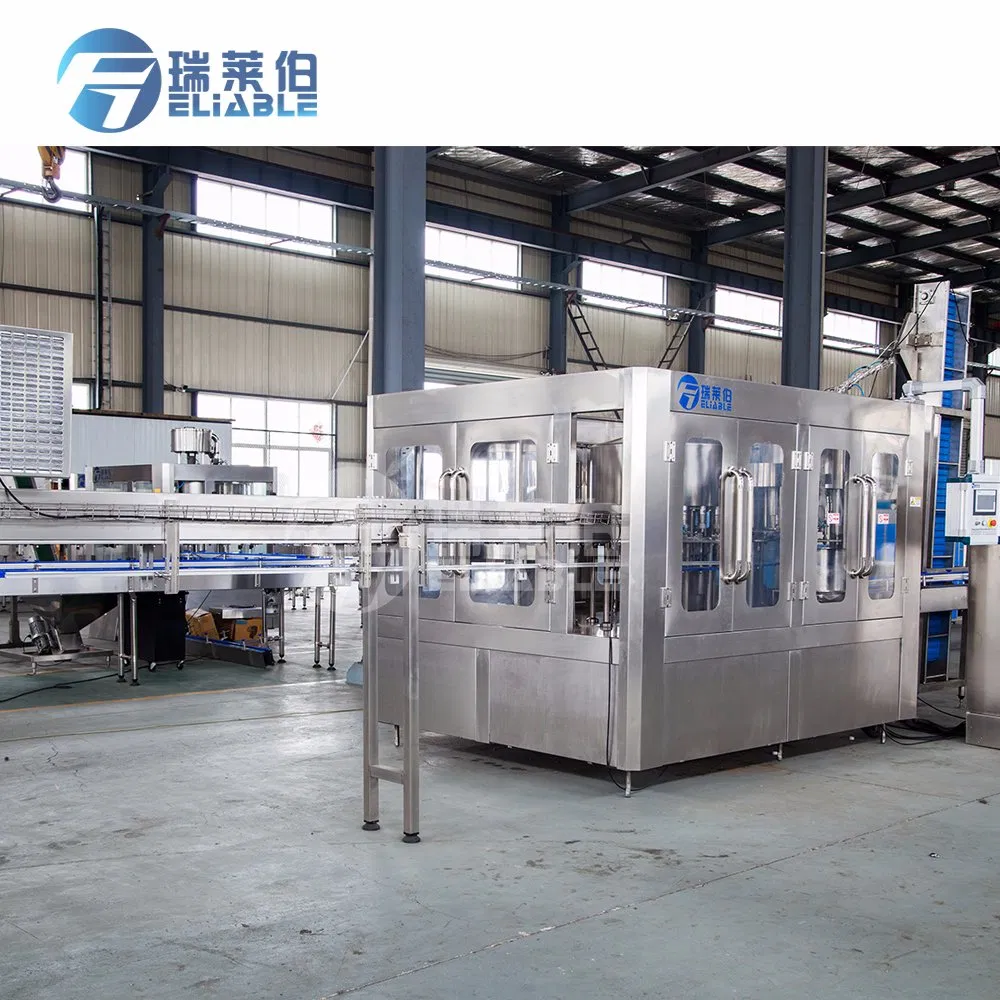

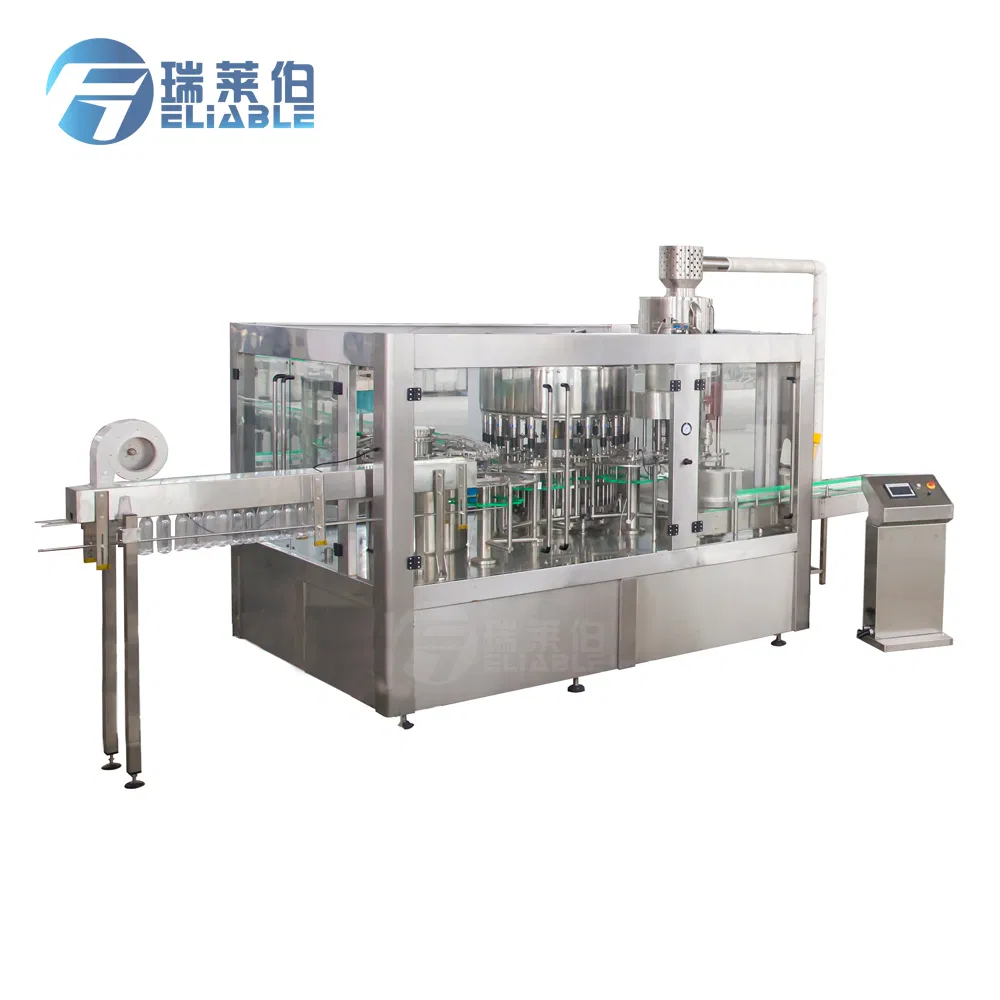

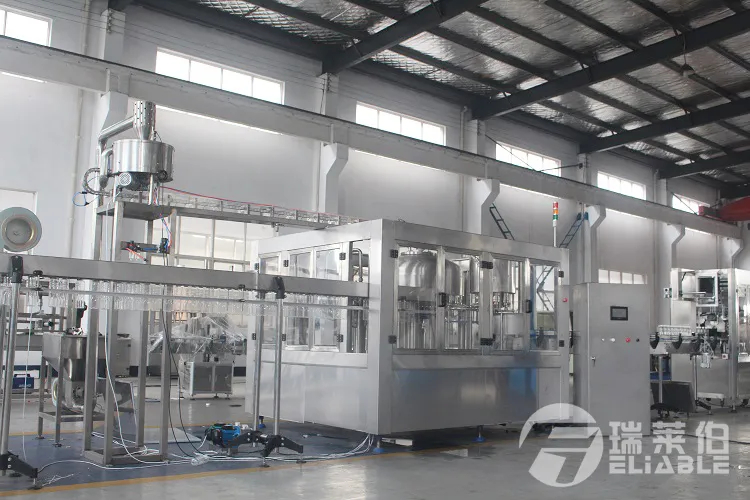

Sales For The World Drinking Minearl Water Bottling Machine In China
Description
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

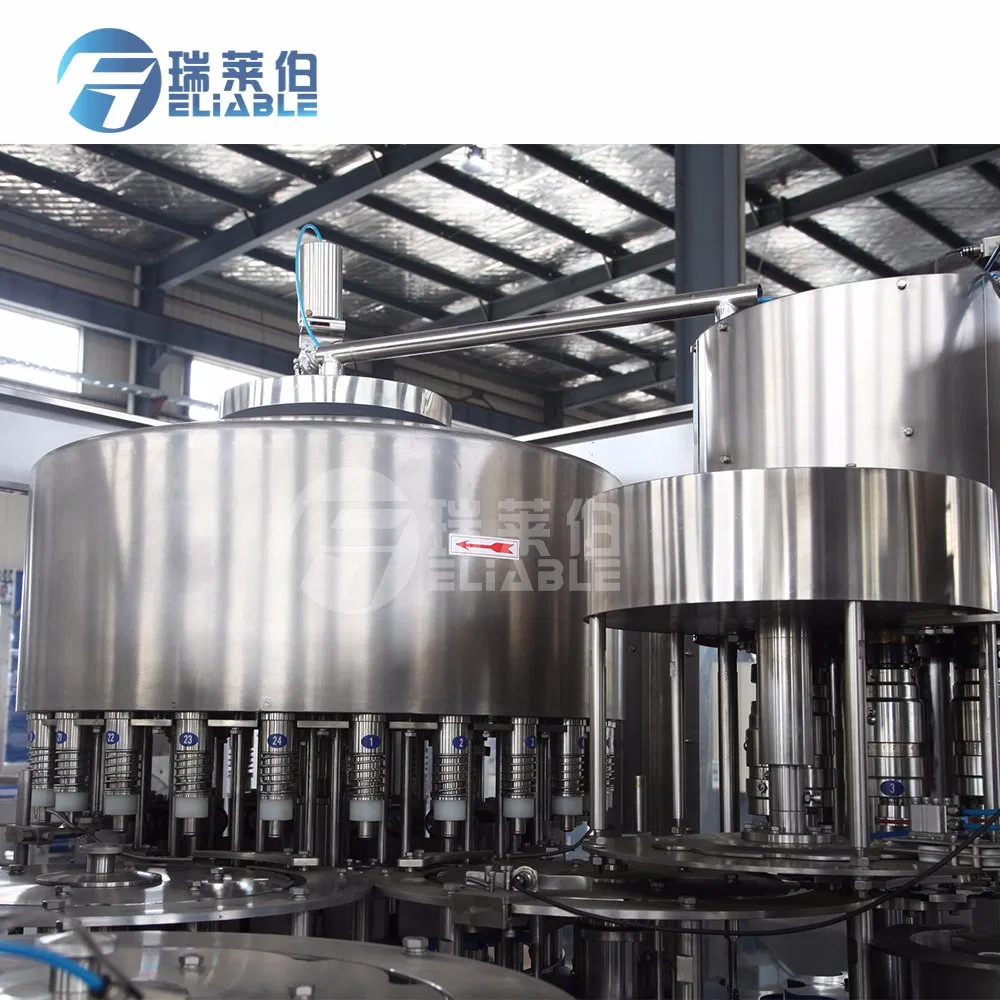

3. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
4. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, OMRON.
Feature
1. The washing (bottle), filling and capping three jobs will be finished by the one machine, saving mush space and more sanitary.
2. It is very convenient to change different bottles by application of advanced bottle conveying technology - bottle neck clamping and bottle suspending technology.
3. Advanced programmable PLC and touch screen is equipped to control the main machine, making it very easy to operate.
4. All electronic components and pneumatic elements are all from famous international enterprises.
5. All spare parts that may touch with water are made from high-quality stainless steel.
Sales For The World Drinking Minearl Water Bottling Machine In China
Technical Data

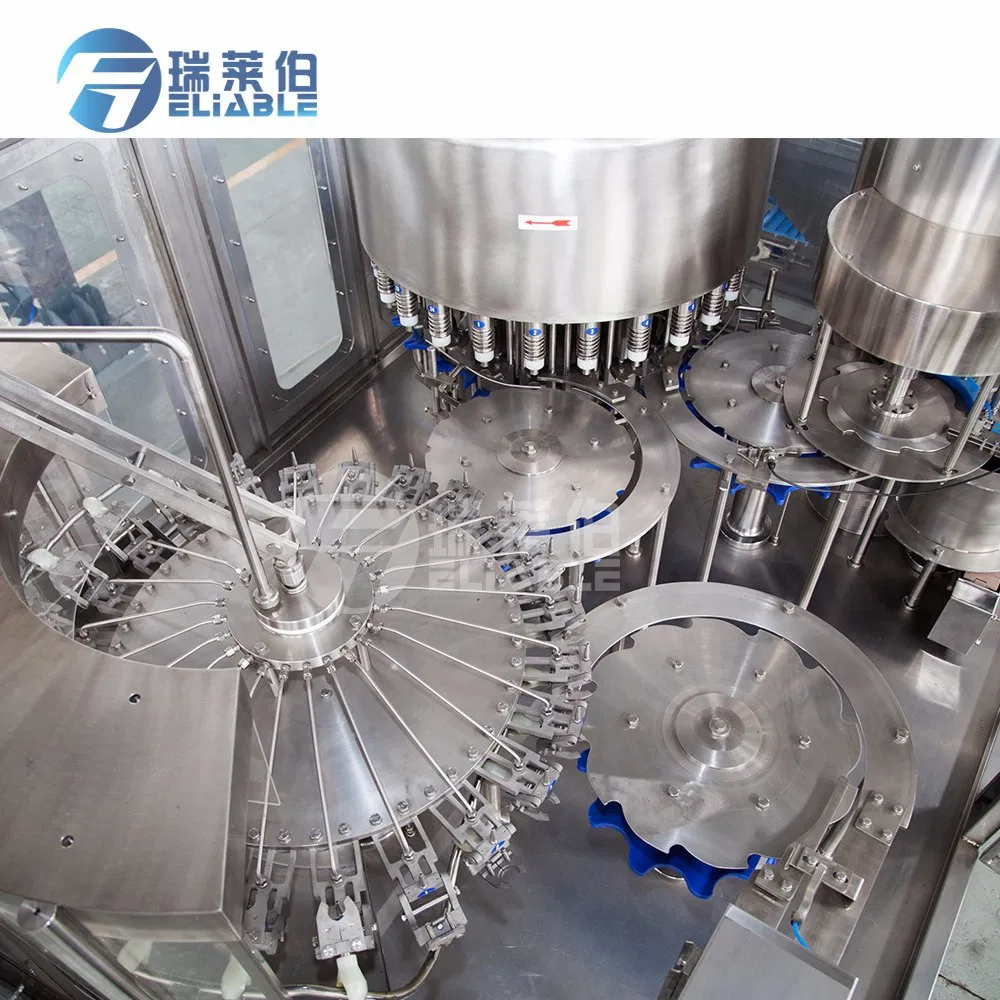

Operation
Ø Empty bottles are fed manually onto the in feed Air conveyor.
Ø From there bottles are carried to the Rinsing section.
Ø Bottles gripped by neck & get tilted on rinsing nozzles.
Ø Rinsed bottles are coming straight & get transferred to the filling section& are holded by neck.
Ø Filled bottles are transferred to the capping section.
Ø Capsare put in the rotaryhopper & tightened under the revolving capping heads, while coming out by out feed conveyor.
RELIABLE Service
Before sales:
Please cooperate with us with patience, and provide us all needed informations, these information is very important, because the final solution based on these informations.
During build:
we will update the manufacturing process and status to buyers, and we will invite buyer come to test the machine when it finished in our factory; or we can take the testing video and send to buyer for check .
After sales:
We will send technicians to buys factory for installation, commissioning, and operator training; Our warranty period is 12 months, in this period, we provide free parts for buyer as well as the necessary technical support.Out of warranty period, we offer free technical support, and the factory price of spare parts

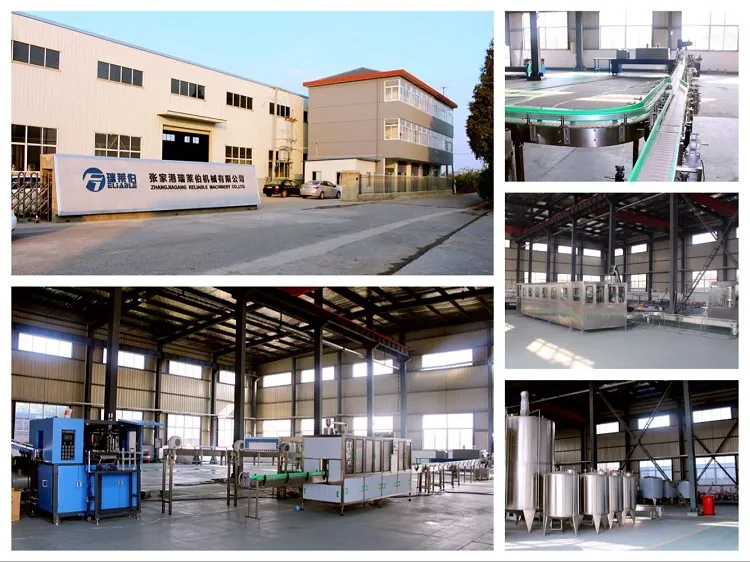

Company Information
China Zhangjiagang Reliable Machinery Co.,Ltd is a hi-tech designing and manufacturing enterprose. which is specialized in beverage production and packing complete lines, as well as various water filling machine. As one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China. Our productions include:liquid filling machine(water,fruit juice/tea,carbonated drink,oill,alcohol,plant protein drink and ect.) Barreled filling line(3-5 gallon) Water treatment,labeling&packing machine,semi-automatic/full automatic bottle blowing machine,injection molding machine.
Main Buying Procedures
Enquiry: contact us by email, phone call, fax, Instant tools (Trademanager, MSN, Skype) and let us know your enquiry.
Discussion: specify the items you desire, confirm specification; OEM/ODM consultation.
Quotation: Prices offered and accepted.
Place order as per contract or discussion.
Proforma invoice offered to double confirm the order for both-side records.
Payment settled.
Order completed under our arrangement.
Goods shipped as per contracted term.
Goods arrive at local port or warehouse, depending on contracted term.
We warmly welcome all the clients send quotation to us,upon you send the quotation,i will reply you in 24 hours.
ZHANGJIAGANG RELIABLE MACHINERY CO., LTD
Description
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
4. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, OMRON.
Feature
1. The washing (bottle), filling and capping three jobs will be finished by the one machine, saving mush space and more sanitary.
2. It is very convenient to change different bottles by application of advanced bottle conveying technology - bottle neck clamping and bottle suspending technology.
3. Advanced programmable PLC and touch screen is equipped to control the main machine, making it very easy to operate.
4. All electronic components and pneumatic elements are all from famous international enterprises.
5. All spare parts that may touch with water are made from high-quality stainless steel.
Sales For The World Drinking Minearl Water Bottling Machine In China
Technical Data
| Model | CGF8-8-3 | CGF12-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-10 | CGF50-50-12 |
| Rinsing Head No | 8 | 12 | 18 | 24 | 32 | 40 | 50 |
| Filling Head No | 8 | 12 | 18 | 24 | 32 | 40 | 50 |
| Capping Head No | 3 | 6 | 6 | 8 | 10 | 12/10 | 12/10 |
| RatedCapacity (500ml) | 2000BPH | 4000BPH | 7000-8000BPH | 10000-12000BPH | 12000-15000BPH | 15000-18000BPH | 20000-22000BPH |
| Overall Size | 1900*1420 *2000mm | 2200*1600 *2300mm | 2450*1900 *2300mm | 2750*2180 *2400mm | 4000*2300 *2300mm | 4550*2650 *2300mm | 5450*3210 *2300mm |
| Weight | 1.5T | 2.2T | 3.0T | 4.0T | 8.0T | 12.0T | 20.0T |
| Power(KW) | 3.0kw | 3.5kw | 4.0kw | 4.8kw | 7.6kw | 8.3Kw | 9.6Kw |
| Rated Voltage | 380V | 380V | 380V | 380V | 380V | 380V | 380V |
Operation
Ø Empty bottles are fed manually onto the in feed Air conveyor.
Ø From there bottles are carried to the Rinsing section.
Ø Bottles gripped by neck & get tilted on rinsing nozzles.
Ø Rinsed bottles are coming straight & get transferred to the filling section& are holded by neck.
Ø Filled bottles are transferred to the capping section.
Ø Capsare put in the rotaryhopper & tightened under the revolving capping heads, while coming out by out feed conveyor.
RELIABLE Service
Before sales:
Please cooperate with us with patience, and provide us all needed informations, these information is very important, because the final solution based on these informations.
During build:
we will update the manufacturing process and status to buyers, and we will invite buyer come to test the machine when it finished in our factory; or we can take the testing video and send to buyer for check .
After sales:
We will send technicians to buys factory for installation, commissioning, and operator training; Our warranty period is 12 months, in this period, we provide free parts for buyer as well as the necessary technical support.Out of warranty period, we offer free technical support, and the factory price of spare parts
Company Information
China Zhangjiagang Reliable Machinery Co.,Ltd is a hi-tech designing and manufacturing enterprose. which is specialized in beverage production and packing complete lines, as well as various water filling machine. As one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China. Our productions include:liquid filling machine(water,fruit juice/tea,carbonated drink,oill,alcohol,plant protein drink and ect.) Barreled filling line(3-5 gallon) Water treatment,labeling&packing machine,semi-automatic/full automatic bottle blowing machine,injection molding machine.
Main Buying Procedures
Enquiry: contact us by email, phone call, fax, Instant tools (Trademanager, MSN, Skype) and let us know your enquiry.
Discussion: specify the items you desire, confirm specification; OEM/ODM consultation.
Quotation: Prices offered and accepted.
Place order as per contract or discussion.
Proforma invoice offered to double confirm the order for both-side records.
Payment settled.
Order completed under our arrangement.
Goods shipped as per contracted term.
Goods arrive at local port or warehouse, depending on contracted term.
We warmly welcome all the clients send quotation to us,upon you send the quotation,i will reply you in 24 hours.
ZHANGJIAGANG RELIABLE MACHINERY CO., LTD
