Small capacity distilled water bottling line
General Descriptions
This machine works harmoniously with air-conveyor belt; it holds the bottles by the neck when transporting
This machine is used to fill water into pet bottle and with screw caps capping function.
Integrated three function: 1. Rinse the empty pet bottle, 2. filling the rinsed bottles, 3. capping the filled bottles

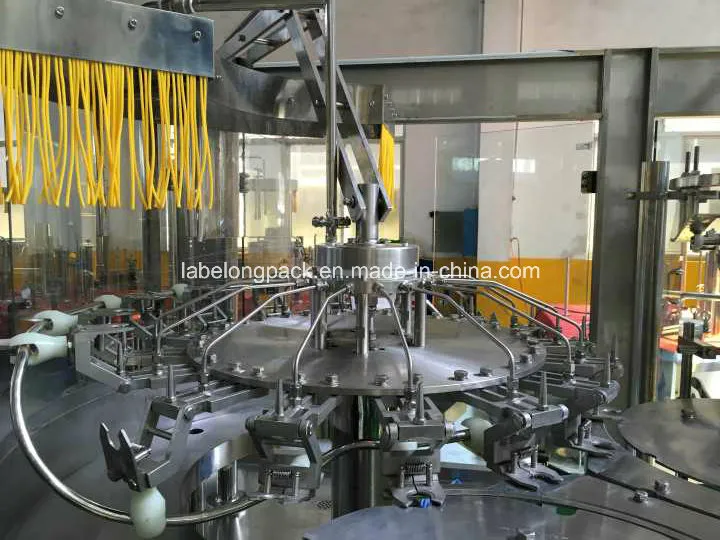

About Rinser Station
Neck Control with plastic snap on the gripper.
Water distributor combined with Food Grade Rubber plate & SUS304 cover.
SUS304 water collecting tray
Spraying inject design, can completely washing the bottles.
Washed water recycling system, for water saving !! (Washed bottle---drip in water tank--water pump---raw water tank)

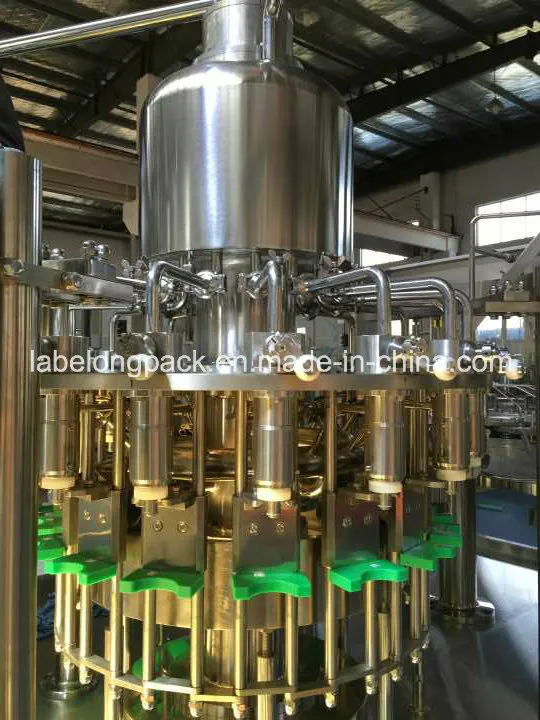

About Filler Station
The entire filler is isobar filling system.
High accurate SUS304L construction filling nozzle, make sure high accurate filling level
SUS304L liquid bowl, & pipeline system.
No bottles, no filling
Annulus Liquid bowl, with automatic water level controller
About the Capper

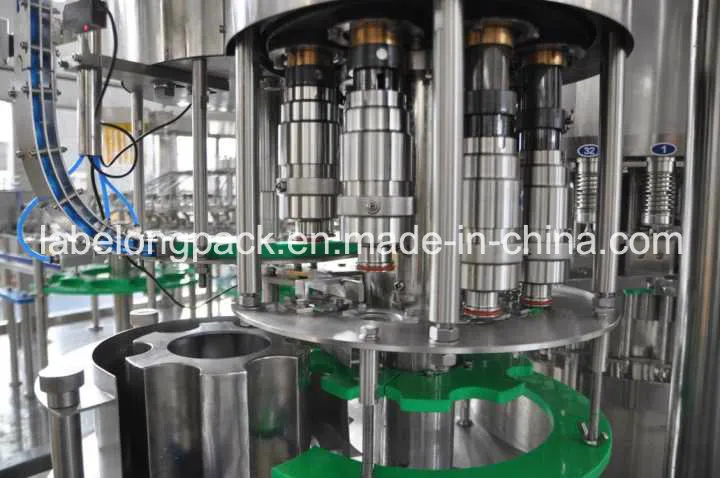

Place & capping system. Automatic caps arranging, feeding.
Electromagnetic capping heads, with burden discharge function,
All 304stainless steel construction
No bottle no caps delivery.
Automatic stop when lack of bottle.
Technical Parameter
Configuration List:
Contact me
General Descriptions
This machine works harmoniously with air-conveyor belt; it holds the bottles by the neck when transporting
This machine is used to fill water into pet bottle and with screw caps capping function.
Integrated three function: 1. Rinse the empty pet bottle, 2. filling the rinsed bottles, 3. capping the filled bottles
About Rinser Station
Neck Control with plastic snap on the gripper.
Water distributor combined with Food Grade Rubber plate & SUS304 cover.
SUS304 water collecting tray
Spraying inject design, can completely washing the bottles.
Washed water recycling system, for water saving !! (Washed bottle---drip in water tank--water pump---raw water tank)
About Filler Station
The entire filler is isobar filling system.
High accurate SUS304L construction filling nozzle, make sure high accurate filling level
SUS304L liquid bowl, & pipeline system.
No bottles, no filling
Annulus Liquid bowl, with automatic water level controller
About the Capper
Place & capping system. Automatic caps arranging, feeding.
Electromagnetic capping heads, with burden discharge function,
All 304stainless steel construction
No bottle no caps delivery.
Automatic stop when lack of bottle.
Technical Parameter
| Item | Technical Parameter |
| Production Output | 3000BPH @ 500ml PET bottle |
| Rinsing heads | 10pcs |
| Filling nozzles | 8pcs |
| Capping heads | 4pcs |
| Suitable to PET bottle Size | Diameter Φ50~Φ95mm Highness:160~320mm, Bottle neck: 28mm, Bottle volume from 200 to 2250ml |
| Suitable to Caps | PCO28 |
| Washing Water Required | 2000 liter per hour |
| Washing Pressure Required | 0.2Mpa |
| Washing time | 3 second |
| Drip water time | 3 second |
| Working Power | 380V AC 3-phase |
| Compressed Air Pressure (for caps arranger) | 0.8MPa |
| Compressed Air Consumption (for caps arranger) | 2m3/min |
| Control Panel Power | 24V DC |
| Filling Pressure | gravity |
| Filling temperature | 85 degree |
| Machine Size | 6000x5000x2750mm |
| Gross Weight | 6,000kg approximately |
| Total Power | 13KW |
Configuration List:
| Item | Parts Name | Brand from |
| 1 | PLC | Germany |
| 2 | Inverter | |
| 3 | Touch Screen | |
| 4 | Switch | France |
| 5 | Contactor | |
| 6 | Relayer | |
| 7 | Solenoid Valve | Germany |
| 8 | Drive motor | Germany |
| 9 | Reducer | |
| 11 | Main Bearing | Japan |
| 12 | Sensor | Japan |
| 13 | Air component | Germany |
| 14 | Stainless Steel Frame | Korea |
