Product Description
Small capacity Spring Water bottling machinery
Machine list

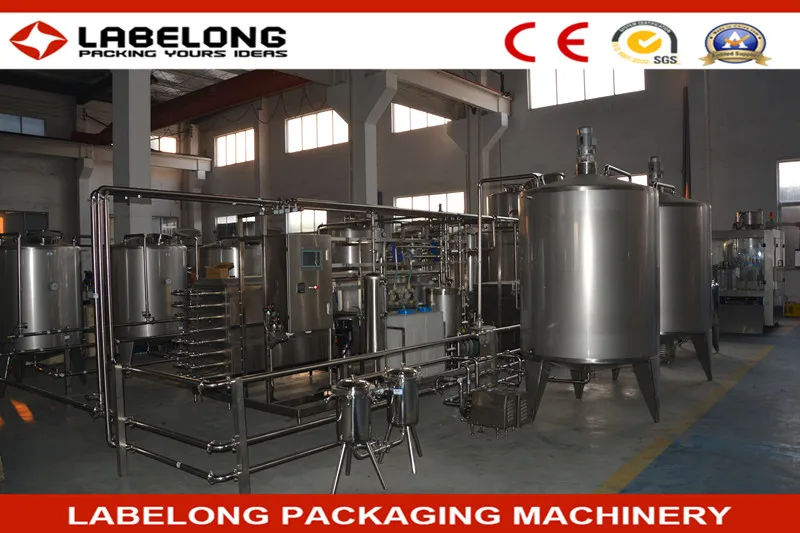

Water treatment

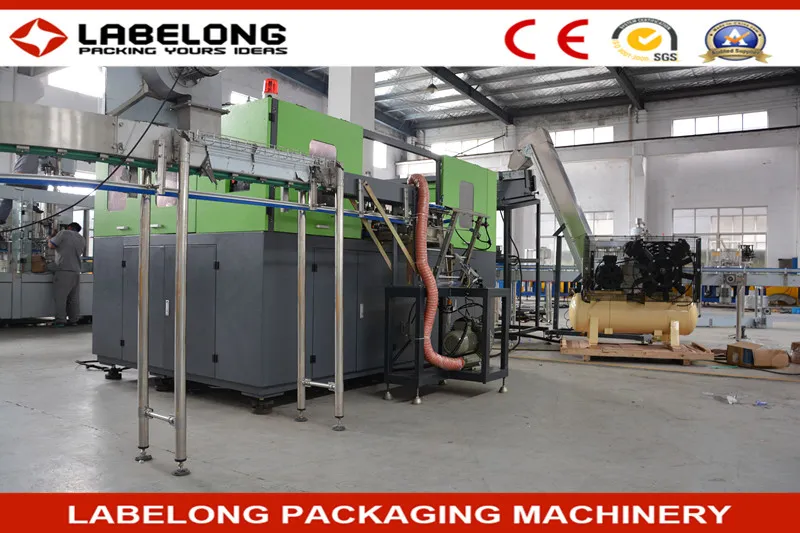

Blowing machine

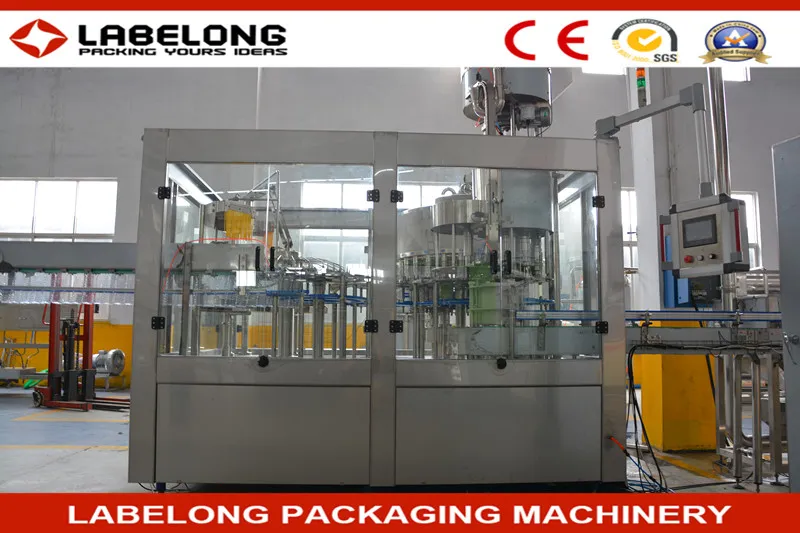

Filling machine

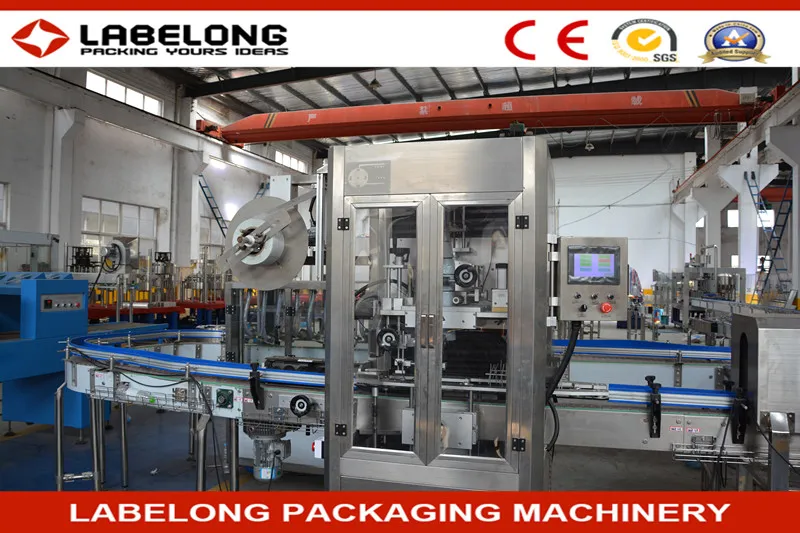

Labeling machine

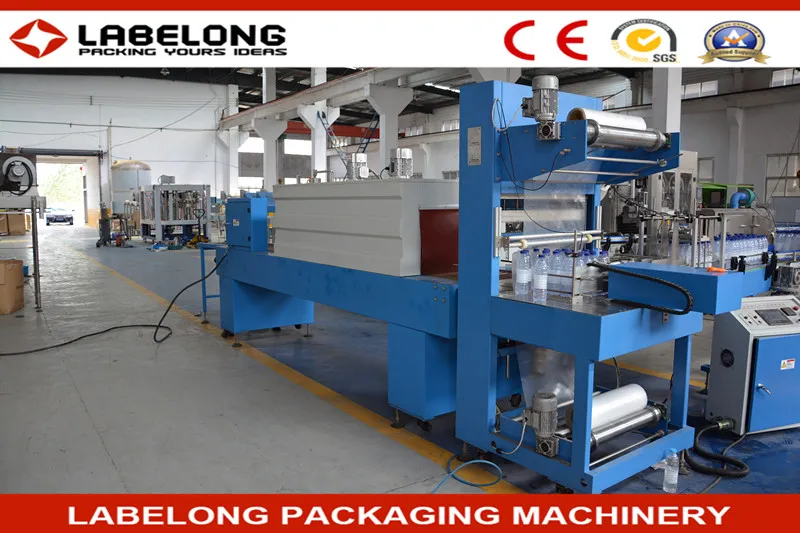

Packing machine
Technical Parameter
Configuration List:
Contact me
Nelly Guo
Mobile +8613862027738
Skepe: nelly821
Machine list
Water treatment
Blowing machine
Filling machine
Labeling machine
Packing machine
Technical Parameter
| Item | Technical Parameter |
| Production Output | 3000BPH @ 500ml PET bottle |
| Rinsing heads | 10pcs |
| Filling nozzles | 8pcs |
| Capping heads | 4pcs |
| Suitable to PET bottle Size | Diameter Φ50~Φ95mm Highness:160~320mm, Bottle neck: 28mm, Bottle volume from 200 to 2250ml |
| Suitable to Caps | PCO28 |
| Washing Water Required | 2000 liter per hour |
| Washing Pressure Required | 0.2Mpa |
| Washing time | 3 second |
| Drip water time | 3 second |
| Working Power | 380V AC 3-phase |
| Compressed Air Pressure (for caps arranger) | 0.8MPa |
| Compressed Air Consumption (for caps arranger) | 2m3/min |
| Control Panel Power | 24V DC |
| Filling Pressure | gravity |
| Filling temperature | 85 degree |
| Machine Size | 6000x5000x2750mm |
| Gross Weight | 6,000kg approximately |
| Total Power | 13KW |
Configuration List:
| Item | Parts Name | Brand from |
| 1 | PLC | Germany |
| 2 | Inverter | |
| 3 | Touch Screen | |
| 4 | Switch | France |
| 5 | Contactor | |
| 6 | Relayer | |
| 7 | Solenoid Valve | Germany |
| 8 | Drive motor | Germany |
| 9 | Reducer | |
| 11 | Main Bearing | Japan |
| 12 | Sensor | Japan |
| 13 | Air component | Germany |
| 14 | Stainless Steel Frame | Korea |
