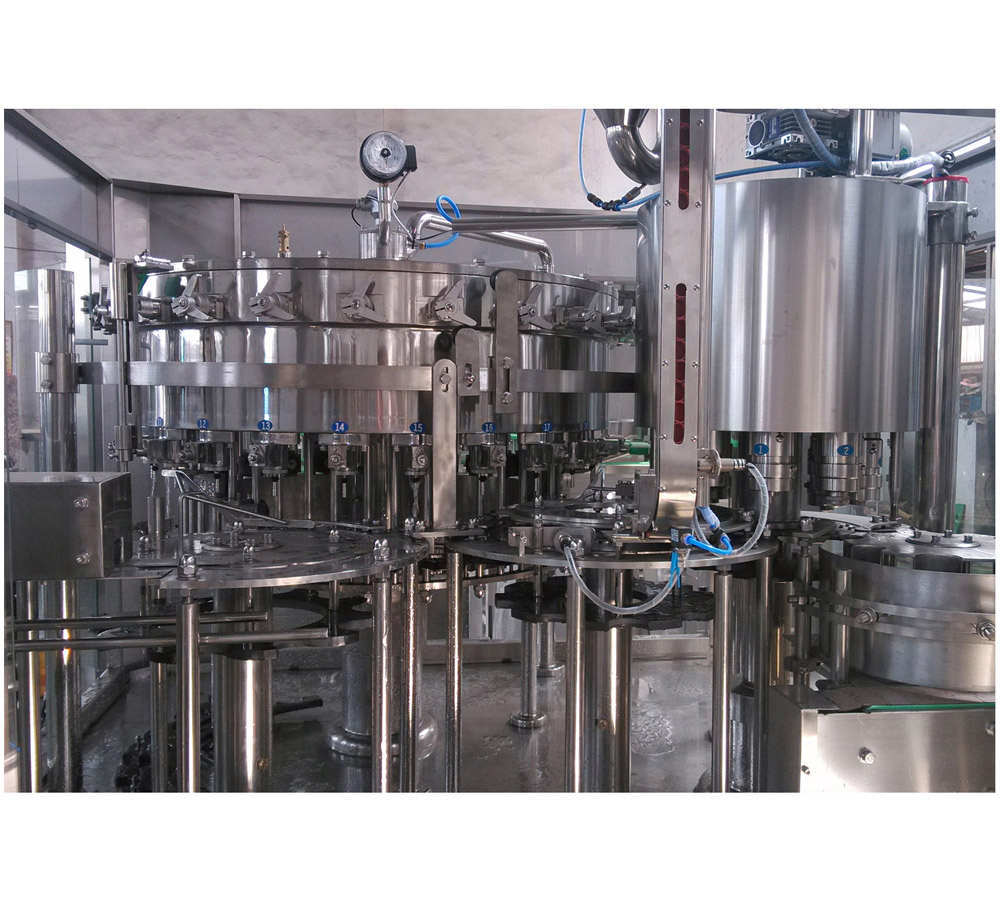

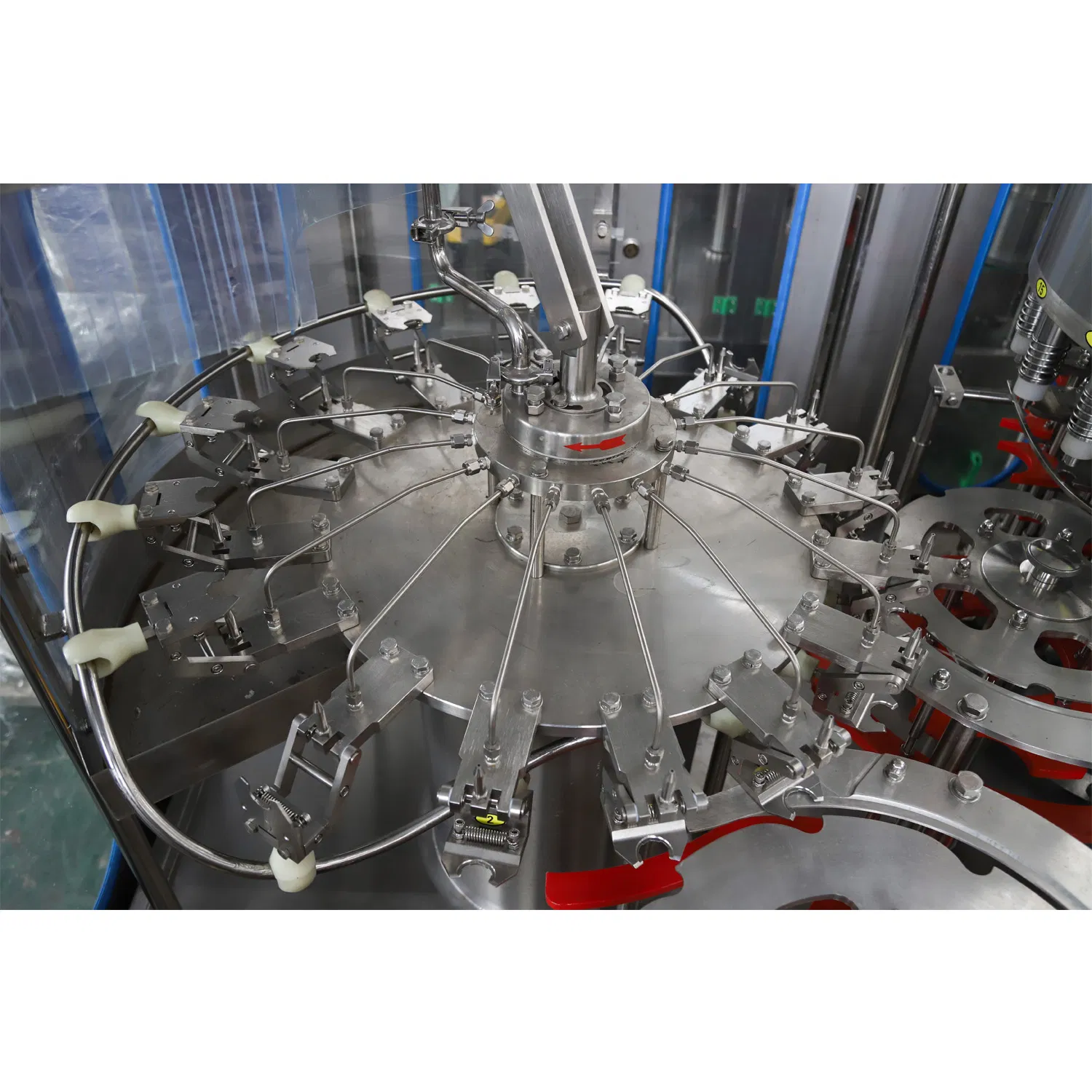

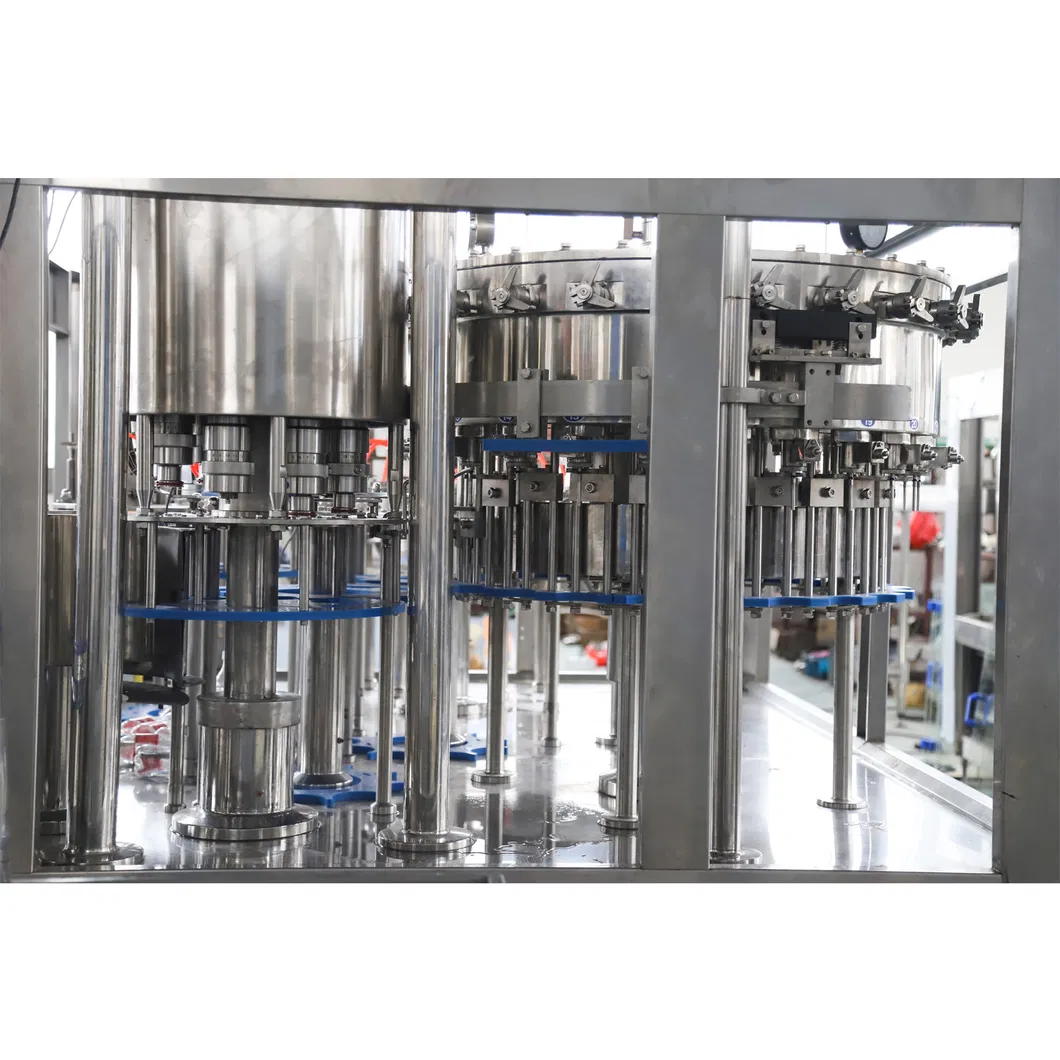

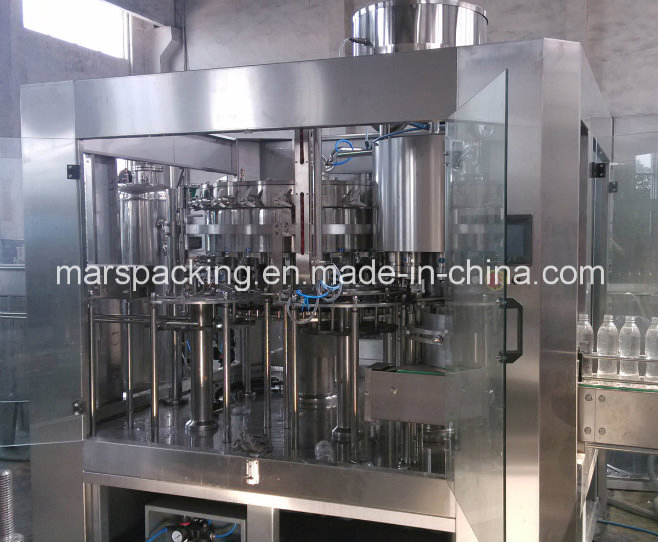

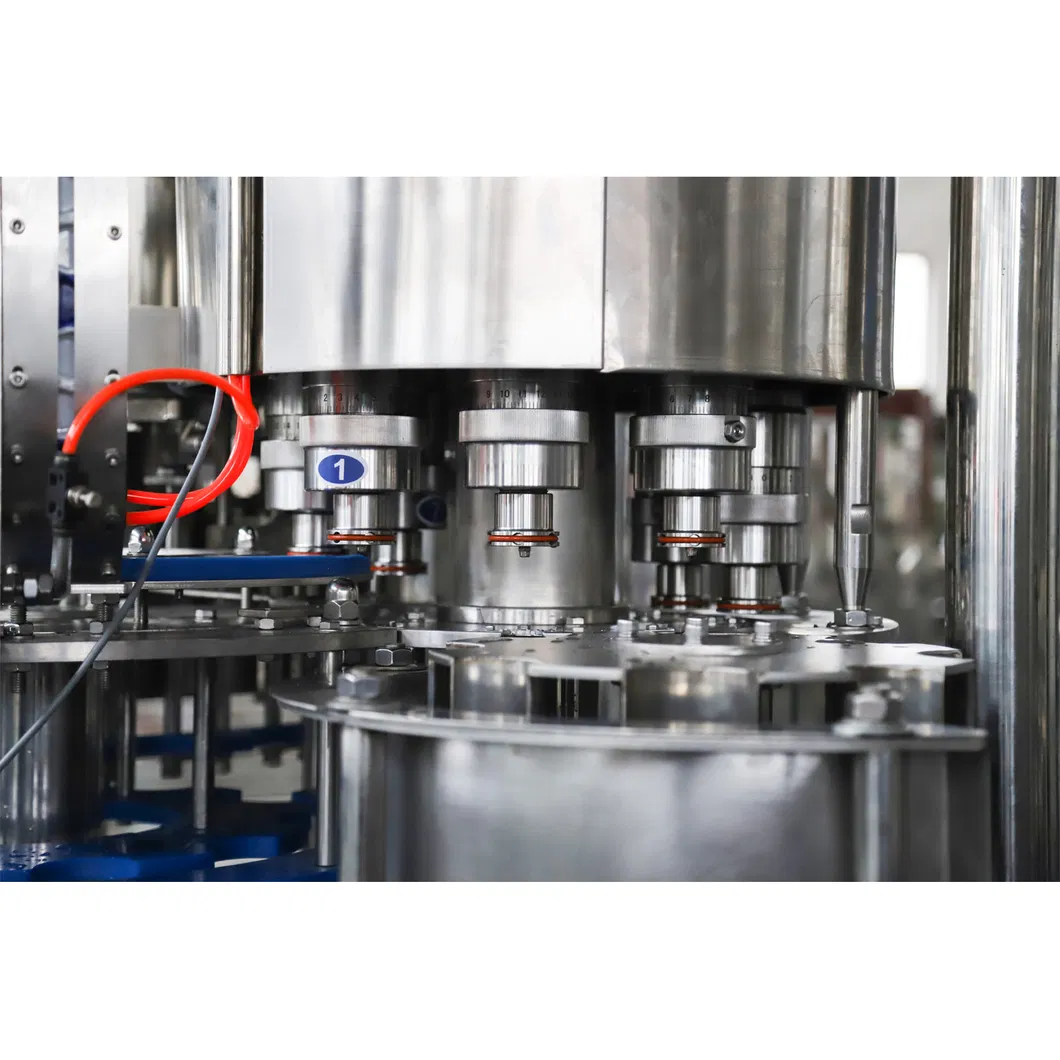

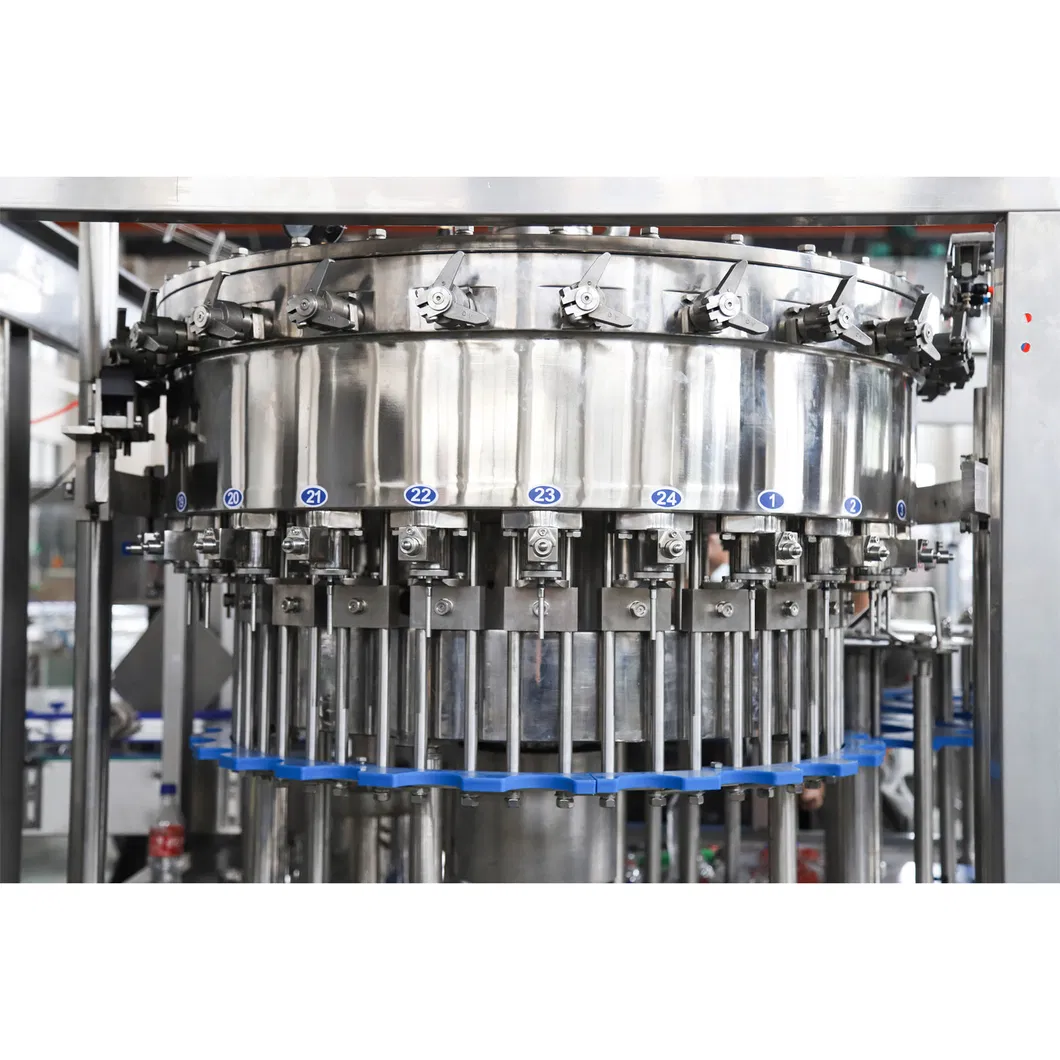

Sparking Beverage Filling Capping Machine (DGF12-5)
Sparking Beverage Filling Machine(DGF12-5):1. Monoblock filling capping machine 2 in 12. Used for the production of carbonated beverageCharacteristic:1. It carres out bottle washing filling and capping in one machine.2. The whole machine design is reasonable, appearance is beautiful, maintenance is ......
Send Inquiry
Product Description
Sparking Beverage Filling Machine(DGF12-5):
1. Monoblock filling capping machine 2 in 1
2. Used for the production of carbonated beverage
Characteristic:
1. It carres out bottle washing filling and capping in one machine.
2. The whole machine design is reasonable, appearance is beautiful, maintenance is convenient.
3. It adopts hanging type conveying-bottle structure to make bottle size changing more convenient, faster and easier.
4. The main machine adopts advanced PLC control technology.
5. The key electric components adopt international famous products.
Technical parameter:
Model: DGF12-5
Production capacity: 2,000-2,500B/H(500ml bottle)
Filling precision: ≤ ± 5mm(liquid level)
Filling pressure: 0.4Mpa
Polyester bottle specification: Bottle diameter: φ 50-φ 100mm
Bottle height: 150-320mm
Suitable cap type: Plastic screw cap
Total power: 4Kw
Total weight: 1800Kg
Overall dimension: 1900× 1500× 2200mm
1. Monoblock filling capping machine 2 in 1
2. Used for the production of carbonated beverage
Characteristic:
1. It carres out bottle washing filling and capping in one machine.
2. The whole machine design is reasonable, appearance is beautiful, maintenance is convenient.
3. It adopts hanging type conveying-bottle structure to make bottle size changing more convenient, faster and easier.
4. The main machine adopts advanced PLC control technology.
5. The key electric components adopt international famous products.
Technical parameter:
Model: DGF12-5
Production capacity: 2,000-2,500B/H(500ml bottle)
Filling precision: ≤ ± 5mm(liquid level)
Filling pressure: 0.4Mpa
Polyester bottle specification: Bottle diameter: φ 50-φ 100mm
Bottle height: 150-320mm
Suitable cap type: Plastic screw cap
Total power: 4Kw
Total weight: 1800Kg
Overall dimension: 1900× 1500× 2200mm
