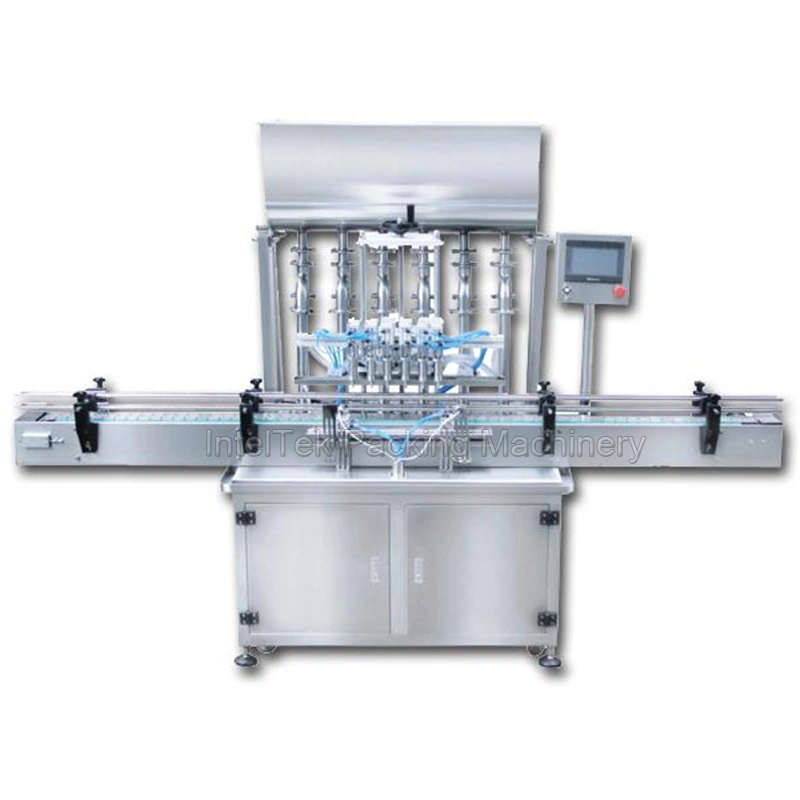

Syrup Honey Mel Nectar Sirup Sirop Caramel Jam Condensed Concentrated Milk Filling Machine
Syrup Honey Mel Nectar Sirup Sirop Caramel Jam Condensed Concentrated MilkIntroduction:Is widely used for filling all kinds of fluid daily chemical industry, food, medicine, oil. For example liquid, shampoo, shower gel, edible oil, pesticides, fruit juice, Lubricating oil, liquid soap, disinfectant,......
Send Inquiry
Product Description
Introduction:
Is widely used for filling all kinds of fluid daily chemical industry, food, medicine, oil. For example liquid, shampoo, shower gel, edible oil, pesticides, fruit juice, Lubricating oil, liquid soap, disinfectant, detergent,honey, not very sticky liquid or other materials.

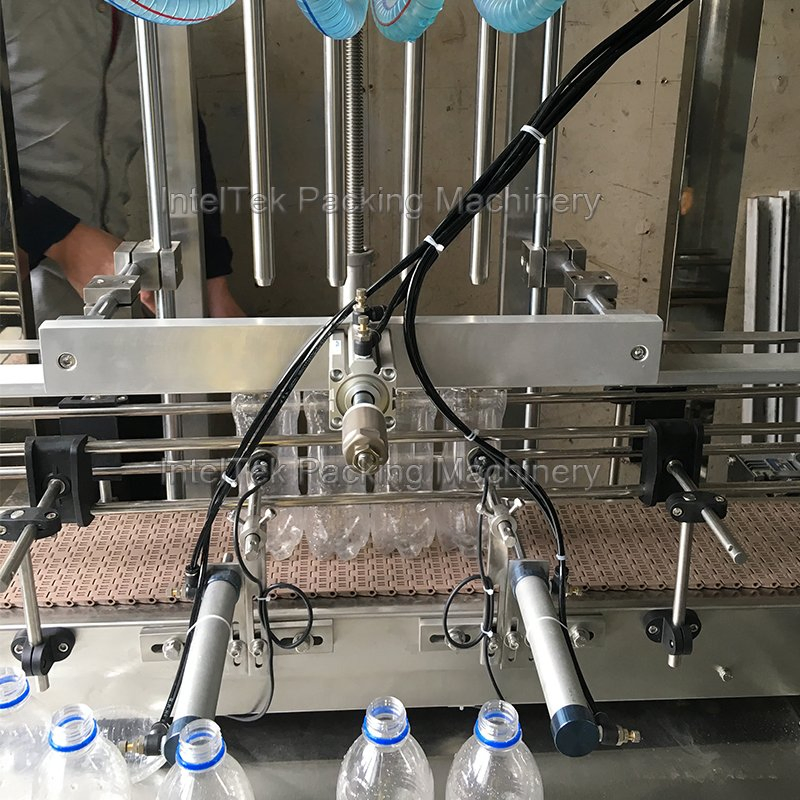

Operating principle By the reciprocating motion of the pistons in the material cylinders of the Filling Machine, negative pressure produces in the front chamber of the cylinder so that material could be pumped. The stroke of the cylinder is controlled by a signal valve so as to adjust filling amount and to achieve accurate filling results.
The Filling Machine with extra functions is designed and manufactured by our factory with reference to the same kind of foreign machines. This machine is simpler and easier in operation, error correction, adjustment, cleaning and maintenance.
With automatic transmission, automatic filling, no bottle no filling, bottle positioning, prevent drip, lifting filling, and other functions. Can be equipped with protective cover.
The part contacting materials is made of 304 stainless steel.
Material contact parts can be customized SS316 or 304
It can install hopper. Hopper can be installed liquid level automatic control system.
Technical Parameter
| Model | ZX-2 | ZX-4 | ZX-6 |
| Filling heads | Two Head | Four Head | Six Head |
| Powe supply | 220/110V 50/60Hz | ||
| Power | 500W | 800W | 1000W |
| Air pressure | 0.4-0.6MPa (Inside the machine is equipped with gas storage barrels) | ||
| Filling speed | 4-16 bottles/min | 8-32 bottles/min | 12-48 bottles/min |
| Filling accuracy | ≤±1 | ||
| Filling volumes range | 5-100ml 10-280ml 20-500ml 50-1000ml 500-2800ml 1000-5000ml | ||
| Conveyor line length | 2M(can be customized) | ||
Packing&Shipping
Package: wooden case
Shipping: by sea, air
Our Service
Direct after-sales service
Company Information
Wenzhou IntelTek Import & Export Co., Ltd. is a professional supplier of all kinds packaging machines, integrating development, production and trading together. We mainly supply filling sealing machine, filling machine, MAP packaging machine, capping machine, labeling machine, water treatment, and other packing related machines. Our company have many years of history in the packing machinery. Through the efforts of our entire staff, we have become a famous proffessional packing machine supplier. IntelTek supply machines for following industries: dairy product(like milk, yogurt, cheese), food product(like fast food, seafood, bread), beverage and snack product(like water, juice, jelly, candy, nuts, cereal), daily chemical industry(cosmetic, pesticides, detergent, oil), etc..
Currently, IntelTek machines are already exported to America, Canada, Switzerland, Australia, Germany, Italy, UK, Egypt, Brazil and 30 other countries and regions.
