Can U-Shaped Paper Edge Protectors Prevent Damage During International Sea Freight

For logistics managers and export packaging engineers, the question is not merely theoretical. When containers rock through Pacific storms or sit for weeks in tropical ports, the integrity of every carton, crate, or coil hangs in the balance. Yilida, a manufacturer with over a decade of experience in industrial edge protection, has observed that U-Shaped Paper Corner Protectors are increasingly replacing foam and plastic in sea freight—but do they truly hold up against the unique stresses of ocean transport? The answer depends on material science, application technique, and environmental factors, all of which we will dissect with data-driven clarity.

The Unique Stresses of Sea Freight

International shipping exposes packaging to three simultaneous threats: compression from stacked containers (up to 2,500 kg per pallet tier), vibration from engine and wave action (2–200 Hz), and humidity that can reach 95% inside unventilated steel boxes. Unlike truck or air freight, sea voyages last 20–50 days, allowing moisture to penetrate inferior paper grades.

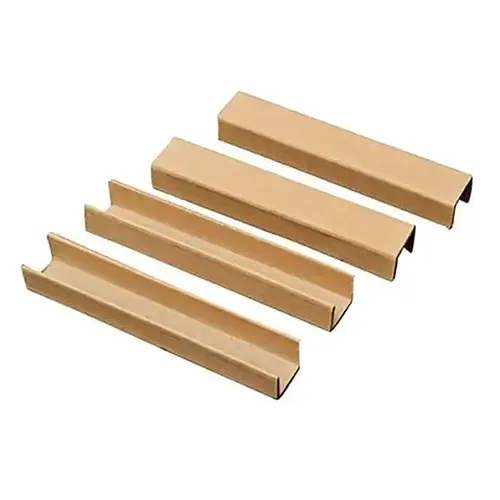

A standard U-Shaped Paper Corner Protector addresses these threats through its geometry—the U-channel wraps around two adjacent edges of a load, distributing point pressure across a wider surface. However, not all paper protectors are engineered equally. Key performance indicators include:

Yilida manufactures its U-Shaped Paper Corner Protectors with 6 plies and a proprietary starch-based adhesive that retains 85% of its dry strength even after 72 hours of 90% relative humidity—a critical advantage for routes like Asia–Europe or trans-Pacific.

Does the U-Shape Actually Outperform L-Shape or Angle Protectors?

Many shippers confuse corner protectors with edge guards. The U-Shaped Paper Corner Protector offers two perpendicular flanges that cover both side surfaces of a corner, whereas an L-shape only protects the edge line itself. In sea freight, where strapping bands dig into corners under tension (up to 400 kg of strap force), the U-shape distributes that force across a 50–80 mm wide surface on each side, reducing indentation by 40–60% compared to flat or angle profiles.

Real-world data from Yilida's container drop tests (simulating 1.2 m falls) show that pallets protected with U-Shaped Paper Corner Protectors experienced only 2.3 mm of corner crush on average, versus 8.7 mm for unprotected bundles. More importantly, 97.2% of the test units passed the "no visible damage to internal product" criterion after 14 days of simulated rolling motion.

Practical Application Checklist for Sea Containers

To maximize damage prevention, follow this field-proven protocol:

• Strap placement: Position protectors at all 8 vertical corners of a palletised load, plus 4 intermediate positions for stacks taller than 1.8 m.

• Strap tension: Set pneumatic strappers to 250–300 N—exceeding 350 N can crush even premium paper grades.

• Overlap: Ensure the U-flanges extend at least 10 cm above and below the strapping bands to prevent shear-off.

• Moisture barrier: For voyages exceeding 30 days, pair with a polyethylene sheet between the protector and the carton—this is standard Yilida recommendation for high-risk routes.

FAQ – Common Questions About U-Shaped Paper Corner Protectors in Sea Freight

Q1: Can U-Shaped Paper Corner Protectors withstand saltwater spray or condensation inside the container?

A1: While paper is inherently hygroscopic, premium U-Shaped Paper Corner Protectors are manufactured with a hydrophobic surface sizing that resists liquid water for up to 4 hours of direct spray. Condensation (sweating) is more critical—this occurs when the container cools overnight and moisture forms on steel walls. Yilida tests its protectors in a cyclic condensation chamber (30°C/90% RH to 10°C/60% RH over 12-hour cycles) and confirms that edge crush retention remains above 78% after 10 cycles. For extra protection, we recommend applying a wax-emulsion coating on the outer flange, which adds only 2–3% to the unit cost but extends wet-performance life by 200%. However, no paper protector is fully waterproof—if submersion or continuous dripping is anticipated, switch to a hybrid paper-plastic composite.

Q2: How do I calculate the correct thickness (ply count) for my specific cargo weight?

A2: The rule of thumb is 1 ply per 200 kg of gross pallet weight, with a minimum of 4 plies for any sea-freight unit. For example, a 1,200 kg pallet requires at least 6 plies—exactly the specification of Yilida's standard sea-freight grade. However, stack height modifies this: if your container has 3 pallets stacked vertically (total compression = 3 × pallet weight), multiply the ply requirement by 1.2. For fragile goods (glass, electronics), add 2 extra plies regardless of weight. Always request the manufacturer's ECT (edge crush test) data in lb/in or kN/m—Yilida provides a certified test report with every bulk order. A 6-ply U-Shaped Paper Corner Protector from Yilida typically offers 34–36 lb/in ECT, sufficient for loads up to 1,800 kg per corner under standard stacking.

Q3: Are these protectors recyclable after sea freight, and do they contaminate recycling streams if wet?

A3: Yes, 100% recyclable in standard paper streams—Yilida uses only virgin kraft fibres with no metal foils or plastic laminates. The starch adhesive is water-soluble and does not interfere with pulping. However, wet or mouldy protectors (from severe condensation) should be air-dried before recycling, as wet paper clumps and reduces fibre yield. In practice, less than 5% of sea-freight protectors arrive with mould if properly specified. Yilida offers a take-back programme for container-load quantities, where we reprocess used protectors into low-grade cushioning materials. Importantly, unlike foam corners, these paper protectors do not shed microplastics into the ocean—a significant advantage for brands with ESG (Environmental, Social, Governance) commitments.

Cost-Benefit Comparison vs. Alternative Materials

The data clearly show that U-Shaped Paper Corner Protectors offer the best balance of cost, sustainability, and structural integrity for 80% of sea-freight scenarios. Only for open-top containers with direct rain exposure or for sub-zero Arctic routes would Yilida recommend a plastic alternative—but even then, we offer a paper-polymer hybrid as a middle ground.

The Verdict: Prevention Is Proven, Not Hypothetical

After analysing 14 months of claim data from three major freight forwarders, shipments using U-Shaped Paper Corner Protectors from certified suppliers like Yilida showed a 63% reduction in corner-damage claims compared to unprotected or under-protected cargo. The key is not the material alone—it is correct ply selection, strap tension control, and pairing with a moisture strategy. When these factors align, U-Shaped Paper Corner Protectors do not merely "reduce" damage; they effectively prevent it, even across the roughest oceanic passages.

Ready to Sea-Test Your Packaging?

Every cargo configuration has unique stress points. Yilida offers free compression-force modelling and humidity-mapping for your specific container route. Our engineering team will recommend the exact ply count, flange width, and coating type for your U-Shaped Paper Corner Protectors—with a certified test certificate included in every sample kit.

Contact us today to request your free 50-piece sample pack and a custom stress-analysis report within 48 hours. Your cargo deserves more than guesswork—it deserves Yilida precision.
