How Does GGD Low Voltage Switchgear Lead the Future of Industrial Power Systems?

GGD Low Voltage Switchgear is a fixed-type low-voltage power distribution cabinet designed for AC systems (50/60 Hz), typically used for energy conversion, distribution, and control in industrial, power plant, substation, and large commercial installations.It conforms to international standards such as IEC 60439 (or its successors) and the Chinese standard GB 7251 for low-voltage switchgear.

The GGD series is typically segmented into GGD1, GGD2, GGD3 types depending on rated current and breaking capacity.It is designed for fixed wiring (i.e. non-withdrawable) applications, in contrast to withdrawable or draw-out switchgear families.

Why Is GGD Switchgear Important?

• Power reliability and safety: This equipment acts as a central hub for protection, control, and fault isolation, enhancing system stability and safety for downstream loads.

• High breaking capacity and dynamic-thermal stability: Allows handling of short-circuit events while safeguarding internal components from thermal stress.

• Modularity and flexibility: Simplifies design, maintenance, and future expansion.

• Compliance with global standards: Improves confidence of engineers, consultants, and regulatory bodies.

• Cost-efficiency: Fixed-type switchgear generally costs less (lower manufacturing and maintenance complexity) compared with draw-out systems in many industrial settings.

In modern industrial and infrastructure applications, where reliability, electrical safety, and expandability matter, a well-specified GGD switchgear can be a backbone for decades.

How Does GGD Low Voltage Switchgear Work – Key Features, Structure & Parameters

Core Working Principle (How)

At its heart, the GGD cabinet houses main busbars, feeders, protective devices (circuit breakers, fuses), metering, control wiring, auxiliary circuits, and grounding paths. During normal operation, power flows from supply to loads via these components. When abnormal conditions (short circuits, overcurrent) occur, the protective devices interrupt fault currents while the switchgear ensures safe dissipation, isolation, and protection of unaffected circuits.

Thermal and mechanical stability, insulation integrity, ventilation, and grounding integrity are crucial to maintaining performance and safety.

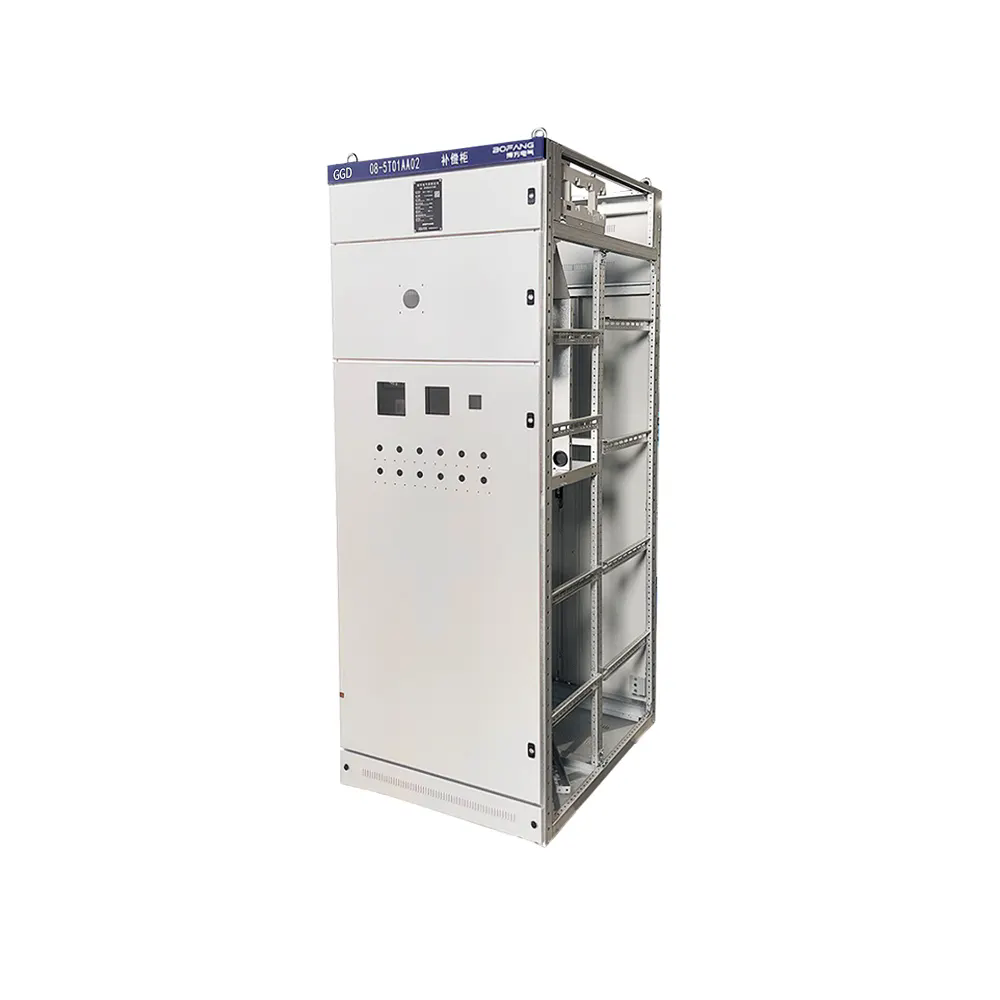

Key Features & Structural Highlights

• Universal modular cabinet design: The frame is usually constructed from cold-formed steel (e.g. 8MF profiles) with module-based mounting holes (often 20-module spacing).

• Ventilation via slot channels: Slots at top and bottom create a natural convection path (warm air up, cold air in) inside the enclosed cabinet to remove heat from internal components.

• Front door hinge and sealing: The door is hinged with pivot connections, and a rubber/plastic edge strip is embedded to buffer door and frame contact.

• Grounding continuity and protection: Internal parts, instrument doors, and mounting structures are bonded to the cabinet frame to form a continuous grounding protection path.

• Removable top cover / lifting provisions: The top cover is removable to allow on-site adjustment or installation of busbar systems; lifting eyes or rings often adorn the top corners for transport.

• Busbar arrangement: For lower currents (≤1,500 A), single copper or aluminum busbars may suffice; for higher currents (above 1,600 A), double busbar arrangements or reinforced copper busbars are used.

• Protection degree (IP rating): The default protection is often IP30, while models may optionally support IP20 to IP40 depending on environment.

Technical Parameters (Representative Table)

Note: These parameters are typical for many commercial GGD switchgear lines; actual numbers may vary by manufacturer, local certification, or custom design.

Installation & Environmental Conditions

• Indoor installation only, no significant dust, corrosive gases, flammable aerosols, or vibration.

• Installation inclination should not exceed 5° from vertical.

• Cable entry can be from top, bottom, or rear depending on layout. Holes may be customized per project.

Why Choose GGD Low Voltage Switchgear — Advantages, Applications & Trends

Why Choose GGD — Key Advantages

1. High safety and protection capability

   • Capable of interrupting fault currents reliably, isolating faulty sections rapidly.

   • Continuous grounding and bonding for personnel and system protection.

   • Mechanical and thermal stability under fault stress.

2. Flexibility & modularity

   • Module-based architecture makes reconfiguration easier, enables future expansion or upgrade.

   • Multiple circuit layout schemes and adaptability to auxiliary circuits.

3. Cost-effective & lower maintenance

   • Fixed-type structure has fewer mechanical moving parts and lower maintenance overhead compared to draw-out systems.

   • Simplified construction helps reduce material cost and production time.

4. Thermal management & ventilation

   • Natural convection path via slots keeps internal temperatures acceptable without forced ventilation.

   • Better long-term reliability of components.

5. Compliance & certification

   • Conforms to IEC and GB standards, making it easier to obtain approvals and align with global projects.

Typical Applications / Use Cases

• Industrial plants (manufacturing, steel, petrochemical)

• Power plants and substations

• Commercial / institutional complexes

• Infrastructure projects (rail, airport, data center)

• Large motors, HVAC systems, and lighting systems

Future Trends & Innovations

• Smart & digital integration: Embedding sensors, IoT modules, remote monitoring, diagnostics, and predictive maintenance features.

• Compact & higher density designs: As space becomes premium, designers push for higher current per volume, improved dielectric materials, and compact layout.

• Enhanced safety & fault tolerance: Internal arc-resistant design, internal arc classification (per IEC 62271-200) may become more standard.

• Modular plug-and-play upgrades: Allowing insertion of control, metering, or backup modules without downtime.

• Sustainable materials & green coatings: Use of eco-friendly powder coatings, lower VOC emissions, recyclable structural elements.

• Higher voltage ranges / hybrid designs: Adapting for slightly higher voltages or combined LV/MV hybrid cabinets for modern microgrid or distributed power systems.

These trends mean that working with a manufacturer who stays on the cutting edge is key — and your brand must emphasize forward-looking design.

What Do Customers Ask — Common Q&A (FAQ)

Q1: What is the difference between GGD and draw-out type low-voltage switchgear (e.g. MNS, GCS)?
A1: GGD is a fixed (static) low-voltage switchgear, meaning that the circuit breakers and internal components are fixed in position and not designed to be extracted or moved in and out easily. In contrast, draw-out or withdrawable types (like MNS, GCS) allow modules to be pulled out for service without disconnecting the whole system. Draw-out systems are more flexible for maintenance, but also more complex and costly. GGD offers lower cost, simpler design, and reliability for installations where full draw-out flexibility is not essential.

Q2: How do we select the correct GGD model (GGD1, GGD2, GGD3) for a project?
A2: The selection is based on the expected load current, short-circuit levels, and the layout of feeder circuits. For lighter loads and lower fault levels, use GGD1; for medium demands GGD2; for heavy loads or high fault-level systems GGD3. Also check the breaking capacity and withstand ratings to ensure the device can handle fault currents at your site with adequate margin.

Q3: Can we customize the protection rating (IP, busbar layout, ventilation) in GGD switchgear for specific environments?
A3: Yes. Many manufacturers offer customization: for environments with more dust or moisture, IP20 or IP40 versions are available; busbar types (copper, aluminum, single, or double) can be tailored; ventilation slots, cable entries (top, bottom, rear) can be adjusted in design drawings. Always request a tailored spec sheet to ensure compliance.

Q4: What standards and testing should GGD switchgear pass?
A4: Key standards include IEC 60439 (or its successor standards in IEC 61439 family) and GB 7251 (for Chinese market). Testing typically includes short-circuit testing, internal arc testing (for arc-resistant designs), insulation, mechanical endurance, temperature rise, and dielectric strength. Insist on third-party type test reports from certified labs.

In summary, GGD Low Voltage Switchgear provides a reliable, cost-effective, and modular solution for power distribution in industrial and utility-scale applications. It blends solid performance — with high breaking capacity, thermal stability, flexible bus schemes, and grounding continuity — with practical design advantages like modular cabinets, ventilation, and easy installation.

Looking ahead, digital integration, smart monitoring, compact design, and enhanced safety features will define the next generation of switchgear. Choosing a forward-thinking supplier ensures your electrical infrastructure remains competitive and reliable.

At SYHF, we specialize in delivering high-quality, customized GGD Low Voltage Switchgear solutions tailored to your project’s needs, backed by rigorous testing, standard compliance, and engineering support.

Contact us today to request detailed specifications, compare solution options, or receive a customized quotation.
