What Makes Fin Press Machines the Core of Modern Heat Exchanger Manufacturing?
2025-10-22
In the world of heat exchanger manufacturing, the fin press machine stands as one of the most critical pieces of equipment. It is designed to produce aluminum or copper fins—an essential component that determines the efficiency and performance of air conditioners, refrigerators, condensers, and radiators. By accurately stamping fins from coiled metal strips, this machine ensures consistent dimensions, precise cutting, and superior heat transfer performance.

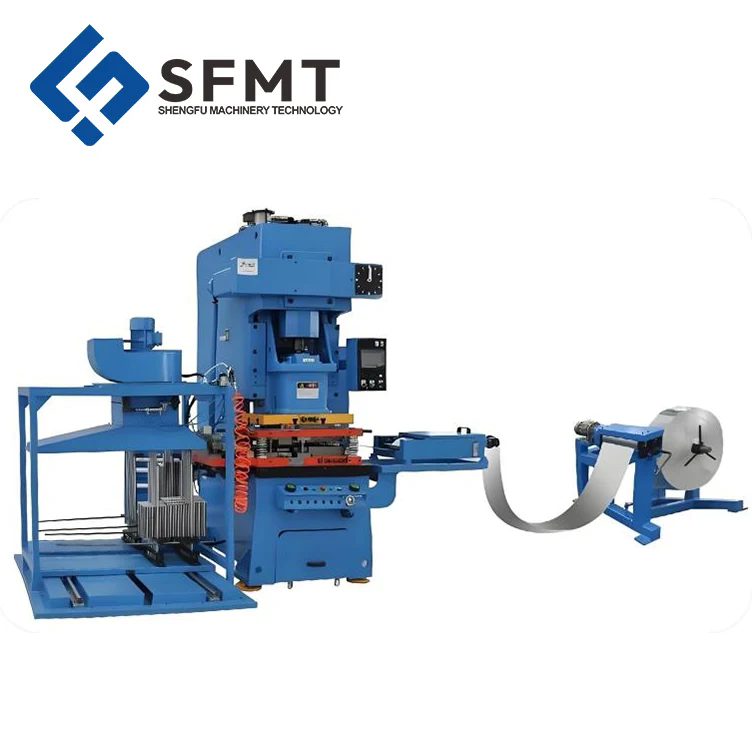

A fin press machine operates with a high-speed progressive die system, where metal sheets pass through multiple stamping stations that form, cut, and collect fins in a continuous process. Unlike manual fin forming, this automated system guarantees uniform fin geometry, tight tolerances, and minimal waste—key factors for achieving optimal heat exchange.
Why Fin Press Machines Are Transforming Heat Exchanger Production
The manufacturing of heat exchangers relies heavily on precision and productivity. Fin press machines bring multiple advantages that have made them a global industry standard.
Key Advantages of Fin Press Machines
-
High Precision: Advanced servo-driven systems ensure fin thickness and spacing consistency within microns.
-
Enhanced Productivity: High-speed operation (up to 300 strokes per minute) significantly boosts production capacity.
-
Material Efficiency: Progressive dies optimize metal usage, reducing scrap and saving raw material costs.
-
Customization Capability: Fin shapes such as wavy, louvered, slit, and corrugated can be designed for specific performance requirements.
-
Durability and Reliability: Built with heavy-duty steel frames and automated lubrication systems, these machines are engineered for continuous operation with minimal downtime.
-
Energy Savings: Modern models integrate energy-efficient servo motors and intelligent power systems.
-
Automation Integration: Compatible with coil feeders, decoilers, and stacking systems, they form a complete automated production line.
Technical Specifications and Core Parameters
To evaluate a fin press machine’s quality, understanding its technical specifications is essential. Below is a summary of standard configurations found in industrial-grade models:
| Parameter | Specification Range | Description |
|---|---|---|
| Fin Material | Aluminum / Copper | Common metals for heat exchange applications |
| Fin Thickness | 0.05 – 0.3 mm | Adjustable depending on product type |
| Fin Height | 5 – 12 mm | Determines heat transfer surface area |
| Press Capacity | 45 – 160 Tons | Depends on die size and fin type |
| Stroke Speed | 100 – 300 strokes/min | Defines productivity level |
| Feed Pitch | 4 – 12 mm | Adjustable for different fin geometries |
| Power Supply | 380V / 50Hz / 3 Phase | Standard industrial configuration |
| Lubrication System | Automatic circulation | Ensures long-term reliability |
| Control System | PLC + Touchscreen (HMI interface) | Simplifies operation and monitoring |
| Die Compatibility | Progressive fin die with interchangeable inserts | Enables fast product changeover |
| Noise Level | ≤ 80 dB | Designed for factory-friendly environments |
These technical parameters demonstrate how precision engineering and automation control come together to enhance output and maintain consistent product quality.
How Fin Press Machines Are Shaping the Future of Energy-Efficient Manufacturing
The Role in Heat Exchanger Evolution
As global demand grows for HVAC systems, electric vehicles, and green cooling solutions, manufacturers must adopt technologies that balance efficiency with environmental responsibility. Fin press machines enable the creation of complex fin geometries that maximize airflow and heat dissipation while minimizing material usage—critical for next-generation compact heat exchangers.
Integration with Smart Manufacturing
Modern fin press machines are no longer standalone equipment; they are part of Industry 4.0 ecosystems. Equipped with IoT sensors, real-time monitoring systems, and data-driven feedback controls, they provide live insights into performance, energy consumption, and maintenance schedules. This allows operators to anticipate issues before they affect production, achieving nearly zero downtime.
Sustainability and Waste Reduction
In the shift toward sustainable production, the reduction of material waste and energy usage has become a strategic priority. Fin press machines meet these goals by:
-
Minimizing metal scrap through precision feeding systems.
-
Reducing electricity consumption with servo-driven press systems.
-
Enabling the use of recyclable materials such as aluminum.
Cost Efficiency and Return on Investment (ROI)
While initial setup costs can be significant, the long-term benefits—such as lower material waste, faster production, and reduced labor—result in an excellent ROI. Most users report payback within one to two years, depending on production volume.
Common Questions About Fin Press Machines
Q1: How does a fin press machine differ from a traditional stamping press?
A fin press machine is purpose-built for producing heat exchanger fins, integrating a high-precision progressive die and feeding system specifically for thin aluminum or copper strips. Traditional stamping presses are multipurpose and may lack the accuracy, die design, and automation controls needed for high-speed fin production.
Q2: What maintenance is required to keep a fin press machine running efficiently?
Regular maintenance includes die inspection and lubrication, alignment checks, servo motor calibration, and software diagnostics. Many modern machines use automatic lubrication systems and predictive maintenance alerts, which reduce manual intervention and ensure consistent performance.
Future Trends in Fin Press Technology
Servo and Hybrid Drive Systems
Servo-driven fin press machines are replacing traditional mechanical models due to their energy efficiency and precision control. Hybrid systems further optimize torque distribution, improving both speed and accuracy.
AI-Based Quality Monitoring
Although still emerging, AI-assisted quality control systems are being developed to detect fin deformation, burrs, or micro-cracks in real time, ensuring 100% inspection accuracy without slowing production.
Modular Fin Die Design
Interchangeable die modules are enabling faster product transitions, allowing manufacturers to produce multiple fin types within one machine, improving flexibility and lowering tooling costs.
Green Manufacturing and Lightweight Materials
With sustainability at the forefront, manufacturers are experimenting with thinner aluminum alloys and new coating techniques to enhance thermal performance while reducing carbon footprint.
Conclusion: The Strategic Value of Fin Press Machines
Fin press machines have become the backbone of modern heat exchanger production, driving advances in thermal performance, energy efficiency, and industrial automation. They are the perfect example of how precision engineering can transform manufacturing quality and sustainability.
In today’s competitive environment, choosing the right equipment partner is crucial. Shengfu Machinery, a leading manufacturer of fin press machines, offers advanced solutions with robust design, smart control systems, and customized tooling for every production need. With years of engineering expertise and a commitment to innovation, Shengfu Machinery ensures that every customer achieves maximum efficiency and reliability.
Contact us today to learn more about our fin press machine solutions and discover how we can help elevate your manufacturing performance to the next level.
