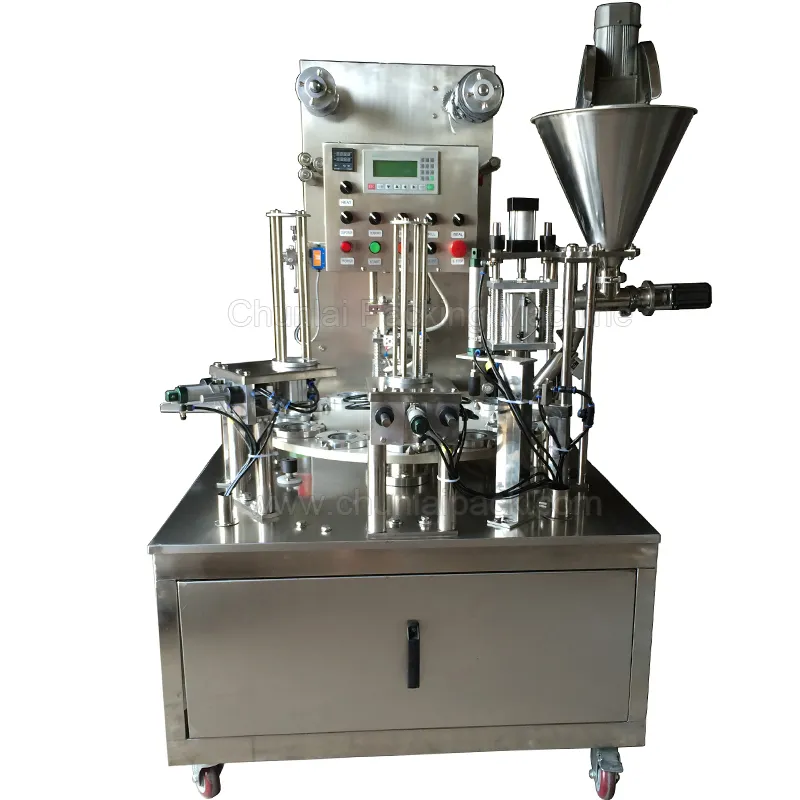

Automatic Turntable Communion Plastic Cup Filling Sealing Machine

Product Description

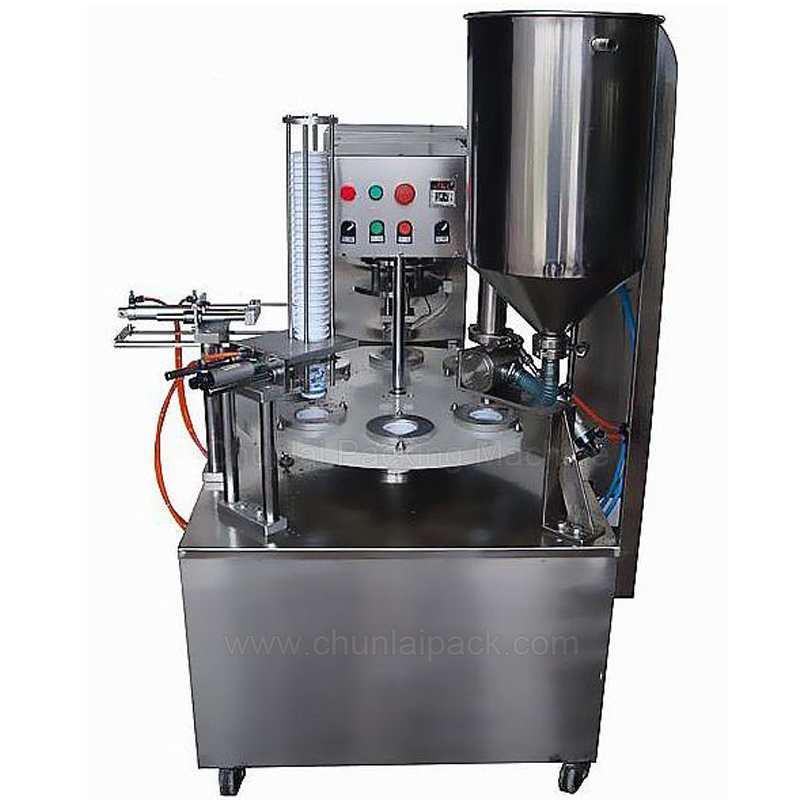

Automatic Turntable Communion Plastic Cup Filling Sealing Machine

Can be customized according to customer's demand

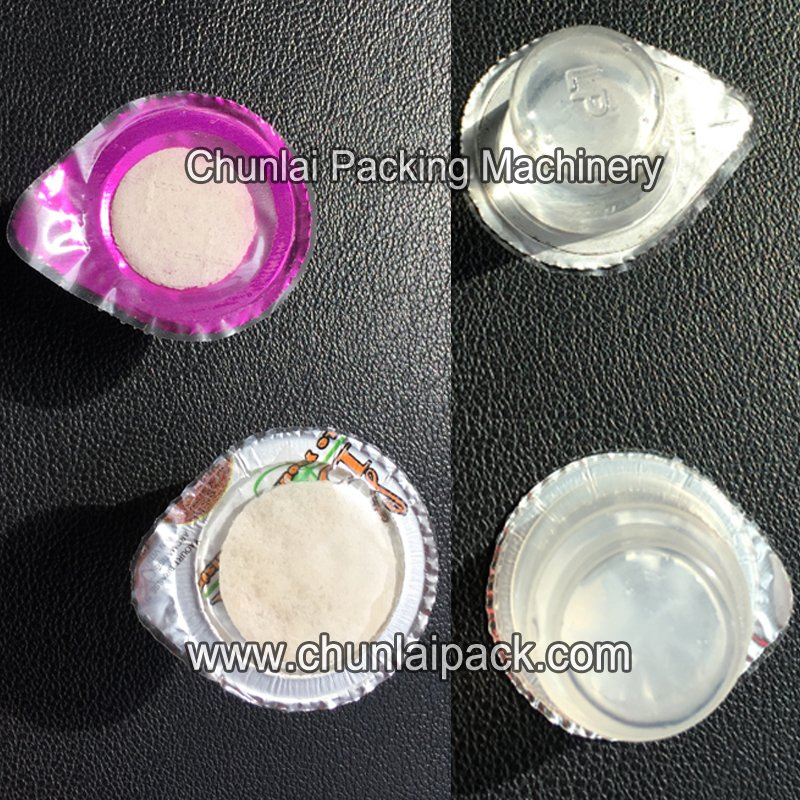

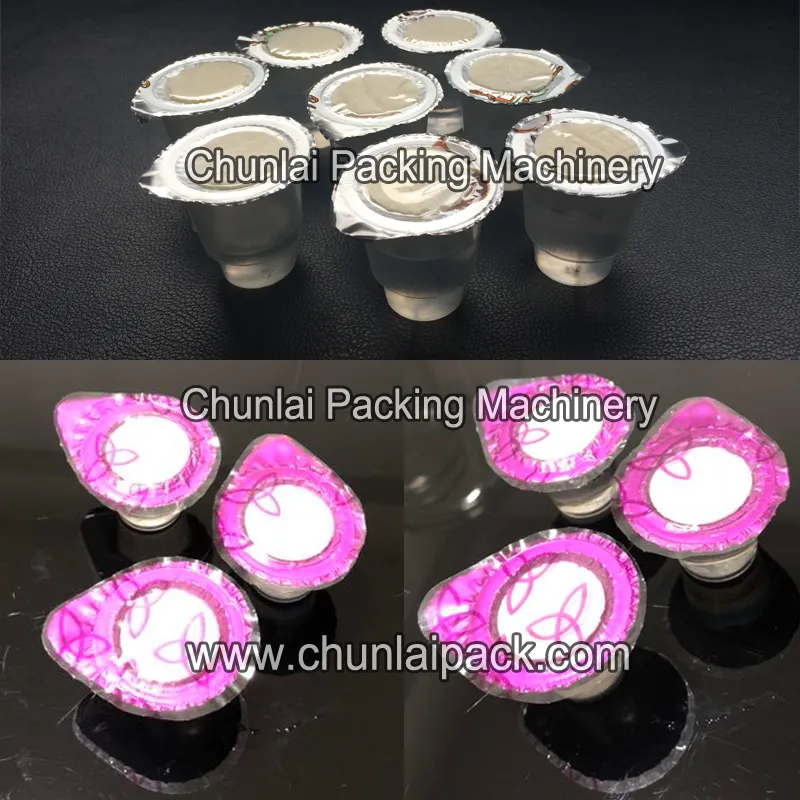

Cup material available: PS, PP, PE, PET, paper and so on

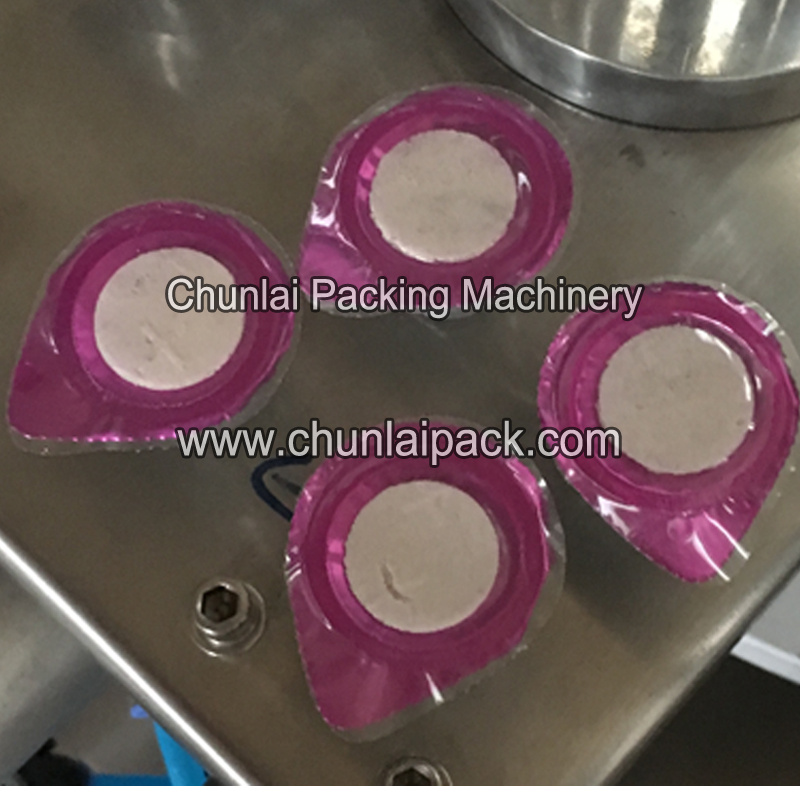

Sealing film: roll film or die-cut foil

Filling: liquid, paste, powder, granule

Application
KIS-900 series are applicable to fill and seal cups, bowls, boxes, trays, cans, pots and so on, used to fill with liquid, cream or solid material, such as yoghurt, milk, jelly, juice, ketchup, fruit salad, pulp, mineral water and so on.
Features
1. It adopts stainless steel as frame, aluminium rotary board or stainless steel rotary board..
2. The food contact parts adopt 304 or 316 stainless steel material with food hygiene requirements.
3. It adopts pneumatic drive and PLC control. It can automatically drop cup, fill, pull roll film, cut roll film and wasted film recycling or place pre-cut aluminium foil, heat sealing.
Optional configuration
1. conveyor
2. CIP tank
3. mix tank
4. double jacket tank
5. photocell
6. date printing
7. Plexiglass
Technical data

Model	KIS-900
Production capacity	800-1000 cups/h
Filling range	50~300ml (can be customized)
Filling accuracy	<±1.5%
Vessel	cup, tray, bottle, box, can, container, tub, bucket, pot, etc.
Power	3N 380V/ single phase 220V, 50/60Hz
Power	1 Kw
Air consumption	0.6 m^з/min
Dimension	1000mm×1000mm×1650mm
Weight	250Kg

Technology training
We can arrange professional technician to install and adjust the machine if customers require, as well as train the operator to operate, adjust and maintain the machine.

Automatic Turntable Communion Plastic Cup Filling Sealing Machine

Company Information

About Wenzhou Inteltek Import&Export Co., Ltd.

Wenzhou IntelTek Import & Export Co., Ltd. is a professional supplier of all kinds packaging machines, integrating development, production and trading together. We mainly supply filling sealing machine, filling machine, MAP packaging machine, capping machine, labeling machine, water treatment, and other packing related machines. Our company have many years of history in the packing machinery. Through the efforts of our entire staff, we have become a famous proffessional packing machine supplier. IntelTek people have continuously tried to improve product quality.

Currently, IntelTek machines are already exported to America, Canada, Switzerland, Australia, Germany, Italy, UK, Egypt, Brazil and 30 other countries and regions. Our company has always focused on research, development and innovation, and has recently developed new continous filling sealing machine. IntelTek also have their own factory. We have CE certification.
Our company offers 'reasonable prices, efficient production time and good after-sales service'. We hope to cooperate with more customers for mutual development and benefits. Buyers are welcome to contact us.

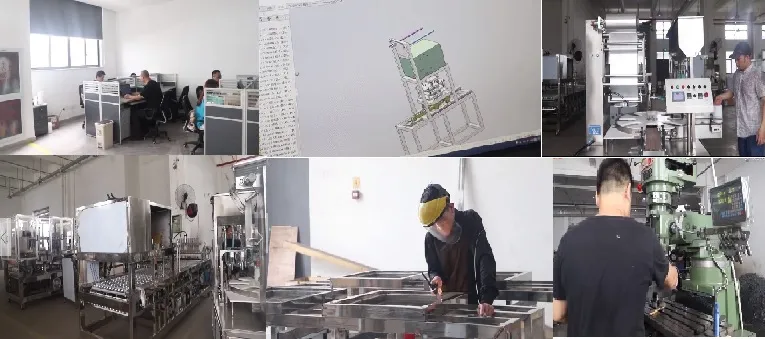

Work Show
