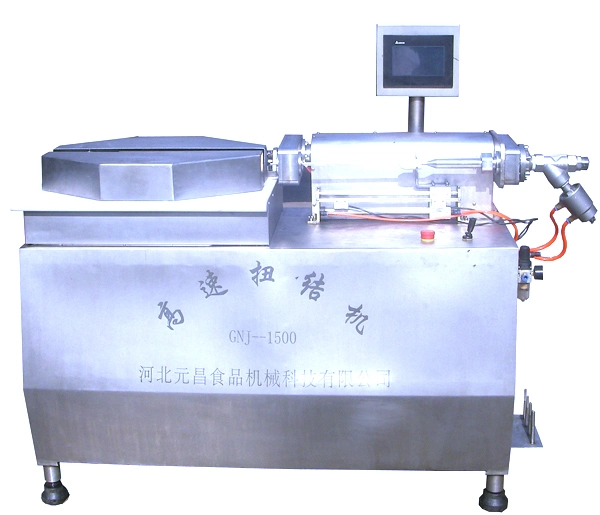

High Speed Sausage Tying Machine (GNJ1500)

  HIGH-SPEED TYING MACHINE GNJ-1500

Advantages:

1. This machine adopts high quality stainless steel as material, and twisting speed control adopts frequency

conversion, high efficiency and energy saving.

2. It is equipped with touch screen and PLC, applicable for high speed twisting of protein casing product.

3. This machine features reliable length fixing and strong water-proof performance, easy to clean.

Main technical parameters:

Twisting speed: the twisting speed up to 1500time/min.

Twisting length: 25-200mm

Equipment power: 3.7kw

Power: three-phrase four-wire 380v 50HZ

Air pressure: 0.4-0.8Mpa

Dimension: 1365*1100*580mm(length*width*height)

On-line operation:

This machine can be connected with various sausage filler. The sausage filler is connected

with high-speed twisting machine by high-pressure pose. During operation, the sausage

filler selects direct filling mode and the filling quantity is adjusted as per the twisting

speed.
