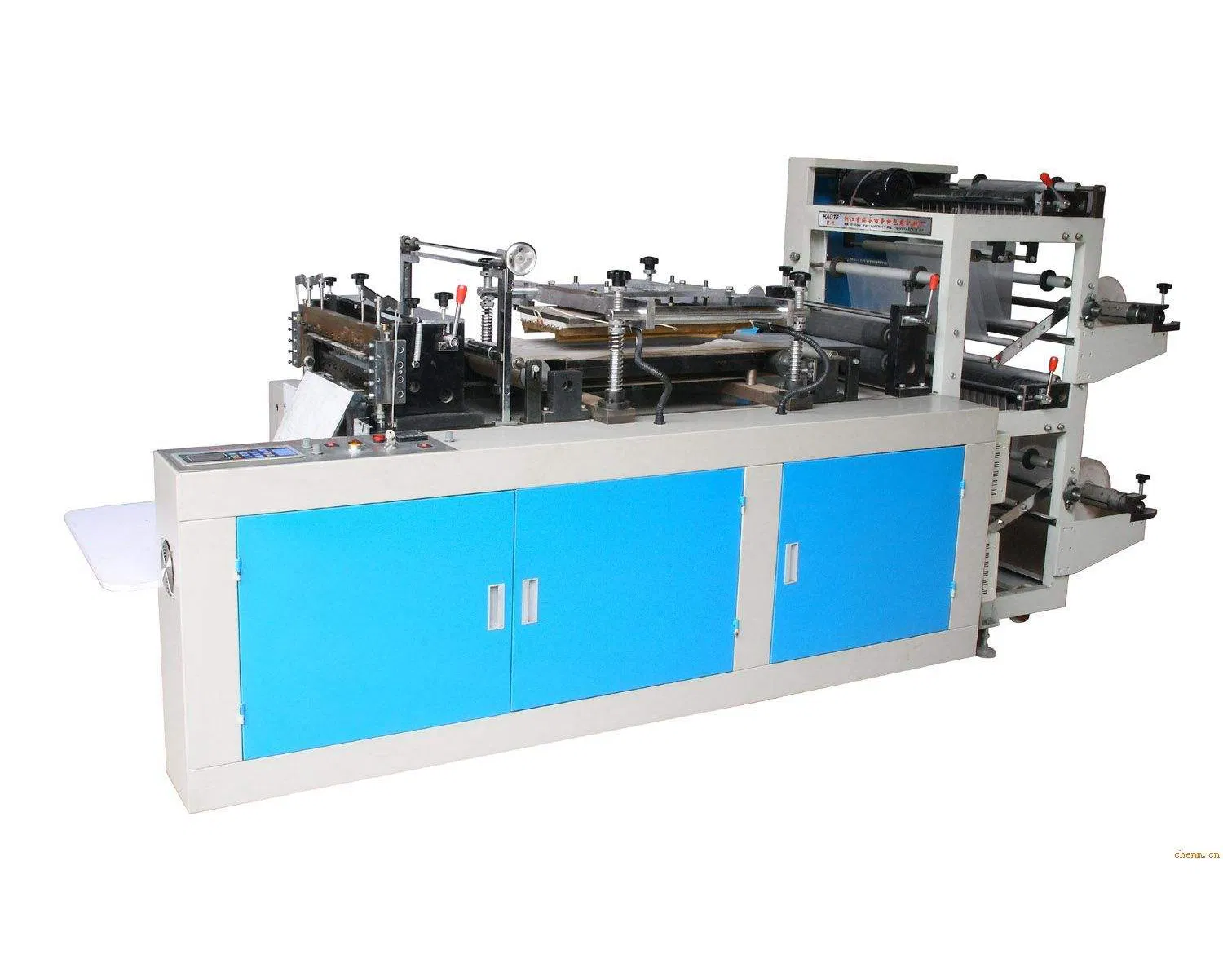

Automatic Computer Control Double Layer PE One Time Use Surgical Hospital Hand Gloves Making Machine
High speed Automatic Computer Control Double Layer PE Disposable Plastic Glove making Machine Main Feature:1.This machine is controlled by computer and driven by AC servo motor. It has beautiful and durable edge sealing with fast and stable speed.2.For medical, food cutting has a unique advantage.It......
Send Inquiry
Product Description
High speed Automatic Computer Control Double Layer PE Disposable Plastic Glove making Machine
Main Feature:
1.This machine is controlled by computer and driven by AC servo motor. It has beautiful and durable edge sealing with fast and stable speed.
2.For medical, food cutting has a unique advantage.It is a kind of high efficiency, high precision, high stability of the processing equipment for the reel glove.
3.Heavy cutter design, high cutting precision; Long service life .
4.Touch computer control interface, beautiful and convenient. Reasonable design.
5.The servo system of this machine controls the operation of the machine, easy to operate,
6.free setting cutting length, cutting precision, the discharge stack neatly.
Technical parameter
Model | STJ-400 |
Maximum unwinding diameter | 600mm |
Maximum cutting speed | 50-200PCS*2 lanes |
Bag width | 200-250mm |
Bag length | 200-280mm |
Film thickness | 0.008-0.02mm |
Power | 4.8Kw |
Overall dimension | 3000×1050×1850mm |
Total weight | 1000Kg |
Main Electric Parts Configuration:
PLC | MCGS,CHINA |
Servo motor | HIRDEN,NINGO |
Servo driver | HIRDEN,NINGO |
Inverter | INSTAR,SHENZHEN |
HMI | MCGS,CHINA |
Sensor | SICK, GERMANY |
Contactor | CHINT,CHINA |
Intermediate | CHINT,CHINA |
emergency switch | CHINT,CHINA |
Cylinder | CHINT,CHINA |
Machine Main Configuration:
After feeding traction motor | 0.75KW Three-phase inverter motor 2pcs+ 1.5Kw Inverter |
Main rubber roller motor | 2.2kw servo motor+driver |
Main motor | 1.5KW +1.5KW Inverter |
Glove mold | Cooper material, 2PCS |
Cold cutting knife | 550mm Alloy steel |
Electrostatic elimination system | Electrostatic eliminator + electrostatic rod |
traction system | Double curtain traction, each equipped with one unit rubber roller and motor on top and down layer |
Feeding frame | Upper and lower feeding rack, manual feeding material, Mechanical shaft, friction tension |
Guide roll | Aluminum roll 40MM |
Rubber roller diameter | 80MM |
Conveyor table | Micro motor control |
Others | Aluminum tube hard oxidation, surface plating white |
