Automatic Non Woven Bag,Shopping Bag,T Shirt Bag, D Cut Bag,Recyclable Bag,Paper Bag,Supermarket Bag,Eco Friendly Bag,W Cut Bag,Shoes Bag Making Machine ( B700 )
Product DescriptionZX-JD260 Multi-functional Paper Bag Making Machine Bag SamplesProduct Introduction:Full automatic high speed paper bag making machine use primary color rolling paper or printed rolling paper such as kraft paper, striped brown paper, slick paper, food coated paper,medico paper and ......
Send Inquiry
Product Description

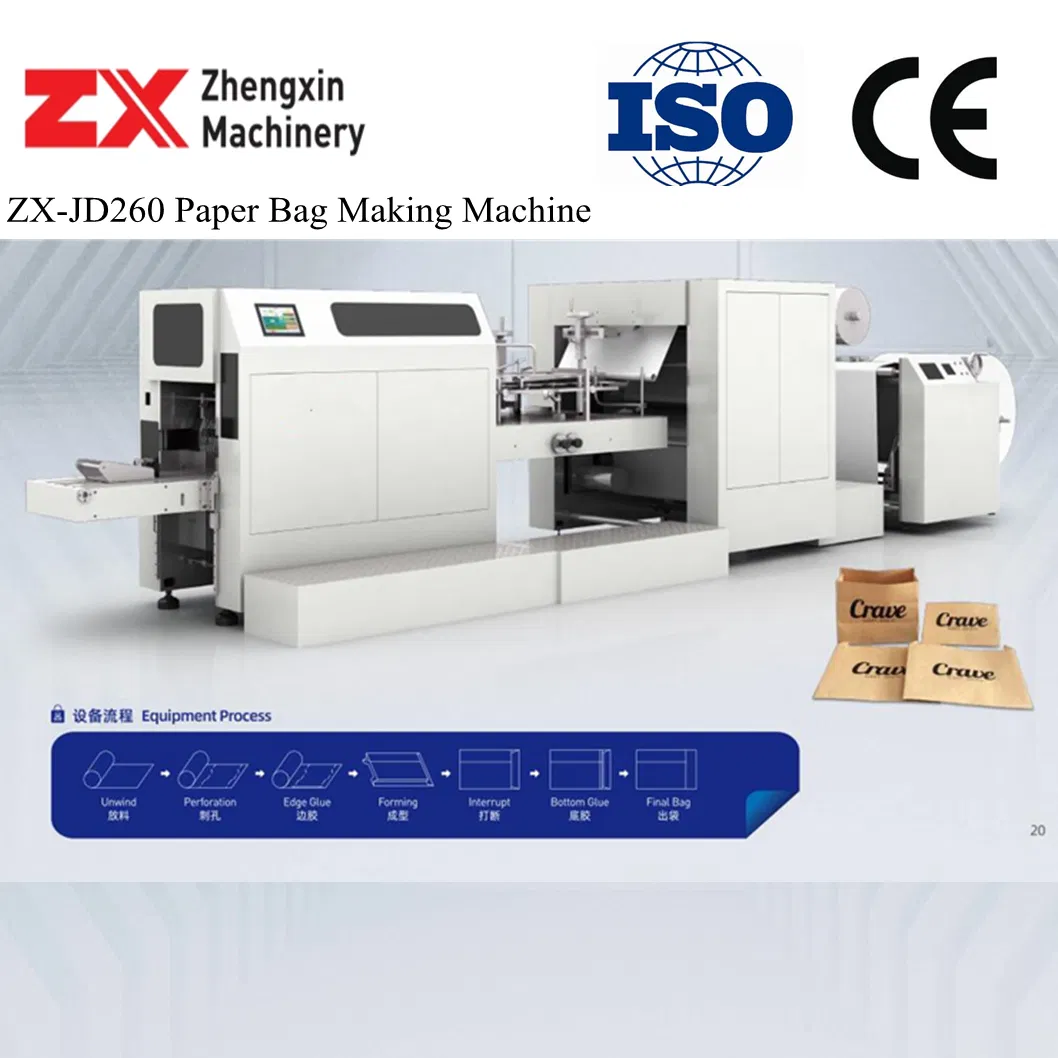

ZX-JD260 Multi-functional Paper Bag Making Machine

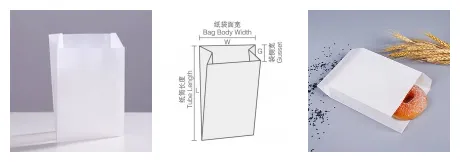

Bag Samples
Product Introduction:Full automatic high speed paper bag making machine use primary color rolling paper or printed rolling paper such as kraft paper, striped brown paper, slick paper, food coated paper,medico paper and SO on, bag making process consist of puncture, side gluing, sidefolding, bag forming, cut off, bottom folding, bottom gluing, finish product delivered in onetime. Our machine have advantage of easy operation, high effeciency, more steady, it is an idealmachine for make differnt kind of paper bag, snack food paper bag, bread paper bag, dry fruitpaper bag and environment friendly paper bag.
Full automatic high speed paper bag making machine use primary color rolling paper or printed rolling paper such as kraft paper, striped brown paper, slick paper, food coated paper,medico paper and SO on, bag making process consist of puncture, side gluing, sidefolding, bag forming, cut off, bottom folding, bottom gluing, finish product delivered in onetime. Our machine have advantage of easy operation, high effeciency, more steady, it is an idealmachine for make differnt kind of paper bag, snack food paper bag, bread paper bag, dry fruitpaper bag and environment friendly paper bag.

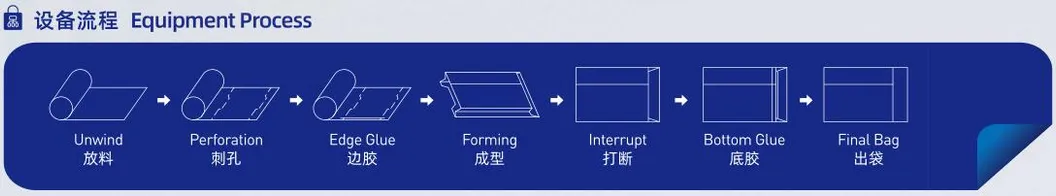

Production Flow:
Features:
1 The man-machine interface of Weilun touch screen is adopted, the operation function is clear at a glance, easy to control
2 Adopt the Japanese original Mitsubishi motion controller, through the integration with the optical fiber, operation stability
3 Japanese Mitsubishi servo motor with German Schick color standard eye correction, accurate tracking printing bag size
4 The loading and unloading of raw material adopts hydraulic dynamic lifting structure, and the unwinding adopts automatic constant tension control
5 Brushless servo motor is used to correct the deviation of raw material and reduce the adjustment time of paper roll alignment
Main Technical Variables:
| Model | XL-JD260 | |
| Cutting Length | 110-460mm | |
| Bag length (L) | 100-450mm | |
| Bag width(W) | 70-250mm | |
| Insert size(G) | 20-120mm | |
| Ladder height | 15/20mm | |
| Paper bag speed | 30-300pcs/min | |
| Paper width | 160-780mm | |
| Maximum diameter of paper material | 1000mm | |
| Inner diameter of paper | 76mm | |
| Paper thickness | 35-80g/m2 | |
| Working gas | >=0.12m³/min,0.5-0.8mpa | |
| Power | 380v 3phase 4line 24kw | |
| Total weight | 4500kg | |
| outline | 7100*3000*2200mm | |
About Us
Zhejiang Zhengxin Machinery Co.,Ltd located in the seashore city of Wenzhou Pingyang.The company is a technology-based enterprise with technical strength and economic power.The main production is automatic non woven bag making machine,non woven fabric printing machine,non woven cross cutting machine,non woven slitting machine and non woven bag handle hot sealing machine etc. Equipment of non woven bag machinery completed.We have a group of middle and senior technical personnel and strong technical force,with design,development,production,installation,service integrity of operating system and passed the ISO9001 quality system certification and CE international safety certification
Packing&Delivery:
Our Exhibitons:
Passionate Team :
Ceritifications:
Q:How long will your engineer reach our factory?
A:Within one week after machine arrival your factory.Q: How many days will you finish installing ?
A:We will finish installation and training within 15days.
Q: What should we charge for your engineer?
A:You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 80USD one day per person.
Q: How long is your machine's warranty period?
A:All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A:We also can do service for you, but you need pay salary for my technician 80USD/day.
Q:How could we do if the parts broken within warranty?
A:We would express the free replacement parts during the warranty date.
Q: Does your engineer understand English?
A:Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
Q:Can you help us find any engineer in our location?
A:Of course, we will check and inform you as soon as possible.
Q:How do we solve the machine problem after your engineer leaving?
A:Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.
Q: How many worker do we need running those machines?
A:Except Two for bag making machine, flexo printing, slitting, ultrasonic sewing, hydraulic punching machine only need one person for each.
