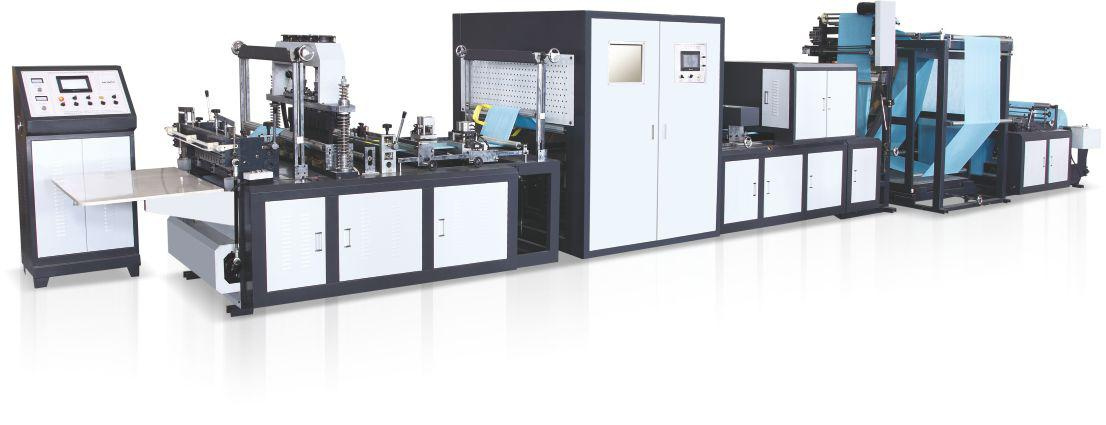

Automatic Non Woven Fabric Bag Making Machine
Fully automatic non woven box shopping bag with multi functionApplication:This machine can fully automatic make non woven bag products with different bag type and size, as handle attached bags, box bag,T-shirt bags (vest bags), flat bags, drawstring bags and so on. It has widely used in clothing, fo......
Send Inquiry
Product Description
Fully automatic non woven box shopping bag with multi function
Application:
This machine can fully automatic make non woven bag products with different bag type and size, as handle attached bags, box bag,T-shirt bags (vest bags), flat bags, drawstring bags and so on. It has widely used in clothing, footwear, wine, gifts packaging etc. The speed is about 20-120 pcs/min, it equals to 5 workers operating 5 handle sealing machines.
Feature:
1. This machine adopts Taiwan touch screen computer display, PLC computer program which can be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating controller.
5. This machine has the function of automatic punching.
6. Unwinding magnetic powder tension control with manual, Auto side-correction control.
7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate, firm sealing, beautiful and decent.
Type of bags:
1. Handle Loop Bag (Directly do handle bag)
2. T-shirt Bag, Vest Bag (U-cut, W-cut)
3. Flat Bag (D-cut Bag)
4. Flat Bag with Bottom gusset
5. Box Bag
Speicification:
Bag Sample:
Certification:
Our company:
Workshop:
CNC facility:
Packing and shipping:
Exhibition:
Application:This machine can fully automatic make non woven bag products with different bag type and size, as handle attached bags, box bag,T-shirt bags (vest bags), flat bags, drawstring bags and so on. It has widely used in clothing, footwear, wine, gifts packaging etc. The speed is about 20-120 pcs/min, it equals to 5 workers operating 5 handle sealing machines.
Feature:
1. This machine adopts Taiwan touch screen computer display, PLC computer program which can be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating controller.
5. This machine has the function of automatic punching.
6. Unwinding magnetic powder tension control with manual, Auto side-correction control.
7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate, firm sealing, beautiful and decent.
Type of bags:
1. Handle Loop Bag (Directly do handle bag)
2. T-shirt Bag, Vest Bag (U-cut, W-cut)
3. Flat Bag (D-cut Bag)
4. Flat Bag with Bottom gusset
5. Box Bag
Speicification:
| Model | WF-600D | WF-700D | WF-800D |
| Material thickness | 30-100gsm | 30-100gsm | 30-100gsm |
| Max bag width | 500mm | 600mm | 700mm |
| Max bag length | 800mm | 800mm | 800mm |
| Max T-shirt bag width | 220-500mm | 220-500mm | 220-500mm |
| Bag making Speed | 120 pcs/min | 120 pcs/min | 120 pcs/min |
| Handle bag speed | 70 pcs/min | 70 pcs/min | 70 pcs/min |
| Power | 18kw | 18kw | 18kw |
| Weight | 3800kg | 4000kg | 4200kg |
| Supply voltage | 220V,50HZ | 220V,50HZ | 220V,50HZ |
| Overall Dimension | 10300×2000×2100mm | 10300×2100×2100mm | 10300×2200×2100mm |

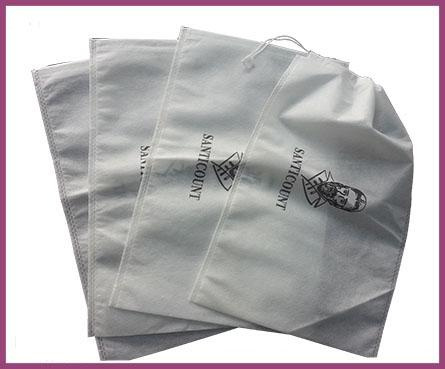

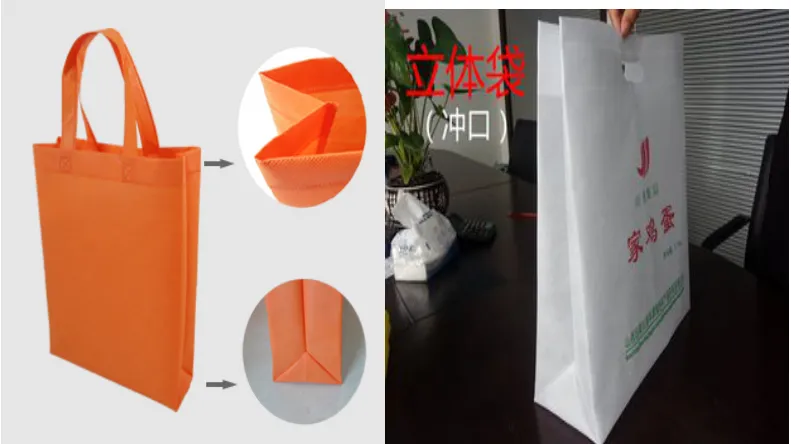

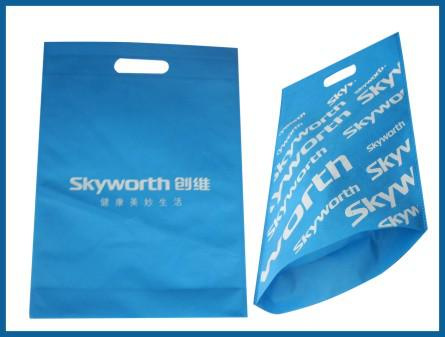

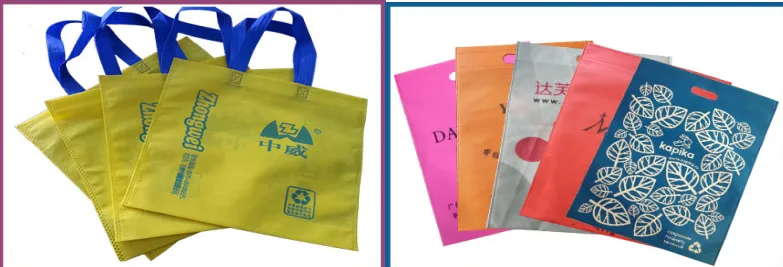

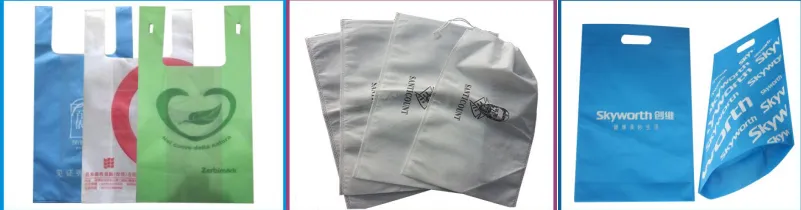

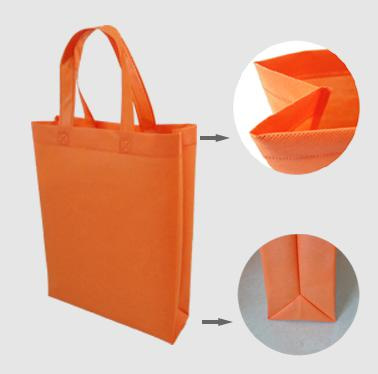

Bag Sample:
Certification:

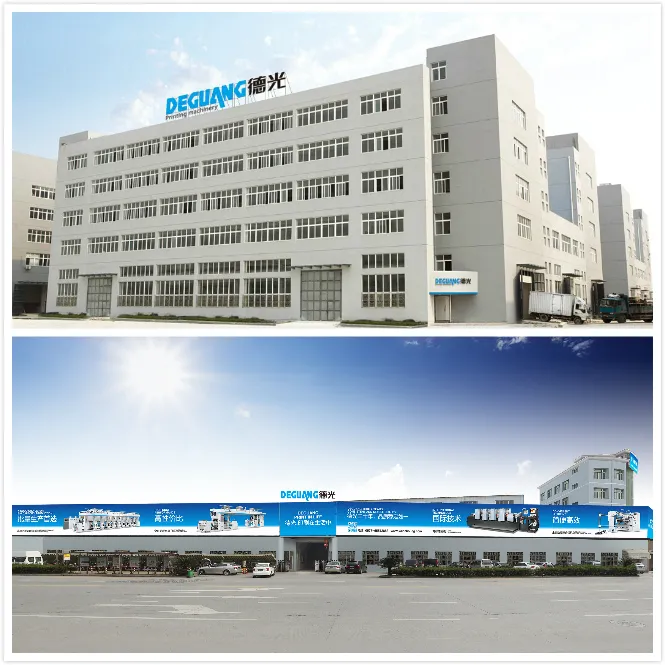

Our company:
Workshop:

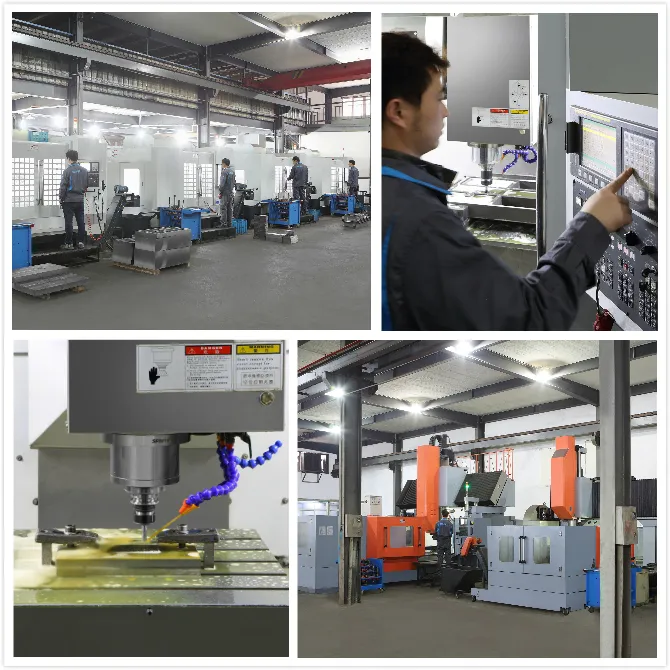

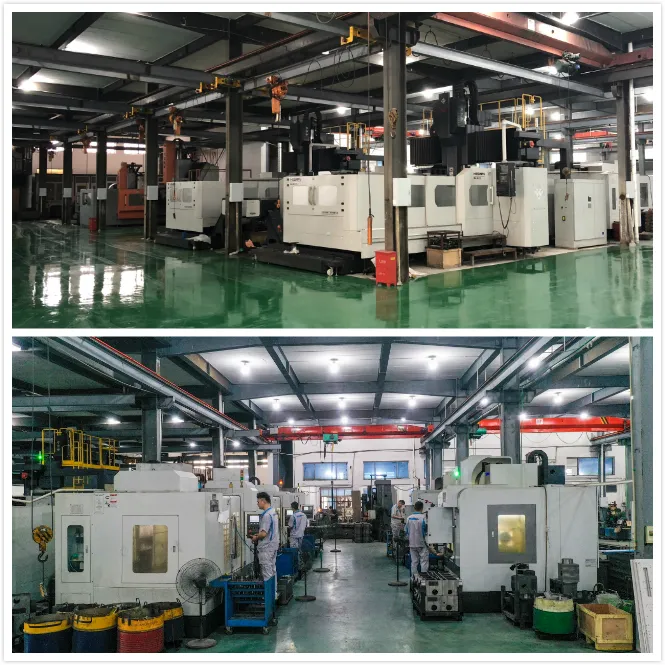

CNC facility:

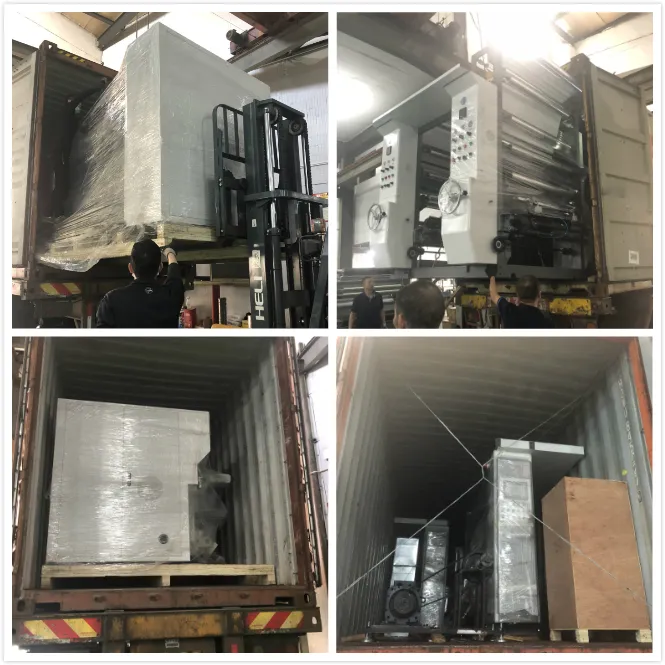

Packing and shipping:
Exhibition:
