Automatic Non Woven Handle Bag Making Machine with Side Gusset and Bottom Gusset
Product introduction:This machine is suitable for non woven fabric material only, it is the most advanced equipment and has the function of full automatic handle loop sealing. The speed is about 20-120 pcs/min, loop Handle bag making speed is 20-70pcs/min, it equals to 6 workers operating 6 handle s......
Send Inquiry
Product Description
This machine is suitable for non woven fabric material only, it is the most advanced equipment and has the function of full automatic handle loop sealing. The speed is about 20-120 pcs/min, loop Handle bag making speed is 20-70pcs/min, it equals to 6 workers operating 6 handle sealing machines. It can fully automatic make non woven bag products with different bag type and size, as loop handle bags, T-shirt bags (vest bags), box bags, flat bags, draw string bags and so on. It has widely used in clothing, footwear, wine, gifts packaging etc. The machine can instead of the traditional hand-sewing and reducing labor and manufacturing costs. It's very popular in worldwide.
Featrues:
1. This machine adopts Taiwan touch screen (Weinview, Taiwan), and Weinview, Taiwan PLC the program which can be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating controller.
5. This machine has the function of automatic punching.
6. Unwinding magnetic powder tension control with manual, Auto side-correction control.
7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate, firm sealing, beautiful and decent.
Main parameters:
| Non Woven Bag Making Machine Type | YE-DC700 | YE-DC800 |
| Production Speed | 20-120pcs/min Loop handle bag (70pcs/min) | |
| Bag Width | 100-800mm | 100-800mm |
| Bag Length | 200-600mm | 200-700mm |
| Bag-Making Thickness | 30-120g | 30-120g |
| Material web width | 50-1250mm | 50-1450mm |
| Power Supply | 380V/220V | 380V/220V |
| Total Power | 18KW | 20KW |
| Overall Dimension (L*W*H) | 13.5m*2.1m*2.5m | 13.5m*2.3m*2.5m |
| Weight | 2500KG | 2700KG |

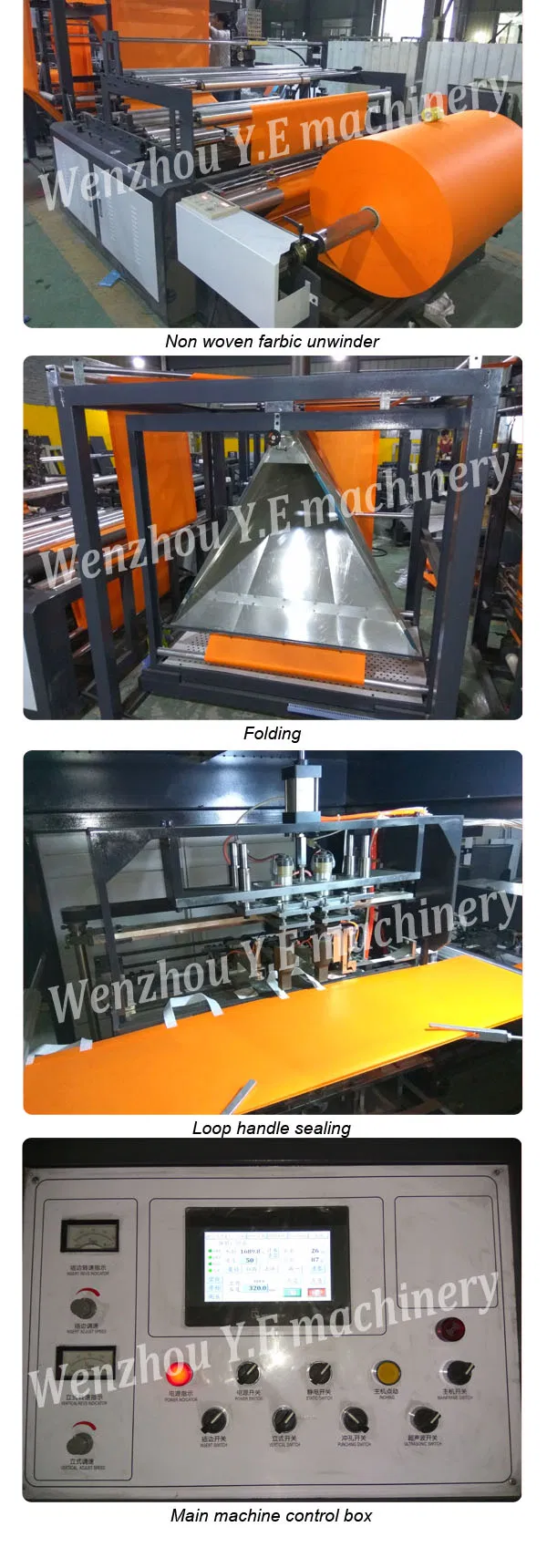

Detail of the machine:

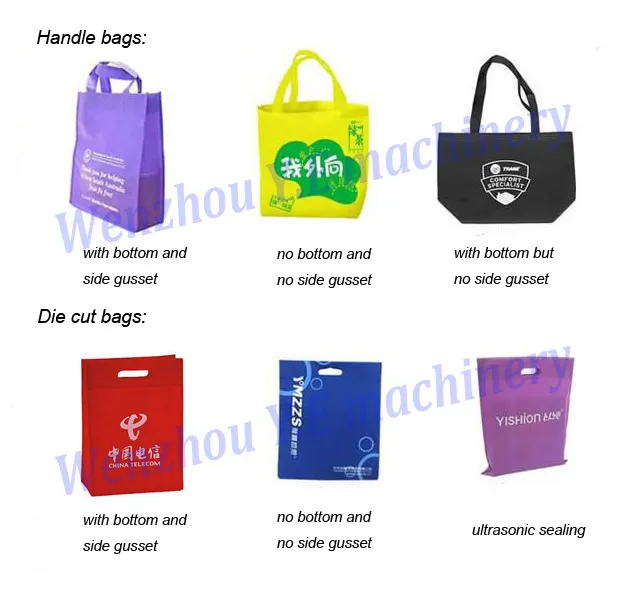

Sample:
