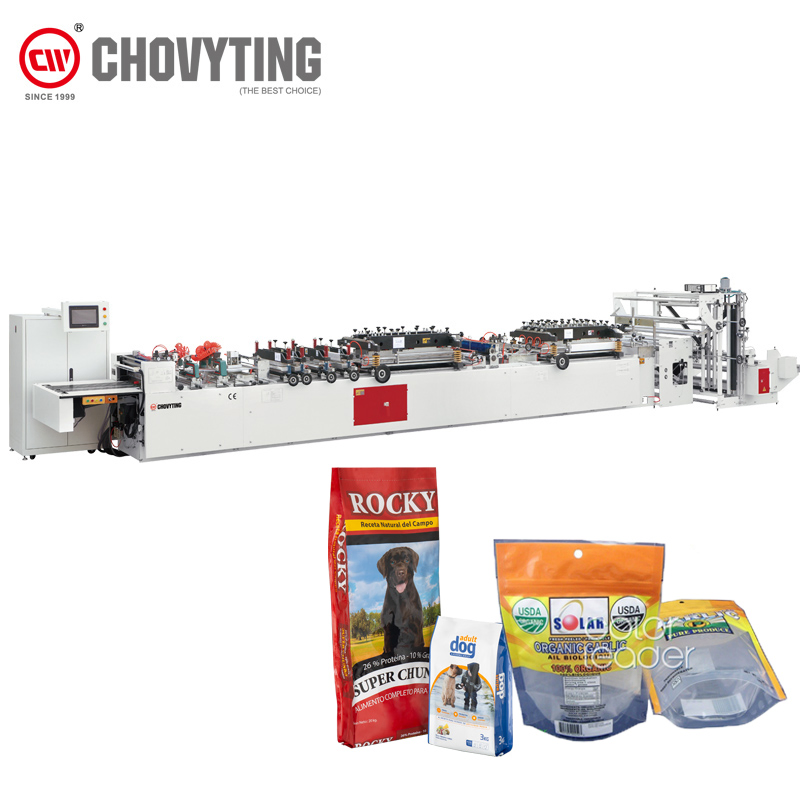

Automatic Stand up Pouch Bag Making Machine Doypack with Zipper Bag Making Machine
Brief Introduction:Heavy duty laminated bag making machine,is used for producing various kinds of lamianted pouch,such as three side sealing bag ,stand up bag,zipper bag in one machine.Features:1.All of the parameter display by CRT2.It has EPC and double photocell for unwinding3.It has centralized ......
Send Inquiry
Product Description
Brief Introduction:
Heavy duty laminated bag making machine,is used for producing various kinds of lamianted pouch,such as three side sealing bag ,stand up bag,zipper bag in one machine.
Features:
1.All of the parameter display by CRT
2.It has EPC and double photocell for unwinding
3.It has centralized oil adding for every lubrication points
4.Super length has 6 times feeding design
5.Automatic waste rewinding unit *1pcs
6.Notch punch *1pcs
Optional device:
1.Double unwind
2.Euro hole punch
3.Air hole punch
Technical data:
Packing & Loading:
About us:
How the order process:
Heavy duty laminated bag making machine,is used for producing various kinds of lamianted pouch,such as three side sealing bag ,stand up bag,zipper bag in one machine.
Features:
1.All of the parameter display by CRT
2.It has EPC and double photocell for unwinding
3.It has centralized oil adding for every lubrication points
4.Super length has 6 times feeding design
5.Automatic waste rewinding unit *1pcs
6.Notch punch *1pcs
Optional device:
1.Double unwind
2.Euro hole punch
3.Air hole punch
Technical data:
| Model | CWZD-600B | CWZD-500B | CWZD-400B |
| Bag type | 3 side sealing pouch, 3 side sealing zipper pouch, zipper sealing stand up pouch, | 3 side sealing pouch, 3 side sealing zipper pouch, zipper sealing stand up pouch, | 3 side sealing pouch, 3 side sealing zipper pouch, zipper sealing stand up pouch |
| Unwind width | 1200mm | 1000mm | 800mm |
| Pouch length | 70-350mm*N(N≤6) | 70-350mm*N(N≤6) | 70-350mm*N(N≤6) |
| Pouch width | 80-580mm | 80-480mm | 80-380mm |
| Speed | 40-170pcs/min | 40-170pcs/min | 40-170pcs/min |
