BOPP Bread Bag Making Machinery with Bottom Gusset
RFQZ Series Heat Sealing and Cutting Machine(Side sealing machine)Use: This machine is suitable for the making garment bag, sock bag, towel bag, bread bag, underwear bag, stationery bag and so on. Processed The Material: BOPP, PP, PE, PVC, etc. The Function and Characteristic: 1. Microcomputer contr......
Send Inquiry
Product Description

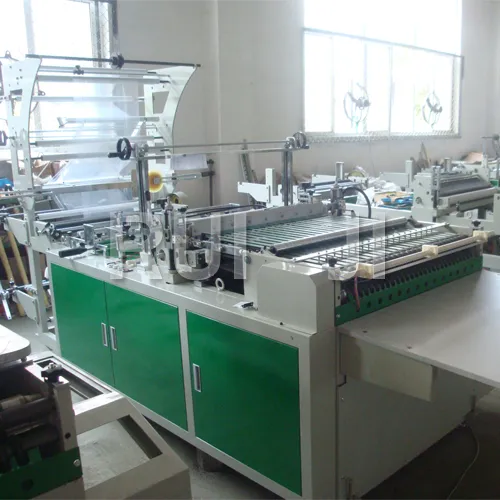

RFQZ Series Heat Sealing and Cutting Machine(Side sealing machine)
Use:
This machine is suitable for the making garment bag, sock bag, towel bag, bread bag, underwear bag, stationery bag and so on.
Processed The Material:
BOPP, PP, PE, PVC, etc.
The Function and Characteristic:
1. Microcomputer control machine, stepping motor (or servo motor) control film feeding,
2. Computer control length, Accurate and stable photocell tracking, Stop automatically when losing the tracking.
3. Auto counting and auto giving an alarm. Also could set auto stop working.
3. The automatic computation and to assigns quantity warning.
4. Lace heat-sealing; Automatic punching; Automatic gluing.
5. Cylinder material hatch. Bottom gusset. Pillow facility.
6. Optional facility: 1). EPC 2). Ultrasonic facility, etc. (Adding by your requirement)
Main Technical Parameters:
REMARKS: The Min. Width of bag are according your dimension, but Pls note in the contract.
More information about our Machine, pls contact us.
Web: HTTP: //www. Zjrarj. COM

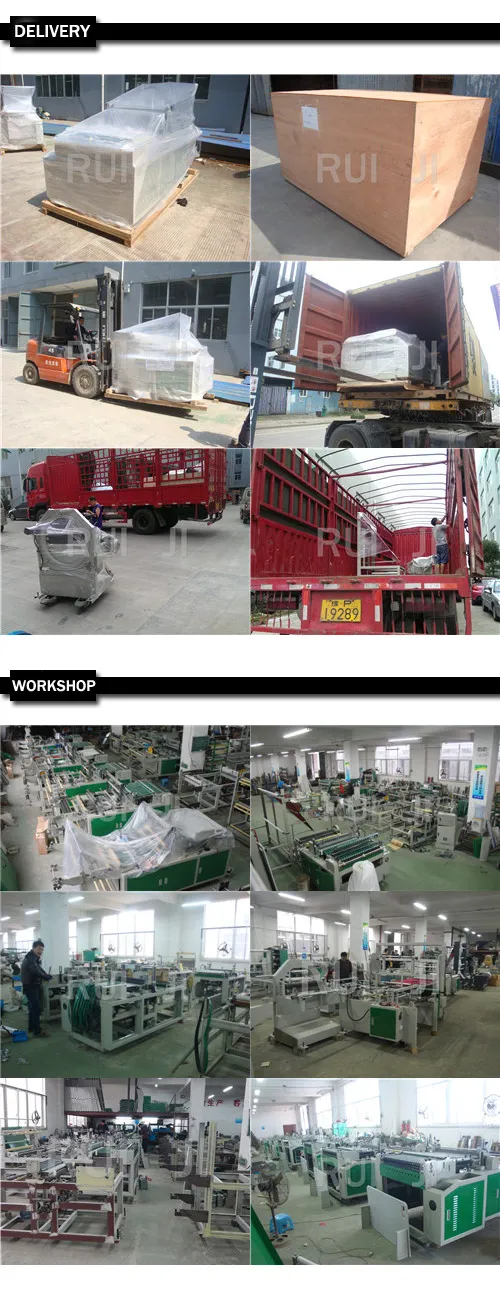

Packaging & Delivery
1. Packaging Details: Wooden pallet or plastic film(If need, Fumigation wooden case as option
2. Delivery Detail: 15-25 days after receiving order deposit
3. Port: Ningbo port
RFQ
1. Where is your factory Located
Our Factory Located in Ruian City, Zhejiang Province, China.
It is about 40minutes by plane from Shanghai, about 5 hours by train from
Shanghai.
We are pleasured to pick up you when you arrived.
2. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary.
3. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
4. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 80USD/day.
5. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
THANKS FOR YOUR READING.
Use:
This machine is suitable for the making garment bag, sock bag, towel bag, bread bag, underwear bag, stationery bag and so on.
Processed The Material:
BOPP, PP, PE, PVC, etc.
The Function and Characteristic:
1. Microcomputer control machine, stepping motor (or servo motor) control film feeding,
2. Computer control length, Accurate and stable photocell tracking, Stop automatically when losing the tracking.
3. Auto counting and auto giving an alarm. Also could set auto stop working.
3. The automatic computation and to assigns quantity warning.
4. Lace heat-sealing; Automatic punching; Automatic gluing.
5. Cylinder material hatch. Bottom gusset. Pillow facility.
6. Optional facility: 1). EPC 2). Ultrasonic facility, etc. (Adding by your requirement)
Main Technical Parameters:
| Model | RFQ-400 | RFQ-500 | RFQ-600 | RFQ-700 | RFQ-800 | RFQ-900 | |||||
| Length of finished product | 30-380 | 30-480 | 60-580 | 70-680 | 80-780 | 90-880 | |||||
| Width of finished product | 25-500 | 45-600 | 50-600 | 50-600 | 55-600 | 60-600 | |||||
| Speed of Bag-making | 30-240 | ||||||||||
| Accuracy of finished product | ±0.3 | ||||||||||
| Total power | 3.5 | 3.5 | 4 | 4.5 | 5 | 6 | |||||
| Weight | 600 | 700 | 800 | 900 | 1000 | 1100 | |||||
| Dimension (mm) | Length | 3500 | 3500 | 3500 | 3500 | 4000 | 4000 | ||||
| Width | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | |||||
| Height | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 | |||||
| Model | RFQ-1000 | RFQ-1100 | RFQ-1200 | RFQ-1300 | RFQ-1400 | RFQ-1500 | |
| Length of finished product(mm) | 90-980 | 90-1080 | 90-1180 | 90-1280 | 90-1380 | 90-1480 | |
| Width of finished product(mm) | 80-700 | ||||||
| Speed of Bag-making (PCS/min) 1 | 30-180 | ||||||
| Accuracy of finished product(mm) | ±0.3 | ||||||
| Total power(kw) | 7.5 | 8.0 | 8.5 | 9.0 | 9.5 | 10 | |
| Weight(kg) | 1200 | 1250 | 1300 | 1350 | 1400 | 1450 | |
Overall dimension(mm) | Length | 4000 | |||||
| Width | 1500 | 1600 | 1700 | 1800 | 1900 | 2000 | |
| Height | 1760 | ||||||
More information about our Machine, pls contact us.
Web: HTTP: //www. Zjrarj. COM
Packaging & Delivery
1. Packaging Details: Wooden pallet or plastic film(If need, Fumigation wooden case as option
2. Delivery Detail: 15-25 days after receiving order deposit
3. Port: Ningbo port
RFQ
1. Where is your factory Located
Our Factory Located in Ruian City, Zhejiang Province, China.
It is about 40minutes by plane from Shanghai, about 5 hours by train from
Shanghai.
We are pleasured to pick up you when you arrived.
2. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary.
3. How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
4. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 80USD/day.
5. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
THANKS FOR YOUR READING.
