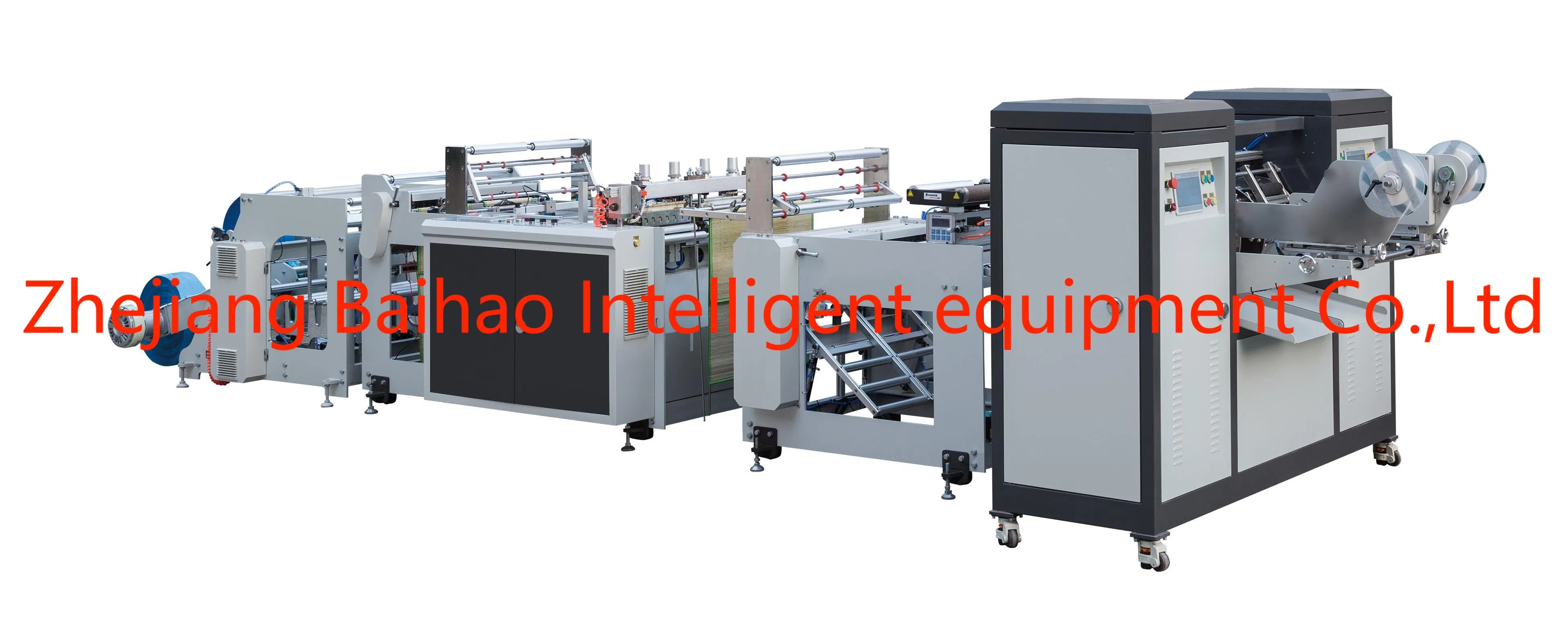

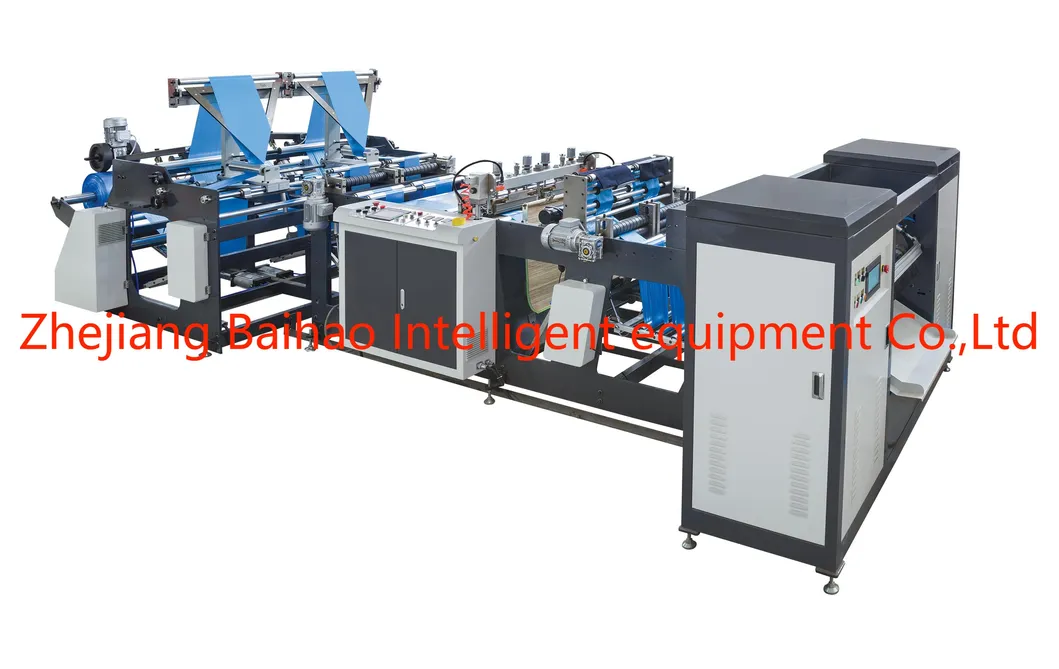

Double Line High Speed Bio T-Shirt Plastic Bag Making Machine

Product Description

Product Description:

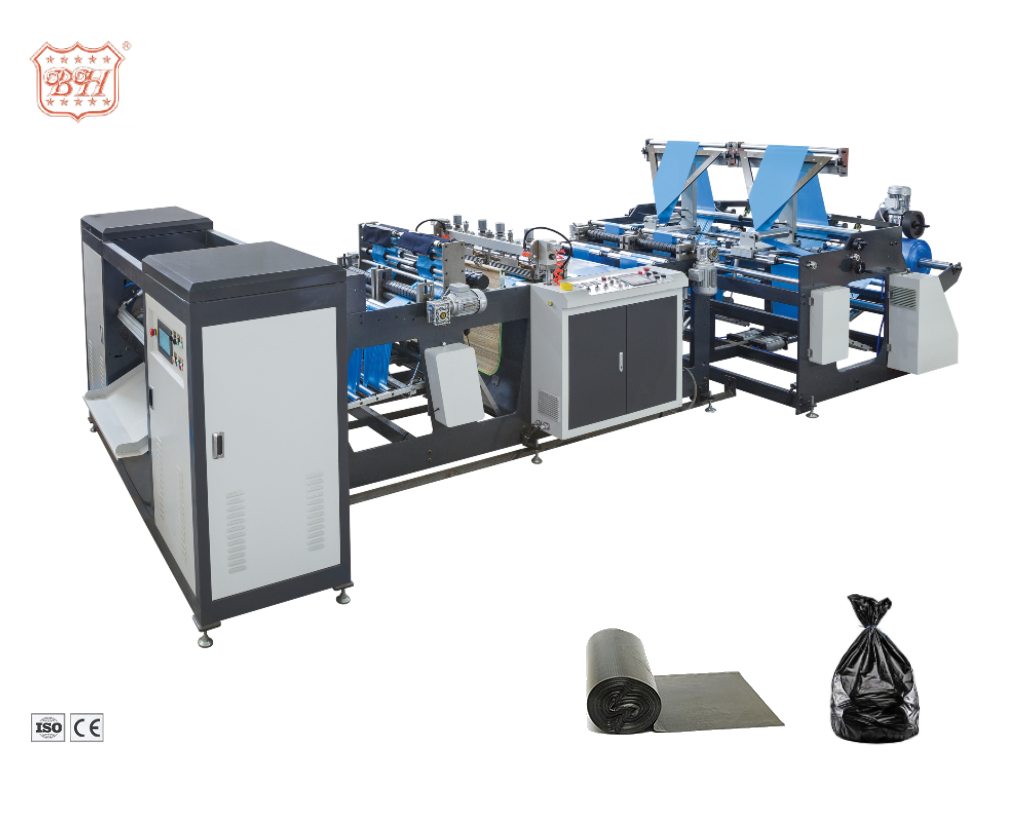

Double Line High Speed Bio T-Shirt Plastic Bag Making Machine

APPLICATION

These machines are heat sealing and heat cutting bag making machine, which are suit for printing and non-printing bag making. The material of bag is HDPE, LDPE.

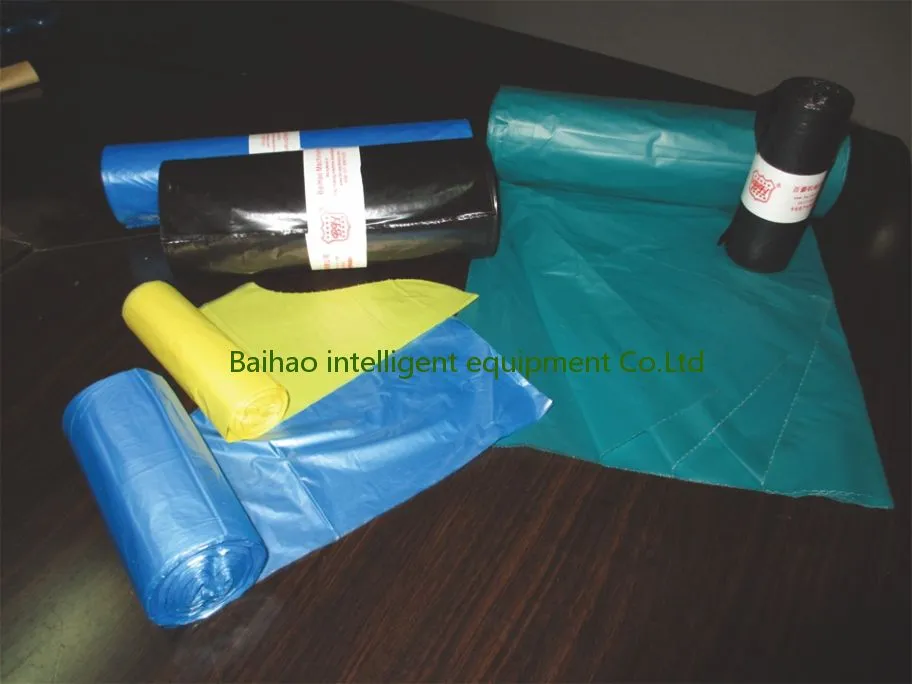

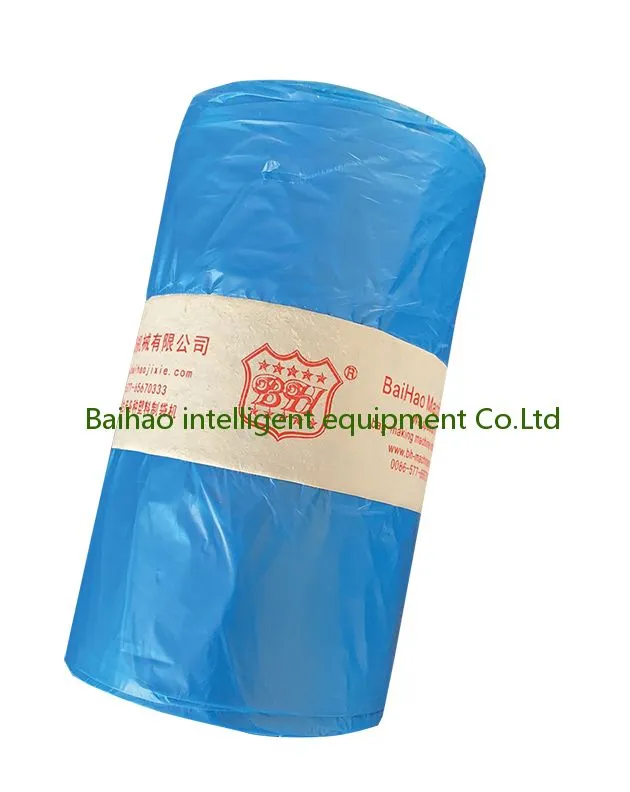

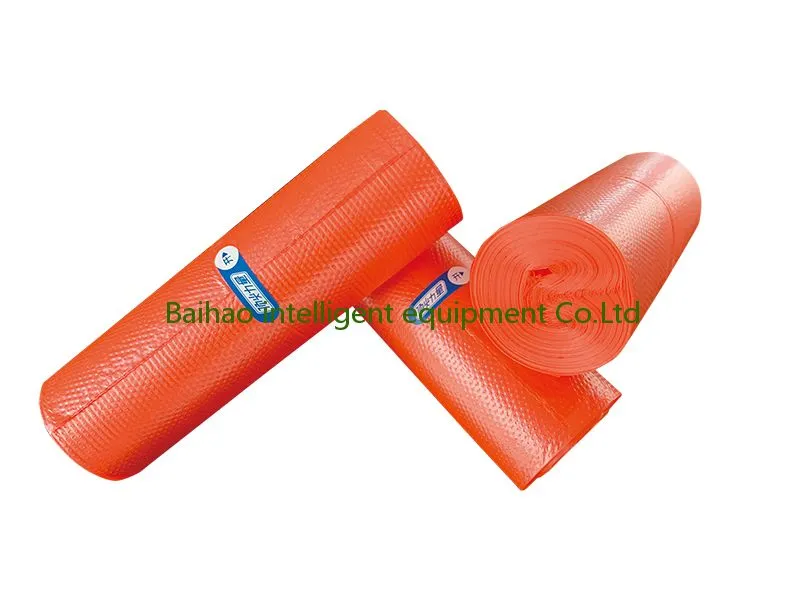

BL720B2-AR can make garbage bags in efficient production by automatically changing plastic rolls. The rewinder rolls are tight and in order.

TECHNICAL PARAMETER
Model	BL720B2-AR
Bag Roll Width	200mm - 500 mm
Bag Length	300mm - 1000 mm
Film thickness	10-35µm per layer
Production Speed	150-220pcs /min*2 Lines
Set Line Speed	80-120m/min
Film Unwind Diameter	Max. Φ900mm
Total Power	14KW
Air consumption	5HP
Machine Weight	2900KG
Machine Dimension	L6500W2400H1500mm

Feature and structure

1. Main control panel adopt touch screen Delta from Taiwan, high definition

2. The drive system of whole machine adopts PLC Microcomputer control (Single Chip control system ) on punch machine which integrate control of bag making part and punching part.

3. Set all function with one touch screen, simple and easy operation.

4. Machine will automatically stopped if film jammed which is detected by sensor

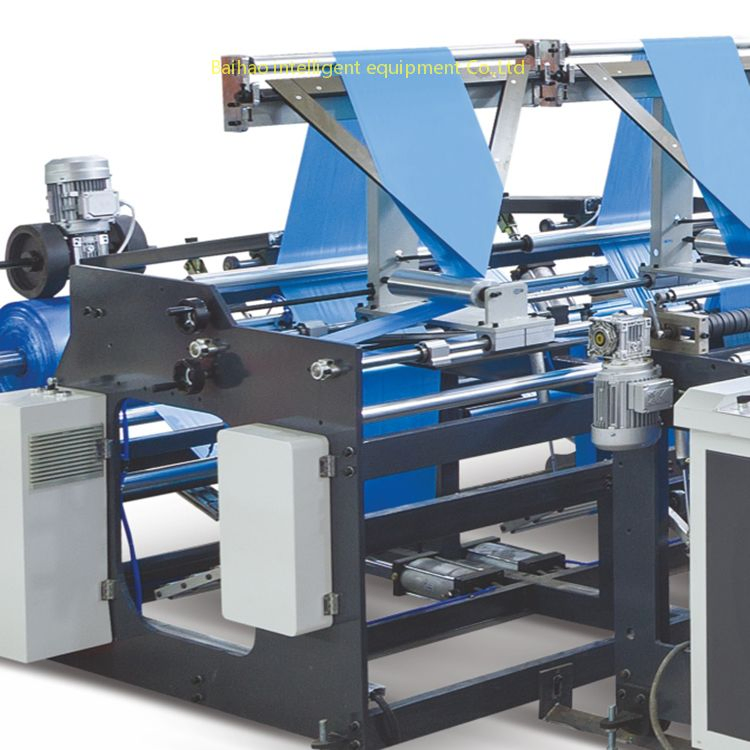

5. Independent winder part, high efficient unwind control; max diameter of single unwinding is 800mm; unwinding roller is choked by air shaft,

6. Automatic fold function and put on conveyor unit by unit.

7. Automatic stacks the bag and collects.

8. When the bags stack at the Set numerical, mechanical hands will automatically grab bags and machine will not stop.
on punch machine which integrate control of bag making part and punching part.
