Double Lines Gusset Shopping Garbage T-Shirt Bag Machine

Product Description

Double lines gusset shopping garbage t-shirt bag machine

Performance and Features:
This machine designed for T-shirt bags, with computer programming control system to set up the bag length and production rate,
full automatic to form bags in one time , keeping tidy and easy to be packed , improving the production efficiency . Double
sensitive electric eye for tracking print color ,double servo motor controlling . Invert er for speed adjusting, air blowing type
feeding for smoothly feeding , hydraulic push control for automatic puncher , collected waste centralized delivery, easy to
arrange, simple to operate, with the function of automatic shutdown when no feeding, feeding off or feeding-block.

Specifications:

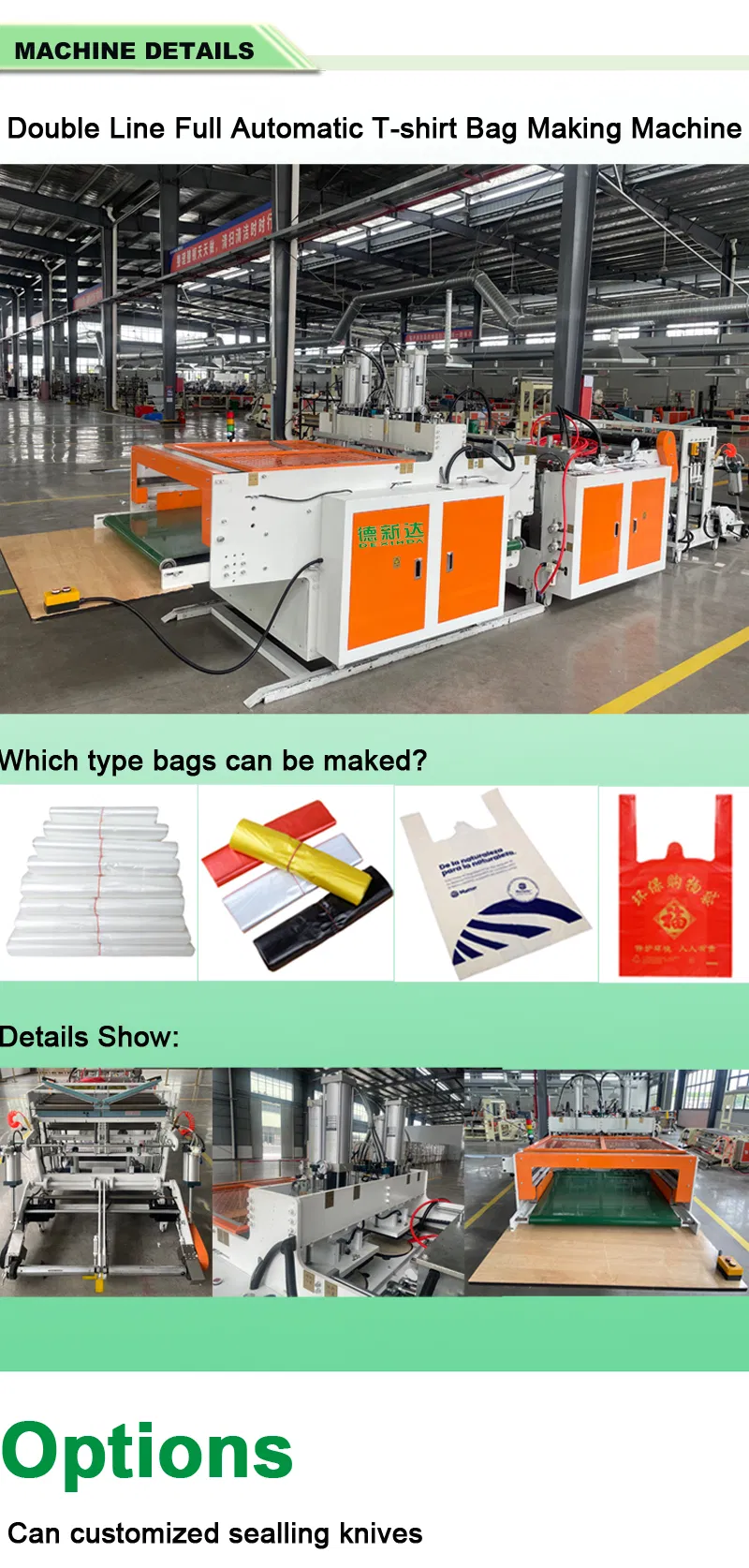

Double-line Full Automatic T-shirt Bag Making Machine Main Part
Model number	KSBX-450x2
Brand	Dexinda
Bag width	(200-400 mm)x2
Bag length	230-650 mm
Bag thickness	0.015-0.15mm
Bag making speed	(50-400)x2 pcs/min(PO);(50-250)x2 pcs/min(biodegradable material)
Total power	18 kW
Machine size	3500×1700×1400mm
Package Size(2 Packages)	2200×1700×1400mm
	1000×1700×1300mm
Weight	1500 kg
Power supply	3 PHASE 380V 50HZ
1) Body structure: 1 group of 12 thick steel plates
2) The simulated feeding motor is 2 sets 4-stage three-phase asynchronous motors of 0.75KW
3) Polyurethane feeding cots and feeding cots 450×2 group
4) Four temperature control modules detect one temperature
5) Germany Scheck refractive photoelectric 6 pcs
6) Taiwan Yangming brand proximity switch 5 pcs
7) Taiwan Yangming solid state relay and heat sink 40A 6 pcs
8) Germany schecker color standard photoelectric 2 pcs
9) 1 set 7-inch touch-screen display
10) One 64-bit Zefu 2016 computer controller
11) 1 set of Xingchen and Kuangxin pneumatic equipment
12) 2 sets of blade heating and cloth rolling device
13) 2 sets of living knife holders
14) 1 set of relay blowing device
15) 2 sets of charging device of Taiwan brand fan
16) 2 sets of adjustable sprocket structure for hot and cold needle
17) Zefu servo motor active feeding brake device 2.3KW 2 sets
18) 2 pcs air expansion axes
19) The feeding motor frequency converter is Taiwan Shilin frequency converter 0.75KW 2 sets
20) Cots feed for Zefu servo motor and servo amplifier 3.7KW 2 sets
21) The main motor is Zefu servo motor and a servo amplifier set of 3.7KW 1 set
22) One automatic lubrication pump
23) High-speed advance search function

Punching Part
Model number	WCJX-450x2 PPVB
Brand	Dexinda
Punching speed	4-8 times / minute
Atmospheric pressure	0.4-0.6Mpa
Total power	2.1 kW
Power supply	220V 50Hz
Weight	1000 kg
Size	3000×1700×1800mm
Package Size	2300×1700×1800mm
1) Body structure: 1 group of 14 thick steel plates
2) 1 group of material combination
3) Brush combination 1 group
4) One single phase motor with fixed speed of 200W for the conveyor belt
5) The speed of the material handling motor can be adjusted to 60W 1 set
6) Taiwan Dalang pressurized cylinder 5T 2 sets
7) Manipulator independent cylinder control Φ 25×25 8 groups
8) Zefu servo motor drive 1.5KW 1 set
9) 2 sets of smoothing sponge devices
10) The stamping function is optional
11) The stamping time shall be adjusted independently
12) The punching rotary table can be rotated and moved laterally
13) 1 set of material transfer clip function
14) 2 sets of independent folding devices
15) The motor for the material clip conveyor belt is a single-phase fixed speed 25W 1 set
16) There are 3 single-phase rotary and transverse motors with fixed speed of 40W
