Fruit Juice Packaging Pouch Doypack Making Machine
Brief Introduction:Heavy duty laminated bag making machine,is used for producing various kinds of lamianted pouch,such as three side sealing bag ,zipper bag(zipper open in the bottom & zipper open in the mouth) in one machine.Optional functions:stand up bagWhole machine adopt 2pcs servo motors(......
Send Inquiry
Product Description
Heavy duty laminated bag making machine,is used for producing various kinds of lamianted pouch,
such as three side sealing bag ,zipper bag(zipper open in the bottom & zipper open in the mouth) in one machine.
Optional functions:stand up bag
Whole machine adopt 2pcs servo motors(Yaskawa Japan) and 1pcs PLC(Panasonic Japan).
Standard machine use AC motor and inverter control.
Optional is control by servo motor and reducer system.
Features:
1.All of the parameter display by CRT
2.It has EPC and double photocell for unwinding
3.It has centralized oil adding for every lubrication points
4.Super length has 6 times feeding design
5.Automatic waste rewinding unit *1pcs
6.Notch punch *1pcs
Optional device:
1.Double unwind
2.Euro hole punch
3.Air hole punch
4.Round corner punch system(including double cutting)
Technical data:
| Model | CWZD-600B | CWZD-500B | CWZD-400B |
| Bag type | 3 side sealing pouch, 3 side sealing zipper pouch, zipper sealing stand up pouch(Optional) | 3 side sealing pouch, 3 side sealing zipper pouch, zipper sealing stand up pouch(Optional) | 3 side sealing pouch, 3 side sealing zipper pouch, zipper sealing stand up pouch(Optional) |
| Unwind width | 1200mm | 1000mm | 800mm |
| Pouch length | 70-350mm*N(N≤6) | 70-350mm*N(N≤6) | 70-350mm*N(N≤6) |
| Pouch width | 80-580mm | 80-480mm | 80-380mm |
| Speed | 40-170pcs/min | 40-170pcs/min | 40-170pcs/min |
Packing & Loading:
About CHOVYTING company:
CHOVYTING is a Chinese Manufacturer of Plastic Bag Machinery for the Plastic Bag Manufacturing Industry since 1999.
We specialize in providing and developing equipment to produce machinery to meet your requirements.
We offer a standard line of plastic bag machinery as well as custom design capabilities to meet your exact requirements.
Sort by machine functions:

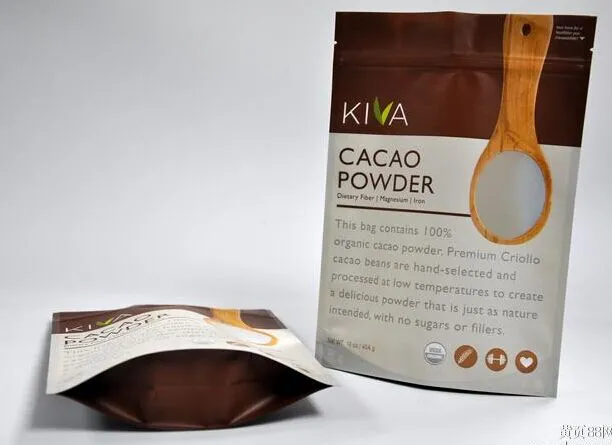

Sort by sample bags:
Our team and exhibition we attend:
See you in Exhibition: K SHOW , CHINAPLAS ,CARTON FAIR,PLASTI EURASIA ISTANBUL,NPE SHOW,Arabplast,MEXICO PLASTIMAGEN
Q & A:
Q1- Is your company a factory or a trading company?
A1- CHOVYTING is a factory
Q2- Where is your factory? How can i visit your company?
A2- CHOVYTING located in Ruian city,zhejiang province, China. Its about 40 minutes from shanghai by plane(4 hours by train). All our clients from home and abroad are warmly welcome to visit us.
Q3- What is the suitable material for your machines?
A3- PE, OPP, Composite material ,etc. Are suitable for CHOVYTING machines
Q4- What is type machines do you have ?
A4 - special for all of plastic bag making machine, like shopping bag, diaper bag, courier bag, stand up zipper pouch ,rolling garbage bag, bread bag, chicken bag etc...
Q5- How many years of your factory
A5- CHOVYTING MACHINERY setted up in 1999
Q6- What is certificate of machine do you have
A6- CE, ISO 2016, And more than 100 piece Patent of machine
Q7- What about your company The development of your company
A7- CHOVYTING Titled as "National key and new products" and Pass identification of the provincial new product; and honored as" patent model enterprise"
Q8- How many exhibition we took part in
A8- We start to took part in CHINAPLAS from 2008 to now,and also K show in German,NPE in America,Arabplast in Dubai,Plastic Eurasia in Turkey etc..
Q9- how many workers from your company
A9- CHOVYTING has more than 150 employees
Q10-what is size of your factory
Q10- CHOVYTING factory place have more than 10000 Square meters
How the order process:
