Full Automatic Double Lines High Speed T-Shirt Bag Supermarkert Shopping Bag Making Machine with Automatic Punching Machine
Full Automatic Double Lines High Speed T-shirt Bag Supermarkert Shopping Bag Making Machine with automatic punching machine1. Product Description Feature: 1. Especially designed for hot sealing and cutting of T-shirt bag. It can be punched automatically in two production lines which will increase th......
Send Inquiry
Product Description
Full Automatic Double Lines High Speed T-shirt Bag Supermarkert Shopping Bag Making Machine with automatic punching machine
1. Product Description
Feature:
1. Especially designed for hot sealing and cutting of T-shirt bag. It can be punched automatically in two production lines which will increase the production and save the manpower.
2. Double track designs, double production lines, double photo scanners, double servo motors.
3. Photocell for accurate registration of film printing points if the photocell can't catch printing point the machine will stop automatically.
4. Inverter control speed, easy operation, reduce electric consumption.
5. When the output bags reach the setting number, the punch machine will clamp the bags, without stop.
6. New designed sealing blade, when blade need be cleared up, it can be turned 100° And fixed. It will be safe and easy to take care.
7. Strong sealing and output bags being tear up neatly.
8. Punching machine use air and liquid pressurized cylinder, so the noise is low and the gas consumption is little.
2. The Main Technical Parameters
3. Macine Pictures
1. Product Description
Feature:
1. Especially designed for hot sealing and cutting of T-shirt bag. It can be punched automatically in two production lines which will increase the production and save the manpower.
2. Double track designs, double production lines, double photo scanners, double servo motors.
3. Photocell for accurate registration of film printing points if the photocell can't catch printing point the machine will stop automatically.
4. Inverter control speed, easy operation, reduce electric consumption.
5. When the output bags reach the setting number, the punch machine will clamp the bags, without stop.
6. New designed sealing blade, when blade need be cleared up, it can be turned 100° And fixed. It will be safe and easy to take care.
7. Strong sealing and output bags being tear up neatly.
8. Punching machine use air and liquid pressurized cylinder, so the noise is low and the gas consumption is little.
2. The Main Technical Parameters
| Model | RL-H500×2 |
| Voltage | 380V, 3 Phase, 50hz |
| Max. Bag width | 150~430mm×2 lines |
| Producing length | 300-650mm |
| Producing speed | 100-320 pcs/min×2 lines |
| Film thickness | 0.01-0.05mm |
| Main motor | 1.5Kw |
| Main power | 16Kw |
| Machine dimension (L×W×H) | 5800×1700×1800mm |

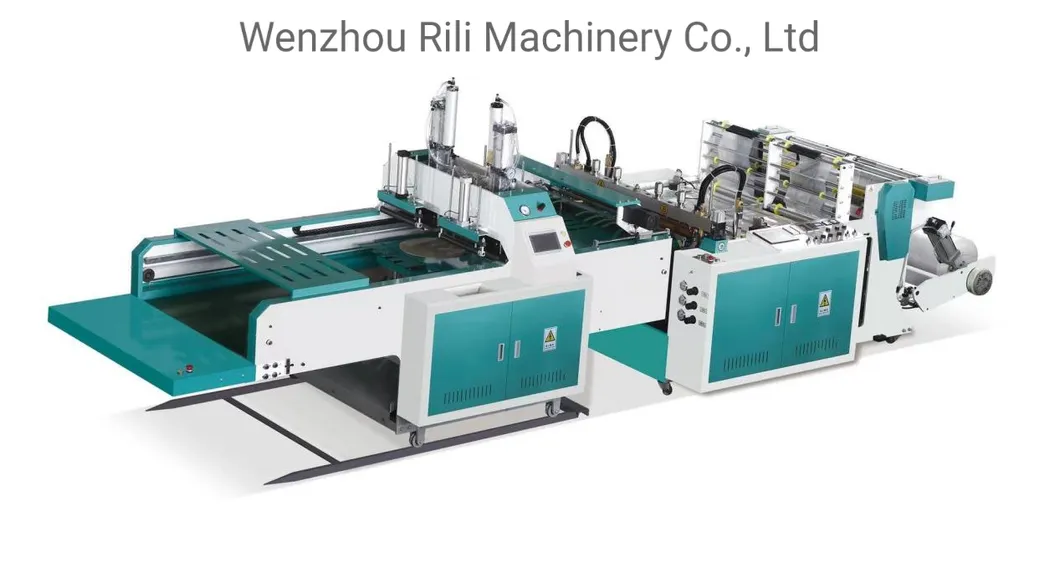

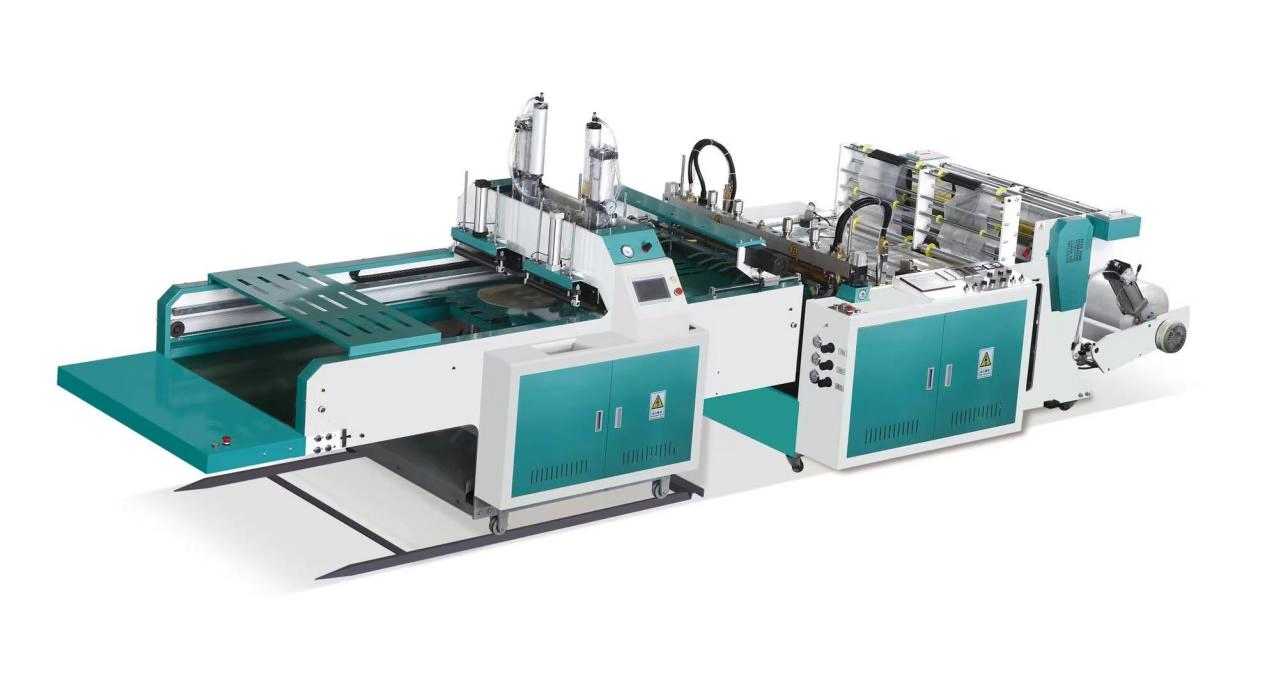

3. Macine Pictures
