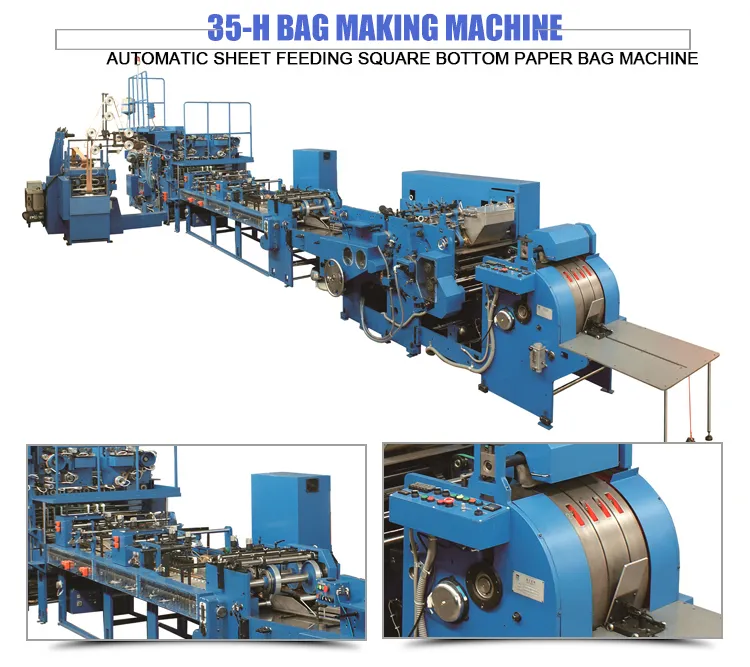

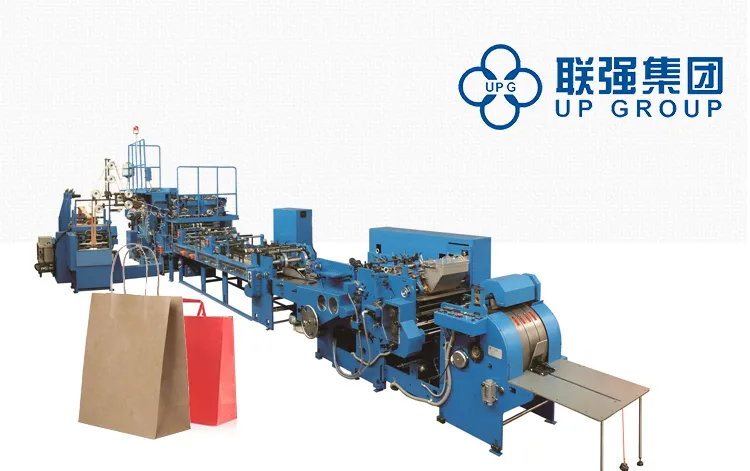

Fully Automatic Paper Bag Making Machine (LQ-22/35/45/50H)
Description1. Handle Making UnitThis machine puts a string between two pieces of patch and fixes it together with hot melt glue to make a hand grip. The handle material can be twisted paper string, twisted p. P. String, acrylic round string ribbon string, also semi-round string etc...The handle maki......
Send Inquiry
Product Description
Description
1. Handle Making Unit
This machine puts a string between two pieces of patch and fixes it together with hot melt glue to make a hand grip.
The handle material can be twisted paper string, twisted p. P. String, acrylic round string ribbon string, also semi-round string etc...The handle making machine is installed parallel to the main machine. It's possible to install it on either side of the main machine, according to the space.
2. Handle (Cardboard) Pasting Unit
Handles or cut cardboard are pasted to the mouth of the main sheet paper to be folded.
This is a sheet paper notch cutting, a mouth pasting, a handle or cardboard applying, folding and pressing unit.
3. Punching Unit
This unit punches two holes for string or four holes for happy tags. In the case of two, there are 3 kinds of punches. (4, 6, and 8mm).
According to the machine type, it's possible to set the interval between holes from 80 to 200mm.
It's now possible to set up a banana type hole cutter option.
Specifications
1. Handle Making Unit
This machine puts a string between two pieces of patch and fixes it together with hot melt glue to make a hand grip.
The handle material can be twisted paper string, twisted p. P. String, acrylic round string ribbon string, also semi-round string etc...The handle making machine is installed parallel to the main machine. It's possible to install it on either side of the main machine, according to the space.
2. Handle (Cardboard) Pasting Unit
Handles or cut cardboard are pasted to the mouth of the main sheet paper to be folded.
This is a sheet paper notch cutting, a mouth pasting, a handle or cardboard applying, folding and pressing unit.
3. Punching Unit
This unit punches two holes for string or four holes for happy tags. In the case of two, there are 3 kinds of punches. (4, 6, and 8mm).
According to the machine type, it's possible to set the interval between holes from 80 to 200mm.
It's now possible to set up a banana type hole cutter option.

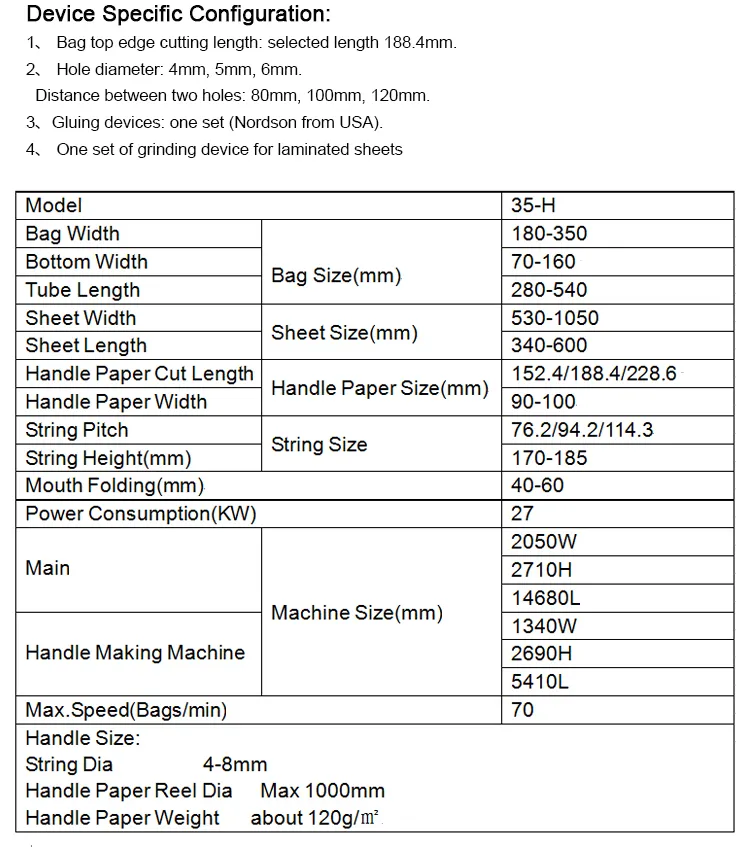

Specifications
| Model | KING-22H | KING-35H | KING-45H | KING-50H | |
| Bag Width | Bag Size (mm) | 150~260 | 180~350 | 220~450 | 280~500 |
| BottomWidth | 60~130 | 70~160 | 70~170 | 80~230 | |
| Tube Length | 215~395 | 280~540 | 320~560 | 400~740 | |
| Sheet Width | Sheet Size (mm) | 490~770 | 530~1050 | 610~1260 | 750~1260 |
| Sheet Length | 265~445 | 340~600 | 380~620 | 460~800 | |
| Handle Paper Cut Length | Handle Paper Size (mm) | 133.4 | 152.4 | 188.4 | 228.6 |
| Handle Paper Width | 80~90 | 90~100 | 90~100 | 90~100 | |
| String Pitch | String Size (mm) | 66.7 | 76.2 | 94.2 | 114.3 |
| String Height(mm) | 160~180 | 170~185 | 170~185 | 170~190 | |
| Mouth Folding (mm) | 40~50 | 40~60 | 40~60 | 40~60 | |
| Power Consunption(Kw) | 20 | 27 | 30 | 34 | |
| Main | Machine Size (mm) | 2050W | 2050W | 2320W | 2320W |
| 2700H | 2710W | 2710W | 3160H | ||
| 14120L | 14680L | 14680L | 17870L | ||
| Handle Making Machine | 1340W | 1340W | 1340W | 1340W | |
| 2690H | 2690H | 2690H | 2690H | ||
| 5410L | 5410L | 5410L | 5410L | ||
| Max. Speed(Bags/min) | 70 | 70 | 70 | 70 | |
| (Handle Size) (String Dia) 4~8m/m (Handle Paper Reel Dia) (Max)1000m/m (Handle Paper Weight) 120~G/M2 | |||||
