Heat Cutting Courier Poly Bag, Bread Bag, PP Bag, DHL Bag, EMS Bag, FedEx Bag, PE Express Bag, Bubble Bag, Poste Bag, Sf-Express Bag Making Machine
Product DescriptionUseage: Double Line Express Bag Making Machine (ZX-K1200)This machine is specially designed for the development of express bag, can be used for recycling material express bag, new material express bag, environmental protection film express bag bag making, spray glue can break glue......
Send Inquiry
Product Description

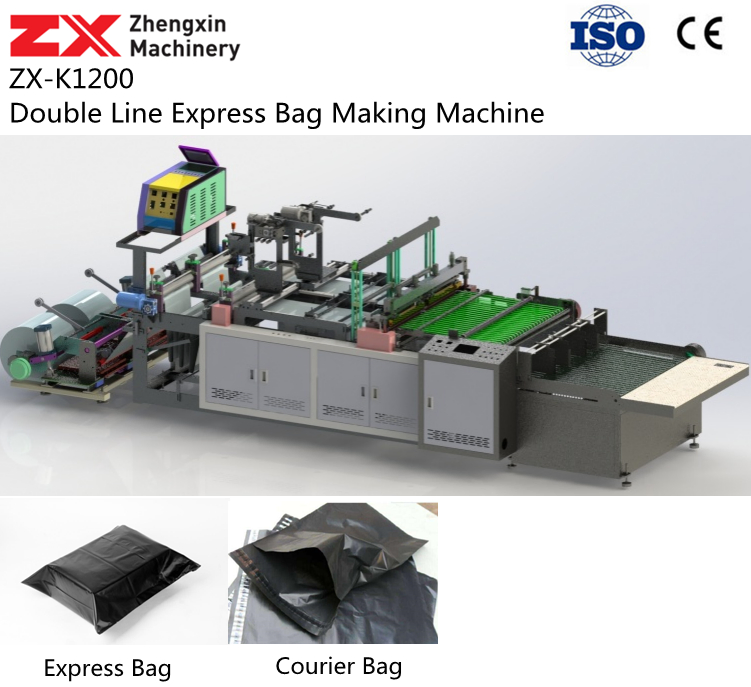

Useage: Double Line Express Bag Making Machine (ZX-K1200)
This machine is specially designed for the development of express bag, can be used for recycling material express bag, new material express bag, environmental protection film express bag bag making, spray glue can break glue, etc. It is a professional production of express bag equipment.
1. The whole machine adopts microcomputer LCD computer control, double channel double servo + Leisei operation control system is more stable.
2. Arbitrary fixed length, high-precision photoelectric tracking, accurate, stable, automatic stop alarm when losing the label.
3. Automatic feeding, automatic deviation correction, stable operation.
4. Main motor, feeding motor and feeding motor are controlled by Covo frequency conversion, easy to operate, reduce power consumption and stable discharging.
5. Hot cutting knife through special treatment, bag cutting smooth non-stick knife, ironing line firm, smooth welding edge.
6. The rectifying and discharging rack is made of laser-cut forming steel plate as the main rack, and the guide roller is a hard oxidation tube. It has 2 sets of domestic electric eye tracking, photoelectric rectifying system, magnetic powder automatic tension control, pneumatic feeding, and air expansion shaft feeding.
7. Equip with a hot melt glue machine, with two gun heads, automatic glue breaking function can be set, isolation film glue device, frequency conversion control can adjust the amount of glue.
8. Adopt high-end spray nozzle, spray width can be adjusted, break glue accurately and clean, no degumming.
9. The whole machine adopts steel plate laser cutting. 10. Can set counting stack, automatic receiving rack.
10. Can set counting stack, automatic receiving rack.
Main Technical VARIABLES
| Type | ZX-K1200 |
| Production Speed | 70-650Pcs/Min |
| Bag Width | ≤450mm |
| Bag Length | 70-650mm |
| Bag Material | PE Film,EP Film,Reworked Material |
| Power Supply | 220V/50HZ |
| Total Power | 15KW+3.3KW |
About US:

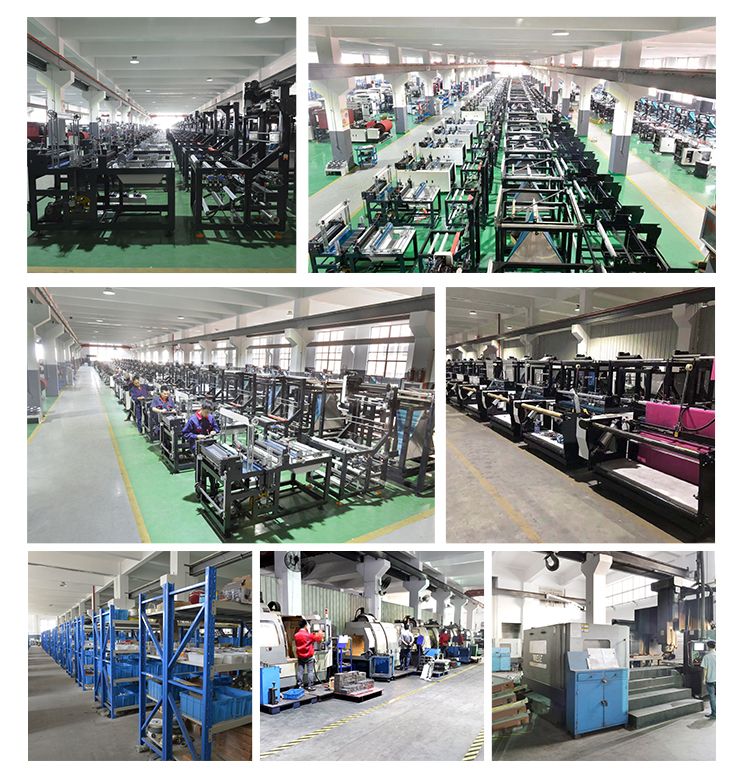

Zhejiang Zhengxin Machinery Co.,Ltd located in the seashore city of Wenzhou Pingyang.The company is a technology-based enterprise with technical strength and economic power.The main production is automatic non woven bag making machine,non woven fabric printing machine,non woven cross cutting machine,non woven slitting machine and non woven bag handle hot sealing machine etc. Equipment of non woven bag machinery completed.We have a group of middle and senior technical personnel and strong technical force,with design,development,production,installation,service integrity of operating system and passed the ISO9001 quality system certification and CE international safety certification,.
Our Team:
TECHNICIAN IN CUSTOMER FACTORY:
OUTDOOR EXTENDING:
Our Exhibitions:
Q:How long will your engineer reach our factory?
A:Within one week after machine arrival your factory.
Q: How many days will you finish installing ?
A:We will finish installation and training within 15days.
Q: What should we charge for your engineer?
A:You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 80USD one day per person.
Q: How long is your machine's warranty period?
A:All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A:We also can do service for you, but you need pay salary for my technician 80USD/day.
Q:How could we do if the parts broken within warranty?
A:We would express the free replacement parts during the warranty date.
Q: Does your engineer understand English?
A:Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
Q:Can you help us find any engineer in our location?
A:Of course, we will check and inform you as soon as possible.
Q:How do we solve the machine problem after your engineer leaving?
A:Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.
Q: How many worker do we need running those machines?
A:Except Two for bag making machine, flexo printing, slitting, ultrasonic sewing, hydraulic punching machine only need one person for each.
More Details , Kindly contact with me.
