Lq-Zb1200s-430 Fully Automatic Sheet-Feeding Paper Bag Making Machine
PerformanceLQ-ZB1200S-430 automatic paper bag making machine is ideal equipment for large batch paper bag produce. It adopts mechanical, electricity, optical and pneumatic technologies, combined with several patent technologies. After printing and die cutting/creasing, the machine automatically feed......
Send Inquiry
Product Description
Performance
LQ-ZB1200S-430 automatic paper bag making machine is ideal equipment for large batch paper bag produce. It adopts mechanical, electricity, optical and pneumatic technologies, combined with several patent technologies. After printing and die cutting/creasing, the machine automatically feeding sheets, register, top folding(or without top folding), tube forming, gusset forming, bottom opening and open, bottom cardboard insert(square bottom) , gluing and compaction output.
Features
1) Feeder: enhanced prestack paper feeder to realize non stop paper feeding, greatly save the time to load and adjust raw paper.
2) Front and side guides positioning system
3) Top folding system
4) Both water soluable cold glue and hot melt glue
5) Formation version making gusset system
6) Insert reinforced paper system
7) Bottom spray gluing system
8) Automatic bottom sealing system
9) Configuration bags compaction table
Specification
Max. sheet (LXW) | 1200x600mm |
Min. sheet (LXW) | 560x350mm |
Top folding sheet weight | 190g-300g/m2 |
Bottom Width | 80-180mm |
Bag Width | 180-430mm |
Top Folding Depth | 30-70mm |
length of bottom cardboard | 170-420mm |
width of bottom cardboard | 70-170mm |
Total Power | 30kw |
Machine Size | 14000x8000x1800mm |
Speed | 50-80bags/min |
Total Weight | 15T |
Glue Type | Water soluble cold glue (hot-melt glue |

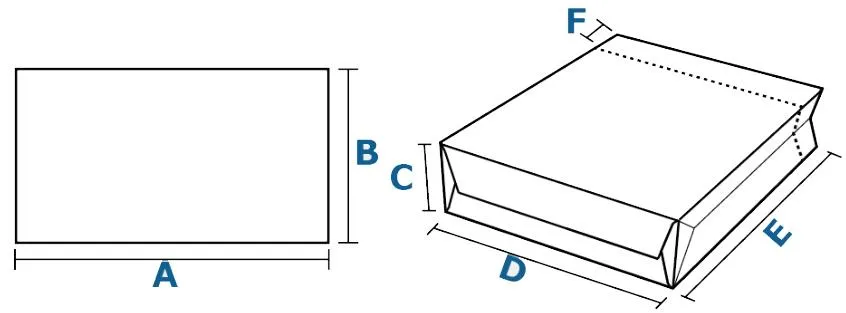

Suitable paper
A | B | C | D | E | F | |
Max. Size | 1200 | 600 | 170 | 430 | 500 | 70 |
Min. Size | 560 | 350 | 90 | 180 | 250 | 30 |
