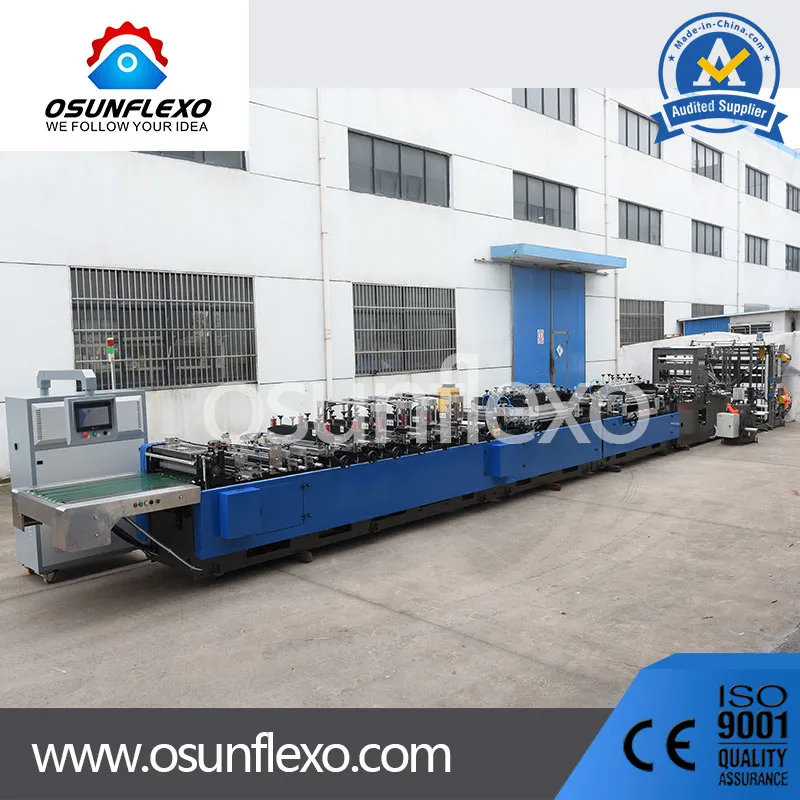

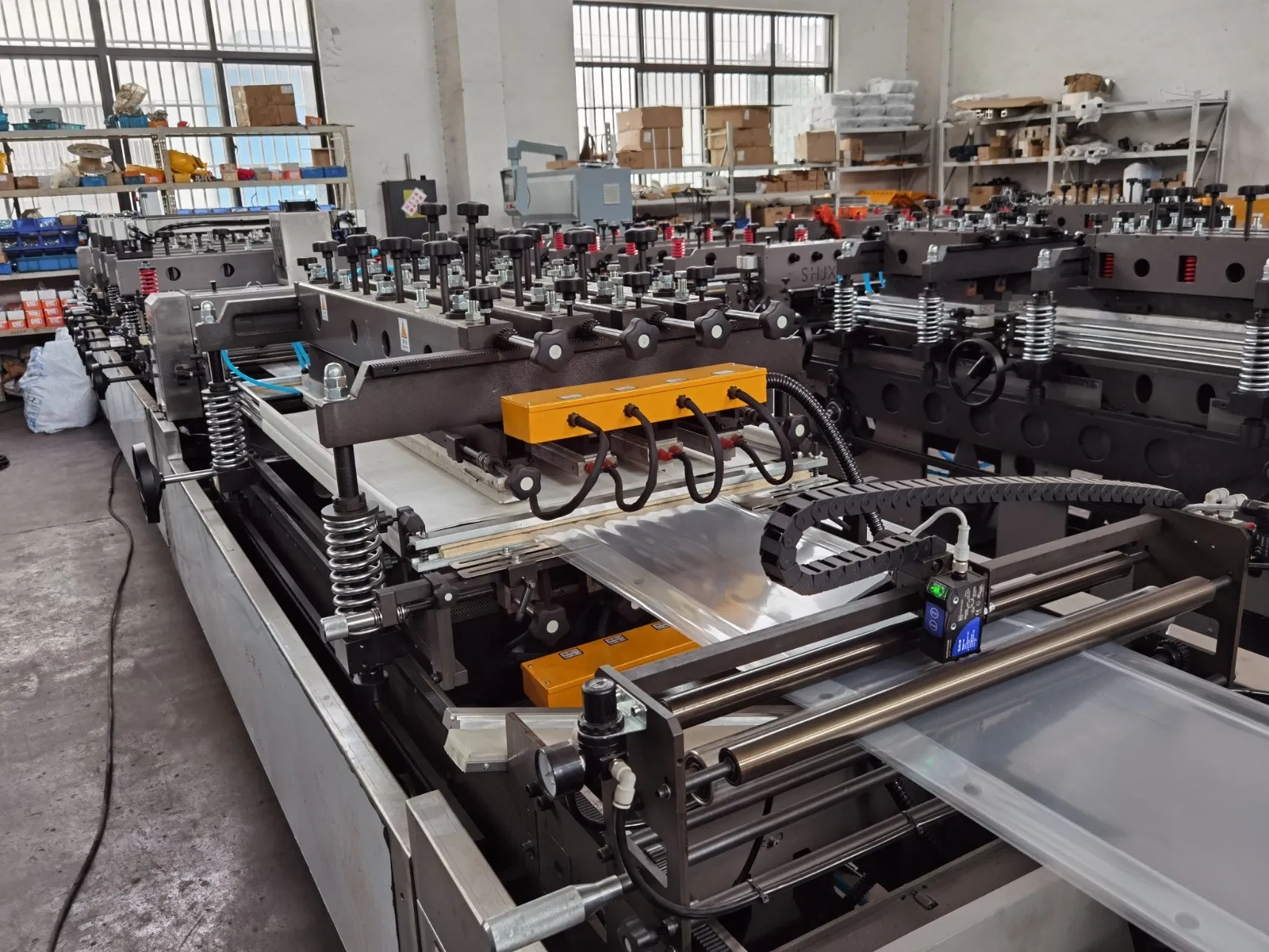

Multifunctional Combination Specialized Designed Computerized Plastic Bags Producing Machinery

Product Description

Multifunctional Combination Specialized Designed Computerized Plastic Bags Producing Machinery

Three side seal bags
Three side seal zipper bags
Stand-up bags
Stand-up zipper bags
Stand-up bottom gusset bags
Stand-up bottom guest zipper bags
Four sides seal bags with two side gusset
Seamless stand-up bag

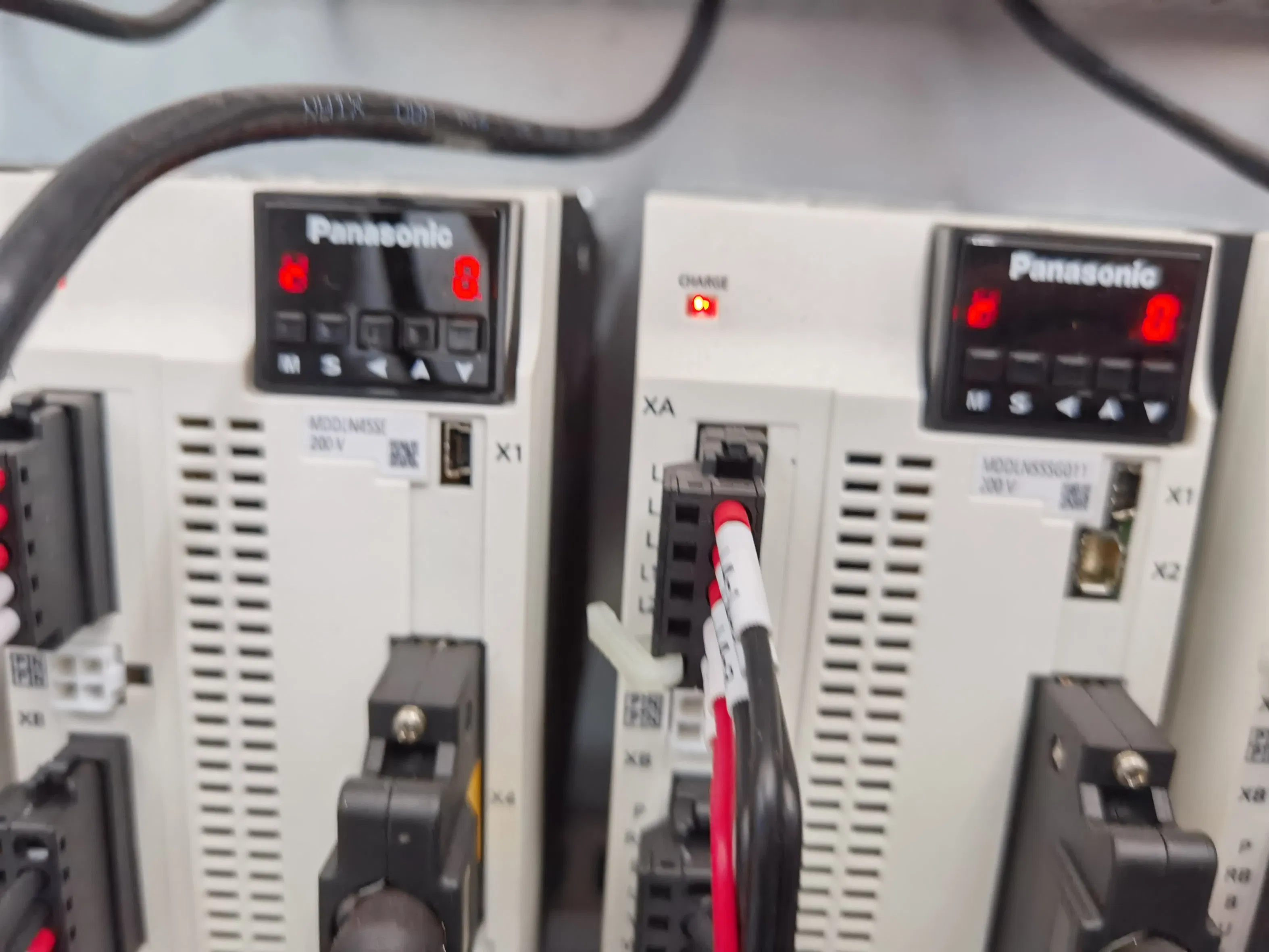

Main electrical equipment:Five servo motor with Matsushita programmable controller(PLC)
Main drive:Servo motor
Temp.control:20 stages
Material type: Laminated film like BOPP.COPP.PET.PVC.NYLON,multi-layer extrusion film.AL.plated film,Paper-Plastic laminated web
Max. bag-making speed:

         Three-edge sealed bag: 3-140 pcs/min
        Self-standing bag:3-130 pcs/min (actual tempo depending on the length and shape of bags to be made)
        Zipper bag: 3-130 pcs/min (actual tempo depending on the length and shape of bags to be made)
        Stan-up bags with zipper: 3-120 pcs/min (
        Double cutting blade model: 110 pcs/min

Max. reel-out linear speed:≤35M/min (depending on the length and shape of bags to be made)
Dimensions of bags to be made: Length:three-edge sealed bag 400 mm,Zipper bags 370mm, More length value is realized by multiple-feeding. N=1,2,3,4,5,6 (multiple-feeding)

width:600 mm(3 side sealed bags); 540mm(Zipper bag, Stand-up bags)

Max. size reeled material: Ф800mm×1240mm(diameter×width)
Positioning precision: ≤0.5mm

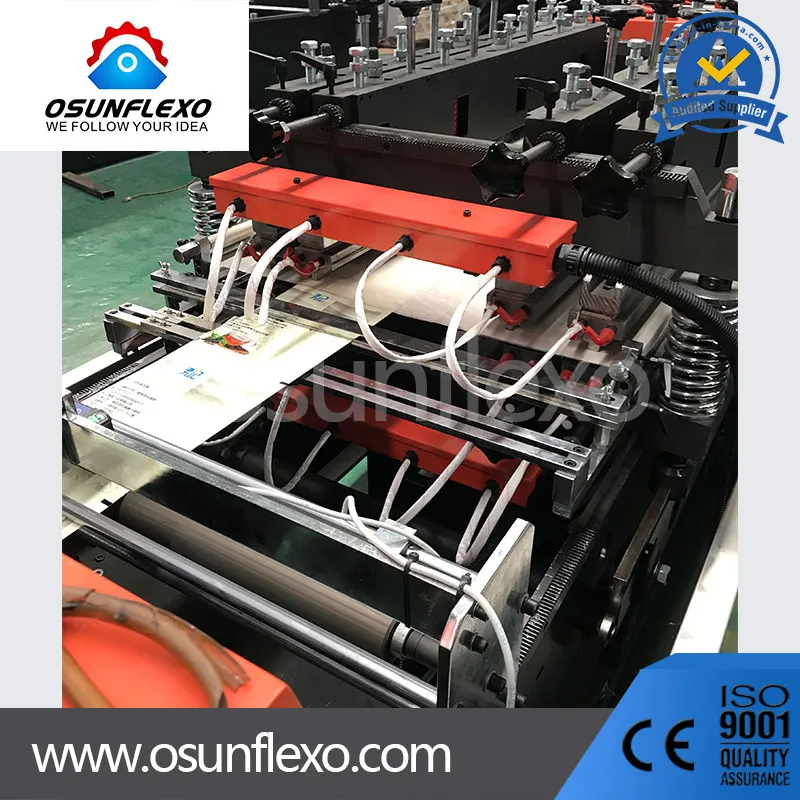

Heat sealing knife: Vertical: 4 groups,840mm; cooling: 4 groups 520mm

Horizontal: 4 groups 640mm; cooling: 2 groups 640mm
Zipper: 2 groups 750mm; cooling: 2 groups 400mm

Nos. of electric-heating block: 20 pieces
Temp. setting range: Room temp.~300ºC
Power of entire machine: 58kW
Overall dimensions: 16000 × 2200 × 1900 mm (L × W × H)
Net weight of entire machine: approx. 7500kg
Color: Grey color, black body and stainless cover (customization is available)
Model/type of control system: PLC + 10" Touch screen

Multifunctional Combination Specialized Designed Computerized Plastic Bags Producing Machinery

1.How many colors can your machine print?
A: We can print 1-12 colors.

2.What kind of material is suitable for you machine?
A: Our machine can print on plastic film like PP,PE,PVC,BOPP etc. and paper.

3.What is your after-sale service?
A: We can provide online support ,video technical support, matching parts delivery, etc.
And if necessary, we may arrange our engineers to customers' country for the skilled help.

4.How to get machines price?
Please provide the following information :
1)The color number of printing machine;
2)Material width and effective print width;
3)What material to print;
4)The photo of printing sample.

5 .What is your delivery term?
FOB,CIF,CFR usually.

6.What is your payment?
T/T.30% deposit, 70% balance before delivery.
L/C. 100% at sight.
T/T and L/C, 30% TT deposit, 70% L/C.

7.What is your delivery time?
30-50 days usually

8.What is your warranty and other terms?
One year machine warranty,and whole life technical support. Spare parts are free for customer in 1 year.
We can send our engineer to your factory for machine installation and operator training if you need,
Customer pay the flight tickets, meals and hotel for our engineer.
Salary USD150.00 per day to our engineer.
