New Design PLC Computer Control High Speed T-Shirt Shopping Plastic Bag Machine

HSCB-450X2Two Lines High Speed T-shirt Bag Making Machine(With Side Gusset)ApplicationThese machines are heat sealing and heat cutting bag making machine, which are suit for printing and non-printing bag making. The material of bag is HDPE, LDPE.HSCB-450X2 T-shirt bag making machine is special desig......

Send Inquiry

Product Description

HSCB-450X2
Two Lines High Speed T-shirt Bag Making Machine
(With Side Gusset)

Application

These machines are heat sealing and heat cutting bag making machine, which are suit for printing and non-printing bag making. The material of bag is HDPE, LDPE.

HSCB-450X2 T-shirt bag making machine is special design for separating 1 pcs plastic film to 2 lines high speed T-shirt bag production . 2 independent computers control design and driven by 4.4 kw servo motor , high efficiency, easy and stable operation, low noise, non-stop working. Suitable for producing disposable plastic T-shirt bags.

TECHNICAL PARAMETER
Model	HSCB-450X2
Production Line	2 Lines
Bag Width	200mm - 400 mm
Bag Length	330mm - 650 mm
Film thickness	10-35µm
Production Speed	100-300pcs/min*2 Lines
Set Line Speed	160-150m/min
Film Unwind Diameter	Φ900mm
Total Power	16KW
Air consumption	5HP
Machine Weight	2700KG
Machine Dimension	L11500W1700H1900mm

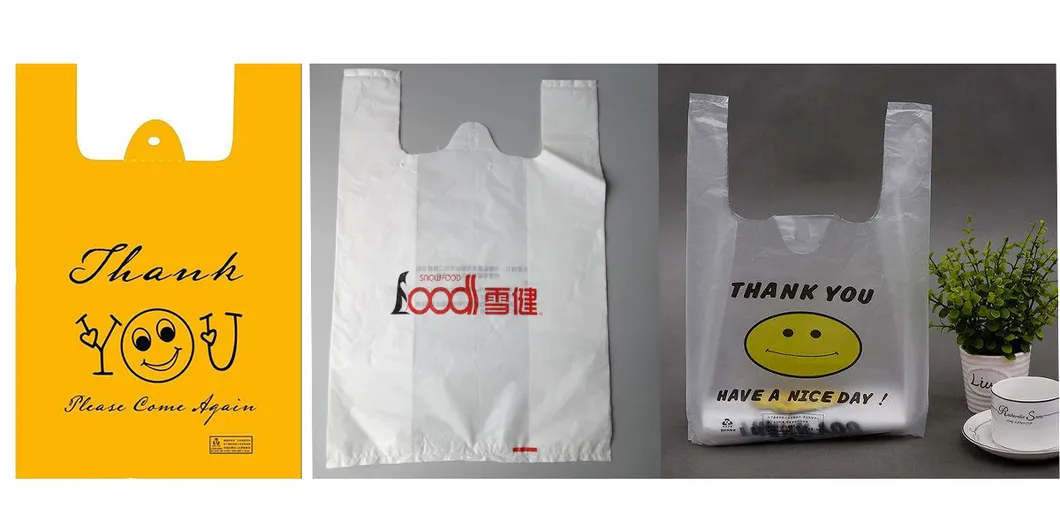

Samples of Plastic Bag

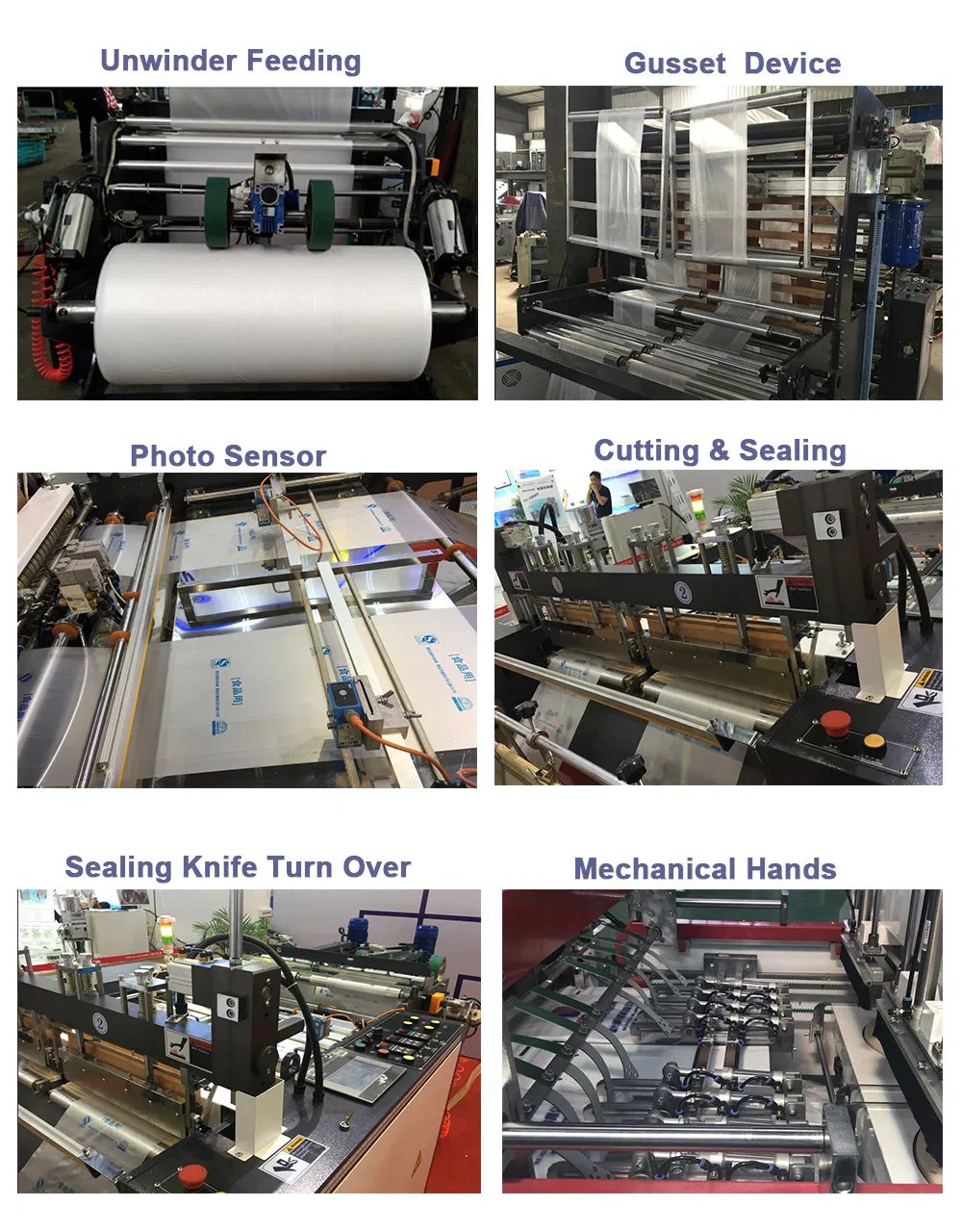

Feature and structure

1. Main control panel adopt touch screen Delta from Taiwan, high definition

2. The drive system of whole machine adopts PLC Microcomputer control (Single Chip control system ) on punch machine which integrate control of bag making part and punching part.

3. Set all function with one touch screen, simple and easy operation.

4. Machine will automatically stopped if film jammed which is detected by sensor

5. Independent winder part, high efficient unwind control; max diameter of single unwinding is 800mm; unwinding roller is choked by air shaft,

6. Automatic fold function and put on conveyor unit by unit.

7. Automatic stacks the bag and collects.

8. When the bags stack at the Set numerical, mechanical hands will automatically grab bags and machine will not stop.) on punch machine which integrate control of bag making part and punching part.

SPECIFICS

The condition of machine operating

A. illumination no exceed 3000LX
B. altitude no exceed 1000m
C. The temperature of stuff around the machine should be no higher than
+40ºC and no lower than -20ºC.
D. The relative humidity of air no exceeds 85%.
E. The place should no have conductive dust.
F. Circumstance of no blast danger and fire.

Company Brief Introduction

Wenzhou High Sea Machinery CO.,LTD is founded in 1996 (Formerly known as Jinfeng plastic packaging machinery factory). For more than 22 years, we focus on researching, developing, manufacturing and marketing on plastic bag making machine. Our products include :

1.Plastic T-shirt Bag Making Machine
2.Vegetable Bag on Roll Making Machine With Core
3.Garbage Bag Making Machine Coreless
4.Draw Tape Garbage Bag on Roll Making Machine
5.Soft Loop Handle Bag Making Machine

There are more than 54 countries and regions cooperating with us, such as south Korea,
Turkey, Malaysia, Russia,Iran, Ethiopia, Chile, Saudi Arabia, Peru, Algeria,Vietnam,etc.

Cooperation Brand

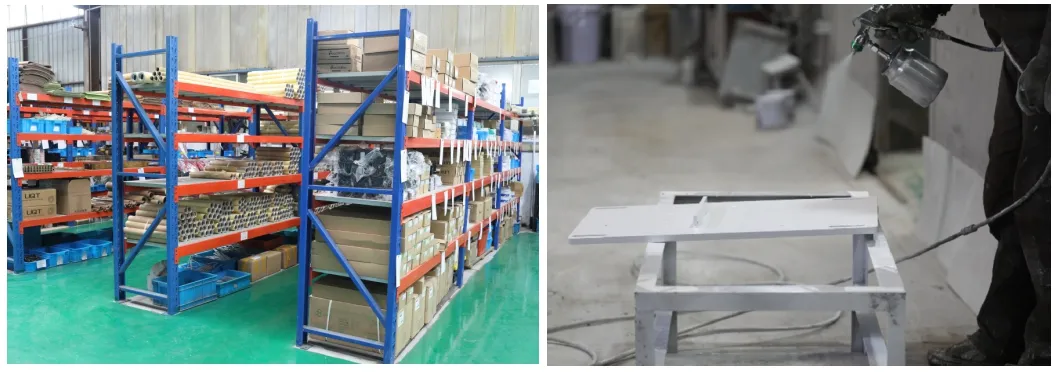

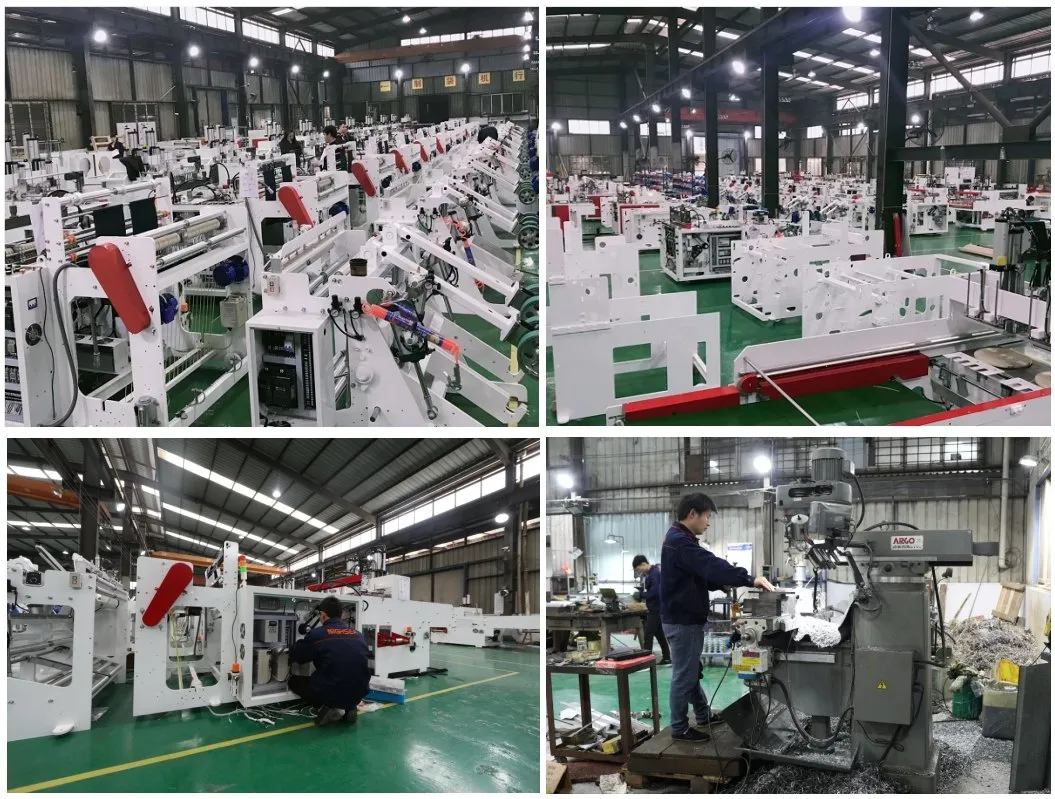

Work Shop

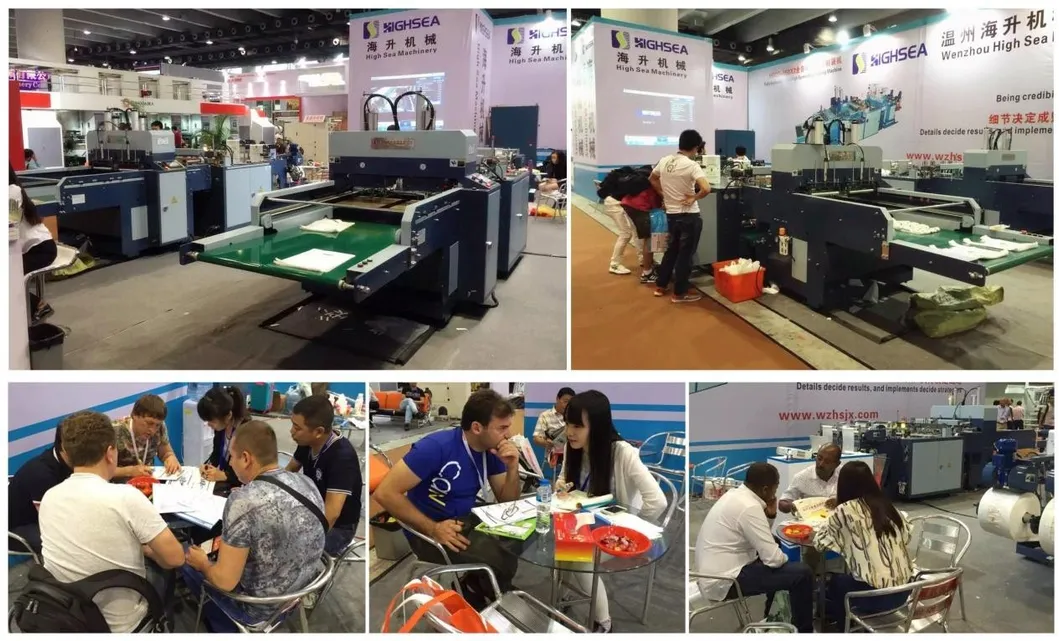

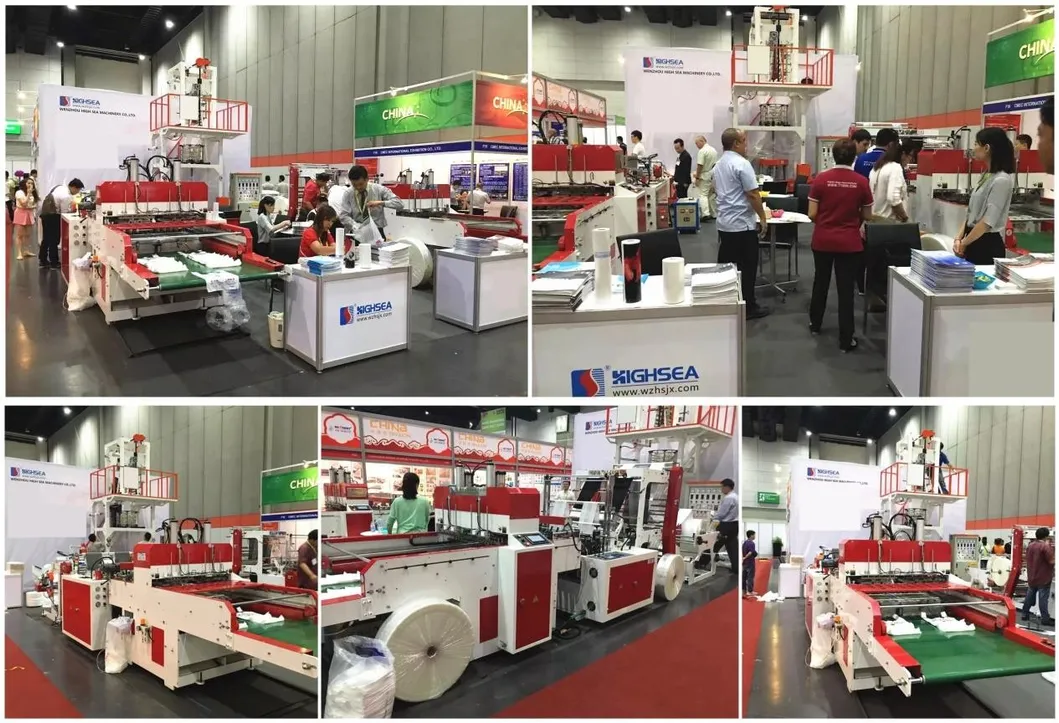

Exhibition

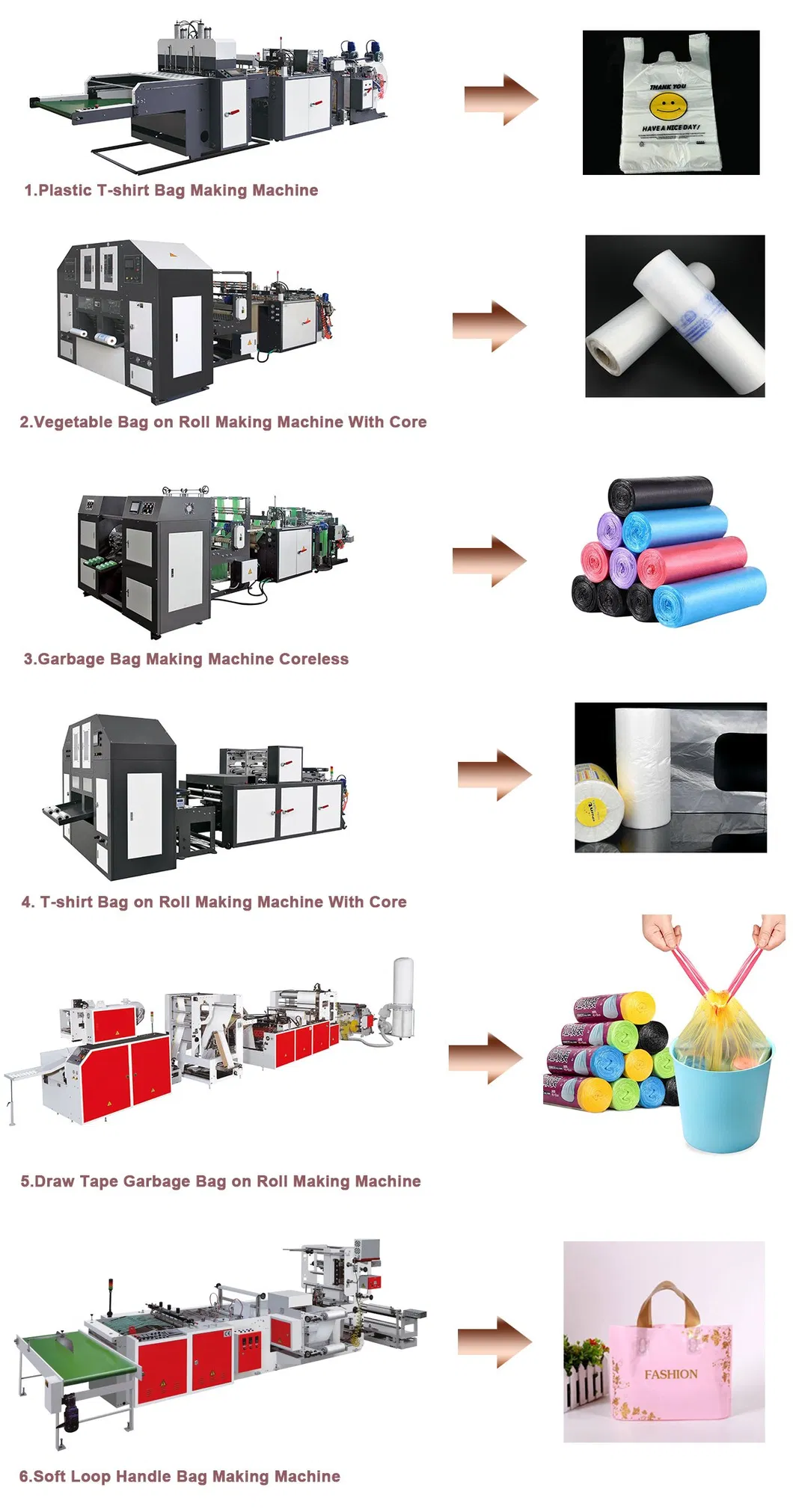

Other Products

FAQ

1.Q: How long will your engineer reach our factory?

A: Within 7-15 days after machine arrival your factory.

2. Q: How many days will you finish installing ?

A: We will finish installation and training within 3-7 days.

3. Q: What should we charge for your engineer?

A: You should charge for the cost of our engineer's visa , round trip tickets, accommandation, and also their salary 100USD one day per person.

4. Q: How long is your machine's warranty period?

A: All our machine have one year guarantee, starting from finished installation.

5. Q: How could we do after one year warranty period?

A: We also can do service for you, but you need pay salary for my technician 100USD/day.

6. Q: How could we do if the parts broken within warranty?

A:We would express the free replacement parts during the warranty date.

7. Q: Does your engineer understand English?

A:Our engineer understand a little English. All of our engineers have more than five years machine installation experience.

8. Q: How many worker do we need running those machines?

A: Usually need one person to opertate the machine.

9. Q: How do we solve the machine problem after your engineer leaving?

A: Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.

10. Q: How can I visit your company?

     A : It takes 50 minutes by car from Wenzhou Air Port to our factory .
         And it takes only 10 minutes by car from Ruian train station to High Sea factory .
