Paper Bag with Twisted Rope Handle Making Machine

Product Description

SQUARE BOTTOM PAPER BAG MACHINE WITH ROPE ONLNE

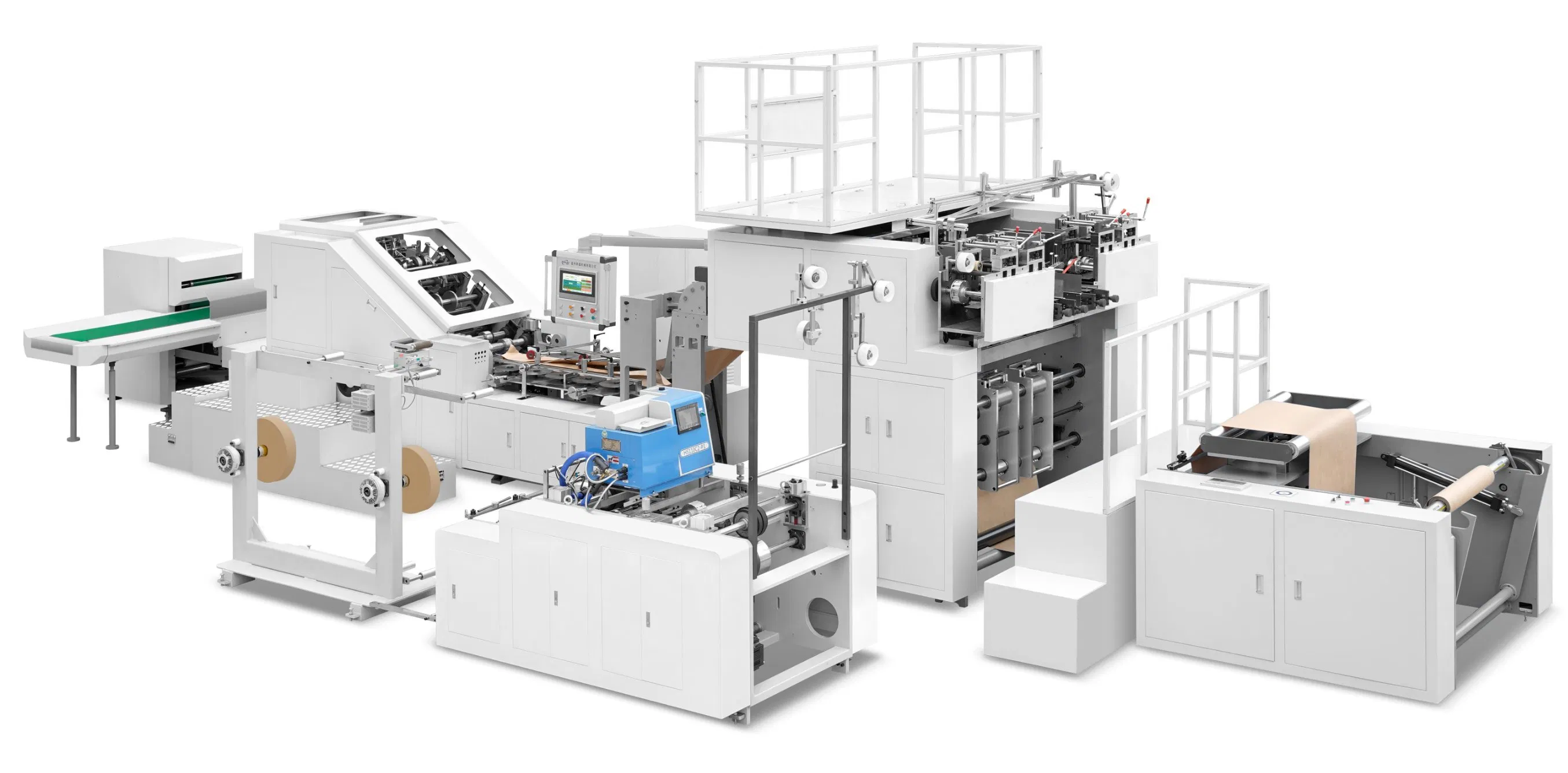

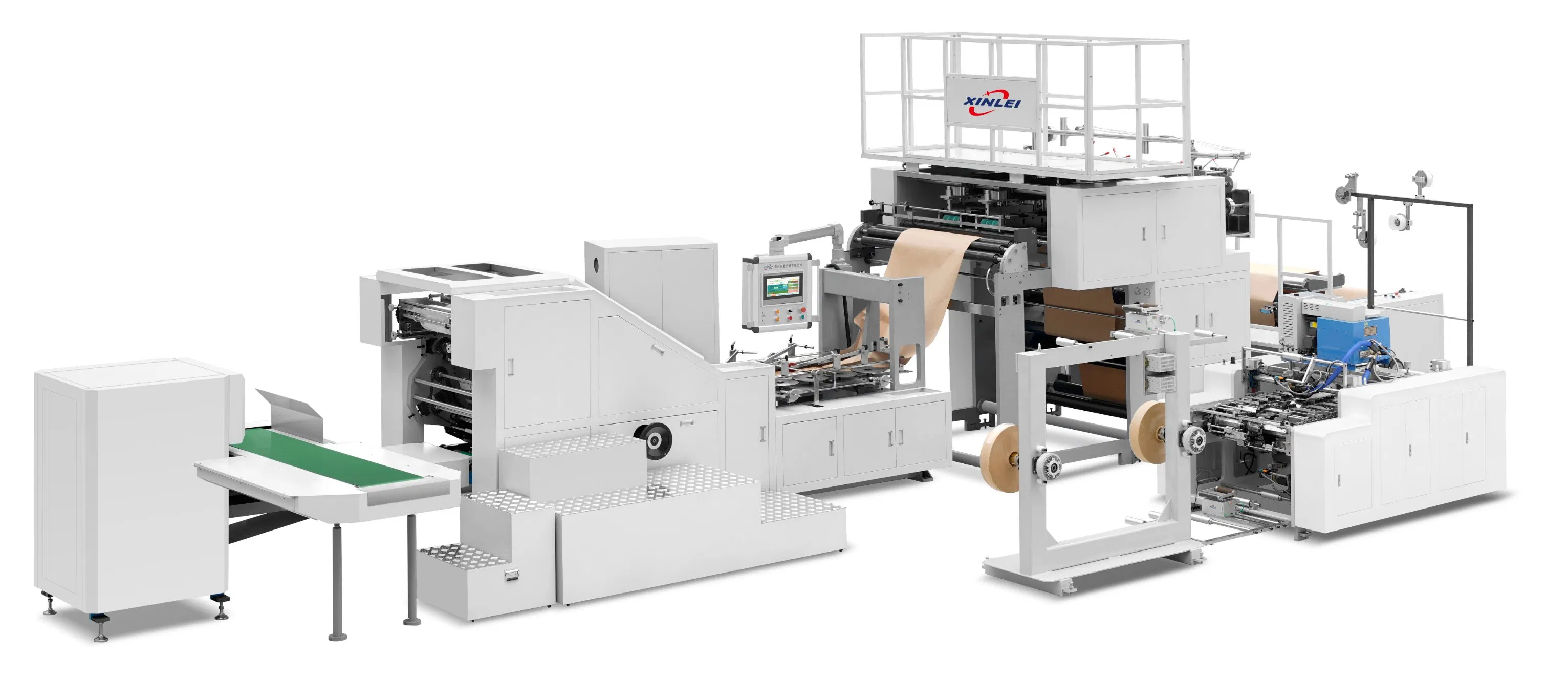

Paper Bag with Twisted Rope Handle Making Machine

I. Machine Description

1. Feature

1. Using French SCHNEIDER touch screen man-machine interface, the operation function is clear at a glance. Easy to control.

2. Adopt German original REXROTH motion controller (PC), integrated with optical fiber. Ensure stable high-speed operation.
3. Use German original REXROTH private server motor with German original SICK photoelectric eye correction. Accurately track the printed bag size.
4. The material loading and unloading adopts hydraulic lifting structure, and the unwinding adopts automatic constant tension control.
5. The raw material is rectified by Italian SELECTRA, which reduces the time for roll registration adjustment.

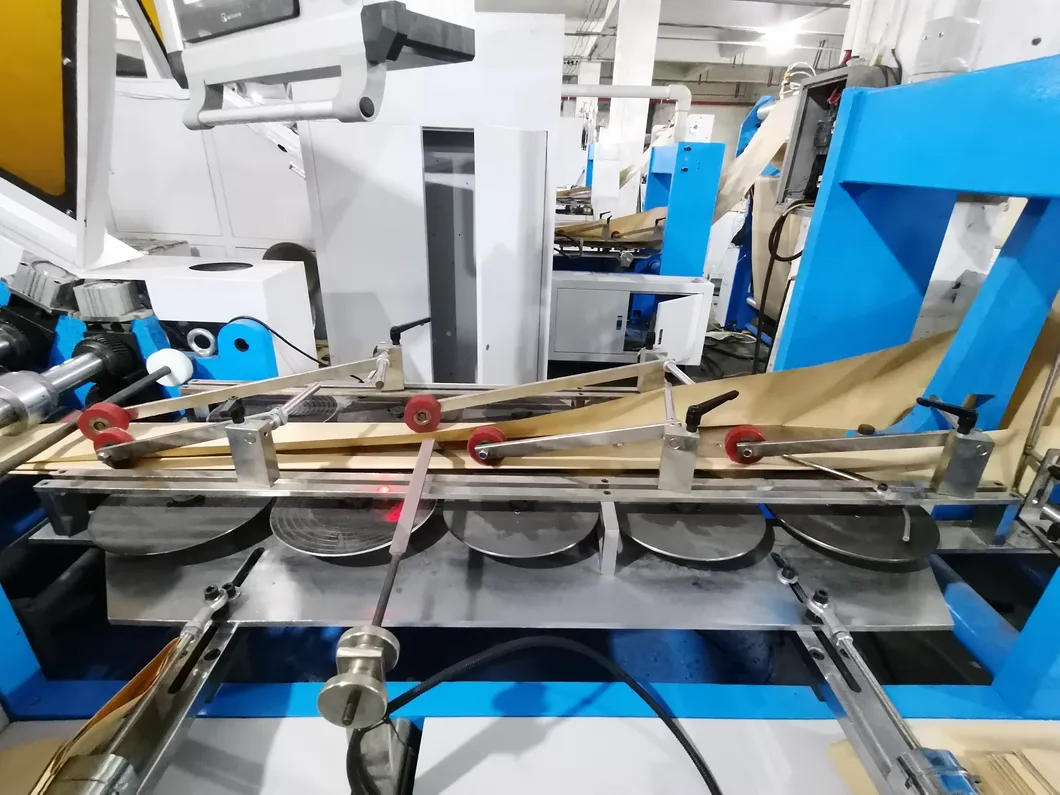

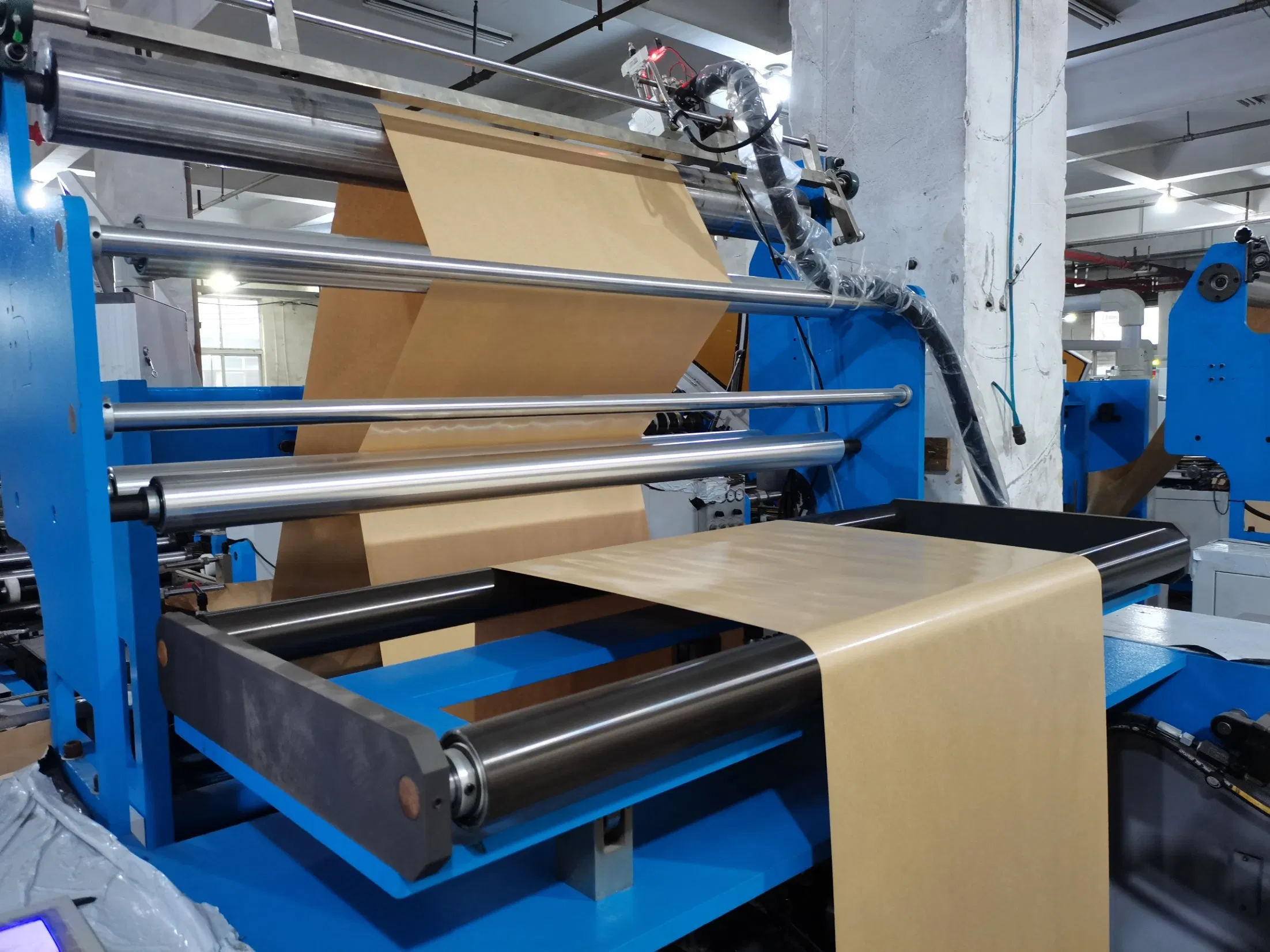

2. Machine Details pictures

Paper Bag with Twisted Rope Handle Making Machine

II. Machine Characteristics

Model		XL-ZD330
Cutting Length		270-530mm
Paper Bag Width		120-330mm

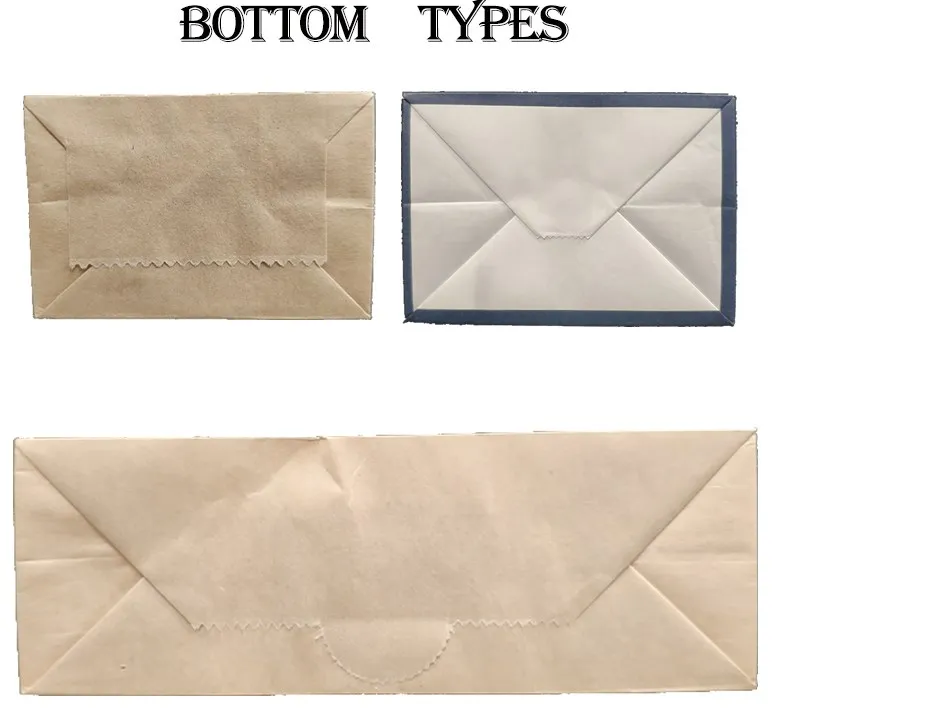

Bottom width		60-180mm
Paper bag thickness		60-150g/m2
Mechanical speed		30-220pcs/min
Paper bag speed		30-180pcs/min
Paper roll width	380-1050mm
Paper diameter	1300mm
Inner diameter of paper	76mm
Total power	380V 3phase 4line 15kw
Total Weight	8500kg
Overall size	1000037002200mm
