Ruian 200PCS /Min Plastic Vest Shopping Bag Making Machine
Use:It is a fully automatic bag making machine, especially in vest bag making. It works together with an automatic puncher. The machine is economic and fully automatic, nice in performance. It can automatically feed, seal, cut and punch vest shape.Featrues: 1. The cutting knife is from Maanshan with......
Send Inquiry
Product Description
It is a fully automatic bag making machine, especially in vest bag making. It works together with an automatic puncher. The machine is economic and fully automatic, nice in performance. It can automatically feed, seal, cut and punch vest shape.
Featrues:
1. The cutting knife is from Maanshan with good quality, and easy for adjusting gap between the above and the below cutter knife while manufacture products with various thickness.
2. The sealing copper knife will be adjusted conveniently and be wholly overturn by 180 degree, which make it convenient for cleaning and replacing adhesive plaster.
3. Adopt Micro-computer controlling, matched with high-precise and high quality mechanical parts, fix length easily, so as to reach the purpose of high speed, saving energy and durability.
4. Synchronous seal and cold cutting, no pull feeding, firm back cover.
5. Adopt high quality magic eyes tracking system for tracking the print bags
6. Alarm systems. While the printing position is not correct, there is no material and the pre-set numbers is reached it will stop automatically.
7. Imported servo motor to control film drawing length, stable and long life.
8. The punching part with two high quality air cylinders, to produce T-shirt bag.
Main Parameters:
| Model | 600 |
| Max. Width | 200-600mm |
| Max. Length | 300-800mm |
| Bag-making Thickness | 0.01-0.05mm |
| Bag-making Speed | 150-200pcs/min |
| Air Pressure | 6HP |
| Main Power | 7.5kw |
| Weight | 1500kg |
| Overall Dimension | 7000×1600×1800mm |
Finished heat sealing cold cutting machines for test run:

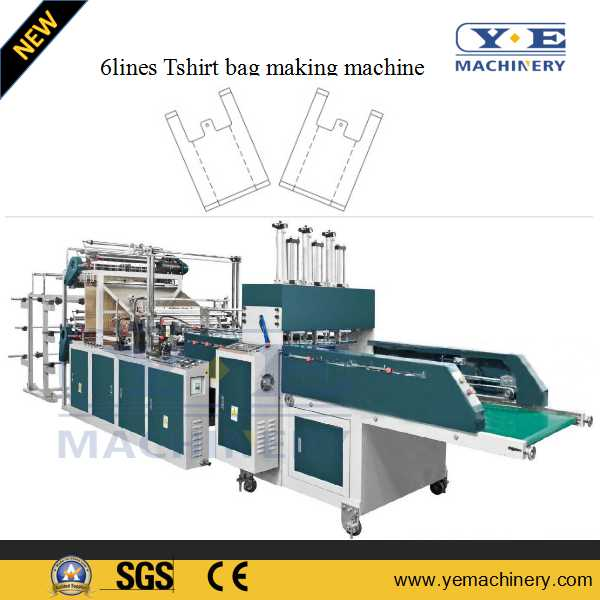

6lines T-shirt bag making machine:

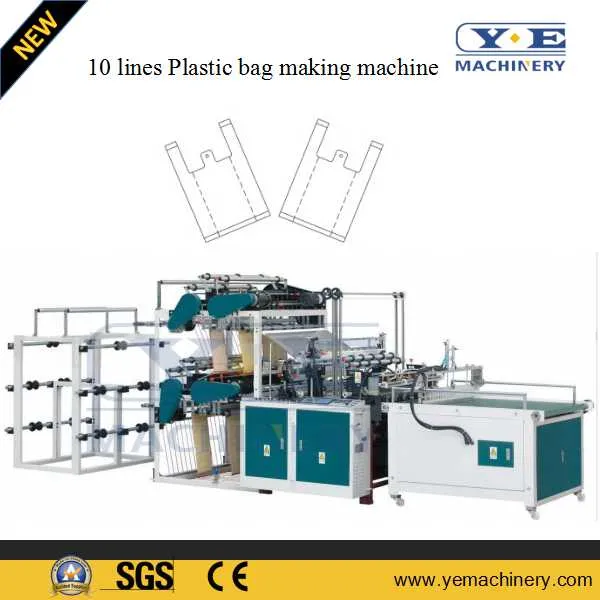

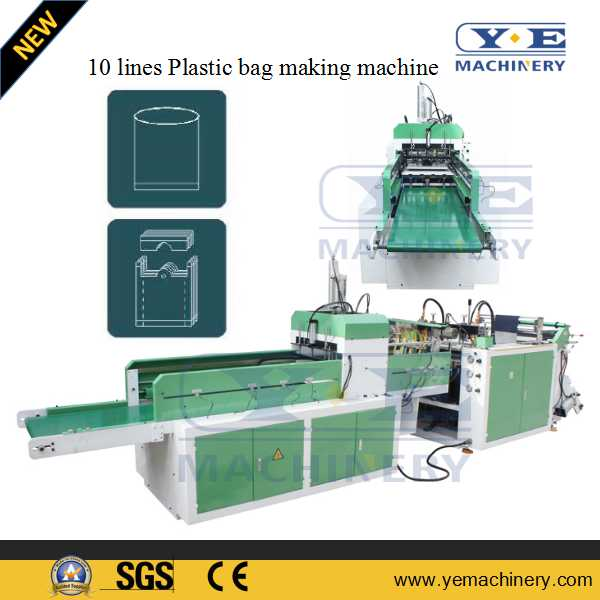

10lines Vest bag making machine:
